Loader
| Breakout Force | 4000 lbf (17.8 kN) |
| Max Operating Load Rating | 1500 lb (703 kg) |
| Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Bucket Width | 61.5 in (1562 mm) |

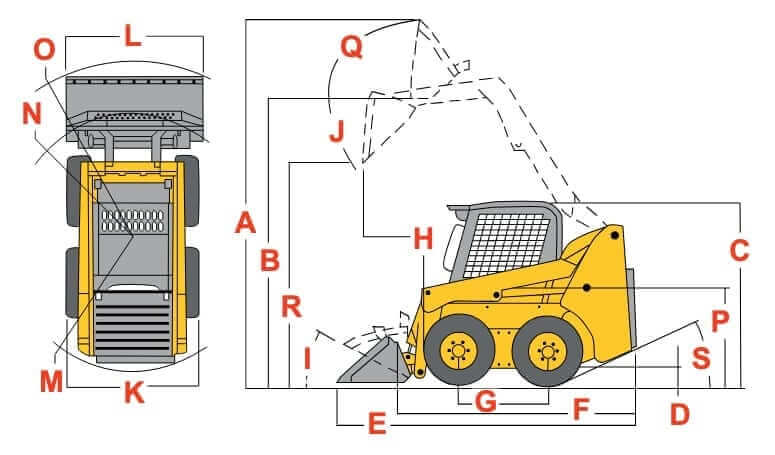

Dimensions
| A. Overall Operating Height – Fully Raised | 143.5 in (3645 mm) |
| B. Height to Hinge Pin – Fully Raised | 112 in (2845 mm) |
| C. Overall Height to Top of ROPS | 77.7 in (1974 mm) |
| D. Ground Clearance to Chassis | 7.5 in (191 mm) |
| E. Overall Length w/ Bucket | 123.5 in (3137 mm) |
| F. Overall Length w/o Bucket | 95 in (2413 mm) |
| G. Wheelbase | 36.7 in (932 mm) |
| H. Dump Reach at Full Height | 25.7 in (654 mm) |
| I. Bucket Rollback at Ground | 28° |
| J. Dump Angle | 32° |
| K. Overall Width | 59 in (1499 mm) |
| L. Bucket Width | 61.5 in (1562 mm) |
| M. Clearance Circle – Rear | 50.5 in (1283 mm) |
| N. Clearance Circle – Front w/o Bucket | 39.3 in (997 mm) |
| O. Clearance Circle – Front w/ Bucket | 73 in (1854 mm) |
| P. Seat to Ground Height | 34.6 in (879 mm) |
| Q. Rollback at Full Height | 100° |
| R. Dump Height | 88.2 in (2242 mm) |
| S. Departure Angle | 24° |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 4TNV88 |
| Displacement | 133.6 cu in (2.2 L) |
| Engine Power | 47 hp (34.2 kw) |
| Power Measured @ | 2600 rpm |
| Peak Torque | 106 lb ft (145 Nm) |
| Torque Measured @ | 1680 rpm |
| Aspiration | Naturally aspirated |
| Emission Standards | Tier 4 Interim (Stage IIIB) |
Operational Specs
| Operational Weight | 5623 lb (2551 kg) |
| Operational Capacity | 1450 lb (658 kg) |
| Tipping Load | 2900 lb (1315 kg) |
| Operating Voltage | 12 V |
| Alternator | 40 amps |
| Battery | 12 V, CCA 700 |
| Max Travel Speed | 6.6 mph (10.6 km/h) |
| Standart Tire Size | 10.00 x 16.5 HD |
Hydraulic System
| Pump Flow Capacity | 18.5 gal/min (70 L/min) |
| Relief Valve Pressure | 2350 psi (16200 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 14.3 gal (54.1 L) |
| Engine Oil Capacity | 2.3 gal (8.6 L) |
| Cooling System Capacity | 2.5 gal (9.5 L) |
| Hydraulic System Capacity | 12 gal (45 L) |
| Chain Case Capacity (each side) | 2 gal (7.6 L) |
