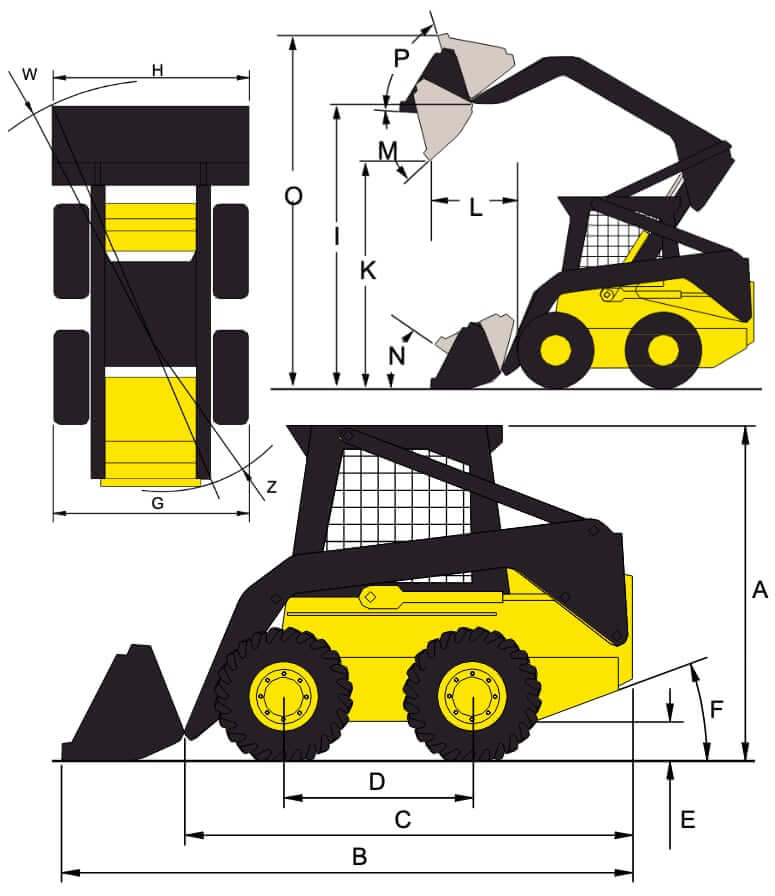

Dimensions
| Length With Bucket | 5.48 ft in (1670 mm) |
| Width Over Tires | 5.48 ft in (1670 mm) |
| Ground Clearance | 7.88 in (200 mm) |
| Height To Top Of Cab | 6.24 ft in (1900 mm) |
| Wheelbase | 3.55 ft in (1080 mm) |
| Clearance At Max Lift And Dump | 7.55 ft in (2300 mm) |
| Reach At Max Lift And Dump | 29.14 in (740 mm) |
| Turning Radius From Center – Machine Rear | 59.85 in (1520 mm) |
| Turning Radius From Center – Inc Bucket | 74.02 in (1880 mm) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Iveco FPT |
| Engine Model | N844 |
| Gross Power | 46 hp (34.4 kw) |
| Net Power | 44 hp (32.9 kw) |
| Power Measured @ | 2900 rpm |
| Displacement | 119.4 cu in (2 L) |
Operational Specs
| Operational Weight | 4872.3 lb (2210 kg) |
| Fuel Tank Capacity | 14.4 gal (54.5 L) |
| Cooling System Fluid Capacity | 2.7 gal (10.2 L) |
| Engine Oil Fluid Capacity | 2.2 gal (8.3 L) |
| Max Speed | 7.6 mph (12.1 km/h) |
| Hydraulic System Fluid Capacity | 8.7 gal (32.6 L) |
| Chain Box Fluid Capacity – Each Side | 3.3 gal (12.3 L) |
| Tire Size | 10×16.5 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
Loader
| Breakout Force | 3719.2 lb (1687 kg) |
| Operating Load Rating | 1600.6 lb (726 kg) |
| Tipping Angle | 3498.8 degrees (3498.7363 degrees) |
| Bucket Capacity | 0.6 yd3 (0.5 m3) |
Hydraulic
| Pump Type | New Holland double acting |
| Pump Flow Capacity | 15.5 gal/min (58.7 L/min) |
| Relief Valve Pressure | 2600 psi (17926.4 kPa) |
