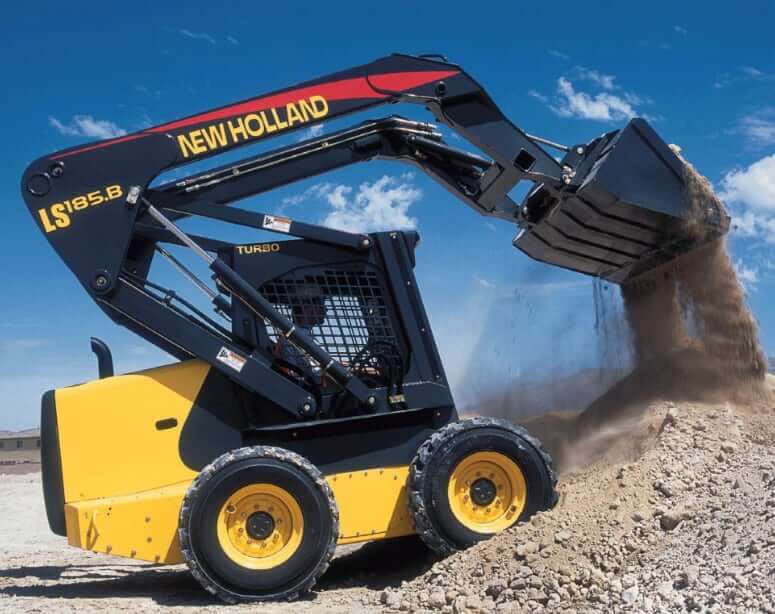

Loader
| Operating Load Rating | 2500 lb (1134 kg) |
| Tipping Load | 5000 lb (2268 kg) |
| Bucket Breakout Force (SAE) | 6034 lb (2737 kg) |
| Arm Breakout Force (SAE) | 4194 lb (1902 kg) |
| Bucket Capacity (72″ Dirt/Foundry) | 0.7 yd3 (0.5 m3) |
| Angle of Departure | 28.4° |
| Dump Angle (maximum) | 45° |
| Rollback Angle at Carry Position | 37° |
| Dump Height (SAE) | 100.4 in (2550 mm) |
| Dump Reach at Maximum Height (SAE) | 32.7 in (830 mm) |
| Height to Hinge Pin | 124.4 in (3160 mm) |
Dimensions
| Length With Bucket | 11.55 ft in (3520 mm) |
| Width Over Tires | 5.94 ft in (1810 mm) |
| Ground Clearance | 7.88 in (200 mm) |
| Height To Top Of Cab | 6.44 ft in (1960 mm) |
| Wheelbase | 4.01 ft in (1220 mm) |
| Turning Radius From Center – Machine Rear | 70.1 in (1780 mm) |
| Turning Radius From Center – Inc Bucket | 81.1 in (2060 mm) |
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | New Holland / Iveco FPT |
| Engine Model | New Holland 334TM2 |
| Displacement | 207.5 cu in (3.4 L) |
| Bore | 4.1 in (104 mm) |
| Stroke | 5.2 in (132 mm) |
| Gross Power | 78 hp (58 kw) |
| Net Power | 72 hp (54 kw) |
| Power Measured @ | 2300 rpm |
| Peak Torque | 228 lb ft (319 Nm) |
| Torque Measured @ | 1400 rpm |
| Torque Rise | 34% |
| Aspiration | Turbocharged |
| Air Cleaner | Dual stage, dry element filter |
Transmission
| Type | Hydrostatic transmission |
| Pumps | Variable displacement axial piston (servo controlled) 0-2.81 in3 (0-46 cc) |
| Wheel Torque | 6332 lb ft (8586 Nm) |
| Hydrostatic Motors | Radial piston motor |
| Low Range | 2.87 in3 (47.0 cc) |
| High Range | 1.72 in3 (28.2 cc) |
| Axle Diameter | 2.44 in (619 mm) |
| Chain Size | 100 HV |
| Final Drive | Gear/chain drive |
Operational Specs
| Operational Weight | 7100 lb (3220 kg) |
| Max Travel Speed (Low range) | 6.9 mph (11.1 km/h) |
| Max Travel Speed (High range) | 11.3 mph (18.1 km/h) |
| Tire Size | 10×16.5 |
| Operating Voltage | 12 V |
| Alternator | 95 amps |
| Battery | 12 V, CCA 925 |
Hydraulic System
| Pump Type | Gear type |
| Bucket / Boom Cylinders | New Holland double acting |
| Pump Flow Capacity | 19.3 gal/min (73.1 L/min) |
| Pump High-Flow Capacity (optional) | 34.7 gal/min (131.4 L/min) |
| Relief Pressure Setting | 2500 psi (17300 kPa) |
| Control Valve | Three spool, open center |
| Filtration | 6 micron, spin-on filter |
Service Refill Capacities
| Fuel Tank Capacity | 18 gal (68.1 L) |
| Engine Oil Capacity (w/ Filter) | 2.2 gal (8 L) |
| Cooling System Capacity | 4.5 gal (17 L) |
| Hydraulic System Capacity (w/ Tank) | 15.1 gal (56.8 L) |
| Hydraulic Tank Capacity | 5 gal (18.9 L) |
| Chain Box Fluid Capacity (each side) | 2.7 gal (10.2 L) |
