The Massey Ferguson GC1700 series, including the GC1723E sub-compact utility tractor and the GC1723EB backhoe-loader tractor, offers a versatile and efficient solution for a range of agricultural and landscaping tasks. Equipped with a powerful and fuel-efficient engine, the MF GC1723 delivers reliable performance and ample power for various applications. Whether it’s mowing, landscaping, material handling, or light construction work, these tractors are designed to tackle a wide array of tasks with ease.
One of the standout features of the Massey Ferguson GC1723E is its compact size, making it ideal for maneuvering in tight spaces and navigating around obstacles. Despite its small footprint, these tractors boast impressive lift capacity and hydraulic performance, allowing operators to handle heavy loads and operate a variety of implements with precision.

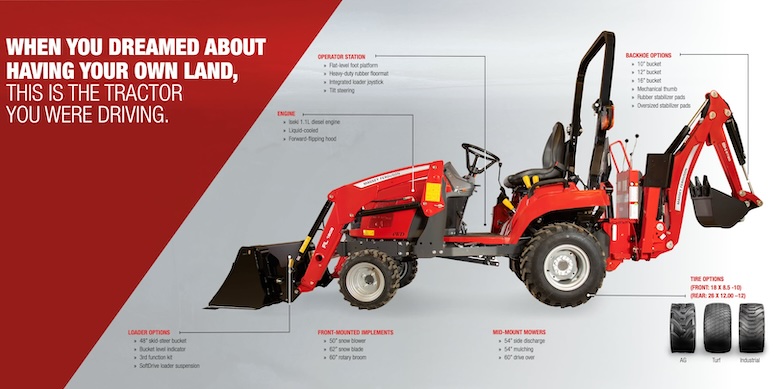

Massey Ferguson GC1723E / GC1723EB Specs

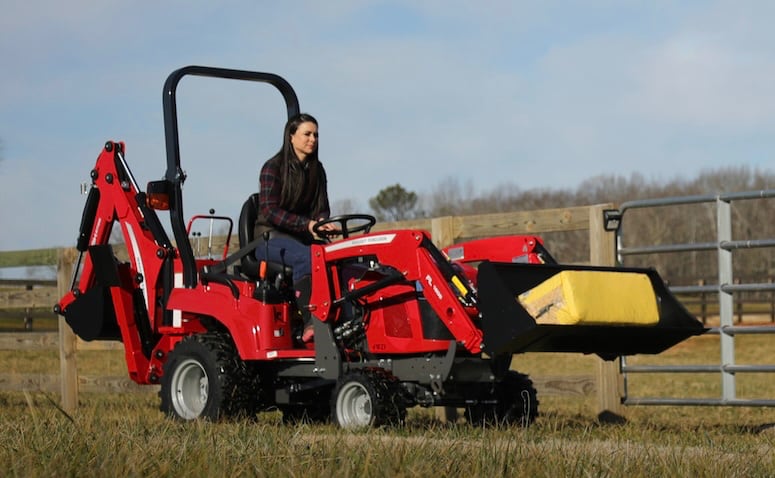

The GC1723EB variant, with its integrated backhoe-loader, adds an extra dimension of versatility to the lineup. Whether digging trenches, excavating foundations, or loading materials, the backhoe-loader configuration enhances the tractor’s capabilities, making it a valuable asset on any job site.
In terms of comfort and convenience, the MF GC1723E offers a user-friendly operating environment with intuitive controls, ergonomic seating, and excellent visibility. The cabin design prioritizes operator comfort, reducing fatigue during long hours of operation.
| Specification | MF GC1723E | MF GC1723EB |
|---|---|---|
| MF GC1723 Engine | ||
| Model | Iseki 1.1-liter, diesel, 3-cylinder, liquid-cooled | Iseki 1.1-liter, diesel, 3-cylinder, liquid-cooled |
| Rated Engine Power | 22.5 HP (16.8 kW) | 22.5 HP (16.8 kW) |
| Rated Engine Speed | 2,600 RPM | 2,600 RPM |
| PTO Power | 18.3 HP (13.6 kW) | 18.3 HP (13.6 kW) |
| Transmission | ||
| Type | 2-range hydrostatic transmission with side-by-side foot pedals & cruise control | |
| Power Take-off (PTO) | ||
| Rear PTO | Independent, 540 RPM, 1.375-inch, six spline | Independent, 540 RPM, 1.375-inch, six spline |
| Mid PTO (in.) | Independent, 2000 RPM, 1-inch, fifteen spline | Independent, 2000 RPM, 1-inch, fifteen spline |
| Hydraulics | ||
| Hydraulic Flow | 6.3 GPM (23.0 Lpm) | 6.3 GPM (23.0 Lpm) |
| Electrical | ||
| Battery | 12 V | 12 V |
| Battery CCA | 433 | 433 |
| Charging | 40 A | 40 A |
| Charging system | alternator | alternator |
| Ground | negative | negative |
| Tractor hitch | ||
| 3-Point Hitch | Cat. I | Cat. I |
| 3-Point Hitch Lift Capacity – Pivot Pin | 1,191 lbs. (540 kg) | 1,191 lbs. (540 kg) |
| 3-Point Hitch Lift Capacity – 24 in. behind Pivot Pins | 661 lbs. (300 kg) | 661 lbs. (300 kg) |
| Tractor-Loader-Backhoe Package | No | Yes |
| MF GC1700 Series Tires (AG, Turf, R4 Ind.) | ||
| Front Tire: | 18×8.50-10 | 18×8.50-10 |
| Rear Tire: | 26×12.00-12 | 26×12.00-12 |
| MF GC1723 Dimensions | ||
| Wheelbase | 57,1 in. (145 cm) | 57,1 in. (145 cm) |
| Ground clearance | 6,7 in. (17 cm) | 6,7 in. (17 cm) |
| Length | 97,6 in. (247 cm) | 97,6 in. (247 cm) |
| Width | 46.7 in. (118 cm) Minimum width with R1 tires | |
| Height (steering wheel) | 52 in. (132 cm) | 52 in. (132 cm) |
| Height (ROPS) | 72,8 in. (184 cm) | 72,8 in. (184 cm) |
| ROPS Type | Fixed Folding | Fixed Folding |
| MF GC1723E Weight | ||
| Weight | 1521 lbs (689 kg) | 1521 lbs (689 kg) |
| Max capacity | 2690 lbs (1220 kg) | 2690 lbs (1220 kg) |
| Max front axle | 1940 lbs (879 kg) | 1940 lbs (879 kg) |
| Max rear axle | 2094 lbs (949 kg) | 2094 lbs (949 kg) |

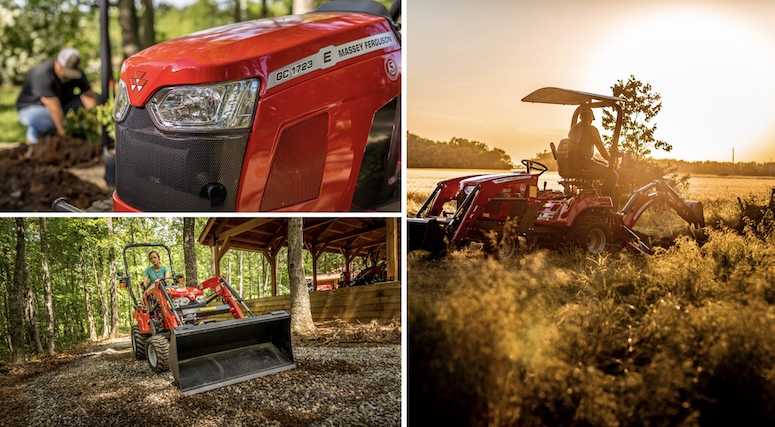

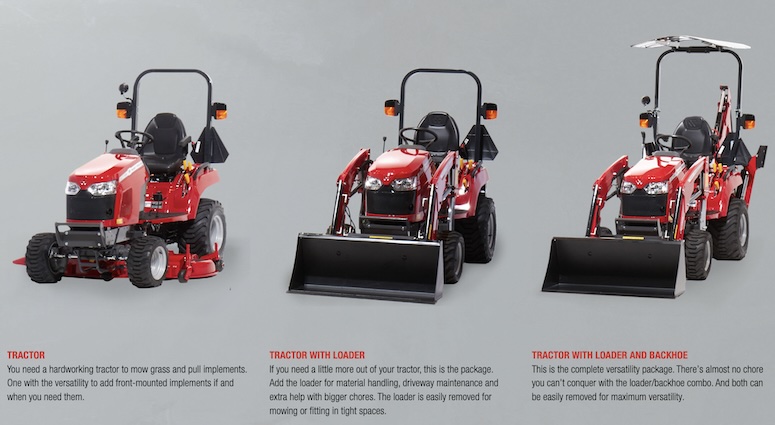

Massey Ferguson GC1723E Attachments
The Massey Ferguson GC1723E offers versatility and efficiency, enhanced further by a range of compatible attachments designed to tackle various tasks with ease. From mowing expansive lawns to clearing snow-covered driveways, the GC1723E attachments provide reliable performance to meet diverse needs.
With options like the 54″ and 60″ mid-mount mower decks, precision grass cutting becomes effortless, ensuring a well-maintained lawn. Additionally, the 50″ snow blower attachment effortlessly clears snow, while the 54″ and 60″ blades offer versatility for grading and leveling tasks. For added functionality, the DL95 and FL1805 front-end loaders enable efficient material handling, while the CB65 backhoe attachment expands the tractor’s capabilities, making it suitable for digging and excavation tasks. With these attachments, the Massey Ferguson GC1723E becomes a versatile workhorse, capable of handling various tasks around the property with ease and efficiency.
Massey Ferguson FL1805 Loader
| Specifications | |
|---|---|
| Tool Carrier | Skid Steer Quick Attach |
| Bucket Width | 54 in (137 cm) |
| Max. Lift Height – Pivot Pin | 74 in (1,880 mm) |
| Max. Dump Angle | 43° |
| Max. Rollback Angle | 30° |
| Digging Depth | 2.0 in (50 mm) |
| Lift Capacity – Pivot Pin | 922 lbs (418 kg) |
| Breakout Force – Pivot Pin | 1,392 lbs (631 kg) |
| Lift Cylinder Diameter | 2 x 1.57 in (40 mm) |
| Bucket Cylinder Diameter | 2 x 1.57 in (40 mm) |

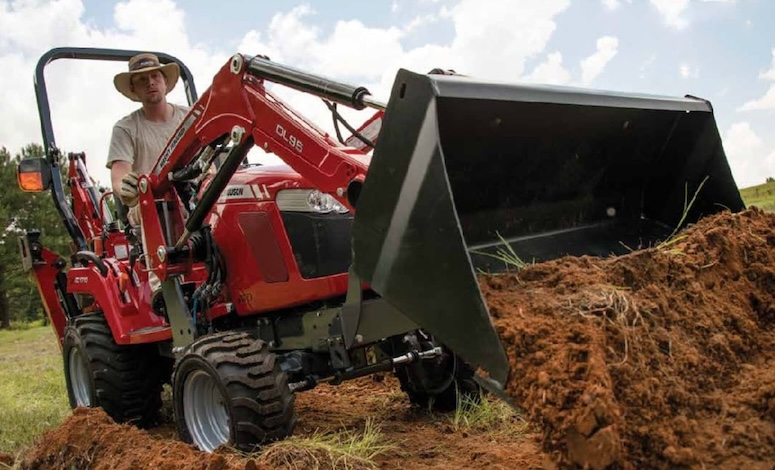

Massey Ferguson DL95 Loader
| MF DL95 Specifications | |
|---|---|
| Tool Carrier | Pin-on (Skid Steer Quick Attach opt.) |
| Bucket Width | 48 in (121 cm) |
| Max. Lift Height – Pivot Pin | 73 in (1,850 mm) |
| Max. Dump Angle | 50° |
| Max. Rollback Angle | 25° |
| Digging Depth | 2.8 in (70 mm) |
| Lift Capacity – Pivot Pin | 940 lbs (430 kg) |
| Breakout Force – Pivot Pin | 1,460 lbs (660 kg) |
| Lift Cylinder Diameter | 2 x 1.57 in (40 mm) |
| Bucket Cylinder Diameter | 2 x 1.57 in (40 mm) |

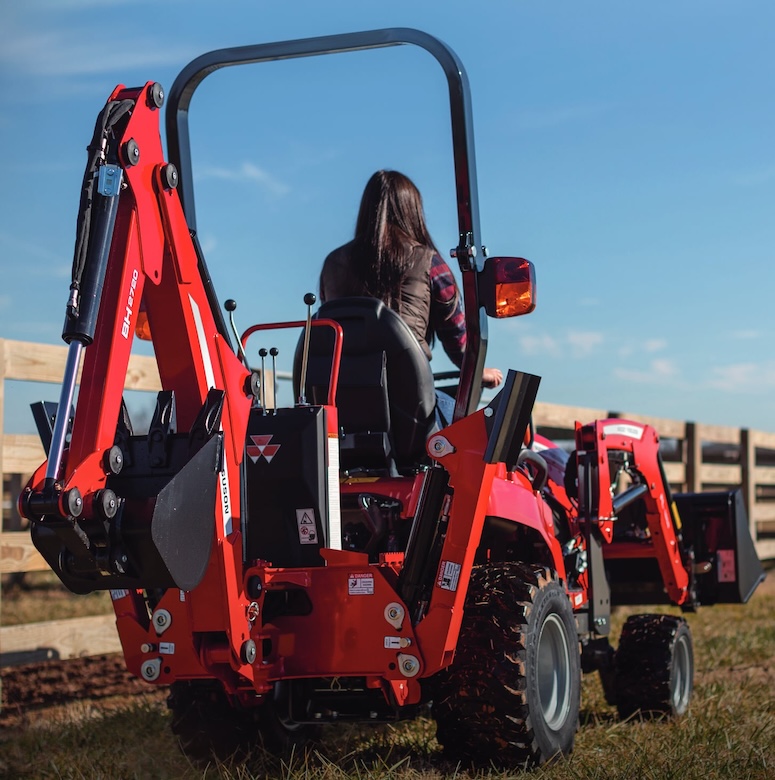

BH2720 Backhoe
| Massey Ferguson BH2720 Specifications | |
|---|---|
| Control Type | SAE with boom float |
| Digging Depth | 76 in (192 cm) |
| Max Reach | 107 in (272 cm) |
| Bucket Digging Force | 2,184 lbs (991 kg) |
| Boom Digging Force | 1,541 lbs (699 kg) |
| Height Loading | 66 in (168 cm) |
| Height Transport | 71 in (180 cm) |
| Swing Arc | 150° |
| Bucket Rotation | 177° |
| Bucket Widths | 10 in (opt), 12 in (std), 16 in (opt) |

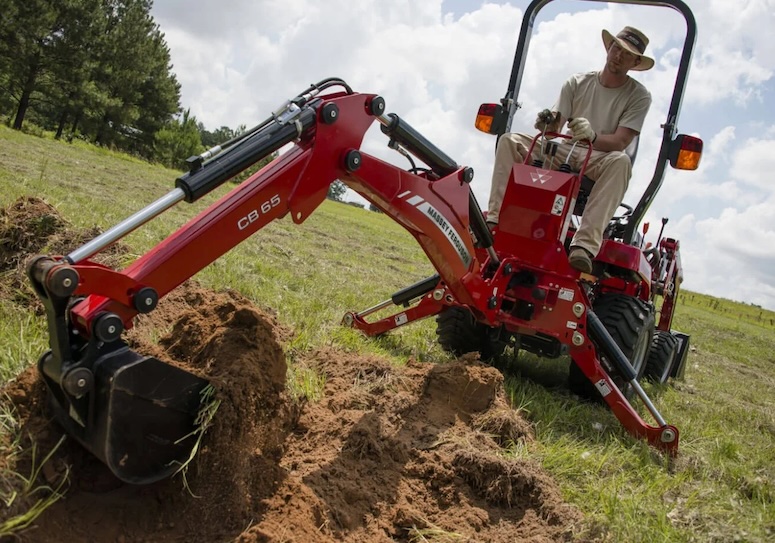

CB65 Backhoe
| Massey Ferguson CB65 Specifications | |
|---|---|
| Control Type | SAE with boom float |
| Digging Depth | 78 in (200 cm) |
| Max Reach | 107 in (270 cm) |
| Bucket Digging Force | 2,476 lbs (1,123 kg) |
| Boom Digging Force | 1,748 lbs (793 kg) |
| Height Loading | 66 in (170 cm) |
| Height Transport | 71 in (180 cm) |
| Swing Arc | 150° |
| Bucket Rotation | 177° |
| Bucket Widths | 10 in (opt), 12 in (std), 16 in (opt) |

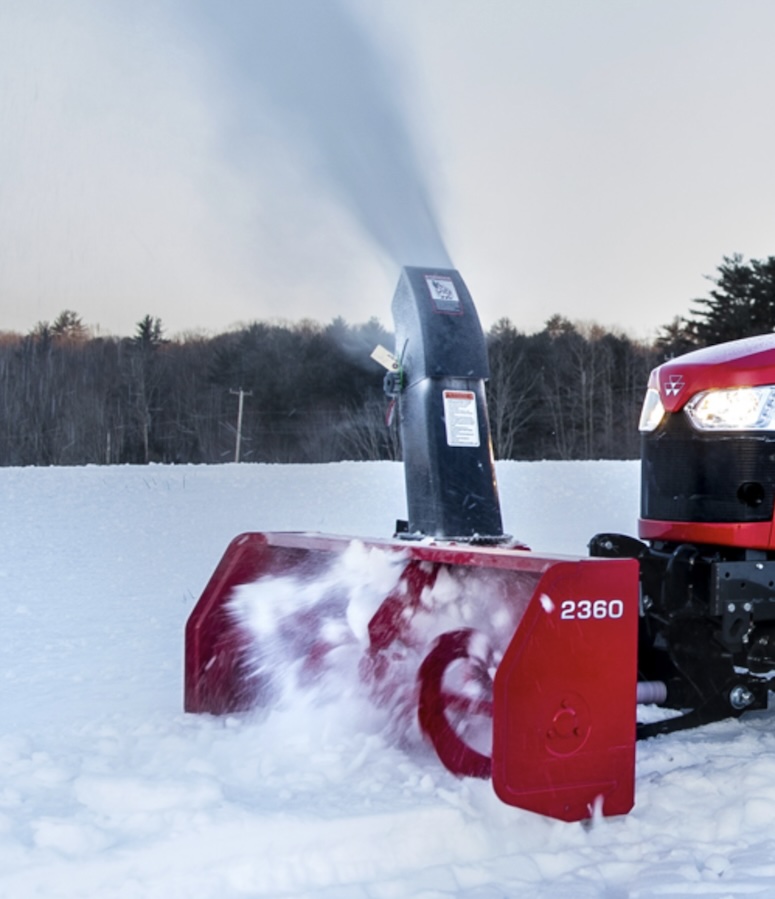

2360 Snow Blower
| Massey Ferguson 2360 Specifications | |
|---|---|
| Type | Front-mount |
| Lift | Hydraulic lift |
| Clearing width | 50 in (127 cm) |
| Clearing height | 19,1 in (48 cm) |
Mower Decks (MF 2315 / MF 2320 / MF 2326)
| Specs | 54″ Mower deck MF 2315 | 54″ Mower deck MF 2320 | 60″ Mower deck MF 2326 |
|---|---|---|---|
| Type | Mid-mount | Mid-mount | Mid-mount |
| Blades | 6-blade | 3-blade | 3-blade |
| Lift | Hydraulic lift | Hydraulic lift | Hydraulic lift |
| Cutting width | 54 in (137 cm) | 54 in (137 cm) | 60 in (152 cm) |
| Cut height | 1.3 to 4.9 in (3 to 12 cm) | 1.2 to 4.7 in (3 to 11 cm) | 1.2 to 4.7 in (3 to 11 cm) |

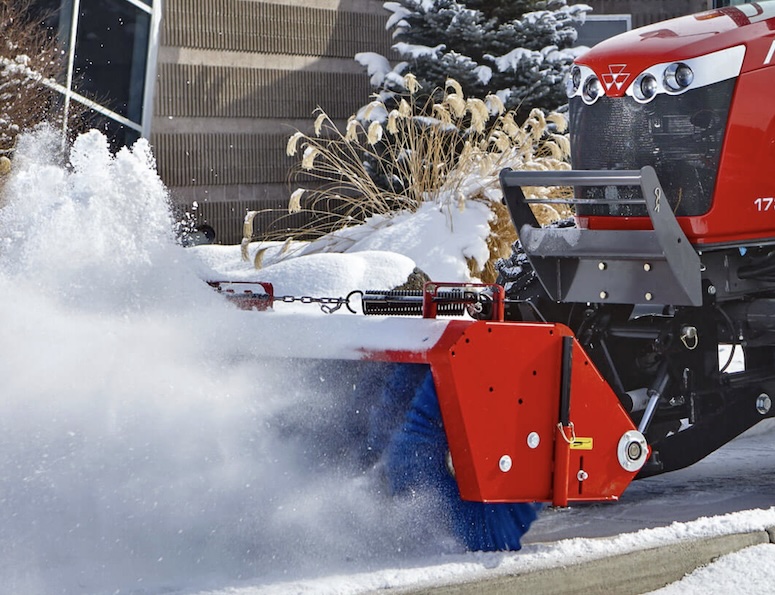

2330 Rotary Broom (47″)
| Massey Ferguson 2330 Specifications | |
|---|---|
| Type | Front-mount |
| Lift | Hydraulic lift |
| Working Width at Max. Angle | 39 3/16 in |
| Overall Width | 47 3/8 in |
MF GC1723E / GC1723EB Pros & Cons
Let’s explore some of the pros and cons of these models:
MF GC1723 Pros
- Compact Size: Both the GC1723E and GC1723EB feature a compact design, making them agile and easy to maneuver in tight spaces, perfect for small farms or landscaping tasks.
- Versatile Power: Equipped with a reliable Iseki 3-cylinder diesel engine, these tractors deliver ample power to handle a variety of implements and attachments, from mowing and tilling to hauling and loading.
- Hydrostatic Transmission: The 2-range hydrostatic transmission with cruise control offers smooth and precise operation, allowing for effortless speed and direction changes, enhancing operator comfort and productivity.
- PTO Options: Both models come with rear and mid PTO options, providing versatility for powering a range of implements, including mowers, tillers, and snow blowers, to suit different applications and seasons.
- 3-Point Hitch: With a Category I 3-point hitch and decent lift capacity, these tractors can accommodate a wide array of implements, expanding their utility for various tasks around the property.
- Safety Features: Both models are available with fixed or folding ROPS (Roll-Over Protective Structure) options, ensuring operator safety during operation, especially on uneven terrain or slopes.
MF GC1723 Cons
- Limited Horsepower: While sufficient for most light to medium-duty tasks, the horsepower of these tractors may be limiting for heavier applications or larger implements, requiring more time or effort to complete certain jobs.
- Basic Features: Some users may find that these models lack advanced features or creature comforts found in higher-end tractors, which could impact overall convenience and user experience.
- Limited Tire Options: The availability of tire options may be limited, affecting traction and performance in specific terrain or weather conditions, requiring careful consideration for optimal use.
- Manual Steering: While adequate for most applications, the manual steering of these tractors may require more physical effort compared to models equipped with power steering, especially during extended use or in challenging conditions.
These pros and cons highlight the key features and considerations for potential buyers when evaluating the Massey Ferguson GC1723E and GC1723EB sub-compact utility tractors.
Overall, the MF GC1700 series combines rugged durability, exceptional performance, and versatility, making it an excellent choice for homeowners, landscapers, small farmers, and contractors alike. Whether it’s maintaining a property or tackling light construction projects, these tractors provide the power and reliability needed to get the job done efficiently.
How many horsepower is a Massey Ferguson GC1723E?
MF GC1723E engine power = 22.5 HP (16.8 kW)
