Solution System
| Tank Material |
Stainless steel |
| Solution Tank Capacity |
1200 gal (4400 L) |
| Rinse Tank Capacity |
120 gal (454 L) |
| Chemical Eductor Capacity |
5 gal (19 L) |
| Rate Control Make |
John Deere Raven / Ag Leader optional |
| Automatic Section Control |
Optional |
| Display |
John Deere GreenStar 2630 |
| Solution System Control |
PowrSpray system |
| Fill Location |
Standard: Side. Optional: Front |
| Chemical Injection Method |
Raven Sidekick – optional |
| Chemical Eductor |
Optional |
| Flow Meter Size |
2 in (58 mm) |
| Pressure Strainer |
50 mesh |
| Boom Strainer |
80 mesh |
| Quick Fill Size |
3 in (76 mm) |
Dimensions
| A. Overall Tractor Height |
154 in (3912 mm) |
| B. Raised Transom Height |
153 in (3886 mm) |
| C3. Transom Lift Range (C1 minus C2) |
86 in = 104-18 in (2184 mm) |
| D. Static Loaded Hub Height |
38.4 in (975 mm) |
| E. Wheel Base |
140 in (3556 mm) |
| F. Overall Length, 90′ boom |
336 in (8534 mm) |
| F. Overall Length, 100′ boom |
336 in (8534 mm) |
| F. Overall Length, 120′ boom |
371.3 in (9431 mm) |
| F. Overall Length, 132′ boom |
410 in (10414 mm) |
| G. Overall Width (90′ booms folded, 120” tread) |
144 in (3658 mm) |
| G. Overall Width (100′ booms folded, 120” tread) |
144 in (3658 mm) |
| G. Overall Width (120′ booms folded, 120” tread) |
168 in (4267 mm) |
| G. Overall Width (132′ booms folded, 120” tread) |
169 in (4293 mm) |
| H. Frame Clearance |
76 in (1930 mm) |
| I. Lower Leg Clearance (from shield) |
31 in (787 mm) |
| J. Tire Center to Inside of Shield* |
13.5 in (343 mm) |
| K. Tread Width |
120 in (3048 mm) / 160 in (4064 mm) |
*Dimensions on your John Deere Hagie STS 12 Sprayer may vary, depending on tire size. Tread width is measured at 1/2 the tire height
Boom
| Automatic Boom Height |
NORAC UC7 with Active Wing Roll (AWR) |
| Boom Type |
1” (25 mm) Schedule 5 wet boom plumbing |
| Plumbing Material |
Stainless steel |
| Boom Length (Option 1) |
90/100′ (27/30 m), steel, 9 sections |
| Boom Length (Option 2) |
120′ (36 m), hybrid, 9 sections |
| Boom Length (Option 3) |
132′ (40 m), aluminum, 9 sections |
| 90/100′ Outer Boom Hydraulic Breakaway |
Self-Actuated |
| 120/132′ Inner Boom Breakaway |
Hydraulic, Manual Reset |
| 120/132′ Outer Boom Breakaway |
Mechanical with Spring, Auto-Reset |
| Level Shock Absorber |
Gas Charged Accumulator |
| Controls |
Electro-Hydraulic (fold / lift / level) |
Weight
| Operaing Weight, 90′ boom |
31600 lb (14334 kg) |
| Operaing Weight, 100′ boom |
31500 lb (14288 kg) |
| Dry Weight, Machine Only |
23580 lb (10695 kg) |
| Dry Weight, 90′ steel boom |
27920 lb (12664 kg) |
| Dry Weight, 100′ steel boom |
28580 lb (12963 kg) |
| Dry Weight, 120′ hybrid boom |
27660 lb (12546 kg) |
| Dry Weight, 132′ aluminum boom |
30180 lb (13689 kg) |
Engine Details
| Engine Make |
John Deere 6090 |
Cummins QSB 6.7 |
| Number Of Cylinders |
6 |
6 |
| Engine Model |
PowerTech PSS 9.0L |
Cummins QSB 6.7 |
| Displacement |
549 cu in (9.0 L) |
409 cu in (6.7 L) |
| Engine Power |
375 hp (279 kw) |
300 hp (224 kw) |
| Power Measured @ |
2000 rpm |
2500 rpm |
| Operating Voltage |
12 V |
12 V |
| Alternator |
300 amps |
200 amps |
| Battery |
2x 12 V, CCA 950 |
2x 12 V, CCA 950 |
| Starter |
12 V, with solenoid |
12 V, with solenoid |
| Aspiration |
Turbocharged and aftercooled |
Air-to-Air Cooler and Turbo Charger |
| Emission Level |
EPA Final Tier 4 / EU Stage V |
EPA Tier 4 Final / EU Stage IV |
Drive Train
| Type |
Hydrostatic transmission John Deere CommandDrive |
| Drive |
Full-time four-wheel drive (4WD) |
| Shifting |
Infinitely variable (Operator programmable) |
| Max Travel Speed |
35 mph (56 km/h) |
| Spray Speed Range |
0.5 to 25 mph (0.8 to 40 km/h) |

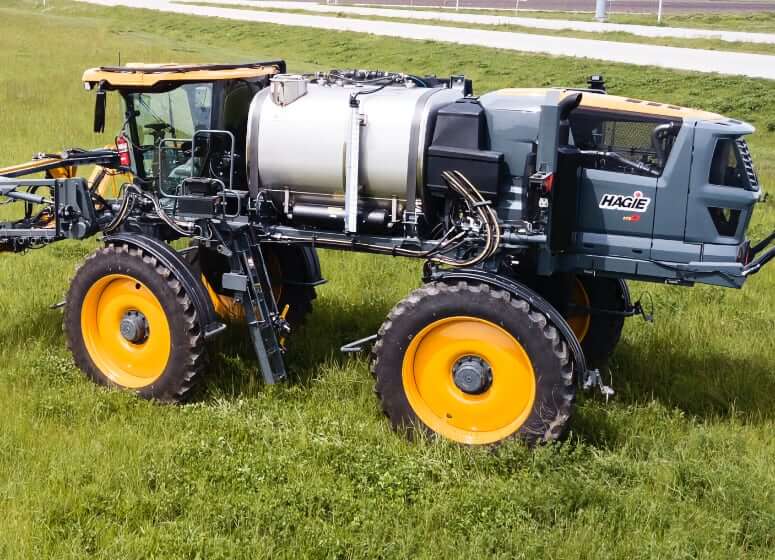

Chassis
| Suspension |
Independent air-ride |
| Hydraulic Tread Adjust |
Standart |
| Front Tires |
VF 320/105R54, VF 380/90R54, VF 380/105R50, VF 420/95R50, VF 480/80R50 |
| Rear Tires |
VF 320/105R54, VF 380/90R54, VF 380/105R50, VF 420/95R50, VF 480/80R50 |
| Flotation Tires |
VF 480/80R50, VF 620/70R46, IF 710/65R46 |
| Ladder Raise/Lower |
Hydraulic |
| Dry Compatible |
Montag Fortifier 2212 Cover Crop System |
| Primary Brakes |
Drive system dynamic braking |
| Parking Brakes |
Integrated in final drives |
| Turning Radius, w/ AWS on (center of outside tire) |
17.3 ft (5.3 m) |
| Turning Radius, w/ AWS off (center of outside tire) |
25.6 ft (7.8 m) |
Operator Environment
| Max Sound Level (cab interior) |
76 dB(A) |
| Cab |
Tilt Steering, Wipers/Washers, Dual Side Mirrors, Dome Light, Tinted Glass |
| HVAC |
Full Range Temperature Control, RESPA Cab Filter, Charcoal Filter |
| Seat |
Air-ride Seat + Instructor Seat |
| Machine Display |
Hour Meter, Battery Voltage, Engine Oil Pressure, Ground Speed, Engine Diagnostics, Tread Adjustment, Parking Brake, Machine / Engine Malfunction Warnings, Engine Exhaust Filtration Warning, High Exhaust Temperature Warning, Low Hydraulic Oil Level, Low Coolant Level, Low Fuel Level, Grid Heater, Cab Air Pressure |
Service Refill Capacities
| Engine Model |
John Deere 6090 |
Cummins QSB 6.7 |
| Fuel Tank Capacity |
130 gal (492 L) |
135 gal (511 L) |
| Engine Oil Capacity |
8.6 gal (32.6 L) |
4.4 gal (16.7 L) |
| Cooling System Capacity |
11 gal (41 L) |
14 gal (53 L) |
| DEF Tank Capacity |
7.7 gal (29 L) |
10 gal (37 L) |
| Hydraulic System Capacity |
50 gal (189 L) |
50 gal (189 L) |
| Hydraulic Tank Capacity |
30 gal (113.5 L) |
32 gal (121 L) |
| Wheel Hubs (each) |
0.5 gal (1.83 L) |
0.5 gal (1.83 L) |
| Hand Wash Tank |
4 gal (15 L) |
4 gal (15 L) |
| Foam Marker Tank |
1 gal (3.8L) |
1 gal (3.8L) |
