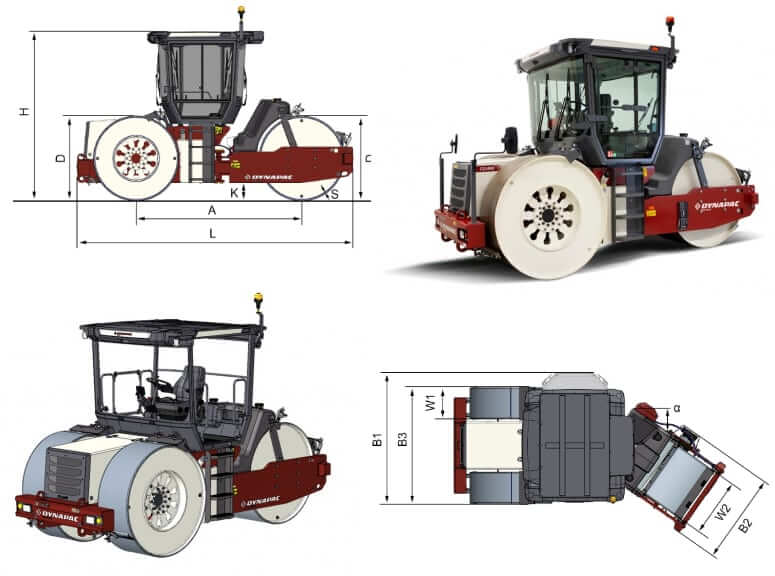

Dimensions
| Overall Length | 191 in (4850 mm) |
| Overall Width (with Asym Cab) | 93 in (2370 mm) |
| Overall Width (with Sym Cab / ROPS) | 83 in (2100 mm) |
| Rear Module Width | 60 in (1525 mm) |
| Height To Top Of Cab | 118 in (2995 mm) |
| Wheelbase | 114 in (2900 mm) |
| Ground Clearance | 12 in (310 mm) |
Drum
| Compaction Width | 83 in (2100 mm) |
| Front Drum Width | 22 in (570 mm) |
| Rear Drum Width | 42 in (1060 mm) |
| Drum Overlap | 1.97 in (50 mm) |
| Drum Diameter | 59 in (1500 mm) |
| Front Drum Shell Thickness | 0.79 in (20 mm) |
| Rear Drum Shell Thickness | 0.87 in (22 mm) |
| Front Static Linear Load (ROPS, without / with ballast) | 281 pli (50.1 kg/cm) / 329 pli (58.8 kg/cm) |
| Rear Static Linear Load (ROPS, without / with ballast) | 258 pli (46.1 kg/cm) / 322 pli (57.5 kg/ccm) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | Deutz TD 3.6 L4 V/T4F |
| Gross Power | 74 hp (55 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 243 lb ft (330 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 220 cu in (3.6 L) |
| Bore | 3.9 in (98 mm) |
| Stroke | 4.7 in (120 mm) |
| Aspiration | Turbocharged |
| Specific fuel consumption | 0.36 lb/hph (220 g/kWh) |
| Emission Standards | US T4f, EU IIIB, EU V |
Weight
| Operating Weight (ROPS, without Ballast) | 22200 lb (10050 kg) |
| Operating Weight (ROPS, with Ballast) | 28200 lb (12800 kg) |
| Max. Front Module Mass (incl. ROPS, Ballasted) | 14800 lb (6700 kg) |
| Max. Rear Module Mass (incl. ROPS, Ballasted) | 13400 lb (6100 kg) |
Traction Specs
| Traction Type | Articulated Steering |
| Steering Angle | 34 degrees |
| Vertical Oscillation | ±9 degrees |
| Max Working Speed | 6 mph (10 km/h) |
| Max Transport Speed | 9 mph (15 km/h) |
| Turning Radius – Inside | 12 ft (3700 mm) |
| Turning Radius – Outside | 19 ft (5800 mm) |
Hydraulic System
| Driving | Axial piston pump with variable displacement. 3 axial piston motors, 2 with variable displacement |
| Steering | Gear pump with constant displacem |
| Service Brake | Hydrostatic in forward and reverse lever |
| Parking / Emergency Brake | Failsafe multidisc on all 3 drums |
Service Refill Capacities
| Fuel Tank Capacity | 29 gal (110 L) |
| Water Spray Tank Fluid Capacity | 139 gal (530 L) |
