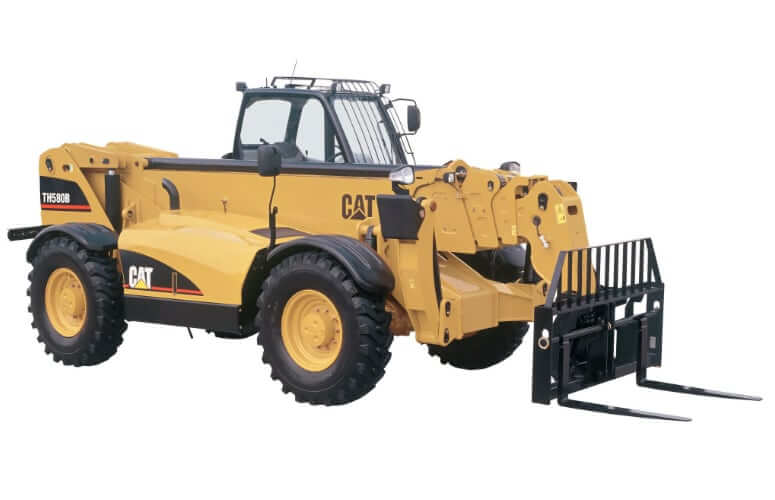

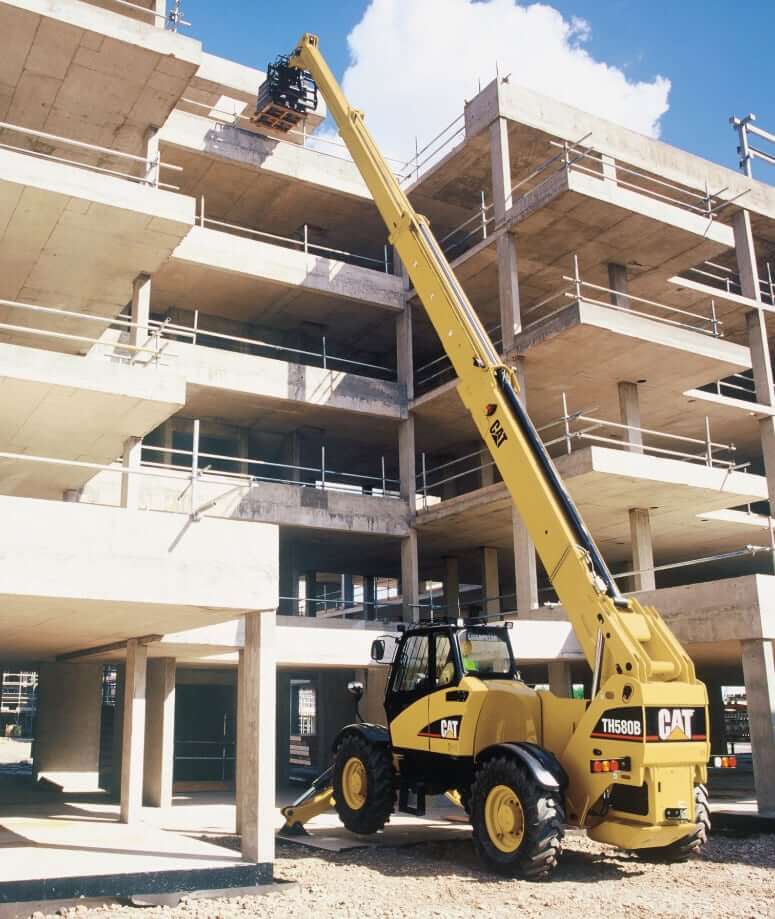

Dimensions
| Length To Fork Face | 21.73 ft in (6622 mm) |
| Ground Clearance | 1.71 ft in (520.96 mm) |
| Width Over Tires | 8.35 ft in (2545 mm) |
| Overall Height | 8.91 ft in (2715 mm) |
| Wheelbase | 10.67 ft in (3250 mm) |
| Height – Top Of Hood | 85.8 in (2179.33 mm) |
| Height | 8.91 ft in (2715.77 mm) |
| Length – Front Of Tire | 17.25 ft in (5.26 m) |
| Turning Radius – Over Tires | 13.19 ft in (4.03 m) |
| Turning Radius Outside Tires | 13.19 ft in (4020 mm) |
| Wheel Base | 10.66 ft in (3.25 m) |
| Width | 8.35 ft |
| Length – Fork Face | 21.73 ft in (6.63 m) |
| Rear – Overhang | 4.33 ft |
Lift
| Max Lift Height | 56 ft in (17068.8 mm) |
| Max Forward Reach | 41.67 ft in (12700 mm) |
| Max Load At Max Height | 5511.56 lb (2500 kg) |
| Max Load At Max Reach | 1653.47 lb (750 kg) |
| Max Lift Capacity | 11023.12 lb (5000 kg) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | CAT |
| Engine Model | 3054E |
| Gross Power | 120 hp (89.5 kw) |
| Net Power | 117.5 hp (87.7 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 296.5 lb ft (402 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 268 cu in (4.4 L) |
| Bore | 4 in (101.6 mm) |
| Stroke | 5 in (127 mm) |
| Engine Model | Cat 3054E |
| Maximum Torque | 333 lb ft (451.5 Nm) |
Operational Specs
| Operating Weight | 30137.2 lb (13670 kg) |
| Fuel Tank Capacity | 26.5 gal (100 L) |
| Hydraulic System Fluid Capacity | 17.2 gal (65 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | 14.00-24 |
Transmission
| Transmission Type | Power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed – Forward | 19.9 mph (32 km/h) |
| Max Speed – Reverse | 12.5 mph (20 km/h) |
Weights
| Operating Weight | 30100 lb (13653.2 kg) |
Hydraulic
| Pump Type | variable displacement load sensing axial piston |
| Pump Flow Capacity | 29.9 gal/min (113 L/min) |
| Relief Valve Pressure | 3626 psi (25000 kPa) |
Hydraulic System
| Pump Type | Variable Displacement Load Sensing Axial Piston Pump |
| Maximum System Pressure | 3626 psi |
| Maximum Pump Flow | 30 gal/min |
| Auxiliary Hydraulic Supply | 16 gal/min |
Operating Specifications
| Rated Load Capacity | 11000 lb (4989.6 kg) |
| Maximum Lift Height | 56 ft in (17.1 m) |
| Maximum Forward Reach | 42 ft in (12.9 m) |
| Top Travel Speed | 25 mph (40.3 km/h) |
| Load At Maximum Reach – No Stabilizers | 2500 lb (1134 kg) |
| Load At Maximum Height – Stabilizers Up | 4400 lb (1995.9 kg) |
| Load At Maximum Height – Stabilizers Down | 5500 lb (2494.8 kg) |
| Load At Maximum Reach – Stabilizers Up | 500 lb (226.8 kg) |
| Load At Maximum Reach – Stabilizers Down | 2500 lb (1134 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 26 gal (98.5 L) |
| Hydraulic Tank | 17 gal (64.4 L) |
Boom Performance
| Boom Up | 26 s |
| Boom Down | 16 s |
| Tele In | 12 s |
| Tele Out | 15 s |
| Crowd Forward – Dump | 3 s |
| Crowd Backward | 3 s |
| Combined – Up And Out | 27 s |
| Combined – Down And In | 17 s |
Transmission Speeds
| Forward – 4 | 25 mph (40.3 km/h) |
| Forward – 1 | 4 mph (6.5 km/h) |
| Forward – 2 | 7 mph (11.3 km/h) |
| Forward – 3 | 12 mph (19.4 km/h) |
| Reverse – 1 | 4 mph (6.5 km/h) |
| Reverse – 2 | 7 mph (11.3 km/h) |
| Reverse – 3 | 12 mph (19.4 km/h) |
