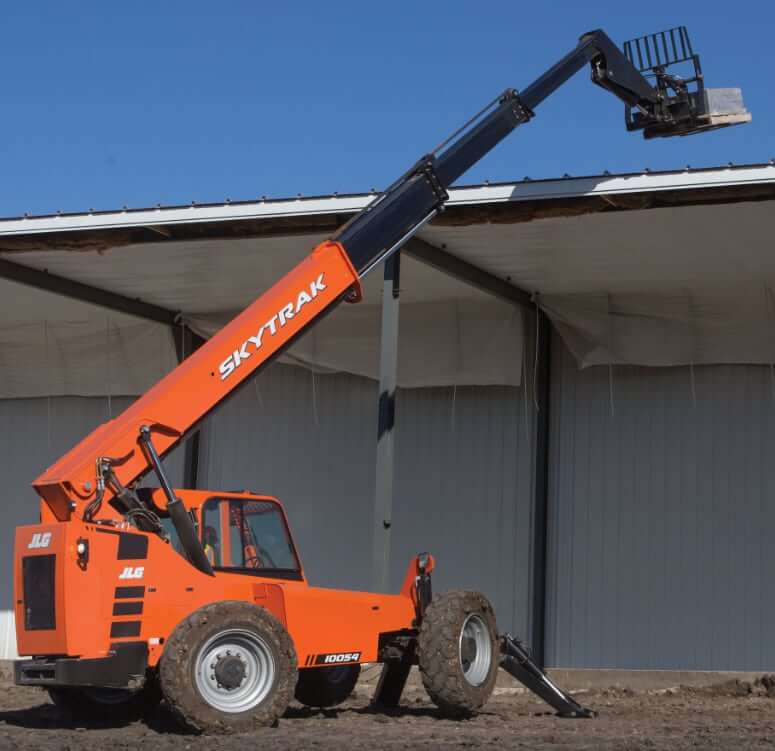

Lift
| Max Lift Height | 53.2 ft in (16200 mm) |
| Max Forward Reach | 38.9 ft in (11800 mm) |
| Load Center | 24 in (610 mm) |
| Max Lift Capacity | 10000 lb (4536 kg) |
| Max Load At Max Height | 4000 lb (1814 kg) |
| Max Load At Max Reach | 3000 lb (1361 kg) |

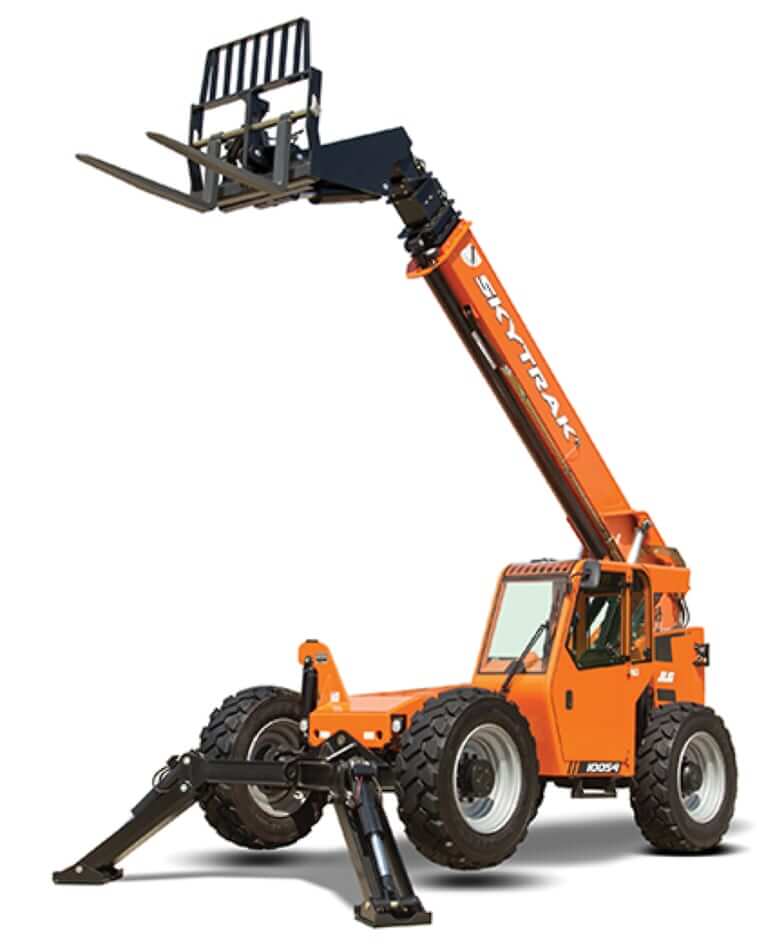

Dimensions
| Overall Length | 252 in (6400 mm) |
| Wheelbase | 119.5 in (3040 mm) |
| Overall Height | 100.1 in (2570 mm) |
| Width | 102 in (2590 mm) |
| Ground Clearance | 18 in (460 mm) |
| Turning Radius Outside Tires | 165 in (4190 mm) |
Operational Specs
| Operating Weight | 28200 lb (12791 kg) |
| Drawbar Pull | 24500 lb (11113 kg) |
| Tire Size | 17.5-25, 12-ply; 400/75-28 |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Cummins |
| Engine Model | Cummins QSF3.8 |
| Displacement | 229 cu in (3.8 L) |
| Gross Power | 110 hp (82 kw) |
| Power Measured @ | 2500 rpm |
| Gross Power | 348 lb ft (472 Nm) |
| Power Measured @ | 1600 rpm |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 4 Final |

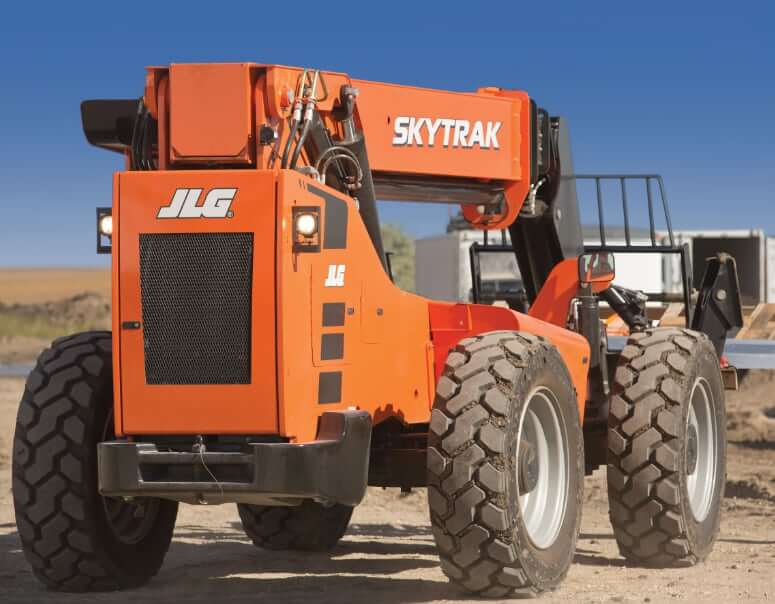

Transmission
| Type | Powershift transmission |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Maximum Travel Speed | 20 mph (32.2 km/h) |
Axles and Brakes
| Front Axle | High Bias, Limited Slip. Full-time planetary 4-wheel drive |
| Rear Axle | Oscillating rear axle with Stabil-Trak system |
| Brakes Type | Wet Multi-Disc |
Attachments
| Standard Carriage | 50 in / 60 in / 72 in (1.3 m / 1.5 m / 1.8 m) |
| Side-Tilt Carriage | 50 in / 60 in / 72 in (1.3 m / 1.5 m / 1.8 m) |
| Swing 90° Carriage | 72 in (1.8 m) |
| Side Shift Carriage | 50 in (1.3 m) |
| Dual Fork Positioning Carriage | 50 in (1.3 m) |
| Tower 8 ft (2.4 m) | 50 in (1.3 m) Standard Carriage |
| Pallet Forks | 2.36 x 4 x 48 in (60 mm x 102 mm x 1.2 m) |
| Pallet Forks | 2.36 x 5 x 48 in (60 mm x 102 mm x 1.2 m) |
| Pallet Forks | 2.00 x 6 x 72 in (51 mm x 152 mm x 1.8 m) |
| Lumber Forks | 2.00 x 7 x 60 in (51 mm x 178 mm x 1.5 m) |
| Lumber Forks | 2.36 x 6 x 60 in (60 mm x 152 mm x 1.5 m) |
| Cubing Forks | 2 x 2 48 in (51 mm x 51 mm x 1.2 m) |
| Fork Extensions | 90 in (2.3 m) |
| Material Bucket | 72 in, 1.0 cu yd (1.8 m, 0.76 m3) |
| Material Bucket | 96 in, 1.5 cu yd (2.4 m, 1.15 m3) |
| Material Bucket | 102 in, 2.0 cu yd (2.6 m, 1.53 m3) |
| Grapple Bucket | 96 in, 1.75 cu yd (2.4 m, 1.34 m3) |
| Truss Boom | 12 ft, 2000 lb (3.7 m, 907 kg) |
| Truss Boom | 15 ft, 2,000 lb (4.6 m, 907 kg) |
| Truss Boom | 12 ft with winch, 2000 lb (3.7 m, 907 kg) |
| Fork Mounted Work Platform | 8 ft, 1000 lb Capacity (2.4 m, 455 kg Capacity) |
| Material Handling Arm | 4000 lb Capacity (1814 kg Capacity) |
| Trash Hopper | 72 in, 1.9 cu yd, 2000 lb Capacity (1.8 m, 1.5 m3, 907 kg Capacity) |
| Pipe Grapple | 72 in, 2000 Capacity (1.8 m, 907 kg Capacity) |
Hydraulic System
| Type | Variable flow, load sensitive hydraulic system |
| Auxiliary Hydraulics | Used for all attachments equipped with cylinders or other hydraulic components |
| Maximum Lift | 16.4 sec |
| Maximum Lower | 14.7 sec |
| Maximum Telescope In | 15.9 sec |
| Maximum Telescope Out | 17.6 sec |
Service Refill Capacities
| Fuel Tank Capacity | 35 gal (132.5 L) |
| Engine Oil Capacity | 3.9 gal (14.7 L) |
| Cooling System Capacity | 4.9 gal (18.6 L) |
| Hydraulic System Capacity | 52 gal (196.8 L) |
We own a JLG 10054 telehandler and on a project we are working on they need to know the point load per square foot weight at each of the tires. Is that information you can get me?
The JLG 10054 SkyTrak Telehandler has a maximum lift capacity of 10000 pounds. The machine’s curb weight is approximately 27323 pounds. The standard tires for this model are sized at 17.5-25, 12-ply, each with a footprint of 244 square inches. With a full load, the maximum ground pressure exerted by these tires is approximately 77 psi.
To calculate the point load per square foot (psf) for each tire, we can use the following approach:
1. Determine the load per tire: Divide the total weight (machine weight plus maximum lift capacity) by four (since there are four tires).
27,323 lbs (machine weight) + 10,000 lbs (maximum lift) = 37,323 lbs total weight
37,323 lbs ÷ 4 = 9,330.75 lbs per tire
2. Convert the footprint from square inches to square feet: 244 sq in ÷ 144 = 1.6944 sq ft
3. Calculate the point load per square foot: 9,330.75 lbs ÷ 1.6944 sq ft ≈ 5,506.5 psf
Therefore, each tire supports approximately 9,330.75 pounds, resulting in a point load of about 5,506.5 pounds per square foot.
Please note that these calculations are based on the standard tire specifications and maximum load conditions. Actual ground pressure can vary depending on factors such as tire condition, inflation pressure, and the distribution of the load.
