Dimensions
| Agrale 4100.4 | 4×2 | 4×4 |
|---|---|---|
| Overall Length | 96.5 in (2450 mm) | 96.5 in (2450 mm) |
| Overall Width | 46.7 in (1187 mm) | 47.2 in (1200 mm) |
| Wheelbase | 46.9 in (1190 mm) | 46.9 in (1190 mm) |
| Clearance | 11.4 in (290 mm) | 10.6 in (270 mm) |
| Height to Steering Wheel | 48.0 in (1220 mm) | 48.0 in (1220 mm) |
| Front Tread (min / max) | 31.4 in (797 mm) / 36.4 in (925 mm) | 35.8 in (910 mm) fixed |
| Rear Tread (min / max) | 34.0 in (863 mm) / 38.4 in (976 mm) | 34.0 in (863 mm) / 38.4 in (976 mm) |
| Turning Radius w/ Brakes | 100.4 in (2550 mm) | 78.7 in (2000 mm) |
| Turning Radius w/o Brakes | 116.1 in (2950 mm) | 98.5 in (2500 mm) |
Operational Specs
| Agrale 4100.4 | 4×2 | 4×4 |
|---|---|---|
| Operarting Weight | 2557 lb (1160 kg) | 2778 lb (1260 kg) |
| Shipping Weight | 2469 lb (1120 kg) | 2513 lb (1140 kg) |
| Front Tire Size | 4.00 – 15″ | 6.5/80 – 12″ |
| Rear Tire Size | 8.3/8 – 24″ | 8.3/8 – 24″ |
| Operating Voltage | 12 V | 12 V |
| Alternator | 55 amps, 14 V | 55 amps, 14 V |
| Battery | 12 V, 55 Ah | 12 V, 55 Ah |
Engine Details
| Number Of Cylinders | 1 |
| Engine Make | Agrale |
| Engine Model | Agrale M 93 ID |
| Displacement | 40.8 cu in (0.67 L) |
| Gross Power | 15 hp (10.8 kw) |
| Power Measured @ | 2750 rpm |
| Max Torque | 28.9 lb ft (39.2 Nm) |
| Torque Measured @ | 2350 rpm |
| Cooling System | Forced air by flywheel turbine |
| Injection System | Direct (Bosch) |
| Aspiration | Naturally aspirated |
| Starter | 2.7 hp (2 kw), 12 V |
Transmission
| Type | Mechanical transmission |
| Number Of Gears | 7 Forward / 3 Reverse |
| Max Travel Speed, Forward | 9.9 mph (15.9 km/h) |
| Max Travel Speed, Reverse | 5.5 mph (8.9 km/h) |
| Drive | 2WD / 4WD |
| Clutch Type | Simple dry disc, 7.1 in (180 mm) |
| Differential Lock | Mechanical by hand lever |
| Front Axle | Oscilating and adjustable / Center differential (4WD) |
| Service Brake | Mecanical with expandable shoes |
| Parking Brake | Manual Lever |
PTO (Power Take-Off)
| Type | Ground speed proportional |
| PTO Power | 26.6 hp (19.8 kw) |
| Nominal Speed | 1000 @ 2750 engine rpm (4th and low range) |
| PTO Drive | Mechanical |
| Number of Splines | 6 |
| Diameter | 1.38 in (35 mm) |
Hydraulic System
| Relief Valve Setting | 1707 psi (11768 kPa) |
| Pump Flow Capacity | 6.25 gal/min (23.65 L/min) |
| Remote Controls | 2 way single command (Optional) |
| Steering | Hydrostatic |
| 3 Point Hitch Lift Capacity @ 24 Inches | 970 lb (440 kg) |
| Three-point Hitch | Agrale special category |
Service Refill Capacities
| Fuel Tank Capacity | 5.2 gal (19.6 L) |
| Engine Oil Capacity | 0.8 gal (3 L) |
| Transmission Oil Capacity (2WD) | 3.2 gal (12.25 L) |
| Transmission Oil Capacity (4WD) | 3.4 gal (13 L) |
| Hydraulic System Capacity | 2.1 gal (8 L) |
Optional Equipment
- Front wheels weights,
- Rear whells weights,
- Front counterweight (under the engine),
- Front guard,
- Optional draw bar,
- Simple hydraulic control,

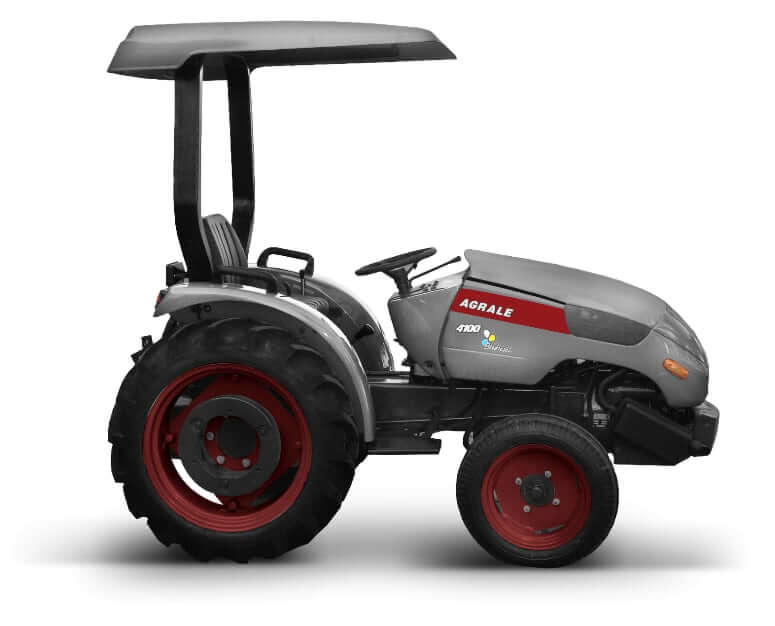

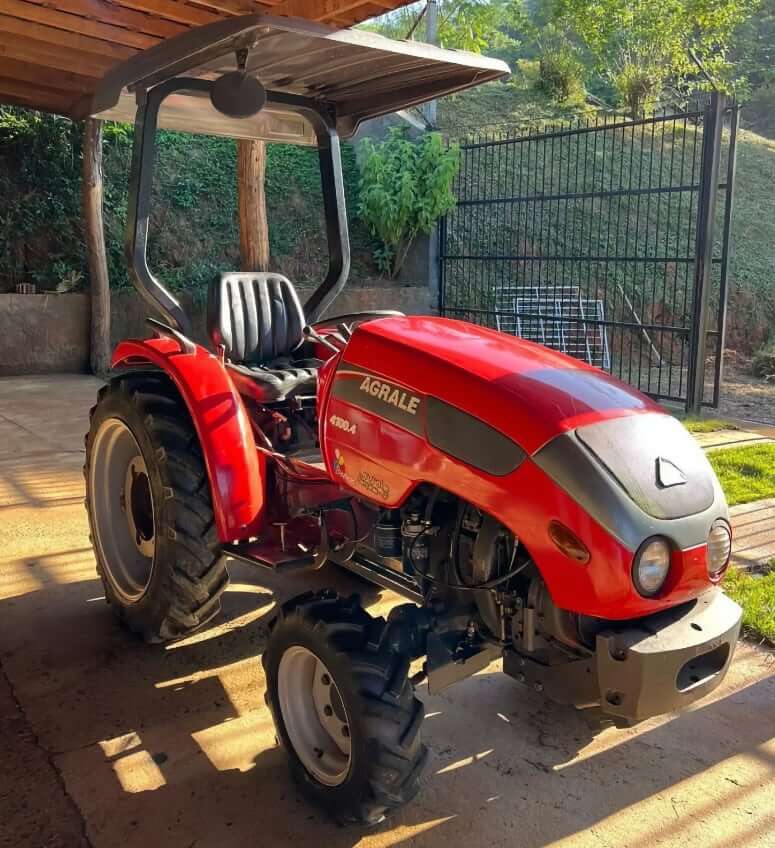

- Canopy,
- Garden Tires (Wheelset).
