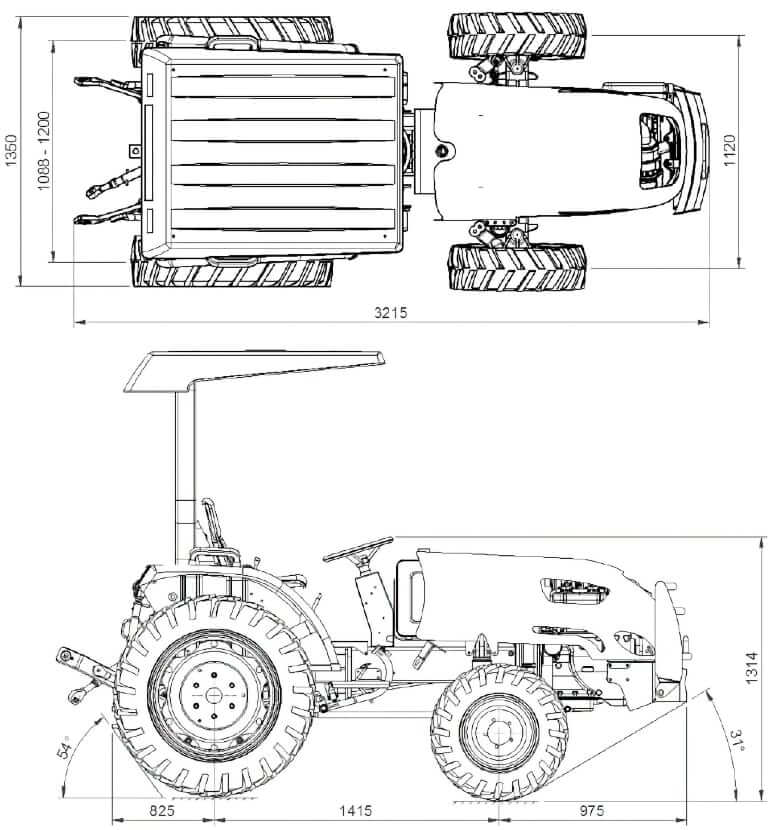

Dimensions
| Length | 126.6 in (3215 mm) |
| Height to Canopy | 87.6 in (2226 mm) |
| Height to Steering Wheel (2WD / 4WD) | 52.0 in (1320 mm) / 51.7 in (1314 mm) |
| Width (2WD / 4WD) | 55.7 in (1415 mm) / 53.1 in (1350 mm) |
| Wheelbase (2WD / 4WD) | 58.1 in (1475 mm) / 55.7 in (1415 mm) |
| Clearance (2WD / 4WD) | 15.9 in (405 mm) / 12.6 in (320 mm) |
| Front Tread (min / max) | 39.4 in (1000 mm) / 44.1 in (1120 mm) |
| Rear Tread (min / max) | 42.8 in (1088 mm) / 47.2 in (1200 mm) |
| Turning Radius w/o Brakes (2WD) | 124 in (3150 mm) / 98 in (2500 mm) |
| Turning Radius w/o Brakes (4WD) | 132 in (3350 mm) / 116 in (2950 mm) |
Operational Specs
| Operarting Weight (2WD / 4WD) | 4023 lb / 4200 lb (1825 kg / 1905 kg) |
| Shipping Weight (2WD / 4WD) | 3307 lb / 3594 lb (1500 kg / 1630 kg) |
| Front Tire Size (2WD/4WD) | 6.00 – 16″ / 7.50 – 15″ |
| Rear Tire Size (2WD/4WD) | 12.4 – 24″ / 9.5 – 24″ |
| Operating Voltage | 12 V |
| Alternator | 55 amps, 14 V |
| Battery | 12 V, 55 Ah |
Engine Details
| Number Of Cylinders | 2 |
| Engine Make | Agrale |
| Engine Model | Agrale M 790 |
| Displacement | 77.6 cu in (1.3 L) |
| Gross Power | 30 hp (22.4 kw) |
| PTO Power | 22.2 hp (16.6 kw) |
| Power Measured @ | 3000 rpm |
| Max Torque | 51.7 lb ft (70 Nm) |
| Torque Measured @ | 2550 rpm |
Transmission
| Type | Mechanical transmission |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 14.0 mph (22.6 km/h) |
Hydraulic System
| Relief Valve Setting | 1706 psi (11800 kPa) |
| Pump Flow Capacity | 8.7 gal/min (33 L/min) |
| Number Of Remote Control Valves | 2 |
| 3 Point Hitch Lift Capacity @ 24 Inches | 1433 lb (650 kg) |
| Controls | Position |
| Three-point Hitch | Category I |
Service Refill Capacities
| Fuel Tank Capacity | 10.4 gal (39 L) |
| Engine Oil Capacity | 1.6 gal (6 L) |
| Transmission / Hydraulic System Capacity | 7.9 gal (30 L) |
