Dimensions
| Overall Length | 163.8 in (4160 mm) |
| Overall Width | 82.7 in (2100 mm) |
| Wheelbase | 92.2 in (2342 mm) |
| Overall Height to Top of Cab | 102.5 in (2604 mm) |
Weight
| Operating Weight | 9370 lb (4250 kg) |
| Maximum Operating Weight | 11133 lb (5049 kg) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Case IH FPT |
| Engine Model | FPT 3.4L |
| Gross Power | 105 hp (78.3 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 207 cu in (3.4 L) |
| Bore | 3.9 in (99 mm) |
| Stroke | 4.3 in (110 mm) |
| Aspiration | Turbocharged and Intercooled |
| Emission Standards | Tier 4A |
Electrical System
| Operating Voltage | 12 V |
| Alternator | 120 amps |
| Battery | 12 V, CCA 960 |
Power Take-off (PTO)
| PTO Horsepower | 91 hp (67.9 kw) |
| PTO Type | Independent |
| PTO Clutch | Wet Clutch Pack |
| PTO Engagement | Electro-Hydraulic |
| PTO Speed | 540 / 540E / 1000 |
Transmission
| Transmission Type (Standart) | 16×16 semi-powershift with power shuttle Option |
| Transmission Type (Optional) | 32×32 semi-powershift with power shuttle and creeper |
| Maximum Forward Speed | 24.9 mph (40 km/h) |
| Number Of Gears (Standart) | 16F / 16R |
| Front Tire Size | 14.9R24 |
| Rear Tire Size | 18.4R34 |
| Rear Axle Output End | Flange |
| Final Drive | Planetary / Inboard |
| Differential Lock | Electro-Hydraulic Engagement |
| Service Brake | Hydraulic Wet Disc |
Hydraulic System
| Hydraulics | Standard | Optional |
|---|---|---|
| Main Pump Type | Gear | Gear |
| Pump Flow (Implement) | 16.1 gal/min (61.0 L/min) | 22.2 gal/min (84.0 L/min) |
| Pump Flow (Steering) | 10.0 gal/min (37.9 L/min) | 11.4 gal/min (43.1 L/min) |
| Rear Remote Valves | 2 | 3 from factory + 3 optional |

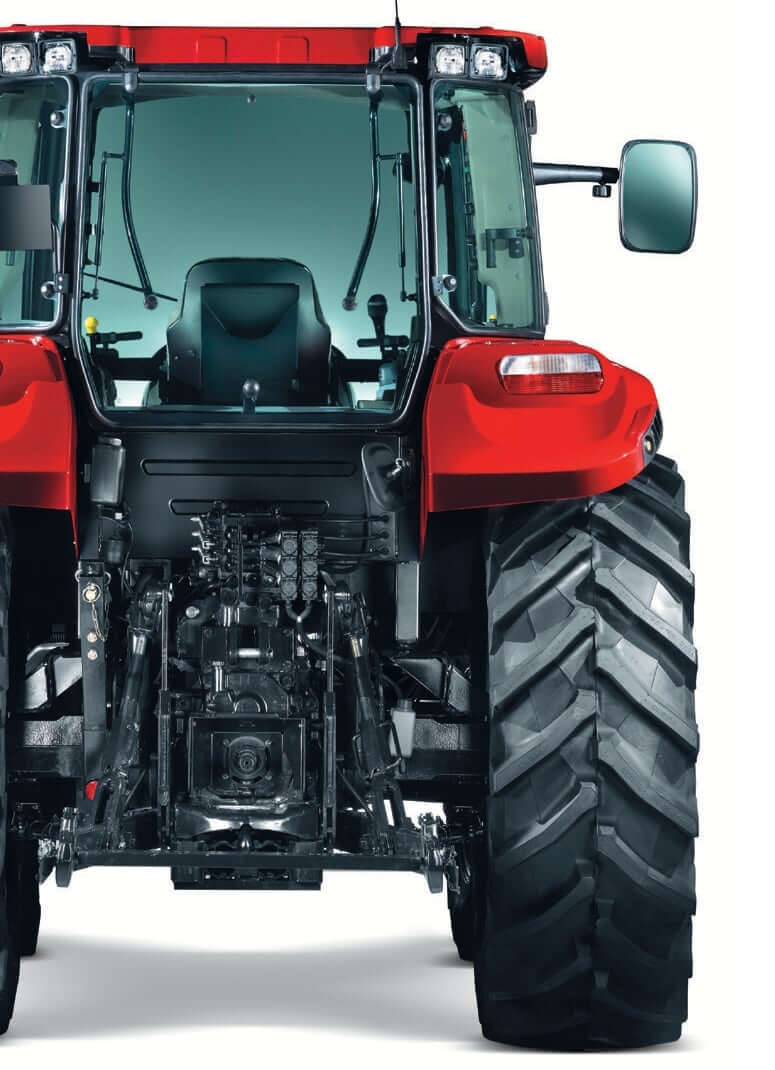

3-Point Hitch
| Tractor Hitch Category | Category II |
| Hitch Lift Capacity @ 24” (Standard) | 6393 lb (2289 kg) |
| Hitch Lift Capacity @ 24″ (Optional) | 9370 lb (5420 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 37 gal (140 L) |
| Engine Oil Capacity (with Filter) | 2.2 gal (8.5 L) |
| Engine Cooling Capacity | 3.4 gal (13 L) |
