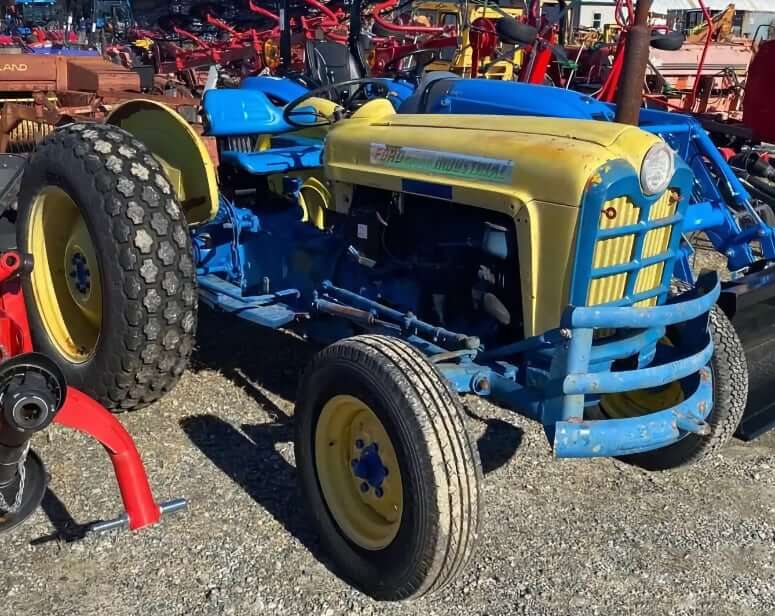

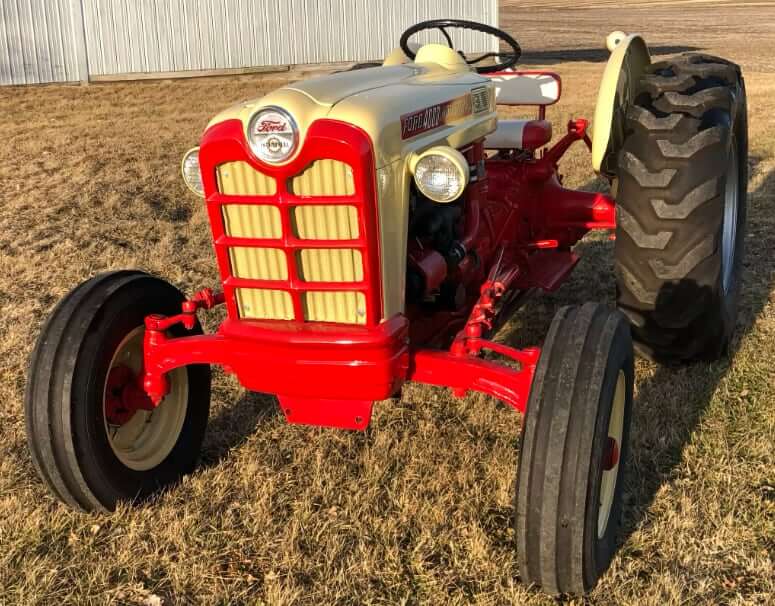

The Ford 4000 Industrial Tractor (1960-1964) exemplifies versatility and adaptability in industrial and agricultural applications. Offered in several configurations, including variants with PTO and hydraulics, hydraulics-only, or without PTO and hydraulics, it caters to diverse operational needs. Built with Ford’s robust engineering, the tractor is reliable for heavy-duty tasks, featuring an industrial-grade frame and dependable powertrain.

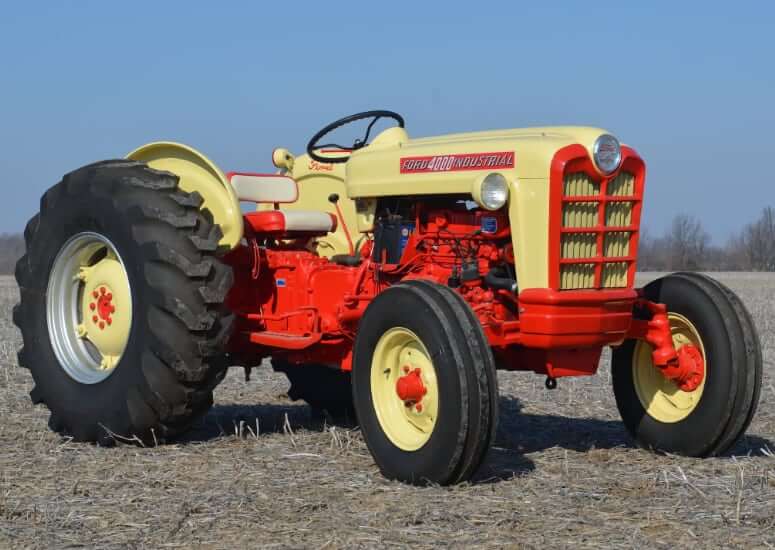

Dimensions
| Ford | 4000 | 4000 HD | 4000 LCG |
|---|---|---|---|
| Wheelbase | 79 in (2000 mm) | 81.5 in (2070 mm) | 74.5 in (1890 mm) |
| Length | 127.4 in (3230 mm) | 128 in (3250 mm) | 120.8 in (3060 mm) |
| Width | 70.4 in (1780 mm) | 70.4 in (1780 mm) | 70.4 in (1780 mm) |
| Height (steering wheel) | 57.7 in (1460 mm) | 57.7 in (1460 mm) | 52.4 in (1330 mm) |
| Ground Clearance (front axle) | 20.5 in (520 mm) | – | 16.0 in (400 mm) |
| Ground Clearance (rear axle) | 15.2 in (380 mm) | – | 8.0 in (200 mm) |
| Front Tire Size | 7.50-16 | 7.50-16 | 6.50×13 |
| Rear Tire Size | 13.6-28 | 14.9-24 | 8.3×24 |

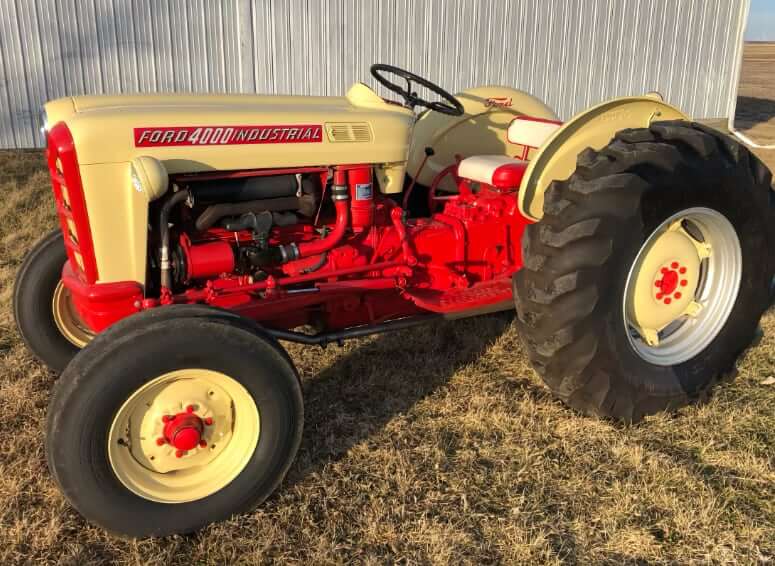

Weight
| Tractor Model | Operating Weight |
|---|---|
| Ford 4000 Industrial | 3084 lb (1398 kg) |
| 4000 HD Industrial (40401) | 3631 lb (1647 kg) |
| 4000 HD Industrial (40403) | 3841 lb (1742 kg) |
| 4000 HD Industrial (40404) | 3789 lb (1718 kg) |
| 4000 HD Industrial (40405) | 3996 lb (1812 kg) |
| 4000 HD Industrial (40406) | 4028 lb (1827 kg) |
| 4000 LCG Industrial (Gasoline Engine / Gear Transmission) | 2663 lb (1207 kg) |
| 4000 LCG Industrial (Diesel Engine / SoS Transmission) | 3103 lb (1407 kg) |

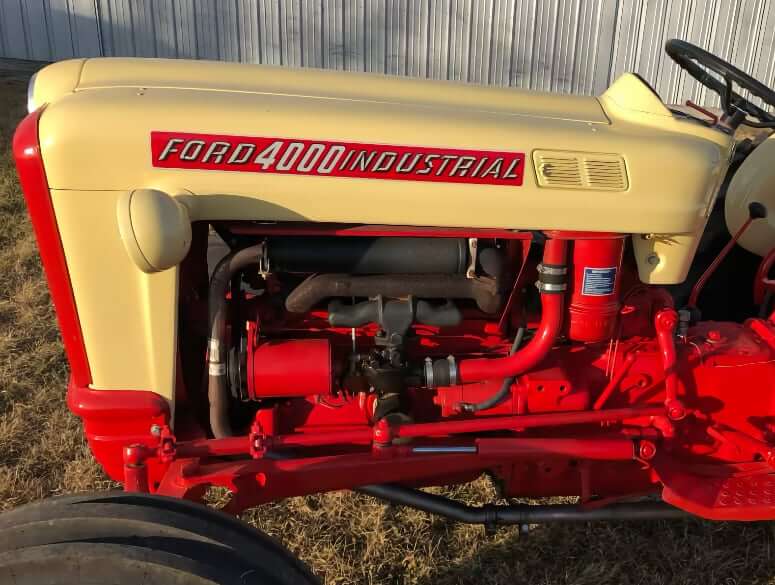

Engine Details
| Type | Ford 2.8L gasoline | Ford 2.8L diesel |
|---|---|---|
| Number Of Cylinders | 4 | 4 |
| Engine Make | Ford Motor Company | Ford Motor Company |
| Power (gross) | 62.5 hp (46.6 kw) | 56.3 hp (42.0 kw) |
| Power Measured @ | 2200 rpm | 2200 rpm |
| Peak Torque | 158 lb ft (214.2 Nm) | 140.4 lb ft (190.4 Nm) |
| Torque Measured @ | 1600 rpm | 1400 rpm |
| Displacement | 172 cu in (2.8 L) | 172 cu in (2.8 L) |
| Bore | 3.9 in (99 mm) | 3.9 in (99 mm) |
| Stroke | 3.6 in (91 mm) | 3.9 in (99 mm) |
| Firing Order | 1-2-4-3 | 1-2-4-3 |
| Air Cleaner | Oil bath | Oil bath |
| Compression | 7.5:1 | 16.8:1 |
Electrical
| Engine Type | Ford 2.8L gasoline | Ford 2.8L diesel |
|---|---|---|
| Operating Voltage | 6 V | 12 V |
| Alternator | 20 amps | 20 amps |
| Battery | 6 V, 80 Ah | 12 V, 135 Ah |
| Starter | 6 V | 12 V |
Mechanical
| Ford | 4000 | 4000 HD | 4000 LCG |
|---|---|---|---|
| Drive Type | 2WD | 2WD | 2WD |
| Steering Type | Power | Power | Mech. |
| Service Brakes | Differential mech. shoe brakes | Differential mech. shoe brakes | Mech. expanding shoe brakes |
| Operator Station | Open Operator Station | Open Operator Station | Open Operator Station |

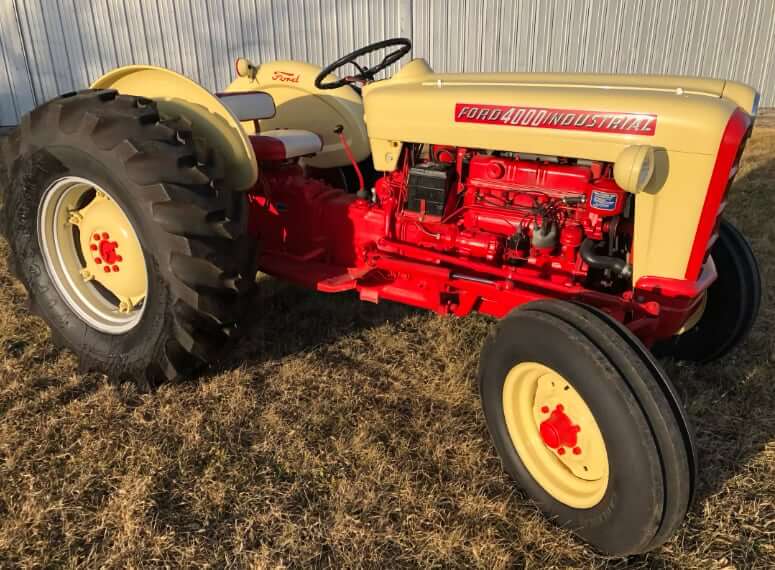

Transmission
| Ford | 4000 | 4000 HD | 4000 LCG |
|---|---|---|---|
| Type | ⛭ 4F x 1R Gear ⛭ 12F x 3R Gear ⛭ 4F x 4R Mechanical shuttle ⛭ 10F x 2R Select-O-Speed full power shift |
⛭ 4F x 1R Gear ⛭ 12F x 3R Gear Over-Under ⛭ 4F x 4R Reversing ⛭ 10F x 2R Select-O-Speed power shift |
⛭ 4F x 1R Gear ⛭ 5F x 1R Gear ⛭ 12F x 3R Gear Over-Under ⛭ 10F x 2R Select-O-Speed full power shift |
| Max Forward Speed | 14.9 mph (24.0 km/h) 22.7 mph (36.5 km/h) – 18.0 mph (29.0 km/h) |
13.6 mph (21.9 km/h) 20.3 mph (32.7 km/h) – 16.4 mph (26.4 km/h) |
15.0 mph (24.1 km/h) 12.0 mph (19.3 km/h) 22.8 mph (36.7 km/h) 18.1 mph (29.1 km/h) |
| Max Reverse Speed | 4.2 mph (6.8 km/h) 6.4 mph (10.3 km/h) – 5.1 mph (8.2 km/h) |
3.9 mph (6.3 km/h) 5.8 mph (9.3 km/h) – 4.7 mph (7.6 km/h) |
4.3 mph (6.9 km/h) 4.0 mph (6.4 km/h) 6.5 mph (10.4 km/h) 5.2 mph (8.3 km/h) |

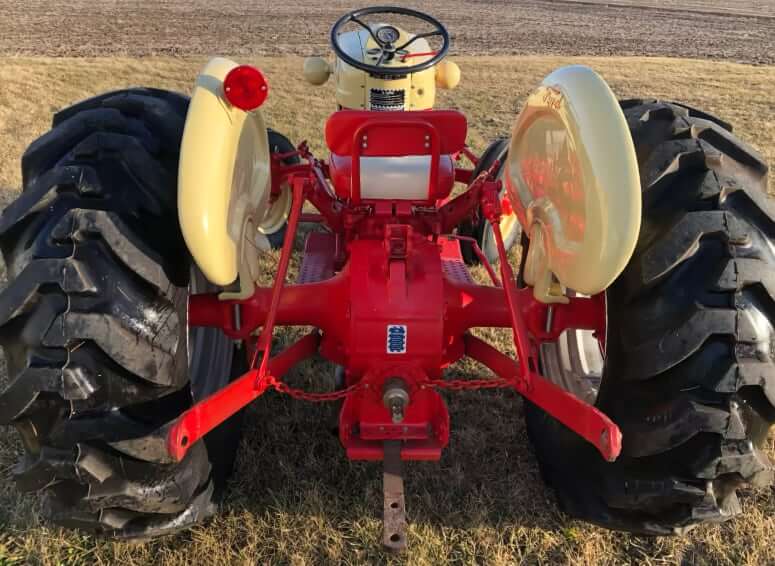

Power Take-off (PTO)
| Ford | 4000 | 4000 HD |
|---|---|---|
| Type | Rear, transmission, independent (available with the Select-O-Speed transmission) | Rear, transmission, independent PTO (optional, available with the Select-O-Speed transmission) |
| Rear PTO Speed | 540 (540/1000 optional) | 540 Optional (540/1000 available with SoS) |
| PTO Power | 43.5 hp (32.4 kw) | – |
| Engine RPM | 540@1485 (gear) / 540@1750 (SoS) | – |
Ford 4000 LCG industrial tractor has no PTO.
Hydraulic System
| Ford | 4000 | 4000 HD |
|---|---|---|
| Hydraulic Type | Open center | Open center |
| Pump Type | Piston pump | Piston pump |
| Pump Flow | 4 gpm (15.1 L/min) | 4 gpm (15.1 L/min) 17 gpm (64.3 L/min) optional |
| System Pressure | 2000 psi (13800 kPa) | 2000 psi (13800 kPa) |
| Steering Flow | 5 gpm (18.9 L/min) optional | 8 gpm (30.3 L/min) optional |
| Steering Pressure | 650 psi (4482 kPa) optional | 1250 psi (8618 kPa) |
| Tractor Rear Hitch Lift Capacity | 2360 lb (1070 kg) | 1250 lb (567 kg) |
| Tractor Hitch Type | Category I | Category I |
Ford 4000 LCG industrial tractor has no hydraulic system.
Service Refill Capacities
| Ford | 4000 | 4000 HD | 4000LCG |
|---|---|---|---|
| Fuel Tank Capacity | 17 gal (64.3 L) | 17 gal (64.3 L) | 17 gal (64.3 L) |
| Cooling System Fluid Capacity | 3.75 gal (14.2 L) | 3.75 gal (14.2 L) | 3.75 gal (14.2 L) |
| Engine Oil Capacity | 1.24 gal (4.7 L) | 1.24 gal (4.7 L) | 1.24 gal (4.7 L) |
| Hydraulic System Fluid Capacity | 2 gal (7.6 L) | 2 gal (7.6 L) | – |
| Transmission Oil Capacity | 1.5 gal (5.7 L) 4-speed Gear 2.75 gal (10.4 L) Select-O-Speed |
1.5 gal (5.7 L) 4-speed Gear 3.01 gal (11.4 L) Select-O-Speed |
1.5 gal (5.7 L) 4-speed Gear 2.75 gal (10.4 L) Select-O-Speed |
Serial Numbers
| Year | SN | Year | SN |
|---|---|---|---|
| 1960 | 105943 | 1962 (4130 Series) | 1001 |
| 1961 | 131427 | 1963 | 11948 |
| 1962 (4030 Series) | 155531 | 1964 | 38931 |

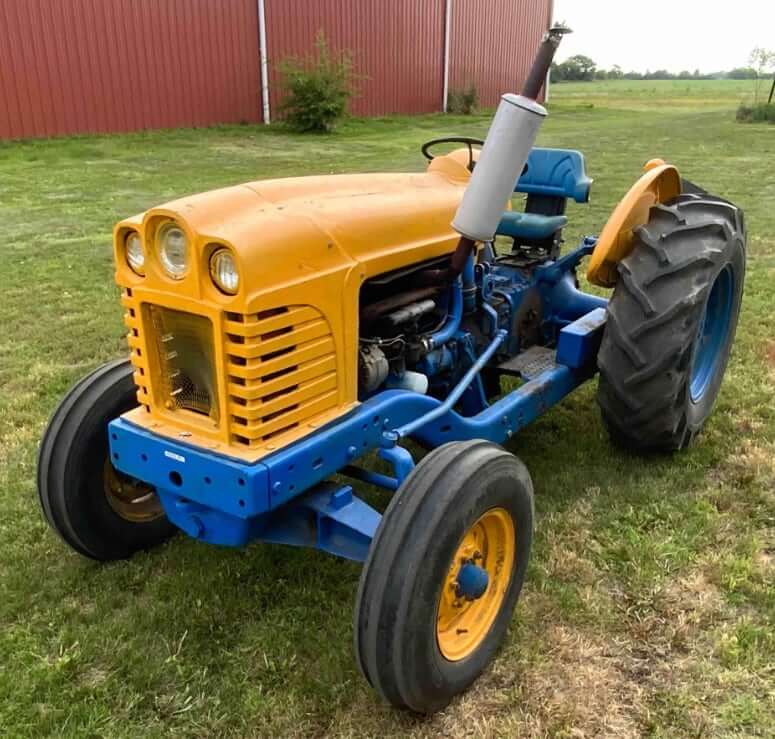

The Ford 4000 HD Industrial Tractor enhances this ruggedness with additional strength and durability, making it suitable for demanding construction and material-handling tasks. Meanwhile, the Ford 4000 LCG (Low Center of Gravity) Industrial Tractor is designed for stability and safety in low-profile applications, such as orchard operations or mowing on slopes.
Together, these variants highlight the Ford 4000 series’ commitment to delivering tailored solutions for specific operational requirements, balancing power, efficiency, and flexibility.
