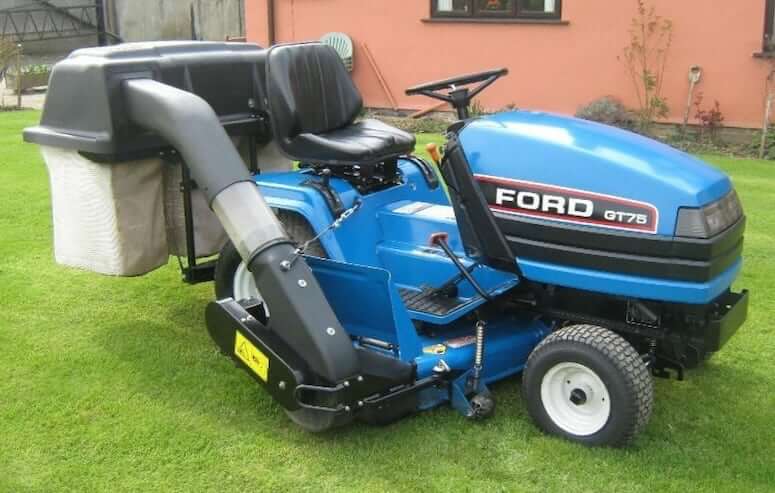

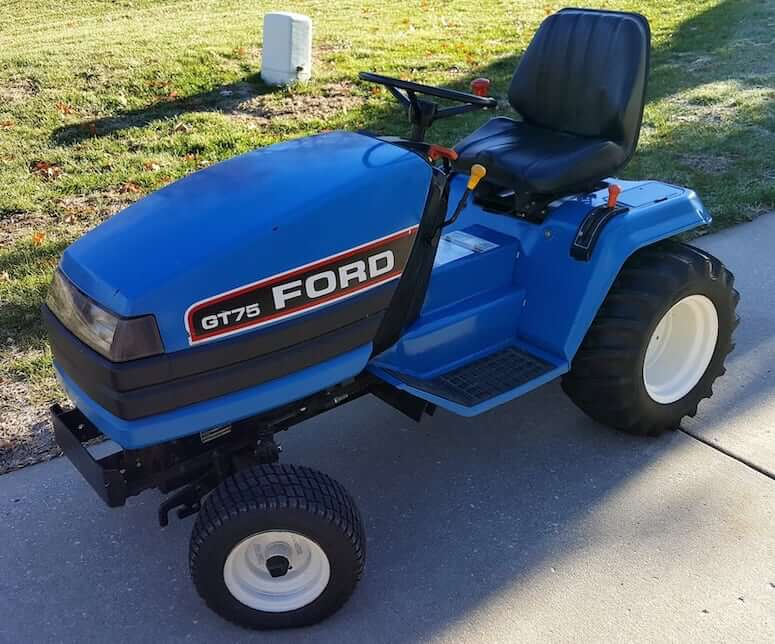

The Ford GT75 lawn tractor, produced from 1992 to 1997, was a reliable and versatile machine that catered to the needs of homeowners and landscapers alike. The GT75 was equipped with a robust 16HP Shibaura diesel engine, providing ample power for various gardening and landscaping tasks. With compatibility for a range of attachments such as mid-mount mower decks, snow blowers, blades, and tillers, the GT75 offered versatility to tackle different projects with ease.
Its compact size and maneuverability made it well-suited for residential properties or areas with limited space, allowing users to navigate tight corners and narrow pathways. Built with quality materials and components, the GT 75 boasted a sturdy construction that could withstand the rigors of regular use and challenging terrain. Ford’s reputation for reliability extended to the GT75, providing users with a dependable machine that could consistently deliver performance over its years of service.
Dimensions
| Wheelbase | 50 in (1270 mm) |
| Overall Length | 75.2 in (1910 mm) |
| Height Top of Seat | 47.6 in (1210 mm) |
| Overall Width | 39 in (990 mm) |
| Front Tread | 30.3 in (770 mm) |
| Rear Tread | 26.2 – 28.1 in (665 – 713 mm) |
| Ground Clearance | 6.3 in (160 mm) |
| Front Tire Size | 16×6.50-8 2PR G2 Lawn / Turf |
| Rear Tire Size | 23×10.50-12 2PR G2 Lawn / Turf |
| Turning Radius (without brake) | 32 in (810 mm) |

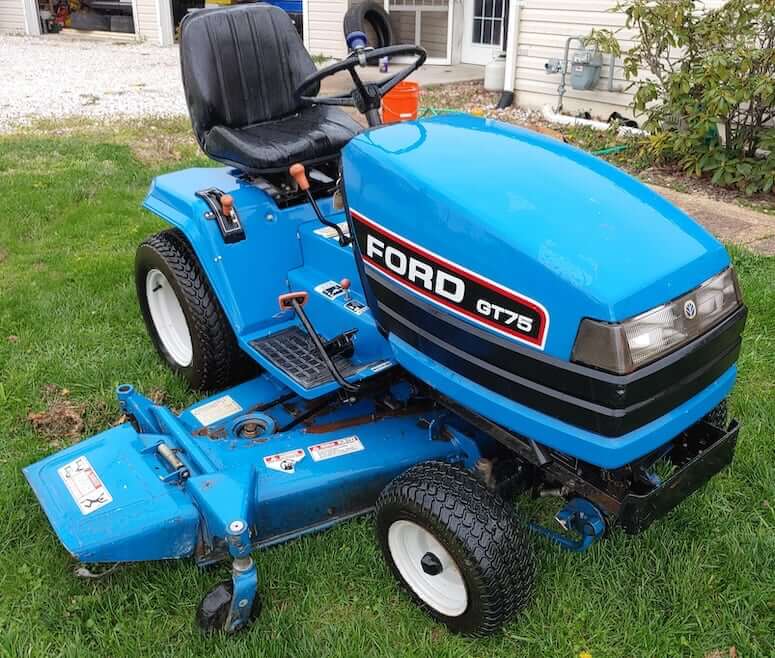

Weight
| Operating Weight with Manual Steering | 838 lb (380 kg) |
| Operating Weight with Power Steering | 842 lb (382 kg) |
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | Shibaura |
| Engine Model | Shibaura E673 |
| Power (SAE J 1349) | 16 hp (11.9 kw) |
| Power Measured @ | 3200 rpm |
| Displacement | 41.3 cu in (0.67 L) |
| Bore | 2.64 in (67 mm) |
| Stroke | 2.52 in (64 mm) |
| Compression Ratio | 23.5 to 1 |
| Firing Order | 1-2-3 |
| Air Cleaner | Dry |
| Pre-heating | Glow plugs |
| Engine Type | Liquid-cooled horizontal-shaft inline diesel |
Transmission
| Type | Shaft-driven hydrostatic transmission |
| Number Of Gears | Infinite forward and reverse (2-range) |
| Max Forward Speed: Low | 4.1 mph (6.6 km/h) |
| Max Forward Speed: High | 8.0 mph (12.9 km/h) |
| Max Reverse Speed: Low | 6.1 mph (9.8 km/h) |
| Max Reverse Speed: High | 3.7 mph (6.0 km/h) |
Mechanical
| Drive Type | 2WD |
| Steering Type | Mechanical / Power (optional) |
| Brakes | Disc brakes |
| Brake Disc Diameter | 5.5 in (140 mm) |
| Operator Station | Open Operator Station |
Power Take-off (PTO)
| Mid PTO | independent |
| Mid PTO Clutch | Manual idler pulley (belt drive) |
| Front PTO | independent |
| Front PTO Clutch | Manual idler pulley (belt drive) |
| PTO Speed | 2719 rpm |
| PTO Horsepower (Observed) | 13 hp (9.56 kw) |
Hydraulic System
| Pump Type | Gear |
| Pump Flow Capacity | 3 gpm (11.5 lpm) |
| System Relief Valve Setting @3200 rpm | 471 psi (3250 kPa) |
| Power Steering System Relief Valve Setting | 889 psi (6130 kPa) |
Electrical
| Operating Voltage | 12 V |
| Alternator | 14 amps |
| Battery | 12 V, 30 Ah, CCA 332 |
| Starter | Solenoid Engaged |
Service Refill Capacities
| Fuel Tank Capacity | 4.2 gal (16 L) |
| Engine Oil Capacity (with Filter) | 0.8 gal (3 L) |
| Cooling System Capacity | 0.9 gal (3.3 L) |
| Rear Axle + Transmission (Includes Hydraulics) | 2.3 gal (8.6 L) |
| Rear Axle + Transmission (Includes Hydraulics and Power Steering) | 2.5 gal (9.6 L) |

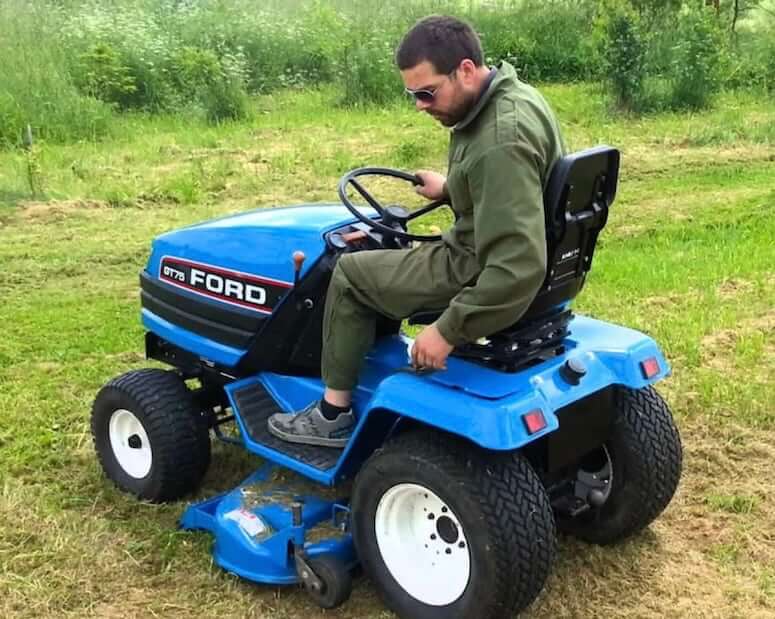

Ford GT75 Attachments
The Ford GT75 garden tractor offers a versatile range of attachments to enhance its functionality and adaptability for various tasks. Whether you’re looking to maintain your lawn, clear snow, or engage in ground-engaging activities, the GT75 has you covered. For lawn maintenance, the tractor supports three different sizes of mid-mount mower decks: a 44-inch, 48-inch, and 60-inch deck.
These mower decks provide efficient cutting performance, allowing you to keep your lawn neatly trimmed with ease. In regions with heavy snowfall, the GT75 can be equipped with a snowblower attachment. This attachment helps you quickly and effectively clear snow from driveways, pathways, and other areas, ensuring safe passage during winter weather.
Mid-Mount Mower Decks
| Model | 44″ Mower deck | 48″ Mower deck | 60″ Mower deck |
|---|---|---|---|
| Mower deck | Ford 09GN-3661 | Ford 09GN-3662 | Ford / New Holland 9607334, 9607335, 9802798 |
| Cutting width | 44 in (1118 mm) | 48 in (1219 mm) | 60 in (1524 mm) |
| Total width | 56.3 in (1430 mm) | 60.3 in (1530 mm) | 72.4 in (1830 mm) |
| Blade | 3-blade | 3-blade | 3-blade |
| Lift | Hydraulic lift | Hydraulic lift | Hydraulic lift |
| Cut height range | 1 – 4.25 in (20 – 100 mm) | 1 – 4.5 in (20 – 110 mm) | 1.37 – 4.37 in (30 – 110 mm) |
| Weight | 178 lb (80 kg) | 190 lb (86 kg) | 311 lb (141 kg) |

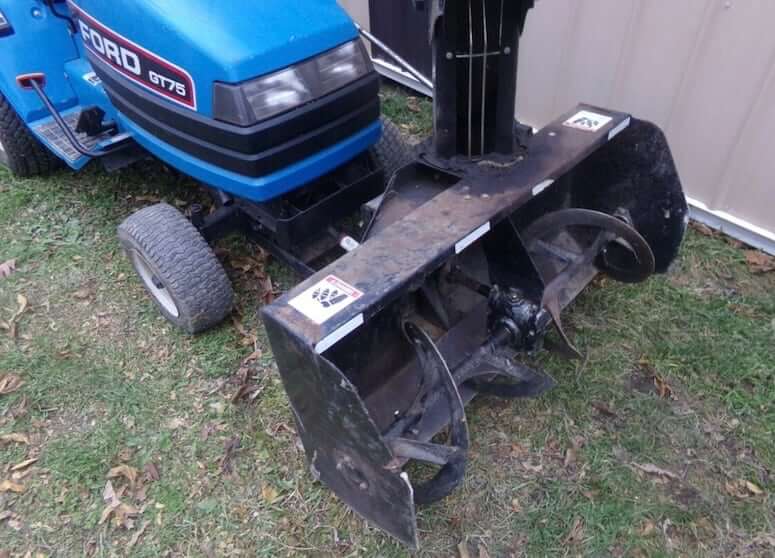

42″ Snow Blower
| Specs | Ford 09BV4200 Snow blower (42″) |
|---|---|
| Manufacturer | Ford / Ferguson / New Holland |
| Cutting width | 42 in (1060 mm) |
| Type | Single & Dual Stage Snow Thrower |
| Mounting | Front-mount |
46″ Dozer Blade
| Specs | Ford 09JC9797 Dozer Blade (46″) |
|---|---|
| Manufacturer | Ford / New Holland |
| Cutting width | 46 in (1160 mm) |
| Type | Dozer Blade |
| Mounting | Front-mount |

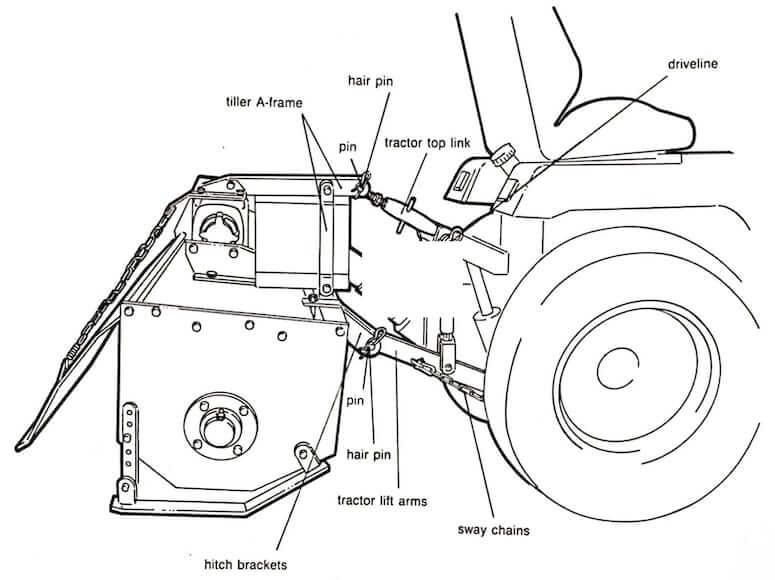

40″ Tiller Ford 9607497
| Specs | Ford 40″ Tiller |
|---|---|
| Working Width | 40 in (1016 mm) |
| Inside Housing Width | 39 in (991 mm) |
| Input | 2000 rpm |
| PTO Range Required | 8 – 15 hp (5.9 – 11 kw) |
| Type Hitch | 3-point Cat. 0 |
| Rotor Shaft Speed | 288 rpm |
| Gearbox Ratios | Input – 4.1 : 1 / Lateral – 1.69 : 1 |
| Deck Material | 5/64” steel |
| Tilling Depth | 0 – 7 in (0 – 178 mm) |
| Number of Blades | 24 |
| Implement Weight | 244 lb (111 kg) |
| Shipping Weight | 271 lb (123 kg) |
| Chain Housing Oil | AGMA 8EP Ind gear oil or SAE 140 GL 5 gear oil (when the first oil is unavailable) |
| Gearbox Oil | SAE 90 or 80W – 90 wt. oil |
| Grease | Ford MIC137A or equivalent lithium base grease |
Additionally, the tractor offers a blade attachment, which can be used for various tasks such as grading, leveling, and clearing debris. The blade attachment provides versatility for landscaping and light-duty earthmoving projects. Moreover, garden tractors like the GT75 are compatible with a range of ground-engaging attachments such as tillers, plows, and cultivators. These attachments enable you to prepare soil for planting, cultivate gardens, and perform other agricultural tasks with precision and efficiency. With its array of attachments, the Ford GT75 tractor offers exceptional versatility and utility, making it a valuable tool for homeowners and landscapers alike.
The change in branding from Ford (when New Holland acquired the Ford Tractor Division in 1991) to New Holland was part of a broader strategic decision by New Holland to unify its product lineup and establish a cohesive brand identity across its range of agricultural machinery and garden equipment. This rebranding effort aimed to leverage the reputation and heritage of the New Holland brand while maintaining continuity with existing product lines.

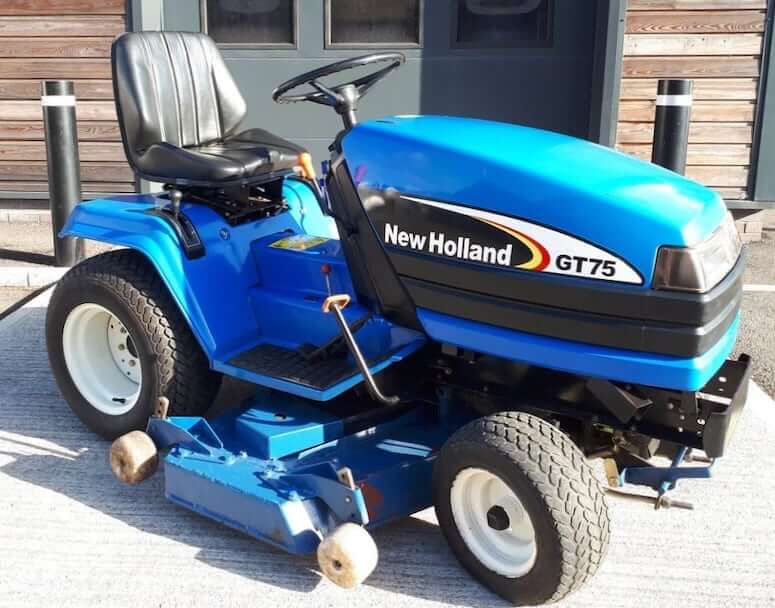

Therefore, around the time of the acquisition in 90s, the Ford GT75 lawn tractor began to be marketed and sold as the New Holland GT-75. This change in branding did not alter the fundamental characteristics or features of the tractor but was primarily a reflection of the new corporate ownership and branding strategy implemented by New Holland.
Compared to newer models, the GT75 may have lacked some modern features and conveniences, such as power steering or advanced control systems, which could be found in contemporary garden tractors. The standard manual steering system may have required more effort, especially when navigating uneven terrain or operating with heavy attachments. Towards the end of its production run, the GT-75 may have started to show signs of aging technology, with advancements in engine efficiency, ergonomics, and safety features becoming more prevalent in newer models.
Overall, the Ford GT75 tractor offered reliable performance and versatility for homeowners and landscapers seeking a capable machine for maintaining their gardens and properties. While it may have lacked some modern features found in newer models, its durability and dependable performance made it a popular choice during its production years.
