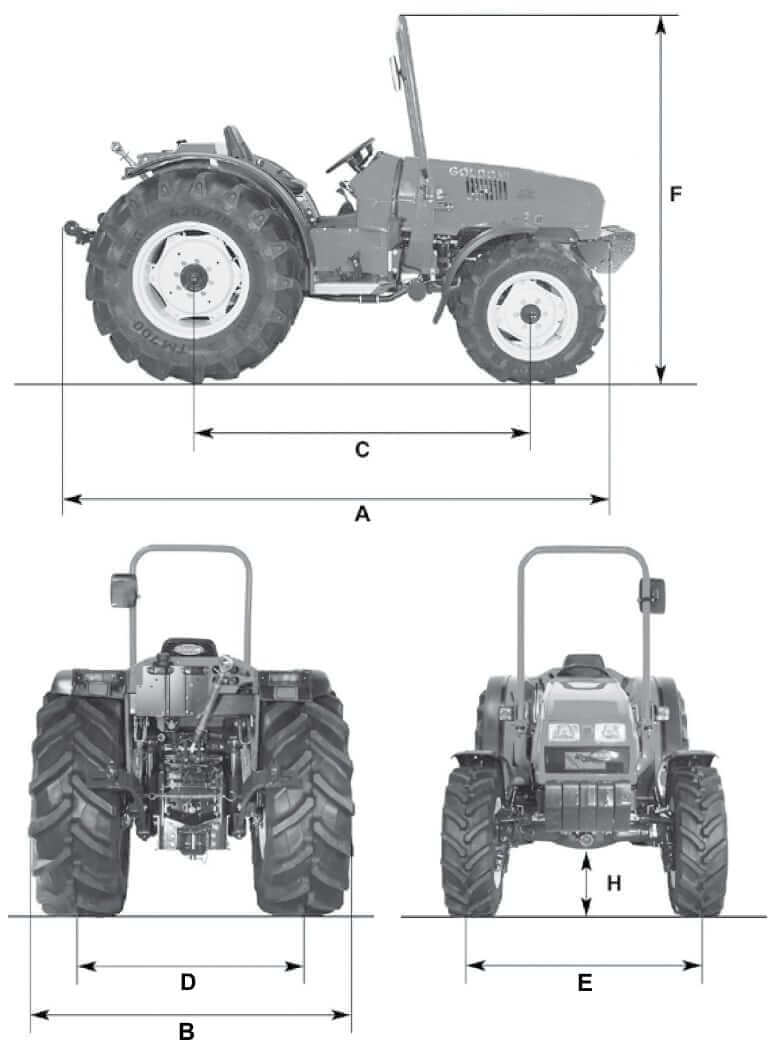

Dimensions
| A. Overall Length | 122 in (3098 mm) |
| B. Overall Width | 52.8 – 69.7 in (1340 – 1770 mm) |
| C. Wheelbase | 66.5 in (1690 mm) |
| D. Rear Track Width | 39.8 – 57.5 in (1010 – 1460 mm) |
| E. Front Track Width | 40.9 – 55.1 in (1040 – 1400 mm) |
| F. Height to Top of ROPS | 77.8 in (1975 mm) |
| H. Ground Clearance | 9.1 in (230 mm) |
Operational Specs
| Operating Weight with ROPS | 4079 lb (1850 kg) |
| Operating Voltage | 12 V |
| Alternator | 50 amps |
| Battery | 12 V |
| Front Tire Size | 240/70×16. Optional: 11,00/65-12; 6,00×16; 26×12,0-12 Garden |
| Rear Tire Size | 320/70R24. Optional: 320/85R20; 280/85R24; 38×14,00-20 |
| Turning Radius | 118.1 in (3 m) |
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | VM Motori |
| Engine Model | VM Motori D703E2 |
| Displacement | 127 cu in (2.082 L) |
| Net Power | 48 hp (35 kw) |
| Power Measured @ | 2600 rpm |
| Peak Torque | 107 lb ft (145 Nm) |
| Torque Measured @ | 1200 rpm |
| Torque Rise | 14% |
| Aspiration | Naturally aspirated |
| Emission Standards | EPA – 97 / 68 / EC Stage 2 |
Transmission
| Transmission Type | Synchronized reverse shuttle / Synchronized Dual power |
| Number Of Gears | 40 speeds – a lever can be used to select the 8+8 transmission with synchronized reverse shuttle or the 16+8 with synchronized Dual power (-20%) |
| Main Clutch | 9″ diameter dry clutch |
| Steering Angle | 55° |
| Max Travel Speed | 19.5 mph (31.4 km/h) |
| Max Travel Speed, Reverse | 16.6 mph (26.7 km/h) |
| Steering | Hydrostatic with load sensing valve |
| Drive | 4×4 |
| Service Brake | Oil-cooled multiple-plate integral braking on all four wheels |
PTO (Power Take-Off)
| PTO Type | Independent rear PTO |
| Rear PTO Speed | 540 / 750 |
| Optional PTO Speed | 540 / 750 / 1000 |
| PTO Clutch | Dry disc type |
| Synchronised w/ Gearbox | Synchronised with all gearbox speeds |
| Control | Mechanical |
Hydraulic System
| Pump Flow Capacity | 10.3 gal/min (39 L/min) |
| Rear Hydraulic Control Valves | 1 standart + max 2 optional |
| Auxiliary Control Valves | 3 |
| 3 Point Hitch Type | Cat I and II |
| 3 Point Hitch Lift Capacity @ 24 Inches | 5071 lb (2300 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 13.2 gal (50 L) |
| Engine Oil Capacity | 1.32 gal (5 L) |
| Cooling System Capacity | 1.0 gal (3.7 L) |
