Dimensions
| Goldoni Star 75 | Q Low TZA 44 | Q Tall TZA 4B |
|---|---|---|
| Distance of Rear Wheel Axis from Differential Axis, Vertically | 0.83 in (21 mm) lower | 1.54 in (39 mm) lower |
| Distance of Rear Wheel Axis from Differential Axis, Horizontally | 6.02 in (153 mm) behind | 5.9 in (150 mm) behind |
| Overall Length | 128.6 in (3267 mm) | 128.6 in (3267 mm) |
| Wheelbase | 75.4 in (1915 mm) | 75.4 in (1915 mm) |
| Max Overall Width | 73.2 in (1860 mm) | 73.2 in (1860 mm) |
| Front Track Width | 49.1-54.0 in (1248-1372 mm) | 49.1-54.0 in (1248-1372 mm) |
| Rear Track Width | 46.5-58.6 in (1180-1488 mm) | 46.5-58.6 in (1180-1488 mm) |
| Height to Top of ROPS | 85.0 in (2160 mm) | 85.0 in (2160 mm) |
| Ground Clearance (front axle) | 13.4 in (340 mm) | 13.4 in (340 mm) |
| Front Tire Size | 10.0/75-15.3. Optional: 280/70R16, 250/80-18, 280/70R18, 250/80-18, 280/70R16, 29×12.50-15, 8.25-16 | 10.0/75-15.3. Optional: 280/70R16, 260/70R16, 9.0/75-16, 9.0/75-16, 29×12.50-15, 280/60-15.5, 200/70R16, 240/70R16, 210/80R16, 10.0/75-15.3 |
| Rear Tire Size | 380/70R24 Optional: 380/70R24, 12.4R28, 420/70R24, 14.9R24, 380/70R24, 44×18.00-20, 13.6R24 | 380/70R24 Optional: 380/70R24, 360/70R24, 360/70R24, 12.4R24, 44х18.00-20, 375/75R20, 320/70R24, 320/70R24, 320/70R24, 380/70R24 |
Operational Specs
| Shipping Weight | 4608 lb (2090 kg) |
| Operating Weight | 4773 lb (2165 kg) |
| Front Axle Load | 2183 lb (990 kg) |
| Rear Axle Load | 2590 lb (1175 kg) |
| Operating Voltage | 12 V |
| Alternator | 55 amps |
| Starter | 4.16 hp (3.1 kw) 12 V |
| Battery | 12 V, 100 Ah, CCA 640 |
| Steering | Hydrostatic steering |

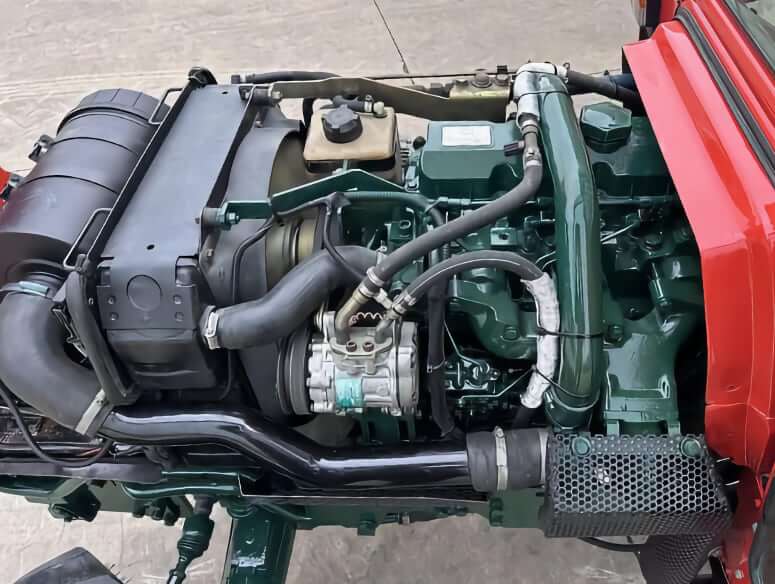

Engine Details
| Number Of Cylinders | 3 |
| Engine Make | John Deere |
| Engine Model | John Deere Powertech 3029 DF150 |
| Displacement | 179.4 cu in (2.94 L) |
| Bore | 4.2 in (106.5 mm) |
| Stroke | 4.3 in (110 mm) |
| Net Power | 58 hp (43 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 141 lb ft (191 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbocharged and aftercooled |
| Emission Standards | CARB, US EPA Tier 1, EU Stage I |
Transmission
| Transmission Type | Mechanical synchromesh |
| Clutch | Double disk dry clutch, 9.8 in (250 mm) |
| Number Of Gears | 16+8 with synchronized / 8+8 with synchronized |
| Front Axle Type | Central shaft, bevel gear type, differential and epicyclic final drive |
| Rear Axle Type | Bevel gear differential and epicyclic final drive |
| Differential Lock | Mechanical differential lock engaged or disengaged by foot pedal |
| Drive | 4×4 |
| Service Brake | 18 oil bath discs (6 at front – 3 per wheel, and 12 at rear – 6 per wheel) mounted before the final drive |
| Parking Brake | Mechanical, in common with service brake |
| Max Travel Speed, Forward | 24.9 mph (40 km/h) |
| Max Travel Speed, Reverse | 17.6 mph (28.4 km/h) |
PTO (Power Take-Off)
| PTO Type | Independent Rear PTO |
| PTO Speed | 540 / 750 / 1000 |
| Height above Ground | 19.4 in (492 mm) |
| PTO Shaft End Diameter | 1.38 in (35 mm) |
| Number of Splines | 6, ISO 500:1991, type 1 |
Hydraulic System
| Type | Open centre load sensing hydraulic system |
| Pump Type | Hydraulic rotary pump Hidroirma, driven by engine |
| Pump Flow Capacity | 6.2 gal/min (23.6 L/min) |
| Relief Valves Pressure Setting | 2828 psi (19500 kPa) |
| Steering Pump Type | Hydraulic gear pump Hidroirma, driven by engine |
| Steering Working Pressure | 2176 psi (15000 kPa) |
| 3 Point Hitch Type | Cat I and II |
| 3 Point Hitch Lift Capacity @ 24 Inches | 5512 lb (2500 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 10.6 gal (40 L) |
| Engine Oil Capacity | 2.25 gal (8.5 L) |
| Cooling System Capacity | 3.2 gal (12 L) |
| Transmission/Hydraulic System Capacity | 8.45 gal (32 L) |
| Front Axle / Final Drives | 1.2 gal (4.5 L) |
