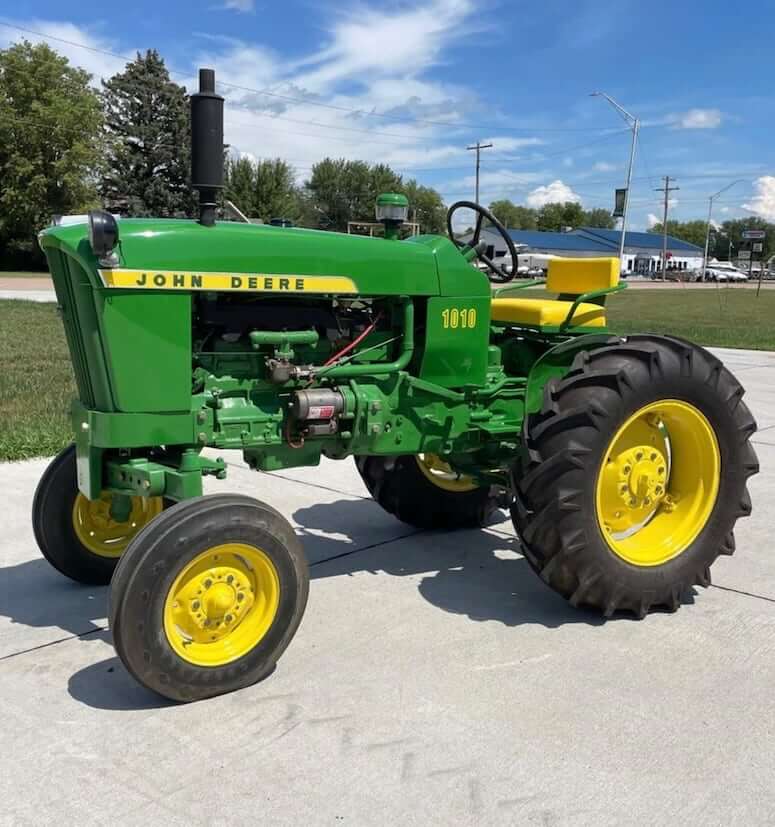

Dimensions
Overall Length | 132 in (3353 mm) |
Overall Length (w/o 3-point hitch) | 121.5 in (3080 mm) |
Wheelbase | 82.5 in (2090 mm) |
Height to Hood | 55.9 in (1410 mm) |
Height to Exhaust | 72.3 in (1830 mm) |
Front Tread | 50 to 80 in (1270 to 2030 mm) |
Rear Tread | 56 to 89 in (1420 to 2260 mm) |
Crop Clearance | 21 in (533 mm) |
Height of Drawbar | 12.5 in (318 mm) |
Height of Drawbar (Ballasted) | 13.5 in (343 mm) |
Weight
Shipping Weight (Gasoline) | 3350 lb (1519 kg) |
Shipping Weight (Diesel) | 3430 lb (1555 kg) |
Operating Weight (Gasoline) | 3923 lb (1779 kg) |
Operating Weight (Diesel) | 4041 lb (1832 kg) |
Ballasted Weight | 5750 lb (2608 kg) |
Engine Details
Engine Model | John Deere 2.4L Diesel | John Deere 1.9L Gasoline |
---|---|---|
Number Of Cylinders | 4 | 4 |
Bore | 3.62 in (92 mm) | 3.50 in (89 mm) |
Stroke | 3.50 in (89 mm) | 3.00 in (76 mm) |
PTO Horsepower | 35.99 hp (26.8 kw) | 36.13 hp (26.9 kw) |
Drawbar Horsepower | 29.16 hp (21.7 kw) | 30.00 hp (22.4 kw) |
Power Measured @ | 2500 rpm | 2500 rpm |
Aspiration | Naturally aspirated | Naturally aspirated |
Compression | 18:1 | 8.3:1 |
Air Cleaner | Oil washed wire mesh | Oil washed wire mesh |
Cranking System | 12 V | 12 V |

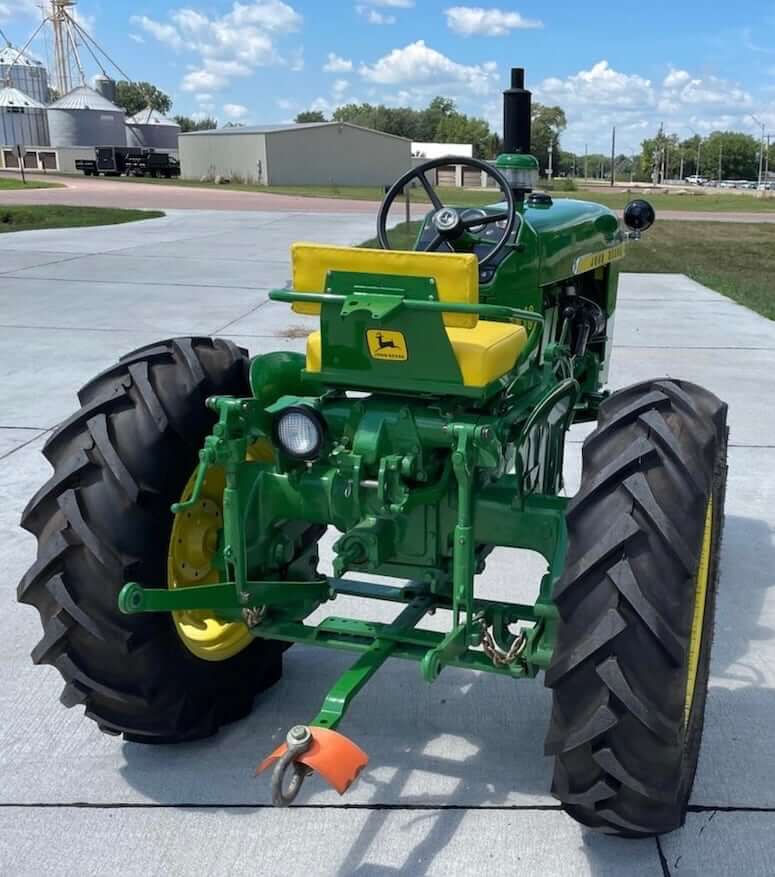

PTO (Power Take-Off)
Rear PTO Type | 540 rpm transmission-driven |
Rear PTO Type (optional) | 540/1000 rpm live, engine-driven |
Standarts | ASAE-SAE |
Transmission
Type | Selective gear fixed ratio |
Clutch | Single plate dry disc operated by foot pedal |
Number Of Forward Gears | 5 |
Number Of Reverse Gears | 1 |
Max Forward Speed (Row-Crop) | 17.47 mph (28.1 km/h) |
Max Reverse Speed (Row-Crop) | 3.94 mph (6.3 km/h) |
Max Forward Speed (Row-Crop Utility) | 14.72 mph (23.7 km/h) |
Max Reverse Speed (Row-Crop Utility) | 3.31 mph (5.3 km/h) |
Operational Specs
Operating Voltage | 12 V |
Tractor Cab | Open operator station |
Steering | Manual / Power Steering (optional) |
Drive | 4×2 2WD |
Front Tire Size | 5.00-15; 6.00-16 |
Front Tire Size | 12.4-28; 13.6-28 |
Turning Radius w/ Brake | 120 in (3048 mm) |
Turning Radius w/o Brake | 142 in (3607 mm) |
Service Brakes | Mechanical disc brakes |
Hydraulic System
Type | Open center hydraulics |
Capacity | 4.5 gal (17 L) |
Hydraulic Control System | Direct engine drive |
3 Point Hitch Type | Cat I |

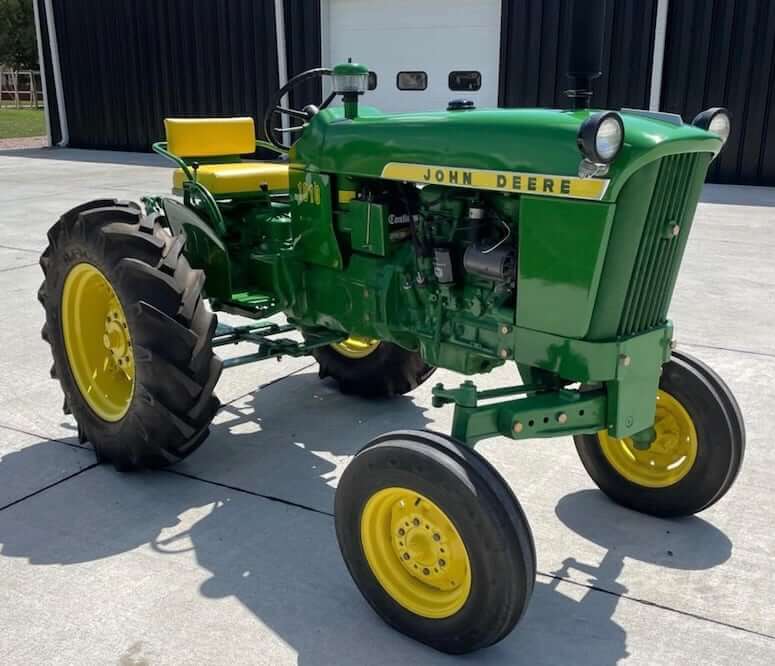

Service Refill Capacities
Fuel Tank Capacity | 12 gal (45.4 L) |
Cooling System Capacity | 2.7 gal (10.4 L) |
Engine Oil Capacity (w/ Filter) | 1.5 gal (5.7 L) |
Hydraulic Oil Capacity | 4.5 gal (17 L) |
Transmission Case Capacity | 2.25 gal (8.5 L) |
These specifications provide a comprehensive overview of the John Deere 1010 Tractor, covering its engine, transmission, power, mechanical features, dimensions, and weight.
John Deere 1010 Attachments
Here’s a list of attachments commonly used with the John Deere 1010 Tractor:

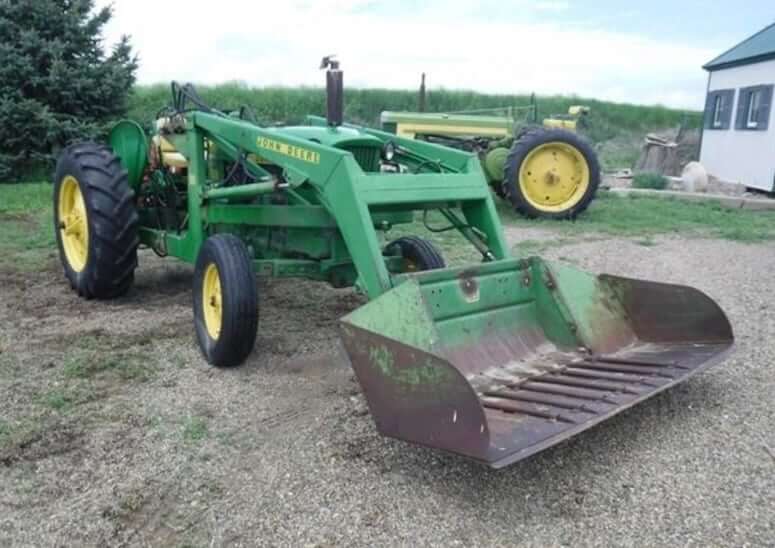

John Deere 36 Loader
The John Deere 36 Front Loader is a robust and versatile attachment designed to enhance the functionality and versatility of the John Deere 1010 Tractor. Equipped with a variety of compatible attachments such as buckets, forks, and grapples, the John Deere 36 Front-end Loader offers exceptional versatility to tackle different tasks with ease.
John Deere 36 Front Loader Specs | |
---|---|
Lift Capacity | 600 lb (272 kg) |
Maximum Lift Height | 96 in (2440 mm) |
Standard Bucket Width | 48 in (1220 mm) |
Bucket Capacity | Varies depending on bucket size and material |
Attachment | Quick attach/detach mechanism |
Hydraulic System | Hydraulic cylinders for lifting and dumping |
Control | Manual control levers |
Mounting | 3-point hitch mounting |
Safety Features | Loader stand for storage and maintenance, safety chain |
Construction | Heavy-duty steel construction |
Whether loading and unloading materials, clearing debris, or grading surfaces, this front loader enables efficient and productive operation, helping operators maximize their productivity and minimize downtime.

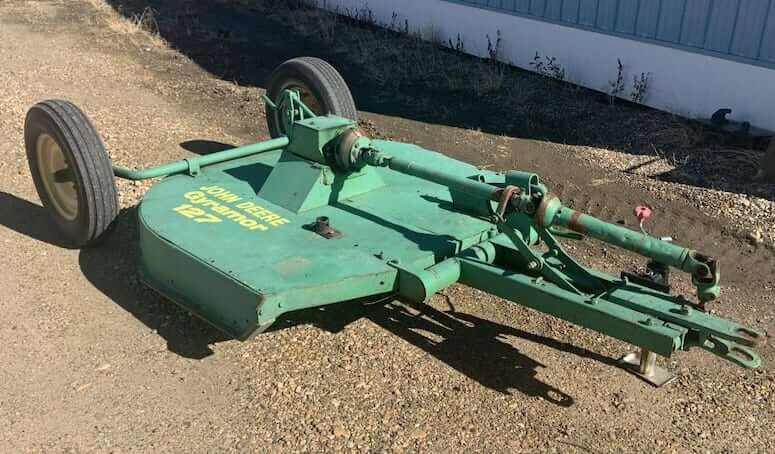

John Deere 127 Rotary Cutter
The John Deere 127 Gyramor Rotary Cutter is a versatile attachment designed to enhance the cutting capabilities of the John Deere 1010 Tractor. With its robust construction and efficient cutting mechanism, this rotary cutter is ideal for tackling a variety of vegetation and terrain types.
Whether you’re clearing overgrown fields, maintaining pastures, or grooming roadsides, the John Deere 127 Rotary Cutter delivers reliable performance and consistent results.
John Deere 127 Rotary Cutter Specs | |
---|---|
Cutting Width | 60 in (1524 mm) |
Weight | 500 lb (227 kg) |
Hitch Type | Category I |
Blade Tip Speed | 12000 ft/min |
Cutting Capacity | Up to 2 in (51 mm) diameter |
Number of Blades | 2 |
Blade Material | Hardened steel |
Construction Material | Heavy-duty steel |
Blade Carrier | Oval-shaped stump jumper |
Gearbox | 540 rpm |
PTO Horsepower Requirement | 20 – 50 hp (14.7 – 36.8 kw) |
Driveline | ASAE Cat. 3 |
Rear Tires | 215/75 R15 (205/70 R15) |
Its durable build quality ensures longevity and durability, making it a valuable addition to your equipment lineup.

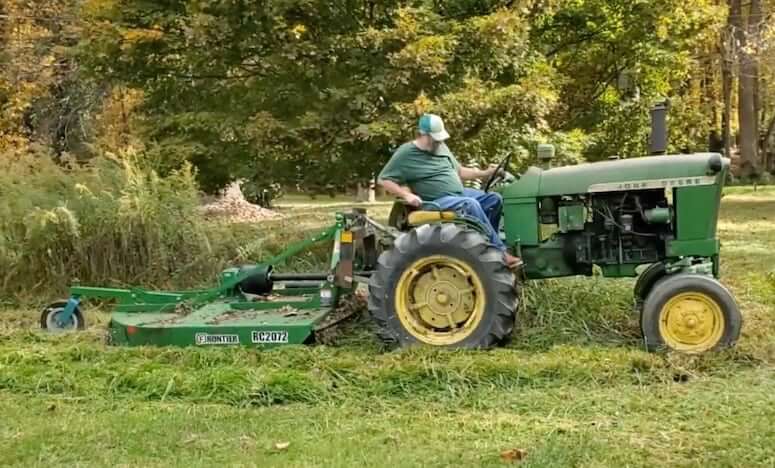

Frontier RC20 Series Rotary Cutters
Engineered for durability and performance, Frontier 20 Series Rotary Cutters are designed to tackle tough mowing jobs with ease. Available in 4-, 5-, and 6- foot models, there’s a rotary cutter perfectly suited for your mowing needs.
Equipped with heavy-duty features on a standard-duty rotary cutter, you can rely on superior reliability and performance. The RC20 series, ideal for small-property owners with tractors from 18 to 65 horsepower, offers a 48-72 in. working width to handle simple cutting chores.
Model | RC2048 | RC2060 | RC2072 |
---|---|---|---|
Cutting Width | 48 in (1220 mm) | 60 in (1524 mm) | 72 in (1830 mm) |
Cutting Height | 1.5 to 9 in (38 to 229 mm) | 1.5 to 9 in (38 to 229 mm) | 1.5 to 9 in (38 to 229 mm) |
Brush Cutting Capacity | 0 to 1 in (0 to 25 mm) | 0 to 1 in (0 to 25 mm) | 0 to 1 in (0 to 25 mm) |
Cutting Chamber Depth | 7.5 in (190 mm) | 7.5 in (190 mm) | 7.5 in (190 mm) |
PTO Power Range | 18 – 45 hp (13.2 – 33.1 kw) | 20 – 65 hp (14.7 – 47.8 kw) | 25 – 65 hp (18.4 – 47.8 kw) |
Tractor PTO Speed | 540 rpm | 540 rpm | 540 rpm |
Hitch Type | Lift-Type Cat 1, adpt. to 2, iMatch, & AutoHitch comp. | Lift-Type Cat 1, adpt. to 2, iMatch, & AutoHitch comp. | Lift-Type Cat 1, adpt. to 2, iMatch, & AutoHitch comp. |
Overall Width | 51 in (1291.4 mm) | 63 in (1600.2 mm) | 75 in (1905 mm) |
Overall Length | 86.6 in (2199.6 mm) | 101.2 in (2570.5 mm) | 111.5 in (2832.1 mm) |
Approx. Weight | 516 lb. (234 kg) | 590 lb. (267.6 kg) | 694 lb. (314.8 kg) |
Deck Thickness | 11 gauge (3 mm) | 11 gauge (3 mm) | 11 gauge (3 mm) |
Skirt Thickness | 11 gauge (3 mm) | 11 gauge (3 mm) | 11 gauge (3 mm) |
Driveline Protection | Shear Bolt or Slip Clutch | Shear Bolt or Slip Clutch | Shear Bolt or Slip Clutch |
Gear Case Power Rating | 45 | 65 | 65 |
Blades | Heat Treated, Suction | Heat Treated, Suction | Heat Treated, Suction |
Blade Tip Speed | 13090 ft/min (66.5 m/s) | 14335 ft/min (72.8 m/s) | 14955 ft/min (76 m/s) |
Blade Holder | Round pan-type | Round pan-type | Round pan-type |
Rear Deflector | Metal or Chain | Metal or Chain | Metal or Chain |
Solid Rubber / Laminated Tire | 15 in (381 mm), 3.75 in (95.25) | 15 in (381 mm), 3.75 in (95.25 mm) | 15 in (381 mm), 3.75 in (95.25 mm) |
Front Deflector | Foot Guard / Belting or Chain | Foot Guard / Belting or Chain | Foot Guard / Belting or Chain |
Backed by John Deere, the most trusted name in farm, ranch, and lawn equipment, the Frontier 20 Series (RC2048, RC2060, RC2072) Rotary Cutters are sold and supported by your local John Deere dealer. For expert guidance in selecting the right Frontier Rotary Cutter for your needs, consult your exclusive source of Frontier Equipment, your local John Deere dealer.
These attachments expand the versatility and functionality of the John Deere 1010 Tractor, allowing it to perform a wide range of tasks on the farm, construction site, or landscaping project.
John Deere 1010 Tractor Variants
Overall, the John Deere 1010 Utility Tractor exemplifies durability, versatility, and performance, making it a valuable asset to farmers and agricultural workers during its production years and beyond.
The John Deere 1010 Utility Tractor, produced between 1960 and 1965, offers a range of versatile options to suit various agricultural and industrial needs. Available in multiple versions including Row Crop (R), Single Row Crop (RS), Row Crop Utility (RU), Orchard (O), Utility (U), and Industrial Wheel (W), as well as crawler types, this tractor caters to diverse applications. One notable variant, the Special Row Crop Utility (RUS), was introduced as a cost-effective option, priced $300 lower (in 1965) than standard models. Despite its lower cost, the RUS version still delivers essential functionalities with features such as a pan seat and a 540 RPM PTO (Power Take-Off).
Introducing the versatile lineup of John Deere 1010 Tractor variants, designed to meet diverse agricultural and industrial needs:
- 1010RU: The Row-Crop Utility variant, combining the agility of a row-crop tractor with the functionality of a utility tractor, perfect for various farming tasks.
- 1010C: The Crawler variant, built for rugged terrain and demanding environments, offering superior traction and stability for heavy-duty applications.
- 1010U: The Utility variant, providing reliable performance and essential features for a wide range of general-purpose tasks on the farm or worksite.
- 1010RS: The Single Row-Crop variant, tailored for precision farming in narrow row spacing, ideal for specialized cultivation and harvesting operations.
- 1010R: The Row-Crop variant, delivering power, efficiency, and maneuverability for efficient fieldwork and crop management tasks.
- 1010O: The Orchard variant, designed with specialized features to navigate orchards and vineyards with ease, ensuring optimal fruit and vine management.
- 1010RUS: The Special Row-Crop Utility variant, offering cost-effective solutions with essential functionalities tailored for specific farming needs.

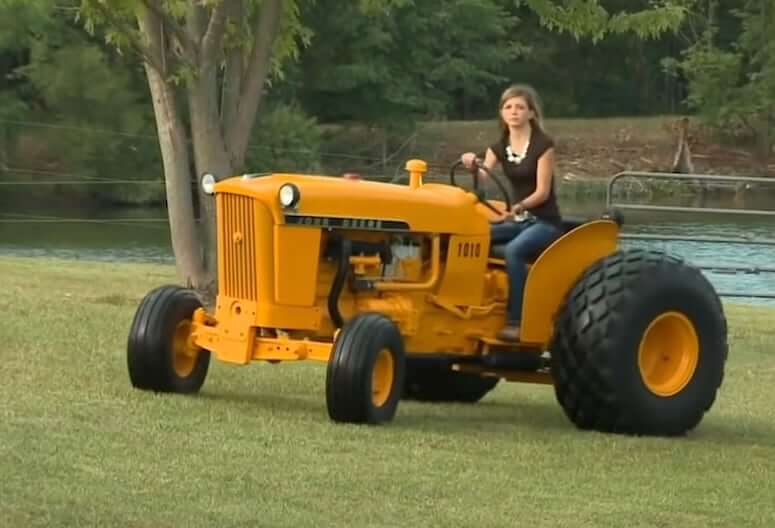

- 1010W: The Wheeled Industrial variant, engineered for heavy-duty industrial applications, providing reliable performance and durability in demanding work environments.
Each variant of the John Deere 1010 Tractor is crafted with precision engineering and industry-leading technology, delivering unmatched versatility, reliability, and productivity for farmers and industrial operators worldwide.
Key to its appeal is its adaptability, with configurations suitable for various agricultural tasks, from row cropping to orchard maintenance. Additionally, its availability in industrial wheel and crawler types underscores its utility beyond traditional farming, extending its applicability to construction and landscaping projects. While specifics may vary across models, the John Deere 1010 series is renowned for its reliability, durability, and performance, making it a trusted choice for farmers, contractors, and industrial operators alike.
