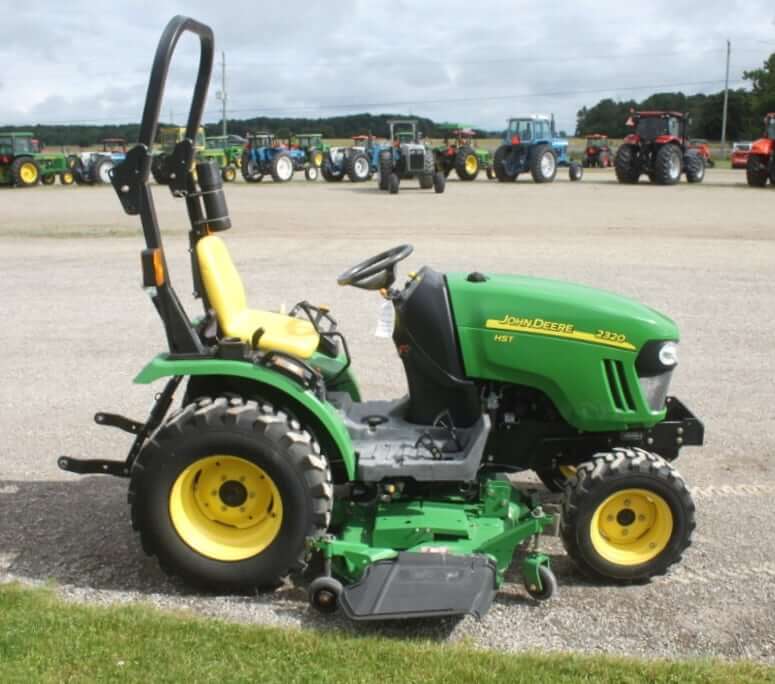

Dimensions
| Overall Length (w/ 3P hitch) | 109.2 in (2774 mm) |
| Wheelbase | 63 in (1600 mm) |
| Overall Width (Minimum) | 46.8 in (1188 mm) |
| Front Tread Width | 36.3 in (923 mm) |
| Rear Tread Width | 36.2 in (919 mm) |
| Height to Top of Hood | 48 in (1208 mm) |
| Height to Top of ROPS | 89 in (2261 mm) |
| Height to Top of Folded ROPS | 68 in (1720 mm) |
| Ground Clearance (Front Axle) | 13 in (320 mm) |
| Ground Clearance (Rear Axle) | 10.2 in (260 mm) |
| Turning Radius (w/ brakes) | 78.7 in (2000 mm) |
| Turning Radius (w/o brakes) | 90.6 in (2300 mm) |

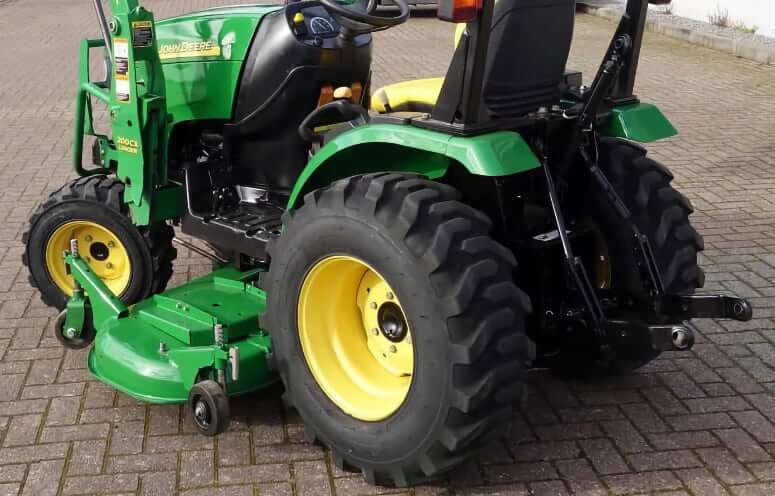

Tire Sizes
| Front Tire Size (Standard) | 23×8.5-12 R4 |
| Front Tire Size (Optional) | 23×8.5-12 R3 |
| Rear Tire Size (Standard) | 12-16.5 R4 |
| Rear Tire Size (Optional) | 31×13.5-15 R3 |
Tire Inflation Pressure
| Front Tire (23×8.5-12 R4) | 35 psi (241 kPa) |
| Front Tire (23×8.5-12 R3) | 22 psi (152 kPa) |
| Rear Tire (12-16.5 R4) | 40 psi (276 kPa) |
| Rear Tire (31×13.5-15 R3) | 20 psi (140 kPa) |
Tire Load Capacity
| Front Tire (23×8.5-12 6PR R4)* | 1471 lb (667 kg) |
| Front Tire (23×8.5-12 4PR R3)* | 1116 lb (506 kg) |
| Rear Tire (12-16.5 6PR R4)* | 4220 lb (1914 kg) |
| Rear Tire (31×13.5-15 4PR R3 TI)* | 1850 lb (839 kg) |
* Maximum load capacity for single tire.

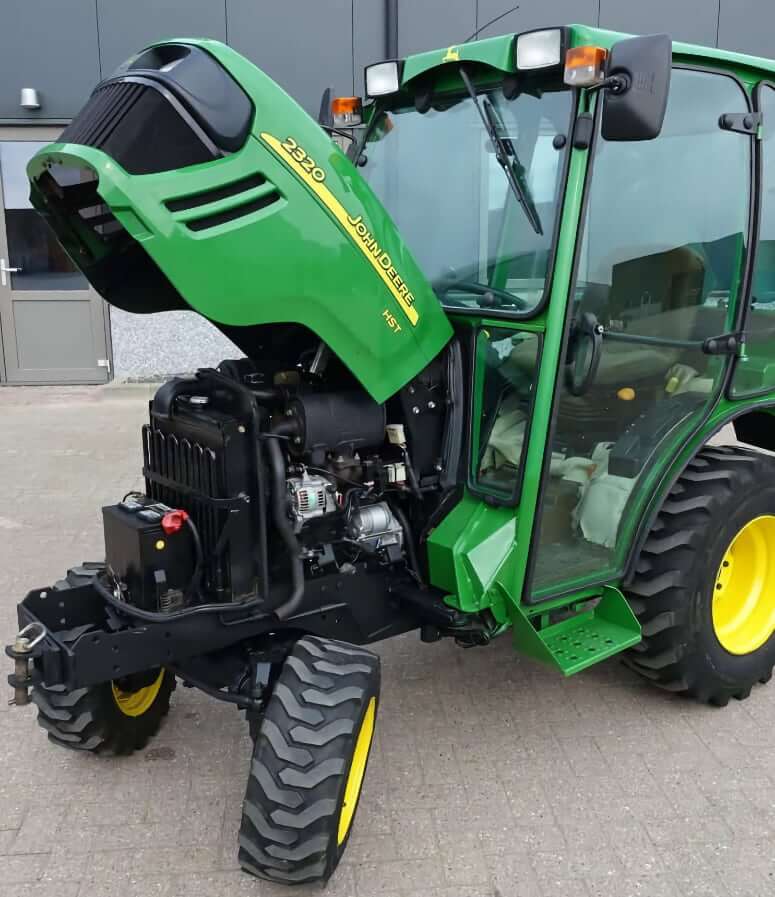

Engine Details
| Number of Cylinders | 3 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 3TNV76 |
| Displacement | 68 cu in (1.115 L) |
| Bore | 2.99 in (76 mm) |
| Stroke | 3.23 in (82 mm) |
| Gross Horsepower | 24 hp (17.9 kw) |
| PTO Horsepower | 18 hp (13.5 kw) |
| Power Measured @ | 3000 rpm |
| Peak Torque | 40.3 lb ft (54.6 Nm) |
| Torque Measured @ | 3000 rpm |
| Slow Idle Speed | 1300 rpm |
| Hight Idle Speed | 3170 rpm |
| Fuel Consumption | 1.6 gal/h (6.1 L/h) |
| Lubrication | Pressurized |
| Cooling System | Water pump |
| Combustion | Indirect injection (IDI) |
| Air Cleaner | Dry Type, 2 Stage |
| Aspiration | Naturally aspirated |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |
Transmission
| Type | 2 range hydrostatic transmission |
| Number of Gears | Infinite |
| Max Forward Speed, High Range | 11.3 mph (18.2 km/h) |
| Max Reverse Speed, High Range | 5.7 mph (9.1 km/h) |
| Max Forward and Reverse Speed, Low Range | 4.5 mph (7.3 km/h) |
| Cruise Control | Standard |
| Mechanical Front Wheel Drive | Standard |
| MFWD Capability | All Ranges |
| MFWD Engagement | On the Go |
| Final Drive | Spur Gear |
| Rear Axle Maximum Load | 2426 lb (1100 kg) |
| Front Axle Maximum Load | 1940 lb (880 kg) |
Operational Specs
| Operating Weight | 1660 lb (753 kg) |
| Operating Voltage | 12 V |
| Alternator | 20 amps (40 amps) |
| Battery | 12 V, CCA 500 |
| Starter | 12 V, 1.6 hp (1.2 kw) |
| Drive | Four-wheel drive (MFWD) |
| Steering | Power steering |
| Service Brakes | Wet disc brakes |
| Operator Station | Open Operator Station with ROPS |

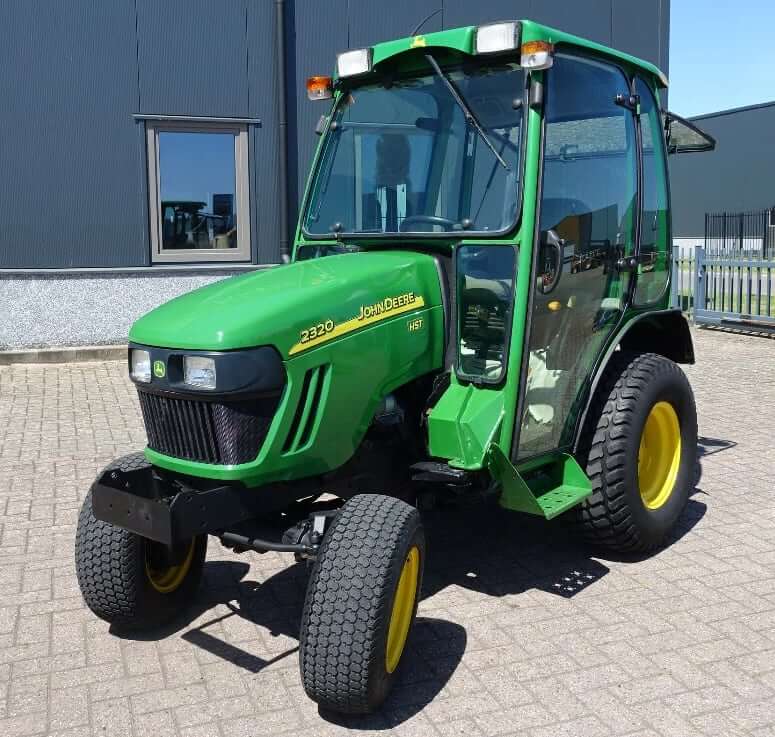

| Cab | Optional cab enclosure (for EU) |
| ROPS | Two-post folding ROPS |

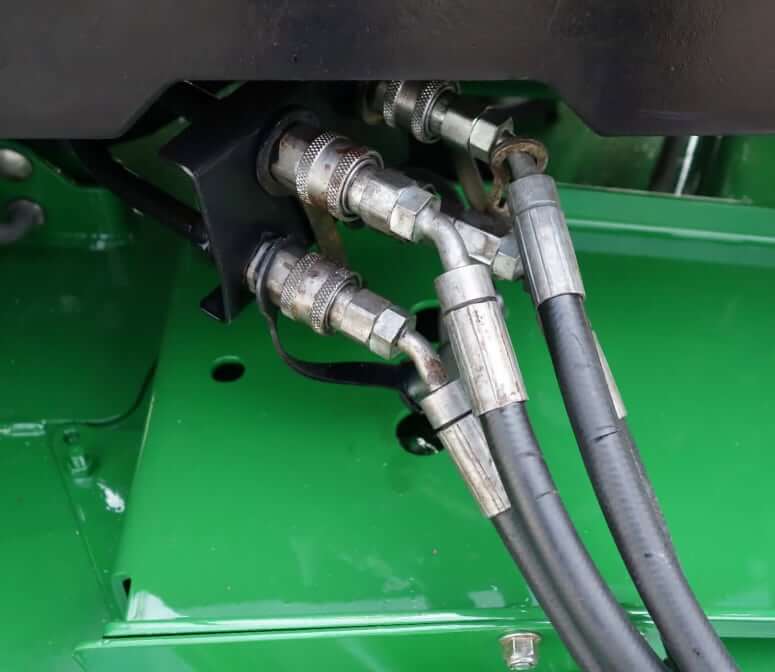

Hydraulic System
| Type | Open center hydraulic system |
| Relief Valve Setting | 2421 psi (16692 kPa) |
| Total Pump Flow | 5.6 gal/min (21.2 L/min) |
| Implement Pump Flow | 3.4 gal/min (12.7 lpm) |
| Steering Pump Flow | 2.2 gal/min (8.5 L/min) |
| Draft Control Sensing | Position Control |
| Number of Remote Control Valves (SCV) | 2 (Standard) |

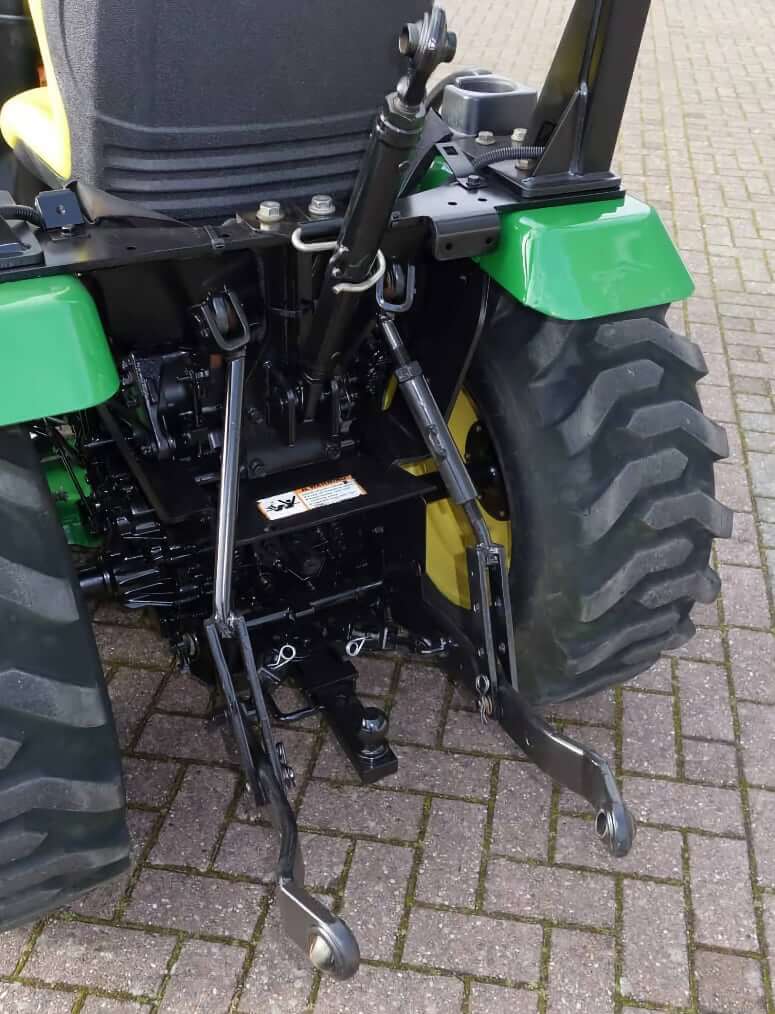

3-Point Hitch
| 3-Point Hitch Type | Category I |
| 3 Point Hitch Lift Capacity @ 24″ | 1150 lb (522 kg) |
| 3 Point Hitch Lift Capacity @ Ends | 1433 lb (650 kg) |
| Maximum Drawbar Loads | 562 lb (255 kg) |
PTO (Power Take-Off)
| PTO Power | 17.4 hp (13 kw) |
| PTO Clutch | Wet disk |
| PTO / Engine RPM | 540@2100 |
| Rear PTO Type | Independent |
| Rear PTO Speed | 540 rpm |
| Mid PTO Type | Independent |
| Mid PTO Speed | 2100 rpm |
| PTO Mode | Rear PTO only / Mid PTO only / Mid and Rear PTO both |
Service Refill Capacities
| Fuel Tank Capacity | 6.1 gal (23 L) |
| Engine Oil Capacity | 0.84 gal (3.2 L) |
| Cooling System Capacity | 0.84 gal (3.2 L) |
| Transmission / Hydraulic Oil Capacity | 3.5 gal (13.1 L) |
| Front Axle Fluid Capacity | 0.89 gal (3.4 L) |

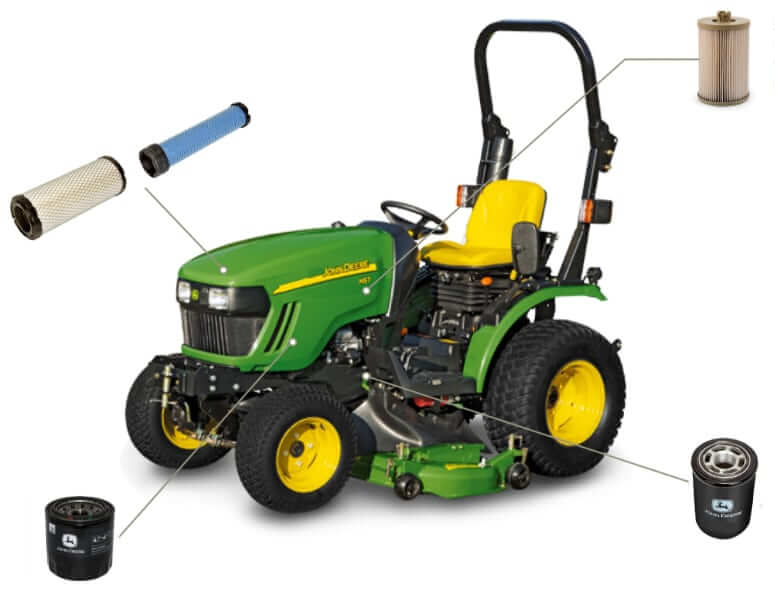

John Deere 2320 Filters
| Engine Air Filter (Primary) | M131802 |
| Engine Air Filter (Secondary) | M131803 |
| Fuel Filter | MIU804763 |
| Engine Oil Filter | M806418 |
| Transmission Oil Filter | AL221066 |
| Hydraulic Oil Filter | LVA802810 |
| John Deere 2320 Filter Pack | LVA21204 (M806418, MIU804763, M131802, LVA802810, AL221066) |

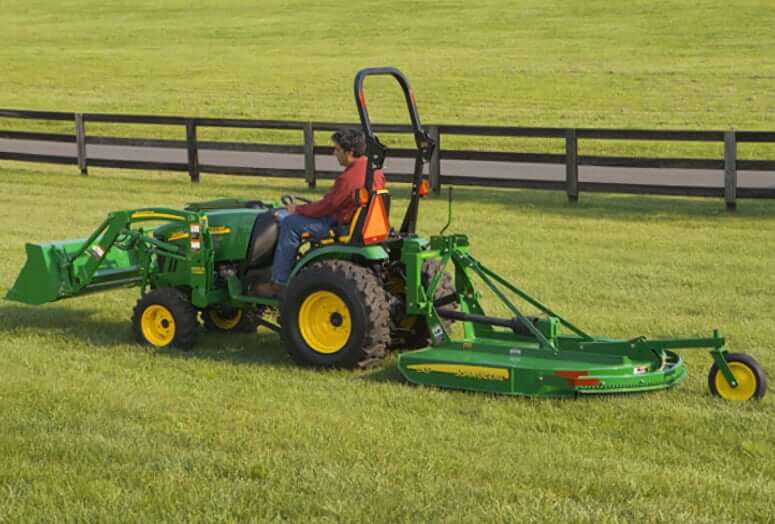

John Deere 2320 Attachments
The John Deere 2320 utility tractor is a versatile and compact workhorse built to handle a wide range of property maintenance and light agricultural tasks. Its robust compatibility with an extensive lineup of attachments makes it an ideal choice for homeowners, landscapers, and small-scale farmers alike. Whether you’re tackling seasonal chores or year-round operations, the 2320 delivers dependable performance and flexibility.
This model supports a wide array of implement options, including backhoes, front-end loaders, and mid-mount mowers – allowing for efficient digging, hauling, and cutting. Operators can further extend its utility with snow blowers, rotary brooms, and material collection systems for property upkeep and winter management. For land preparation, attachments like disk harrows, pulverizers, rotary tillers, and posthole diggers by Rotomec offer excellent soil-conditioning capabilities.

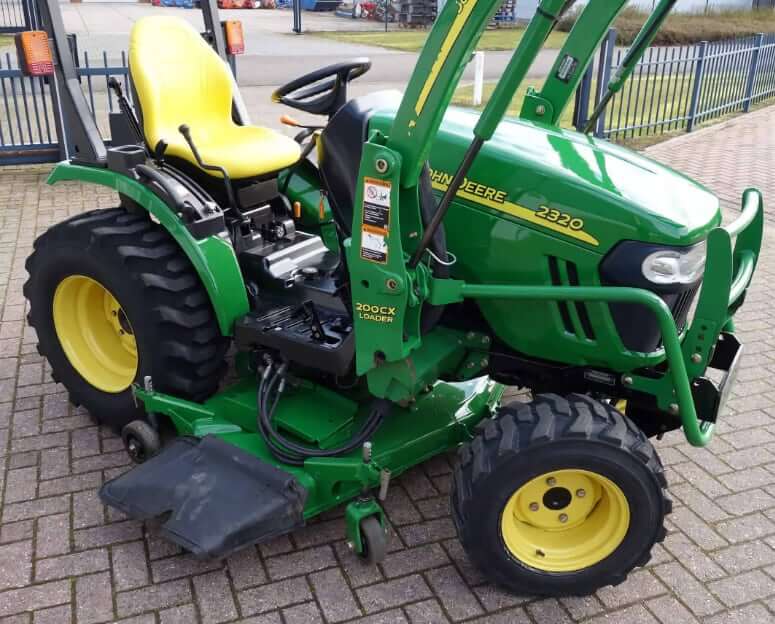

John Deere 200CX Loader
| Height to Pin | 78.5 in (1993 mm) |
| Clearance, Dumped Bucket | 58.5 in (1480 mm) |
| Dump Reach | 29.5 in (750 mm) |
| Reach at Ground | 50.3 in (1277 mm) |
| Digging Depth | 3.9 in (100 mm) |
| Dump Angle | 38° |
| Dump Angle at Ground | 117° |
| Rollback at Ground | 25° |
| Rollback at Full Height | 105° |
| Breakout Force (at pin) | 2239 lbf (9.96 kN) |
| Breakout Force (at 500 mm) | 1515 lbf (6.74 kN) |
| Bucket Rollback Force (at max height) | 1596 lbf (7.10 kN) |
| Bucket Rollback Force (at 1.5 m lift height) | 1994 lbf (8.87 kN) |
| Bucket Rollback Force (at ground level line) | 1702 lbf (7.57 kN) |
| Lift to Full Height (at pin) | 902 lb (410 kg) |
| Lift to Full Height (at 500 mm) | 629 lb (286 kg) |
| Lift to 1.5m (at pin) | 1124 lb (511 kg) |
| Lift to 1.5m (at 500 mm) | 827 lb (376 kg) |
| Bucket Width | 53 in (1346 mm) |
| Raise Time to Height | 3.19 sec |
| Bucket Dump Time | 3.19 sec |
| Lowering Time | 1.95 sec |
| Rollback Time | 1.95 sec |
To prevent personal injury from loader instability, do not attempt to park a 200X Loader. The 200X Loader is permanently attached to the tractor and cannot be detached by the operator. See your John Deere dealer.
54D Mid-Mount Mower
| Mower Type | Mulch or Side Discharge |
| Cutting Blades | 3 |
| Cutting Width | 54 in (1370 mm) |
| Overall Width | 35.5 in (900 mm) |
| Overall Length | 69 in (1750 mm) |
| Cutting Height* | 1 – 6 in (26 – 150 mm) |
| Weight | 222 lb (101 kg) |
| Blade Bolt Torque | 50 lb ft (68 Nm) |
| Gearbox Oil Capacity | 4.6 oz (136 ml) |
*May vary depending on tractor tire size.
62D1 Mid-Mount Mower
| Mower Type | Mulch or Side Discharge |
| Cutting Blades | 3 |
| Cutting Width | 63 in (1570 mm) |
| Overall Width | 37 in (940 mm) |
| Overall Length | 75.3 in (1910 mm) |
| Cutting Height* | 1 – 6 in (26 – 150 mm) |
| Weight | 275 lb (125 kg) |
| Blade Bolt Torque | 50 lb ft (68 Nm) |
| Gearbox Oil Capacity | 4.6 oz (136 ml) |
*May vary depending on tractor tire size.
John Deere 46 Backhoe
| Max Digging Depth | 78 in (1980 mm) |
| Digging Depth (flat bottom) | 24 in (610 mm) |
| Loading Height (Bucket at 60°) | 60 in (1524 mm) |
| Reach from Swing Pivot | 101 in (2570 mm) |
| Loading Reach (Bucket at 60°) | 38 in (970 mm) |
| Transport Height | 60 in (1500 mm) |
| Transport Overhang | 41 in (1040 mm) |
| Undercut | 28 in (710 mm) |
| Swing Arc | 180° |
| Bucket Rotation | 180° |
| Stabilizer Spread (Down) | 78 in (1980 mm) |
| Stabilizer Spread (Up) | 47 in (1190 mm) |
| Dipperstick Digging Force (SAE) | 1250 lbf (5.56 kN) |
| Bucket Digging Force (SAE) | 2450 lbf (10.9 kN) |
| Boom Lift Capacity | 348 lb (158 kg) |
| Weight | 896 lb (407 kg) |
| Bucket Control Main Relief Valve Pressure | 2250 psi (15510 kPa) |
| Backhoe Buckets (Width / Capacity) | 9 in (230 mm) / 0.49 ft3 (0.014 m3) 13 in (330 mm) / 0.77 ft3 (0.022 m3) 16 in (410 mm) / 0.98 ft3 (0.028 m3) 20 in (510 mm) / 1.26 ft3 (0.036 m3) 24 in (610 mm) / 1.54 ft3 (0.044 m3) 36 in (910 mm) / 2.38 ft3 (0.067 m3) |
Additional tools such as blades, box blades, landscape rakes, broadcast spreaders, and manure spreaders make this compact utility tractor a truly all-season, multi-purpose machine. The 2320 also supports tedders and rotary cutters, enhancing its capability in hay and pasture management. With this extensive suite of attachments, the John Deere 2320 is engineered to help you get more done, more easily.
Serial Numbers & PIN Location

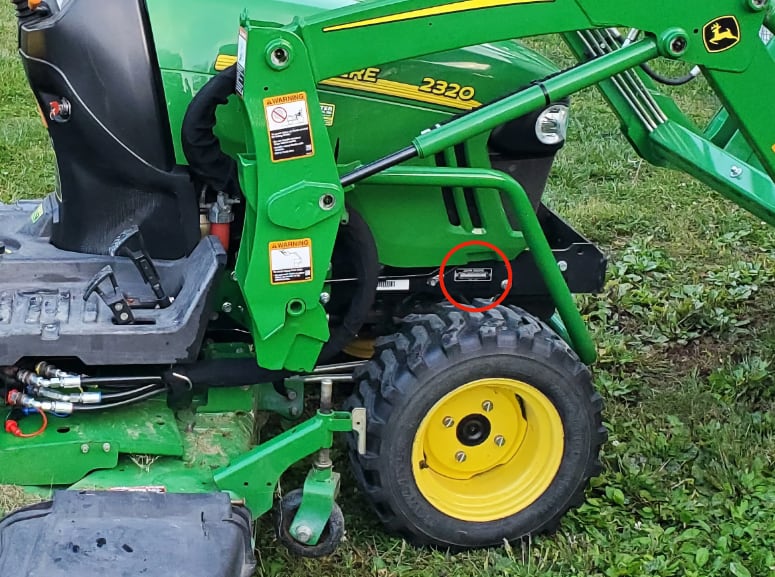

Serial number plate (PIN) on the rear of the John Deere 2320 utility tractor – right side of the tractor frame, above the front axle
| Year | Serial Number | Year | Serial Number |
|---|---|---|---|
| 2006 (USA) | H100001 | 2009 (EU) | E482001 |
| 2007 (USA) | H202001 | 2010 (USA) | H502001 |
| 2007 (EU) | E286001 | 2010 (EU) | E582001 |
| 2008 (USA) | H302001 | 2011 (USA) | H610001 |
| 2008 (EU) | E382001 | 2011 (EU) | E61001 |
| 2009 (USA) | H402001 |
