Contents
- Dimensions
- Weight
- Engine Details
- Transmission
- PTO (Power Take-Off)
- Operational Specs
- Hydraulic System
- John Deere 3010 Filters
- Service Refill Capacities
- John Deere 3010 Attachments
- John Deere 48 Front-end Loader
- John Deere 148 / 158 Loaders
- MX7 / MX10 Rotary Cutters
- John Deere 350 Sickle Mower
- Serial Numbers & PIN Location

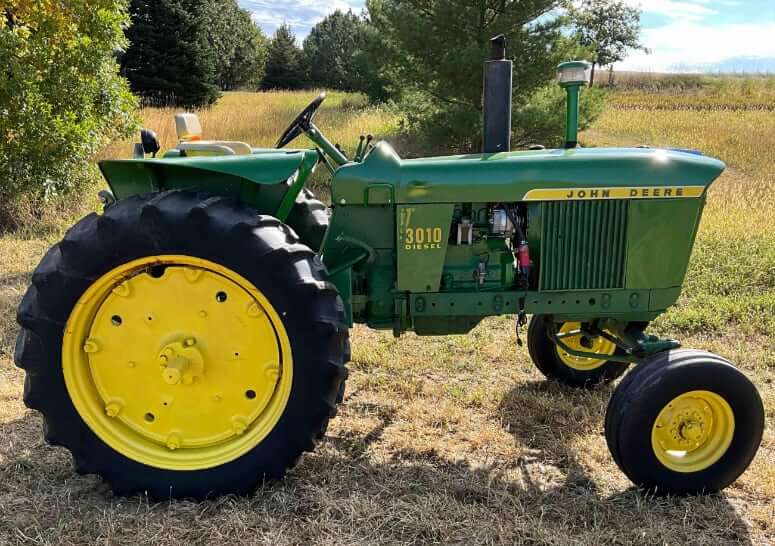

Dimensions
| John Deere 3010 Tractor | Row-Crop | Standard |
|---|---|---|
| Overall Length | 138.5 in (3518 mm) | 138.5 in (3518 mm) |
| Wheelbase | 90 in (2286 mm) | 81.5 or 92.75 in (2070 or 2356 mm) |
| Overall Width (Regural axle) | 86.6 in (2200 mm) | 86.6 in (2200 mm) |
| Height (To steering wheel) | 74.5 in (1892 mm) | 77.5 in (1968 mm) |
| Height of Drawbar | 17 in (432 mm) | 17 in (432 mm) |
| Front Tread | 48 to 80 in (1210 to 2030 mm) | 52 to 66 in (1320 to 1670 mm) |
| Rear Tread | 57 to 88 in (1440 to 2230 mm) | 52 to 79 in (1320 to 2000 mm) |
| Turning Radius | 103.5 in (2629 mm) | 110 in (2794 mm) |
Weight
| John Deere 3010 | Row-Crop | Standard |
|---|---|---|
| Shipping Weight (Diesel) | 6003 lb (2723 kg) | 6436 lb (2919 kg) |
| Shipping Weight (Gasoline) | 5807 lb (2634 kg) | 6240 lb (2830 kg) |
| Shipping Weight (LPG) | 5936 lb (2693 kg) | 6359 lb (2884 kg) |

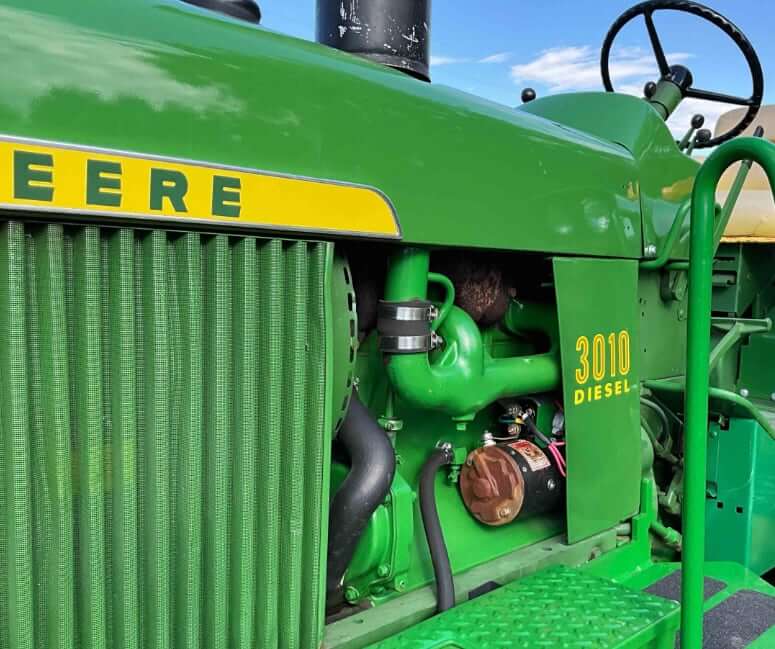

Engine Details
| Engine Model | John Deere 4.2L Diesel | John Deere 3.3L Gasoline | John Deere 3.3L LPG |
|---|---|---|---|
| Number Of Cylinders | 4 | 4 | 4 |
| Bore | 4.125 in (105 mm) | 4.00 in (102 mm) | 4.00 in (102 mm) |
| Stroke | 4.75 in (121 mm) | 4.00 in (102 mm) | 4.00 in (102 mm) |
| PTO Horsepower | 59.44 hp (44.3 kw) | 55.09 hp (41.1 kw) | 55.39 hp (41.3 kw) |
| Drawbar Horsepower | 52.77 hp (39.4 kw) | 50.98 hp (38.0 kw) | 49.22 hp (36.7 kw) |
| Power Measured @ | 2200 rpm | 2200 rpm | 2200 rpm |
| Aspiration | Naturally aspirated | Naturally aspirated | Naturally aspirated |
| Compression | 16.5:1 | 7.5:1 | 7:1 |
| Air Cleaner | Oil washed wire screen | Oil washed wire screen | Oil washed wire screen |
| Carburetor Size | – | 1.69 in (42.86 mm) | 1.69 in (42.86 mm) |
| Cranking System | 24 V | 12 V | 12 V |
Transmission
| Model | John Deere Syncro-Range |
| Type | Partially synchronized |
| Number of Gears | 8F / 3R |
| Clutch | Dry disc |
| Max Travel Speed, Forward (Row-crop / Standart) | 15.3 mph (24.6 km/h) / 14.5 mph (23.3 km/h) |
| Max Travel Speed, Reverse (Row-crop / Standart) | 9.1 mph (14.6 km/h) / 8.5 mph (13.7 km/h) |

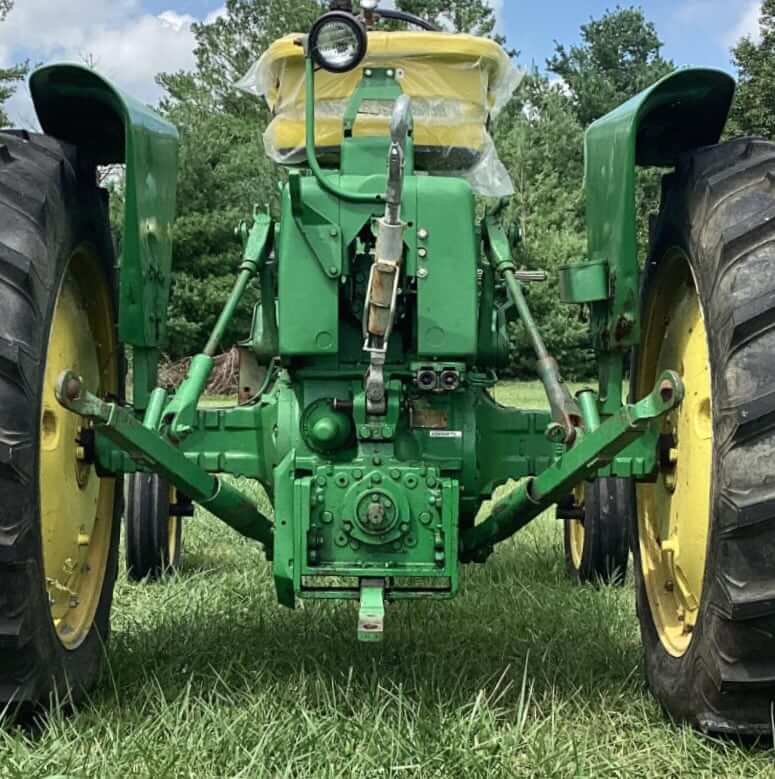

PTO (Power Take-Off)
| Rear PTO Type | Independent, dual speed PTO |
| Rear PTO Speed | 540/1000 (1.375) |
| Mid PTO Type | Independent |
| Mid PTO Speed | 1000 (1.375) |
| PTO / Engine RPM | 540@1900 1000@1900 |
Operational Specs
| Operating Weight (Diesel) | 6500 lb (2948 kg) |
| Ballasted Weight (Max) | 8670 lb (3933 kg) |
| Ballast, Cast Iron (each) | 560 lb (254 kg) |
| Operating Voltage | 12 V / 24 V |
| Battery | 1x 12 V, 70 Ah / 2x 12 V, 70 Ah |
| Tractor Cab | Open operator station |
| Front Tire Size (Row-Crop) | 6.00-14, 6 ply; 6.00-16, 6 ply |
| Front Tire Size (Standart) | 7.50-16, 6 ply |
| Rear Tire Size (Row-Crop) | 13.9-36, 6 ply; 13.6-38, 6 ply |
| Rear Tire Size (Standart) | 18.4-30, 6 ply |
| Drive | 4×2 2WD |
| Service Brakes | Hydraulically power actuated, disk-type, operating in oil |
| Steering | Power assisted steering |
Hydraulic System
| Type | Closed center, constant pressure |
| Max Pump Flow | 4.75 gal/min (18 L/min) |
| Max Pressure | 2250 psi (15510 kPa) |
| Remote Control Valves | 2 |
| 3 Point Hitch Category | II |
Includes power steering, power brakes, implement control, and transmission-differential lubrication
John Deere 3010 Filters
| Engine Oil Filter | AR26350 |
| Engine Oil Filter Sealing Washer | B3586R |
| Fuel Filter Element (Diesel) | AR44077 |
| Fuel Filter Sealing Washer | R1021R |
| Hydraulic Filter Element | R27173 |
| Transmission/Hydraulic Oil Filter | AR75603 |
| Transmission Oil Filter Sealing Washer | R39596 |
Service Refill Capacities
| Fuel Tank Capacity (Diesel and gasoline) | 29 gal (109.8 L) |
| Fuel Tank Capacity (LPG) | 25 gal (94.6 L) |
| Cooling System Capacity | 4 gal (15 L) |
| Engine Oil Capacity | 2 gal (7.6 L) |
| Transmission / Hydraulic Oil Capacity | 9.5 gal (36 L) |
John Deere 3010 Attachments
The John Deere 3010 Row-Crop Tractor is compatible with a variety of attachments, enhancing its versatility for different agricultural tasks. Below are key details about some of the most commonly used attachments.
The John Deere 3010 can be equipped with the following front-end loaders for material handling and general farm work
John Deere 48 Front-end Loader
| Model | 48 Loader |
|---|---|
| Lift Capacity (full at pin) | 2400 lb (1088 kg) |
| Breakout Force | 3600 lb (1632 kg) |
| Dump Angle | 39° |
| Rollback (ground line) | 9° |
| Reach (dumped) | 26 in (660 mm) |
| Reach (ground) | 68 in (1720 mm) |
| Height (at pin) | 126 in (3200 mm) |
| Clearance (dumped) | 104 in (2640 mm) |
| Weight | 1220 lb (553 kg) |
| Bucket Width | 60 in (1520 mm) 72 in (1820 mm) |
| Bucket Capacity | 0.5 yd3 (0.4 m3) 0.6 yd3 (0.5 m3) |
John Deere 148 / 158 Loaders
| Model | 148 Loader | 158 Loader |
|---|---|---|
| Lift Capacity (full at pin) | 3100 lb (1406 kg) | 3800 lb (1723 kg) |
| Breakout Force | 4700 lb (2131 kg) | 5000 lb (2268 kg) |
| Dump Angle | 38° | 37° |
| Reach (dumped) | 32 in (810 mm) | 32 in (810 mm) |
| Height (at pin) | 126 in (3200 mm) | 156 in (3960 mm) |
| Clearance (dumped) | 102 in (2590 mm) | 132 in (3350 mm) |
| Clearance (level) | 121 in (3070 mm) | 151 in (3830 mm) |
| Boom Cylinder Diameter | 2.5 in (60 mm) | 2.75 in (70 mm) |
| Bucket Cylinder Diameter | 2.5 in (60 mm) | 2.5 in (60 mm) |
| Weight | 1350 lb (612 kg) | 1771 lb (803 kg) |
| Bucket Width | 60 in (1520 mm) 72 in (1820 mm) 84 in (2130 mm) 96 in (2430 mm) |
60 in (1520 mm) 72 in (1820 mm) 84 in (2130 mm) 96 in (2430 mm) |
| Bucket Capacity | 0.5 yd3 (0.4 m3) 0.6 yd3 (0.5 m3) 0.8 yd3 (0.6 m3) 0.9 yd3 (0.7 m3) |
0.5 yd3 (0.4 m3) 0.6 yd3 (0.5 m3) 0.8 yd3 (0.6 m3) 0.9 yd3 (0.7 m3) |
The 3010 is compatible with rotary cutters for mowing grass, weeds, and light brush:
MX7 / MX10 Rotary Cutters
| Rotary Cutter | MX7 | MX10 |
|---|---|---|
| Cutting Width | 84 in | 126 in |
| Cutting Height | 1 to 9.5 in | 1 to 12 |
| Cutting Capacity | 2 in (50 mm) | 2 in (50 mm) |
| Blade Tip Speed (540 RPM) | 16182 fpm (4932 m/min) / 184 mph (296 km/h) | 16275 fpm (4961 m/min) / 185 mph (298 km/h) |
| Holder | Round stump jumper | Round stump jumper |
| Gearcases | Center Continuous 75 hp (56 kw) Center Peak 100 hp (75 kw) |
Transfer Continuous 120 hp (89 kW) Transfer Peak 130 hp (97 kW) Outer Continuous 75 hp (56 kW) Outer Peak 100 hp (75 kW) |
| Driveline | Size (Main) ASAE Category 4 Protection (Main) Slip-clutch driveline |
Size (Main) ASAE Category 4 Protection (Main) Non-seize, slip-clutch driveline, pull-type |
| Hitch Type | Lift-type | Lift-type |
| Tractor PTO Range | Minimum 40 hp (30 kW) | Minimum PTO pull-type, semi-mount 40 hp (30 kW) Minimum PTO lift-type 60 hp (45 kW) |
| Overall Width | 88 in (2242 mm) | 129 in (3280 mm) |
| Overall Length | 126 in (3210 mm) | 159 in (4040 mm) |
| Weight | 1332 lb (605 kg) | 2113 lb (960 kg) |
For hay and forage applications, the John Deere 350 Sickle Mower is a great option:
John Deere 350 Sickle Mower
| Cutting Width | 84 in (2134 mm) |
| Cutting Height | Adjustable |
| Blade Type | Sickle |
| Blade Material | High-quality steel |
| Hitch Type | Cat I |
| Number of Blades | 22 |
| Blade Drive | Power take-off (PTO) |
| PTO Speed | 540 rpm |
| Attachment Weight (Approximately) | 300 lb (136 kg) |
Serial Numbers & PIN Location
Serial number plate (PIN) on the rear of the John Deere 3010 tractor – rear of transmission case
| Year | Serial Number | Year | Serial Number |
|---|---|---|---|
| 1961 | 1000 | 1963 | 32400 |
| 1962 | 19801 | Final | 46952 |
