Dimensions
| Wheelbase | 62.8 ft in (1595.12 mm) |
| Front Axle Clearance | 14.3 in (363.22 mm) |
| Shipping Weight | 1007.9 kg |
| Turning Radius Without Brakes | 9.52 ft in (2.9 m) |

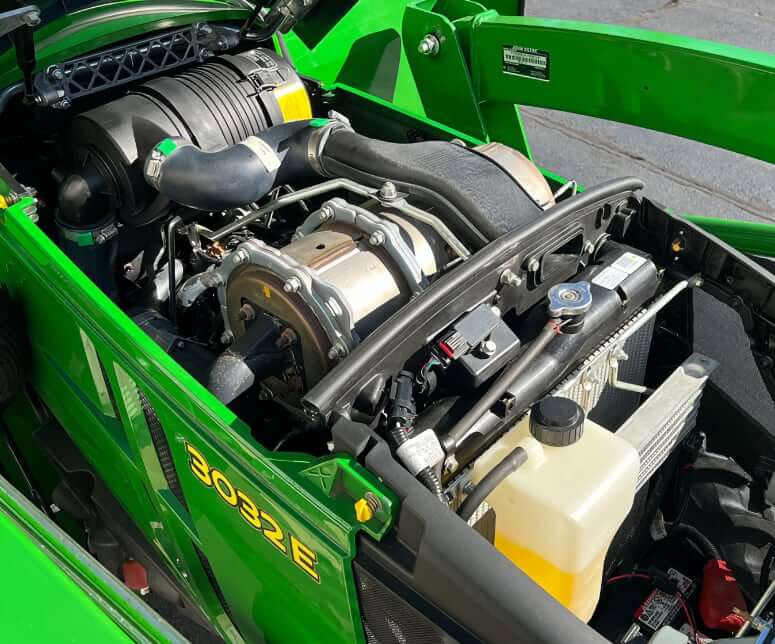

Engine Details
| Number Of Cylinders | 3 |
| Rated Engine Speed | 2500 rpm |
| Engine Model | 3TNV88C-NJT |
| Engine Manufacturer | Yanmar |
| Family | EYDXL1.64NDA, FYDXL1.64NDA, GYDXL1.64NDA |
| Power Take-Off (Pto) Power | 25 hp |
| Injection Pump Type | High pressure common rail direct injection |
| Emissions Compliance | Final Tier 4 |
| Cylinder Liners | Cast-In-Block |
| Compression Ratio | 19.1:1 |
| Gross Power | 30.8 hp (22.9 kw) |
| Lubrication | Pressurized |
| Cooling System | Water pump |
| Air Cleaner | Dual element |
| Engine Torque At Rated Speed | 87 Nm |
| Displacement | 100.1 cu in (1.7 L) |
| Aspiration | Natural |
| Fuel Tank Capacity | 7.6 gal (28.5 L) |
| Bore | 3.5 in (88 mm) |
| Stroke | 3.6 in (90 mm) |
Fluid Capacities
| Crankcase With Filter | 4.5 L |
Electrical
| Battery Size | 500 CCA |
| Alternator (12-V) | 75 amp |
| Starter Size | 1.9 hp |
Fuel System
| Fuel System Type | High pressure common rail direct injection |
PTO (Power Take-Off)
| Standard | 540 rpm at 2500 rpm |
| Control | Independent |
| Clutch | Independent |
| Brake (For Mid And Rear Pto) | Wet disc |
Transmission
| Cruise Control | Optional |
| Standard Transmission; Forward/Reverse | Hydrostatic transmission (HST) |
| Brakes | Wet disc |
| Steering | Power steering |
| Axle Capacity | Front – 798 kg, Rear – 1197 kg |
| Creeper | No |
| Differential Lock | Yes |
| Final Drive Type | Bull Gear |
Tires
| Front | Farm – 7-14, Turf – 27×8.5-15, R4 – 25×8.5-14, R4 – 27×8.5-15 |
| Rear | Farm – 11.2-24, Turf – 41×14-20, R4 – 15-19.5, R4 – 43×16-20 |
Hydraulic
| Maximum Operating Pressure | 2500 psi (17236.9 kPa) |
| Draft Control Sensing | Position control |
| Remote Control Valves Available | Up to two (optional) |
| Pump Rated Output | Steering – 15 L/min, Implement – 20.2 L/min |
| Pump Type | Dual gear |
| Hydraulic Type | Open Center |
Final Drive
| Final Drive Type | Bull Gear |

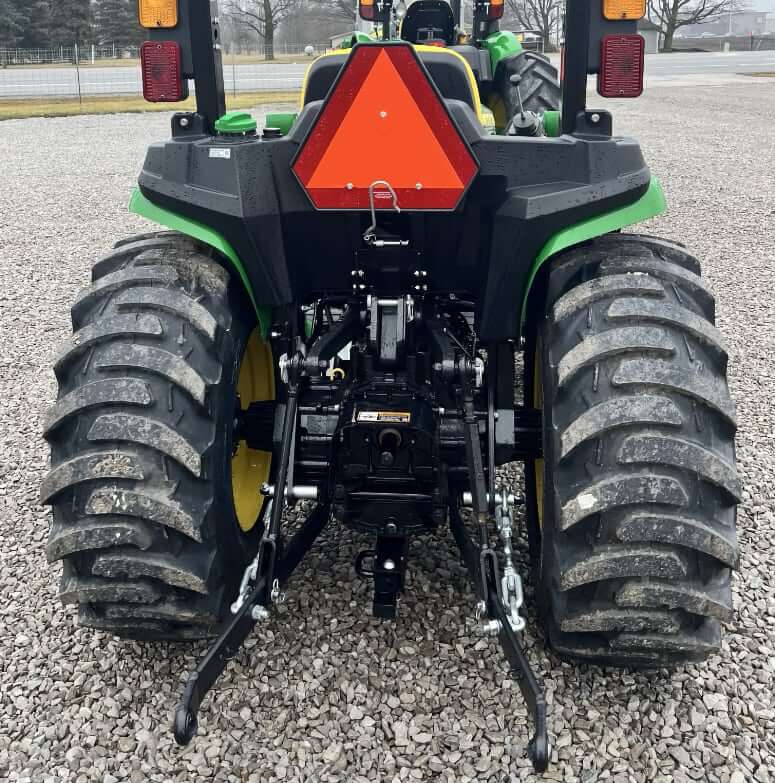

3-Point Hitch
| Category | Category 1 |
| Lift Capacity, 24-In. Behind Link Arms | 615.1 kg |
Operator Station
| Rollover Protective Structure | Foldable, ASABE S478 |
| Platform – Flat/Straddle | Semi-flat |
| Gear Shift Location – Console/Floor | Left Hand Side |
