Contents

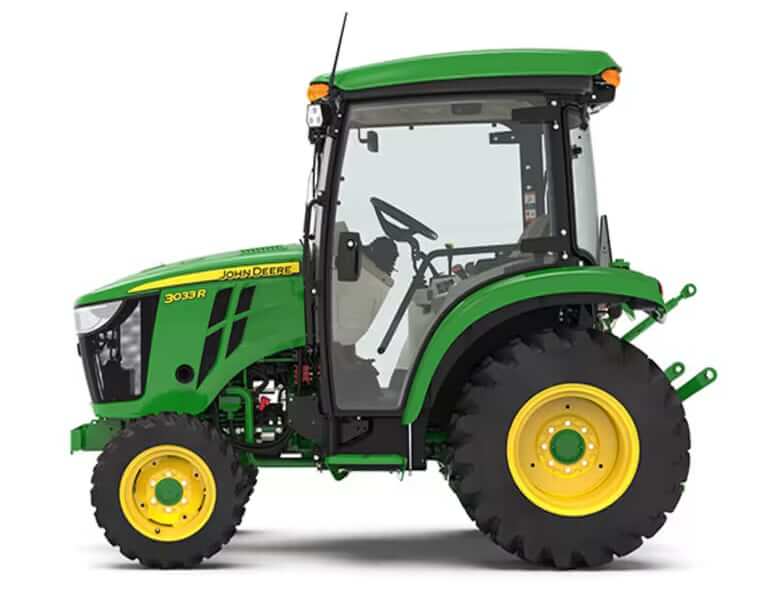

Dimensions
| Wheelbase | 68 in (1727 mm) |
| Front Tread Range | 44.9 in (1140 mm) |
| Rear Tread Spacing | 40.6 in (1031 mm) |
| Height (Hood) | 57 in (1440 mm) |
| Height (ROPS) | 93.3 in (2360 mm) |
| Height to Top of Cab | 85 in (2150 mm) |
| Ground Clearance (Front Axle, min) | 6.7 in (171 mm) |
| Ground Clearance (Front Axle, max) | 11.8 in (300 mm) |
| Turning Radius With Brakes | 106.2 ib (2700 mm) |
| Front Tire Size | R1 Bar: 7-14 R3 Turf : 27×8.50-15 R3 Turf Special: 25/10.5LLx15 R4 Industrial: 25×8.5-14 or 27×8.5-15 |
| Rear Tire Size | R1 Bar: 11.2-24 R3 Turf: 41×14-20 R3 Turf Special: 41x18LL-16.1 R4 Industrial: 15-19.5 or 43×16-20 |
Operating Specs
| Shipping Weight (Cab) | 3569 lb (1619 kg) |
| Shipping Weight (ROPS) | 2899 lb (1315 kg) |
| Operating Voltage | 12 V |
| Alternator | 75 amps |
| Battery | 12 V, CCA 500 |
| Starter | 1.9 hp (1.4 kw) |

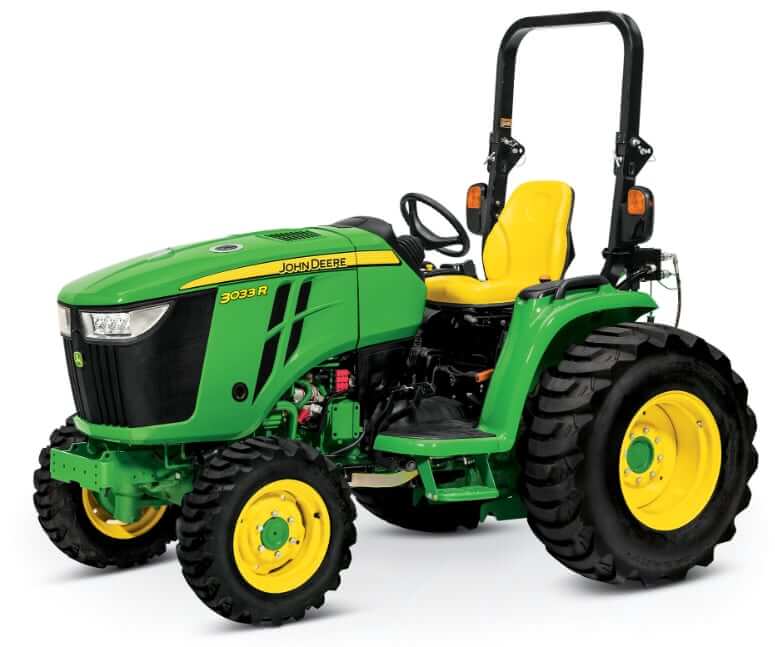

| ROPS | Foldable |
| Tractor Platform – Flat/Straddle | Flat |
| Gear Shift Location | Left Hand Side |
| Noise Level | 80 dB(A) |
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 3TNV88C-MJTV |
| Family | EYDXL1.64NDA, FYDXL1.64NDA, GYDXL1.64NDA |
| Displacement | 100 cu in (1.64 L) |
| Bore | 3.5 in (88 mm) |
| Stroke | 3.6 in (90 mm) |
| Compression Ratio | 19.1:1 |
| Gross Power | 31.8 hp (23.7 kw) |
| PTO Power (PowrReverser) | 26.1 hp (19.5 kw) |
| PTO Power (eHydro) | 23 hp (17.2 kw) |
| Power Measured @ | 2600 rpm |
| Peak Torque | 64.2 lb ft (87 Nm) |
| Torque Measured @ | 1600 rpm |
| Cylinder Liners | Cast-In-Block |
| Lubrication | Pressurized |
| Cooling System | Water pump |
| Fuel Consumption | 2 gal/h (7.6 L/h) |
| Injection Pump Type | High pressure common rail direct injection |
| Air Cleaner | Dual element with electronic restriction indicator |
| Aspiration | Naturally aspirated |
| Emission Standards | US EPA Tier 4 Final |

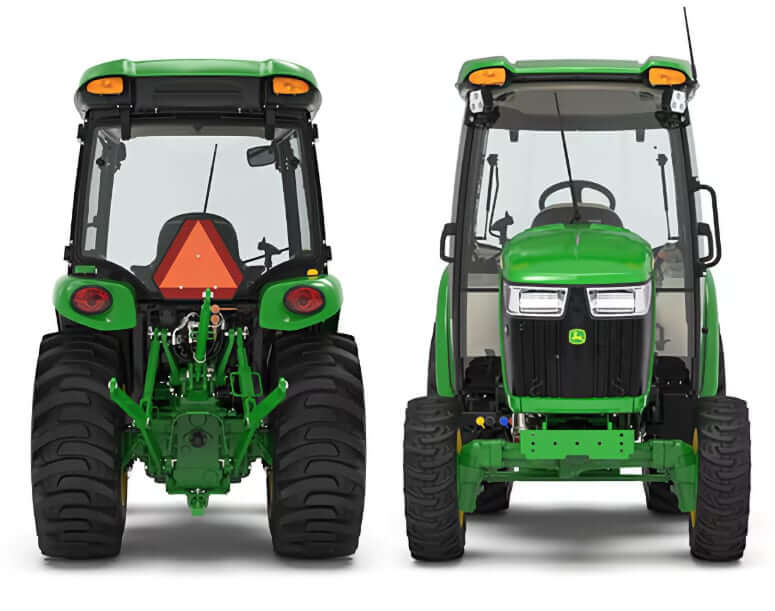

PTO (Power Take-Off)
| Rear PTO Type | Independent |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed (Optional) | 2100 rpm (Independent) |
| Control | Position control |
| Clutch | Wet disc |
| Rear PTO Brake | Multi-plate wet disc |
| Mid PTO Brake | Multi-plate wet disc |
Transmission
| Type | PowrReverser / eHydro hydrostatic (optional) |
| Number of Gears | 12F/12R PowrReverser (PRT) 3-range / infinitely variable |
| Cruise Control | Standard |
| Left-Hand Reverser | Yes |
| Clutch, Wet/Dry | Wet disc |
| Creeper | SpeedMatch optional |
| Max Travel Speed | 18.5 mph (29.8 km/h) |
Axles and Brakes
| Front Axle Capacity | 3197 lb (1450 kg) |
| Rear Axle Capacity | 4079 lb (1850 kg) |
| Service Brakes | Multi-plate wet disc |
| Steering | Hydrostatic power steering |
| Differential Lock | Yes |
| Final Drive Type | Bull Gear |
Hydraulic System
| Type | Open Center Hydraulics |
| Pump Flow (Implement) | 8.6 gal/min (32.5 L/min) |
| Pump Flow (Steering) | 5.9 gal/min (22.3 L/min) |
| Maximum Operating Pressure | 2500 psi (17200 kPa) |
| Draft Control Sensing | Position control |
| Remote Control Valves | Up to 6 rear remotes |
| Pump Type | Dual gear |
| 3-Point Hitch Category | Cat I |
| 3-Point Hitch Lift Capacity @ 24″ | 2194 lb (995 kg) |

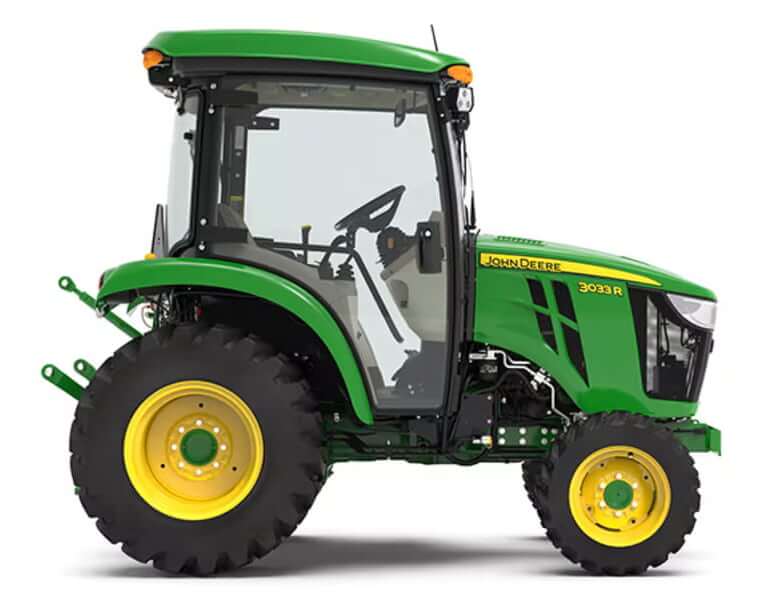

Service Refill Capacities
| Engine | 3TNV88C Tier 4F | 3TNV88C-MJT |
|---|---|---|
| Fuel Tank Capacity (Cab) | 13.5 gal (51.1 L) | 12.6 gal (47.6 L) |
| Fuel Tank Capacity (ROPS) | 11.8 gal (44.5 L) | 9.8 gal (37.4 L) |
| Engine Oil Capacity (With Filter) | 1.14 gal (4.3 L) | 1.1 gal (4.0 L) |
| Cooling System Capacity (Cab) | 1.85 gal (7 L) | 1.8 gal (6.8 L) |
| Cooling System Capacity (ROPS) | 1.4 gal (5.3 L) | 1.5 gal (5.7 L) |
| Hydraulics / Transmission (PowrReverser) Capacity | 6.5 gal (24.6 L) | 6.5 gal (24.6 L) |
| Hydraulics / Transmission (eHydro) Capacity | 6.8 gal (25.7 L) | 7.0 gal (26.5 L) |

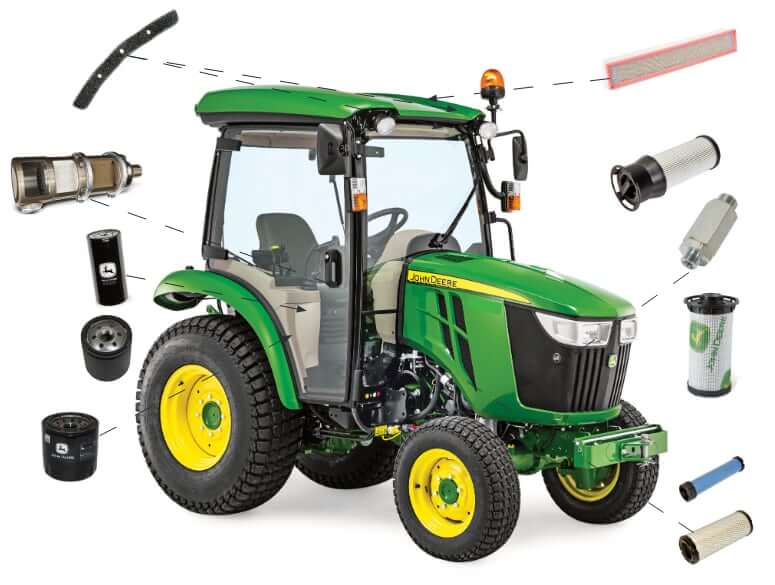

John Deere 3033R Filters
| Fuel Filter (Primary) | MIU802421 |
| Fuel Filter (Final) | MIU803127 |
| Diesel Particulate Filter | MIU803093 |
| Air Filter (Primary) | RE68048 |
| Air Filter (Secondary) | RE68049 |
| Engine Oil Filter | M806419 |
| Transmission / Hydraulic Filter | LVA13065 |
| Cab Recirculation Air Filter | 2x MIU10011 |
| Cab Fresh Aid Filter | MIU10010 |
| JD 3033R Filter Pak | LVA21038 (M806419, LVA13065, MIU803127, RE68048, MIU802421) |

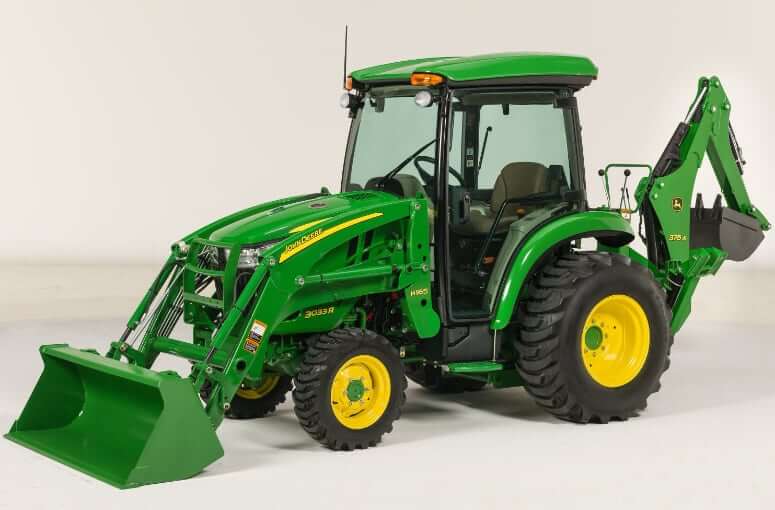

John Deere Attachments
The John Deere 3033R is a versatile compact utility tractor that supports a variety of attachments for mowing, loading, and digging applications. Below are some of the key attachments designed for this model:
Mid Mower Decks for JD 3033R
| Model | John Deere 60D | John Deere 60D |
|---|---|---|
| Cutting Width | 60.9 in (1540 mm) | 72.8 in (1840 mm) |
| Overall Width | 75.3 in (1910 mm) | 86.0 in (2180 mm) |
| Cutting Height | 1.5 to 5 in (30 to 120 mm) | 1.5 to 5 in (30 to 120 mm) |
| Blades | 3-blade | 3-blade |
| Weight | 324 lb (146 kg) | 345 lb (156 kg) |
Front Loaders for JD 3033R
| Model | John Deere H160 | John Deere H165 |
|---|---|---|
| Lift Capacity at Pivot Pin (Max Height) | 1360 lb (617 kg) | 1598 lb (725 kg) |
| Lift Capacity at 500 mm Ahead of Pivot Pin | 999 lb (453 kg) | 1122 lb (509 kg) |
| Lift Capacity to 59 in at Pivot Pin | 1700 lb (771 kg) | 2125 lb (964 kg) |
| Lift Capacity to 59 in at 500 mm Ahead | 1312 lb (595 kg) | 1649 lb (748 kg) |
| Max Lift Height at Pivot Pin | 86 in (2289 mm) | 102 in (2593 mm) |
| Reach at Max Height | 30.4 in (773 mm) | 22.1 in (562 mm) |
| Breakout Force at Pivot Pin | 2855 lb (1295 kg) | 3327 lb (1509 kg) |
| Breakout Force at 500 mm | 2032 lb (922 kg) | 2418 lb (1097 kg) |
| Dump Angle | 43° | 41.4° |
| Rollback Angle | 25° | 31° |
| Loader Raising / Lowering Time | 2.76 / 1.69 sec | 3.57 / 2.1 sec |
| Bucket Dump Time / Regen | 2.81 / 1.17 sec | 2.96 / 1.24 sec |
| Bucket Rollback Time | 1.78 sec | 1.75 sec |
Backhoe for JD 3033R
| Model | JD 375A Backhoe | JD 385A Backhoe |
|---|---|---|
| Digging Depth | 94 in (2380 mm) | 103 in (2610 mm) |
| Loading Height (Bucket at 60°) | 68 in (1720 mm) | 78 in (1980 mm) |
| Loading Reach (Bucket at 60°) | 44 in (1110 mm) | 51 in (1110 mm) |
| Reach From Center Line of Swing Pivot | 129 in (3270 mm) | 140 in (3550 mm) |
| Swing Arc | 170° | 170° |
| Bucket Rotation | 180° | 180° |
| Dipperstick Digging Force (SAE) | 2041 lbf (9.08 kN) | 2449 lbf (10.89 kN) |
| Bucket Digging Force (SAE) | 3063 lbf (13.62 kN) | 3752 lbf (16.69 kN) |
| Bucket Control Relief Valve Pressure | 2250 psi (17580 kPa) | 2250 psi (17580 kPa) |
| Boom Lift Capacity | 595 lb (270 kg) | 820 lb (372 kg) |
| Weight (Large Frame Adapter, 24″ Bucket) | 1250 lb (567 kg) | 1390 lb (630 kg) |
| Transport Height | 85 in (2160 mm) | 91 in (2310 mm) |
| Transport Overhang | 48 in (1220 mm) | 48 in (1290 mm) |
| Stabilizers Spread Width, Up | 66 in (1670 mm) | 62 in (1570 mm) |
| Stabilizers Spread Width, Down | 89 in (2260 mm) | 95 in (2410 mm) |
| Undercut | 17.5 in (440 mm) | 19 in (480 mm) |
| Bucket Widths / Weights | 9 in (228 mm) – 70 lb (32 kg) 12 in (305 mm) – 82 lb (37 kg) 16 in (406 mm) – 92 lb (42 kg) 18 in (457 mm) – 106 lb (48 kg) heavy duty 20 in (508 mm) – 106 lb (48 kg) 24 in (610 mm) – 120 lb (54 kg) |
9 in. (228 mm) – 70 lb (32 kg) 12 in. (305 mm) – 82 lb (37 kg) 16 in. (406 mm) – 92 lb (42 kg) 18 in (457 mm) – 106 lb (48 kg) heavy-duty 20 in. (508 mm) – 106 lb (48 kg) 24 in. (610 mm) – 120 lb (54 kg) |
These attachments enhance the functionality of the John Deere 3033R, making it suitable for a wide range of landscaping, property maintenance, and agricultural tasks.
