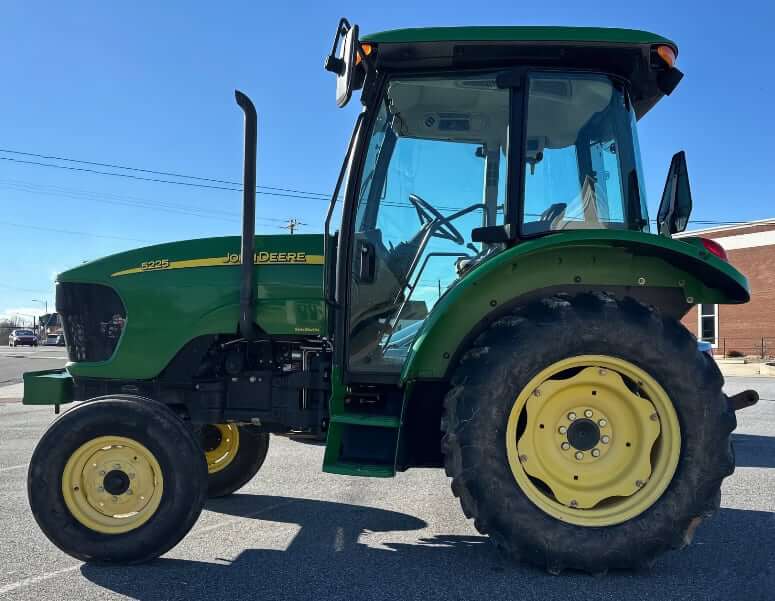

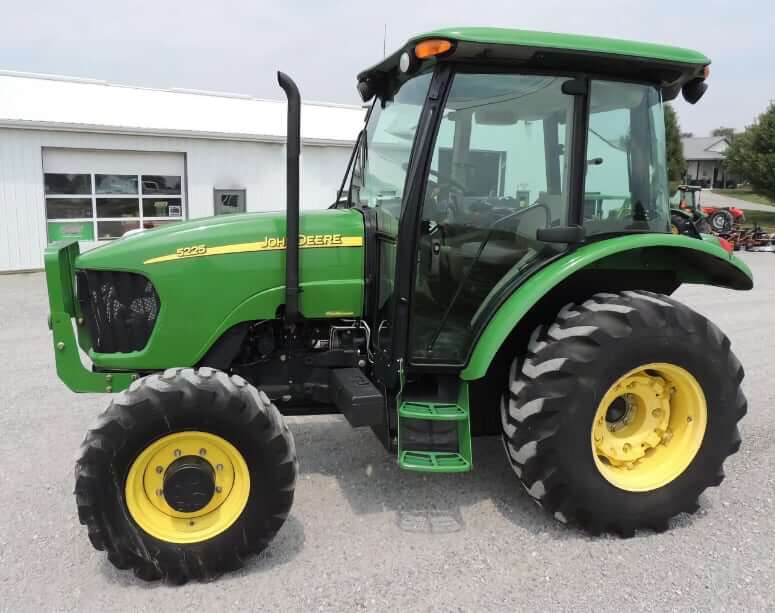

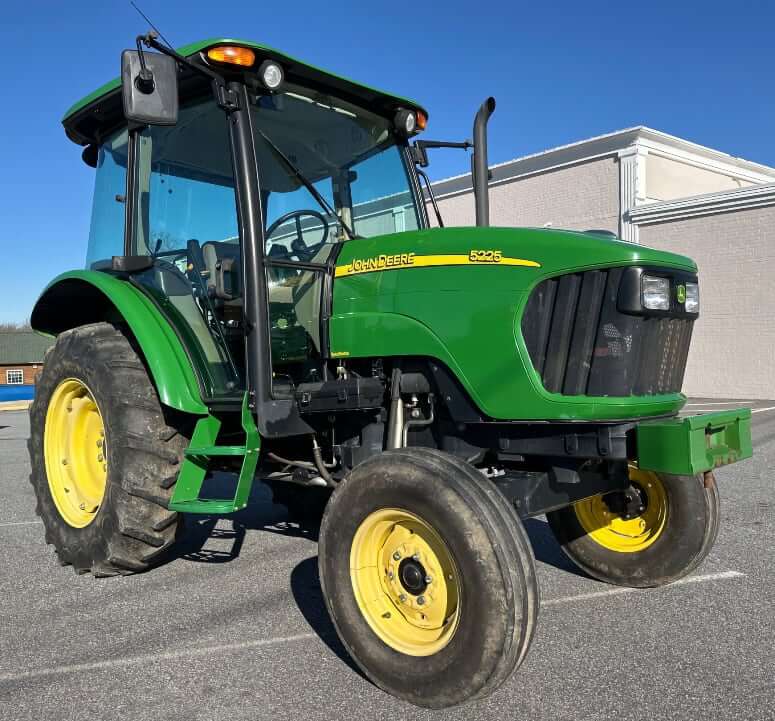

Dimensions
| Type | 2WD | 4WD |
|---|---|---|
| Length | 136.9 in (3470 mm) | 141.6 in (3590 mm) |
| Wheelbase | 85.7 in (2177 mm) | 85.7 in (2177 mm) |
| Height (Cab) | 95.9 in (2430 mm) | 95.9 in (2430 mm) |
| Height (ROPS, straddle) | 93.9 in (2380 mm) | 93.9 in (2380 mm) |
| Height (ROPS, IOOS) | 101.7 in (2580 mm) | 101.7 in (2580 mm) |
| Height (Hood) | 53 in (1340 mm) | 53.6 in (1360 mm) |
| Ground Clearance (front axle) | 18 in (450 mm) | 15.8 in (400 mm) |
| Ground Clearance (drawbar) | 15 in (380 mm) | 15 in (380 mm) |
| Turning Radius | 122 in (3100 mm) | 122 in (3100 mm) |
| Front Tire Size | 6.5-16 | 8.3-24 |
| Rear Tires Size | 13.6-28 | 13.6-28 |

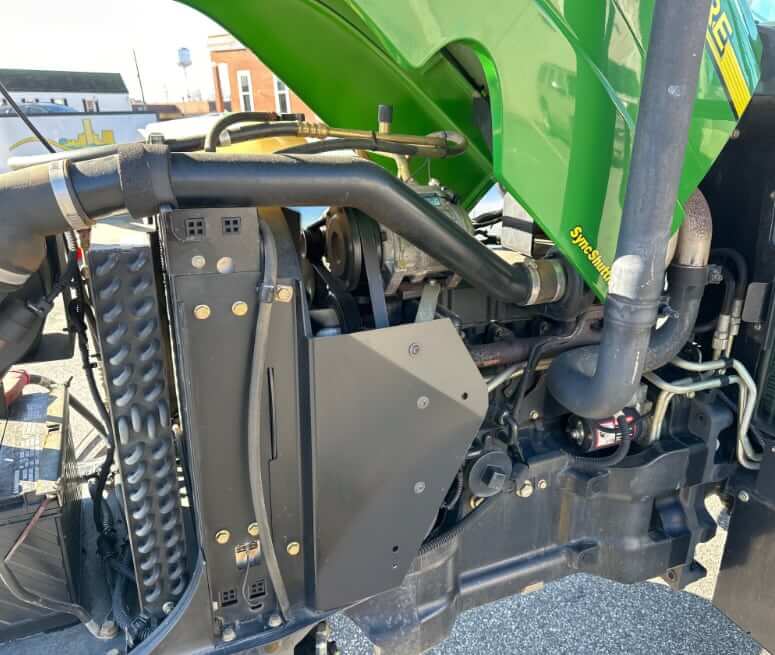

Engine Details
| Number Of Cylinders | 5 |
| Engine Make | John Deere |
| Engine Model | John Deere 5030 |
| Gross Power | 56 hp (41.8 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 157.9 lb ft (214 Nm) |
| Torque Measured @ | 1350 rpm |
| Displacement | 189 cu in (3.1 L) |
| Aspiration | Turbocharged |
| Emission Standards | Tier II |
Power Take-off (PTO)
| Rear PTO | Independent |
| PTO Power | 45 hp (33.6 kw) |
| Clutch | Dry disc / electro-hydraulic wet disc (24-speed) |
| Rear PTO Type | 540 (Optional: 540/540E, 540/1000) |
| Engine RPM 540 | 2400 rpm |
| Engine RPM 540E | 1700 rpm |
Operational Specs
| Rear Tractor Hitch Type | II/I |
| Hitch Control | Top-link draft sensing |
| Rear lift at 24″ (610mm) | 3374 lb (1530 kg) |
| Voltage | 12 V |
| Alternator (ROPS) | 70 A |
| Alternator (Cab) | 90 A |
| Battery (Cab) | 12 V, CCA 950 |
| Max Drawbar (extended) | 1675 lb (759 kg) |
| Max Drawbar (retracted) | 2470 lb (1120 kg) |
Operational Weight
| Type | 2WD | 4WD |
|---|---|---|
| Operational Weight (straddle) | 5350 lb (2426 kg) | 5935 lb (2692 kg) |
| Operational Weight (Cab) | 5995 lb (2719 kg) | 6580 lb (2984 kg) |
| Operational Weight (IOOS) | 5485 lb (2487 kg) | 6030 lb (2735 kg) |
| Operational Weight (ROPS) | 5650 lb (2562 kg) | 5650 lb (2562 kg) |
Transmission
| Transmission | John Deere SyncShuttle | John Deere PowrReverser | John Deere PowrReverser Hi/Lo |
|---|---|---|---|
| Type | Partially synchronized, clutch – dry disc | Power shuttle, clutch – wet disc | Two-speed power shift, clutch – wet disc |
| Number Of Forward Gears | 9 | 12 | 24 |
| Number Of Reverse Gears | 3 | 12 | 24 |
| Max Speed Forward | 19.8 mph (31.9 km/h) | 22.4 mph (36.0 km/h) | 23.2 mph (37.3 km/h) |
| Max Speed Reverse | 15.3 mph (24.7 km/h) | 22.4 mph (39.2 km/h) | 25.5 mph (41.0 km/h) |
Axles
| Final Drive | Inboard Planetary |
| Flange Rear Axle Length | 57.3 in (1455 mm) |
Hydraulic System
| Hydraulic System Type | Open center |
| Relief Valve Setting | 2828 psi (19500 kPa) |
| Number Of Remote Control Valves | 6 |
| Rear Valves | 1 to 3 |
| Mid valves | 0, 2 or 3 |
| Pump Flow | 13.5 gal/min (51.1 L/min) |
| Steering Flow | 5.9 gal/min (22.3 L/min) |
| Total Flow | 19.4 gal/min (73.4 L/min) |

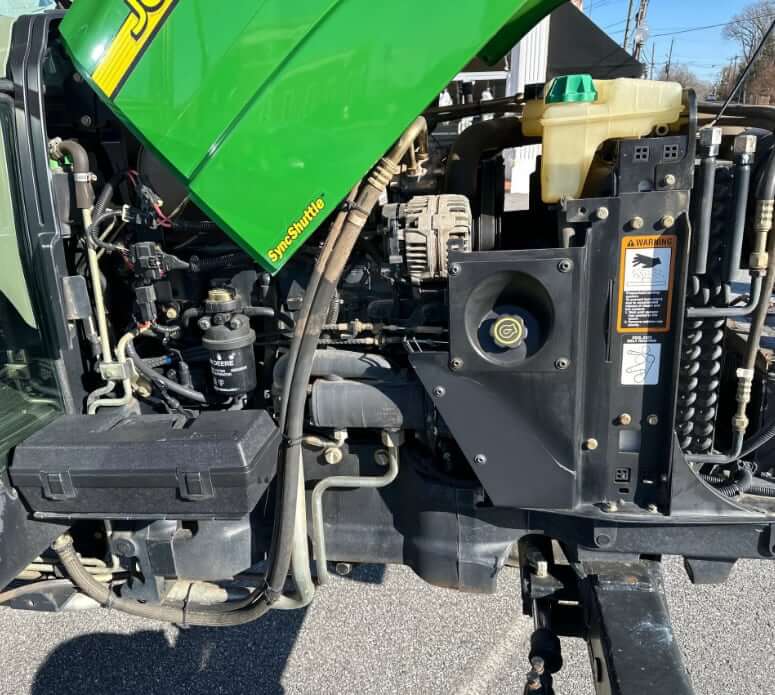

Service Refill Capacities
| Fuel Tank Capacity (straddle) | 25 gal (94.6 L) |
| Fuel Tank Capacity (Cab) | 33.5 gal (126.8 L) |
| Fuel Tank Capacity (IOOS) | 33.5 gal (126.8 L) |
| Engine Oil Capacity | 2.7 gal (10.4 L) |
| Cooling System Fluid Capacity | 2.5 gal (9.5 L) |
| Hydraulic System Capacity (9-speed Transmission) | 10.3 gal (39 L) |
| Hydraulic System Capacity (12-speed Transmission) | 11.5 gal (43.5 L) |
| Front Differential | 1.19 gal (4.5 L) |
