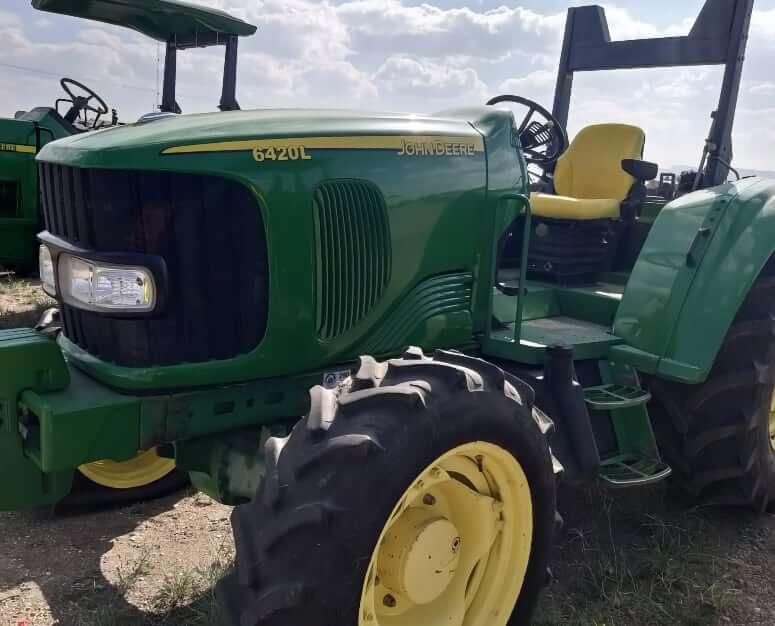

Dimensions
| Length | 162.7 in (4130 mm) |
| Wheelbase | 94.5 in (2400 mm) |
| Width | 61.8 in (1560 mm) |
| Front Tread (2WD) | 58.5 to 80.4 in (1480 to 2040 mm) |
| Front Tread (4WD) | 59.7 to 79.4 in (1510 to 2010 mm) |
| Front Tread (4WD narrow) | 55.1 to 68.5 in (1390 to 1730 mm) |
| Front Tire Size (2WD) | 27/9.5-15 |
| Front Tire Size (4WD) | 10.5/80-18 |
| Rear Tire Size (2WD / 4WD) | 18.4-26 |
Engine Details
| Engine Model | John Deere 4045HL070 | John Deere 4045HL473 |
|---|---|---|
| Number Of Cylinders | 4 | 4 |
| Displacement | 275 cu in (4.5 L) | 275 cu in (4.5 L) |
| Bore | 4.17 in (106 mm) | 4.17 in (106 mm) |
| Stroke | 5.00 in (127 mm) | 5.00 in (127 mm) |
| Power | 110 hp (82 kw) | 110 hp (82 kw) |
| Power Measured @ | 2300 rpm | 2300 rpm |
| Peak Torque | 273 lb ft (370.2 Nm) | 346 lb ft (469.2 Nm) |
| Torque Measured @ | 1500 rpm | 1500 rpm |
| Air Cleaner | Dry element | Dry element |
| Aspiration | Turbocharged | Turbocharged |
| Emission Standards | US EPA Tier 1 | US EPA Tier 2 |
Operational Specs
| Operating Weight | 8245 lb (3740 kg) |
| Operating Voltage | 12 V |
| Alternator | 90 / 115 / 150 amps |
| Battery | 12 V, 110 Ah (154 Ah) |
| Chassis | 4×2 2WD / 4×4 MFWD 4WD |
| Steering | Hydrostatic power steering |
| Service Brakes | Hydraulic wet disc |
| Cab | Two-post ROPS / ComfortGard Cab (optional) |

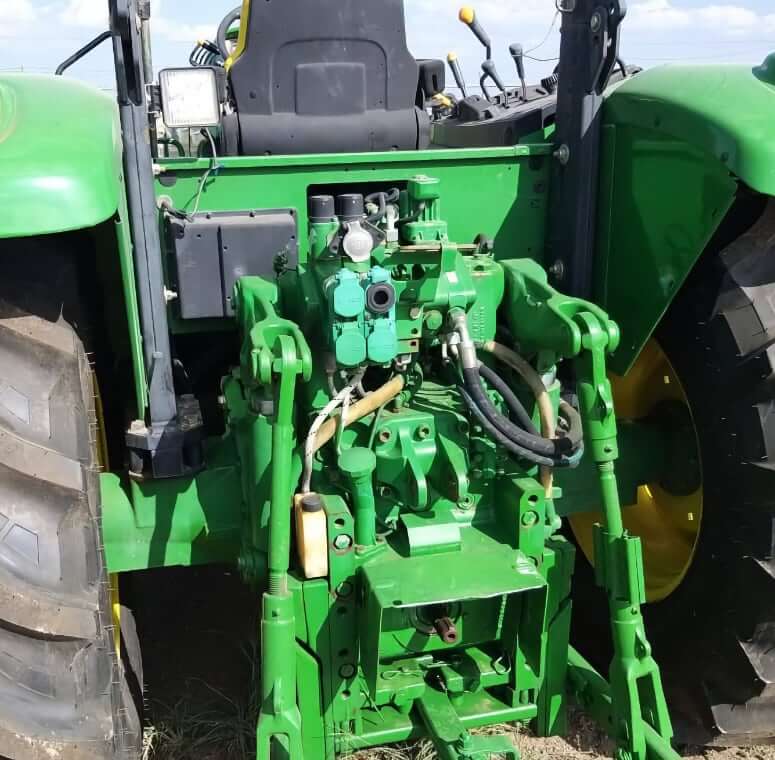

Power Take-off (PTO)
| PTO Power (claimed) | 90 hp (67.1 kw) |
| Rear PTO Type | Independent |
| Rear PTO Speed | 540/1000 rpm |
| Front PTO Speed (Optional) | 1000 rpm |
Hydraulic System
| Type | Closed center pressure flow compensated |
| Relief Valve Setting | 2900 psi (20000 kPa) |
| Pump Flow | 25 gal/min (94.6 L/min) |
| 3 Point Hitch Category | Cat II |
| 3 Point Hitch Lift Capacity @ | 4745 lb (2152 kg) |
| Number of Remote Valves | 4 |
Transmission
| John Deere SyncroPlus Transmission | Fully synchronized, 12F/4R, four ranges |
| John Deere PowrQuad Transmission | Partial power shift, 16F/16R, 4 ranges with a reverser lever |
| John Deere PowrQuad Plus Transmission | Partial power shift, 24F/24R, 6 ranges with push-button power shifting and power shuttle directional shifting |
| John Deere IVT Transmission | Infinite forward and reverse, with built-in creeper and left-hand reverser lever |
| Max Travel Speed | 16.6 mph (26.6 km/h) / 21.7 mph (34.9 km/h) |
Service Refill Capacities
| Fuel Tank Capacity | 30.1 gal (114 L) 43.6 gal (165 L) 48.9 gal (185 L) |
| Engine Oil Capacity | 4.2 gal (16 L) |
| Cooling System Capacity | 3.6 gal (13.5 L) |
| Front PTO (Hy-Gard) | 0.9 gal (3.5 L) |
| Front Axle Housing | 1.7 gal (6.5 L) |
| Front Final Drives | 0.2 gal (0.6 L) |
| Hydraulic / Transmission Oil Capacity (SyncroPlus) | 13.7 gal (52 L) |
| Hydraulic / Transmission (PowrReverser) | 13.7 gal (52 L) |
| Hydraulic / Transmission (PowrQuad) | 12.9 gal (49 L) |
| Hydraulic / Transmission (PowrQuad Plus with 16/16 Gears) | 12.9 gal (49 L) |
| Hydraulic / Transmission (PowrQuad Plus with 24/24 Gears) | 13.2 gal (50 L) |
| Hydraulic / Transmission (AutoQuad Plus) | 13.2 gal (50 L) |
| Hydraulic / Transmission (IVT) | 15.9 gal (60 L) |
| Extra with Creeper Transmission | 0.3 gal (1 L) |
| Extra with Front Wheel Drive | 0.8 gal (3 L) |
| Extra with TLS Axle | 0.8 gal (3 L) |
