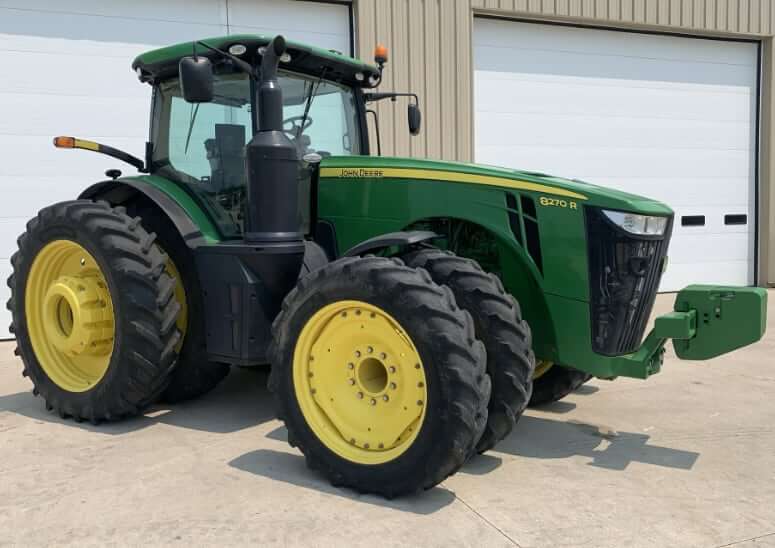

Dimensions
| Length | 245 in (6220 mm) |
| Length (with front weights) | 259.5 in (6590 mm) |
| Wheelbase (1300 MFWD) | 121.3 in (3080 mm) |
| Wheelbase (1500 MFWD/ILS) | 120.1 in (3050 mm) |
| Width (warning lamps) | 137.3 in (3480 mm) |
| Width (triples warning lamps) | 175.1 in (4440 mm) |
| Height to Top of Cab | 129.3 in (328 cm) |
| Clearance (front 1300 axle group 42 tires) | 23.9 in (600 mm) |
| Clearance (front 1500 axle group 42 tires) | 23.1 in (580 mm) |
| Clearance (front ILS axle group 42 tires) | 19.7 in (500 mm) |
| Clearance (rear axle group 47 tires) | 24.9 in (630 mm) |
| Front Tread (1300 MFWD) | 60-88 in (1524-2235 mm) |
| Front Tread (1500 MFWD/ILS) | 60-144 in (1524-3657 mm) |
Weights
| Operating Weight (w/ Power shift, duals, Cat 3 hitch) | 27953 lb (12680 kg) |
| Operating Weight (w/ IVT, duals, Cat 4 hitch) | 33091 lb (15009 kg) |
| Inner Weights | 1378 lb (625 kg) |
| Front Axle Load | 17637 lb (8000 kg) |
| Rear Axle Load | 25353 lb (11500 kg) |
| Max Tractor Capacity | 39683 lb (18000 kg) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | John Deere PowerTech 9.0L PSS |
| Engine Family | EJDXL09.0301 |
| Displacement | 549 cu in (9.0 L) |
| Bore | 4.66 in (118 mm) |
| Stroke | 5.35 in (136 mm) |
| Rated Power | 270 hp (199 kw) |
| Rated Power Measured @ | 1000 rpm |
| Max Power | 297 hp (218 kw) |
| Max Power Measured @ | 1900 rpm |
| PTO Power | 225 hp (167 kw) |
| PTO Power Measured @ | 2100 rpm |
| Torque Rise | 40% |
| Aspiration | Dual turbochargers, aftercooled |
| Emission Standards | US EPA Tier 4 Final |
PTO (Power Take-Off)
| PTO Actuation | Electrohydraulic |
| PTO Type | Standard: 1000 rpm (45 mm 1.75 in. 20 spline) Optional: 45 mm (1.75 in.), 20 spline, 1000 rpm, capable of 35 mm (1.375 in.), 6/21 spline, 540/1000 rpm Optional: 45 mm (1.75 in.), 20 spline, 1000 rpm and 1000E economy rpm, in-cab shiftable |
| PTO Speeds @ Engine (16-speed PowerShift) | 1000 PTO rpm @ 2003 engine rpm, 1000 ECO PTO rpm @ 1596 engine rpm, 540 PTO rpm @ 1817 engine rpm |
| PTO Speeds @ Engine (IVT) | 1000 PTO rpm @ 2000 engine rpm, 1000 ECO PTO @ 1594 engine rpm, 540 PTO rpm @ 1814 engine rpm |
| PTO Speeds @ Engine (Ie23VT) | 1000 PTO rpm @ 1995 engine rpm, 1000 ECO PTO @ 1590 engine rpm, 540 PTO rpm @ 1810 engine rpm |
Operating Specs
| Opearating Voltage | 12 V |
| Alternator | 200 amps |
| Battery | 2x 12 V, CCA 1850 |
| Front Tire Size | 420/90R30 |
| Rear Tire Size | 480/80R46 |
Transmission
| Type (Standart) | John Deere PowerShift 16F / 5R Gears |
| Type (Optional) | John Deere AutoPowr IVT |
| Type (Optional) | John Deere e23 Transmission |
| Reverser | Left-hand or Right-hand (PowerShift RH only) |
| Creeper | IVT |
| On-The-Go Shifting | Yes |
| Clutch Type | Wet |
| Max Travel Speed | 26 mph (42 km/h) |
Hydraulic System
| Type | Closed-center, pressure/flow compensated |
| Rear Remote Control Valves | 4 or 5/6 |
| Front Remote Control Valves | 2 |
| Pump Flow | 60 gal/min (227.1 L/min) |
| Pump Flow (Optional) | 85 gal/mim (321 L/min) |
| Max Operating Pressure | 2958 psi (20400 kPa) |
| Rear SCV Flow (0.5 in) | 35 gal/min (132 L/min) |
| Rear SCV Flow (0.75 in) | 40.5 gal/min (153 L/min) |
| Front SCV Flow | 25 gal/min (96 L/min) |
| Hitch Draft Control Load Sense Type | Electronic |
| Sensing Type | Electrohydraulic |
| Joystick SCV Control | Electrohydraulic optional |
| 3 Point Hitch Category (SAE) | Cat 3/3N / Optional: Cat 4N/3 |
| 3 Point Hitch Lift Capacity @ 24 inches | Standard Cat 3/3N: 14000 lb (6350 kg) Optional Cat 3/3N: 18500 lb (8391 kg) Optional Cat 4N/3: 20000 lb (9072 kg) |
Final Drive
| Final Drive Type | Inboard planetary |
| Differential Controls | Electrohydraulic |
| Service Brakes | Hydraulic wet disc |
| Axle Type | Bar axle, rack and pinion |
| Engage On-The-Go Rear Differential Lock | Yes |
Service Refill Capacities
| Fuel Tank Capacity (Group 47/48 Tires) | 170.4 gal (645 L) |
| Fuel Tank Capacity (Group 49 Tires) | 181.2 gal (686 L) |
| Fuel Tank Capacity (Group 47/48/49 Tires) | 190 gal (719 L) |
| DEF Tank Capacity | 6.1 gal (23.1 L) |
| Engine Oil Capacity | 6.6 gal (25 L) |
| Cooling System Capacity | 11.6 gal (43.8 L) |
| Transmission/Hydraulics Capacity | 37 gal (140 L) |
| Hydraulic Auxiliary Reservoir, Need at fill (LH tank) | 5.8 gal (21.8 L) |
| Hydraulic Auxiliary Reservoir, Need at fill (RH tank) | 9.9 gal (37.5 L) |
| Hydraulic Auxiliary Reservoir, Usable take-out, if equipped (LH tank) | 4.8 gal (18 L) |
| Hydraulic Auxiliary Reservoir, Usable take-out, if equipped (RH tank) | 8.4 gal (32 L) |
| Independent Link Suspension (ILS) Capacity | 43.6 gal (165 L) |
| Crankcase Independent Link Suspension (ILS) | 7.3 gal (27.5 L) |
| 1300 MFWD Axle Housing | 3.6 gal (13.6 L) |
| 1500 MFWD Axle Housing | 4.9 gal (18.7 L) |
| MFWD Hubs (Each) | 1 gal (3.8 L) |
| Independent Link Suspension (ILS) Hubs (Each) | 1 gal (3.8 L) |
