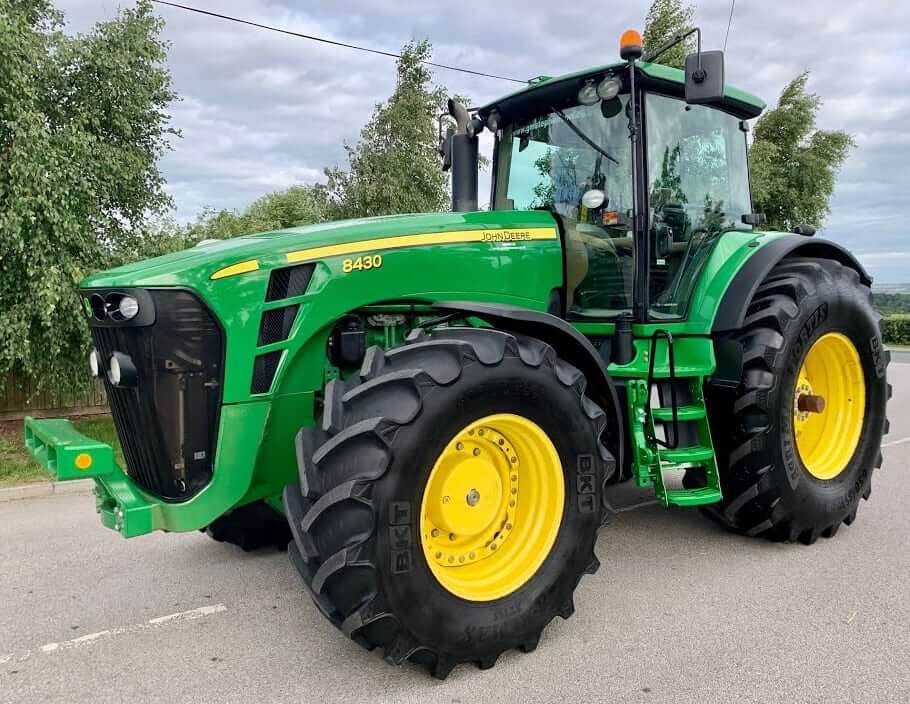

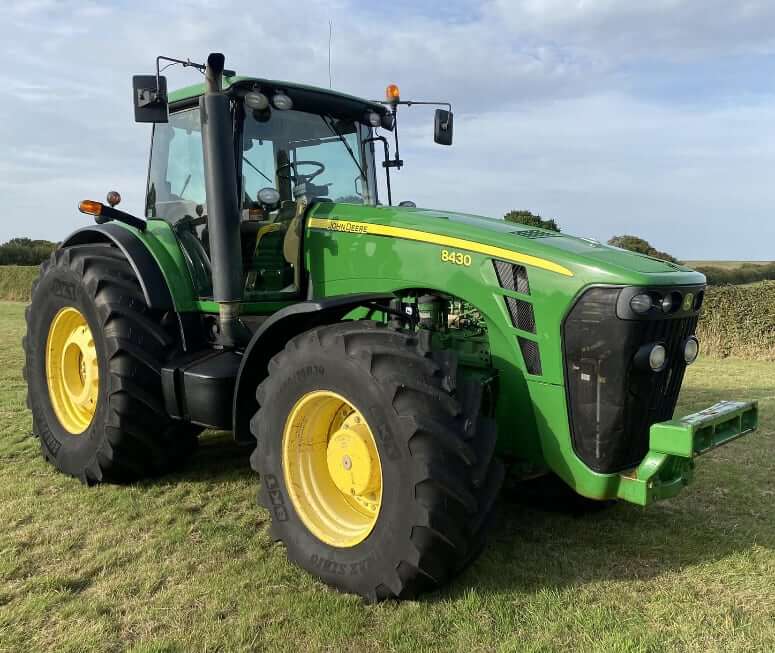

Dimensions
| Overall Length | 219.1 in (5560 mm) |
| Height To Top Of Cab | 122.9 in (3120 mm) |
| Wheelbase (MFWD) | 120.1 in (3050 mm) |
| Wheelbase (ILS) | 118.9 in (3020 mm) |
| Ground Clearance | 23.2 in (590 mm) |
| Tread Spacing (MFWD 1300 Series) | 60 to 88 in (1524 to 2235 mm) |
| Tread Spacing (MFWD 1500 Series) | 60 to 144 in (1524 to 3658 m) |
| Tread Spacing (ILS) | 60 to 132 in (1524 to 3353 mm) |
Weight
| Operating Weight (MFWD) | 23952 lb (10864 kg) |
| Operating Weight (ILS) | 25352 lb (11500 kg) |
| Shipping Weight | 22010 lb (9984 kg) |
| Ballasted Weight | 33650 lb (15263 kg) |

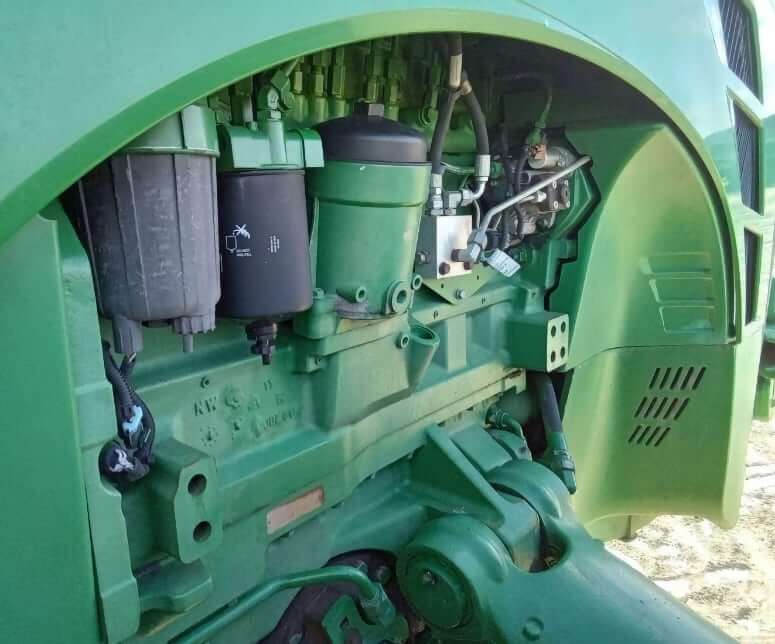

Engine Details
| Number Of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | John Deere PowerTech Plus 9.0 L |
| Displacement | 548 cu in (9.0 L) |
| Bore | 4.66 in (118 mm) |
| Stroke | 5.35 in (136 mm) |
| Max Horsepower | 330 hp (243 kw) |
| Rated Horsepower | 305 hp (224 kw) |
| PTO Horsepower | 250 hp (186 kw) |
| Power Measured @ | 2100 rpm |
| Air Cleaner | Dual paper elements |
| Aspiration | Variable geometry turbocharger with air-to-air aftercooling and exhaust gas recirculation |
| Emission Standards | US EPA Tier 3 |
PTO (Power Take-Off)
| Rear PTO Type | independent |
| Rear PTO Speed | 1000 or 540/1000 (optional) |
| PTO / Engine RPM | 540@1817 1000@2000 |
Operational Specs
| Operating Voltage | 12 V |
| Alternator | 200 amps |
| Battery | 12 V, CCA 1850 |
| Front Tire Size | 18.4-34 |
| Rear Tire Size | 18.4-34 |
| Service Brakes | Wet disc brakes |
| Steering | Power steering |
Transmission
| Transmission Type | John Deere PowerShift | John Deere IVT |
|---|---|---|
| Number Of Gears | 16F / 4R | Infinite forward and reverse |
| Max Travel Speed | 26 mph (42 km/h) | 31 mph (50 km/h) |
Axles
| Front Axle (Standart) | MFWD with ILS – tread range 60 to 132 in (1524 to 3352 mm) |
| Front Axle (Optional) | 1300 Series MFWD – tread range 60 to 88 in (1524 to 2235 mm) / 1500 Series MFWD – tread range 60 to 144 in (1524 to 3657 mm) |
| Rear Axle (Standart) | 4.74 x 118.5 in diameter (120 x 3010 mm) long, dual taper hub |
| Rear Axle (Optional) | 4.74 x 96.0 in diameter (120 x 2438 mm ) long, dual taper hub |
| Final Drives | Inboard planetary |
| Front Axle Differential Lock (MFWD 1300 Series) | Limited slip |
| Front Axle Differential Lock (MFWD 1500 Series) | Full-locking, electrohydraulic |
| Front Axle Differential Lock (MFWD with ILS) | Full-locking, electrohydraulic |
| Rear Axle Differential Lock | Full-locking, electrohydraulic |

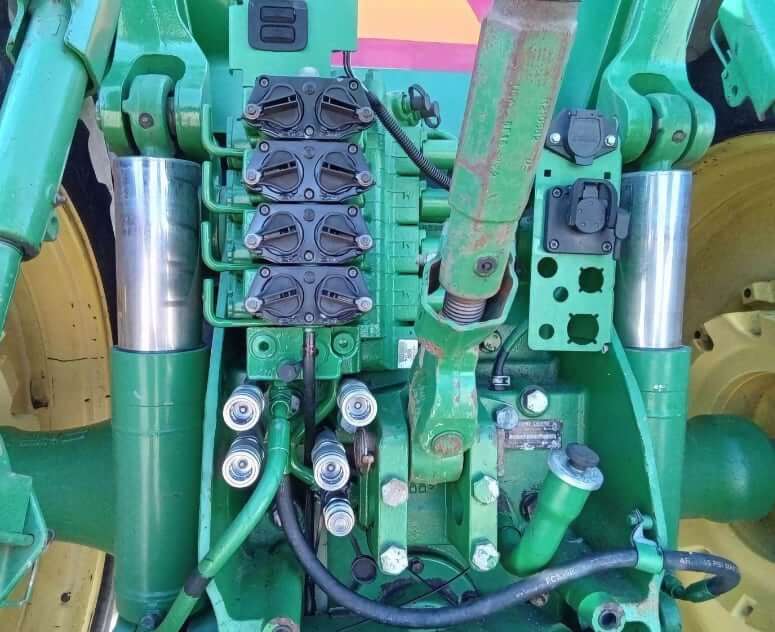

Hydraulic System
| Type | Closed center constant pressure hydraulic system (PFC) |
| Rated Flow (63 cc pump) | 44 gal/min (166.6 L/min) |
| Rated Flow (85 cc pump) | 60 gal/min (227.1 L/min) |
| Available Flow at a Single SCV | 30 gal/min (113.5 L/min) |
| Maximum Pressure | 2900 psi (20000 kPa) |
| Number of Remote Control Valves | 4 standard, 3rd deduct, 5th optional |
| 3 Point Hitch Type | Cat 4N/3 |
| 3 Point Hitch Lift Capacity @ 24″ | 17300 lb (7847 kg) / Optional – 18300 lb (8300 kg) |

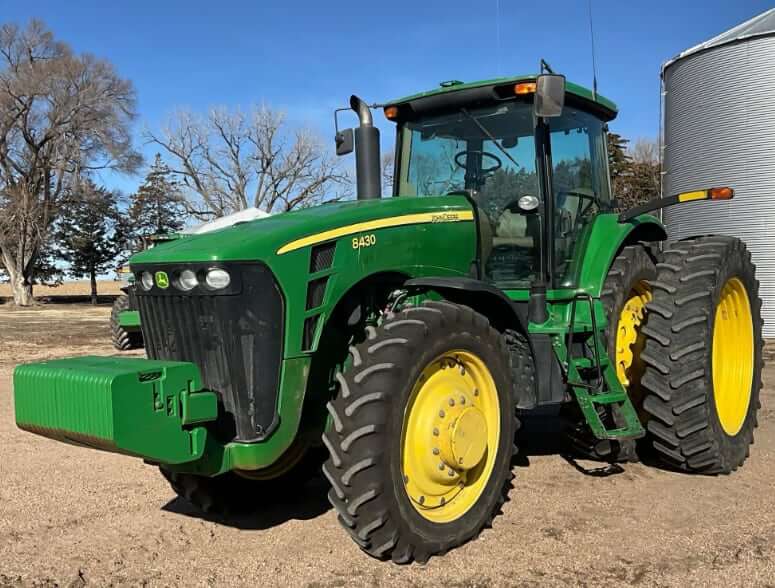

Service Refill Capacities
| Fuel Tank Capacity | 180 gal (681 L) |
| Engine Oil Capacity (2WD or 1300 MFWD) | 6.7 gal (25.5 L) |
| Engine Oil Capacity (1500 MFWD or ILS) | 7.4 gal (28.0 L) |
| Cooling System Capacity | 10.6 gal (40 L) |
| Transmission / Hydraulic Oil Capacity (MFWD and 2WD) | 40 gal (150 L) |
| Transmission / Hydraulic Oil Capacity (ILS) | 42 gal (160 L) |
| MFWD 1300 Axle Differential Case | 3.6 gal (13.6 L) |
| MFWD 1500 Axle Differential Case | 4.9 gal (18.7 L) |
| MFWD Axle Wheel Hub | 0.9 gal (3.4 L) |
| MFWD Axle (Independent Link Suspension) | 1.0 gal (4.0 L) |

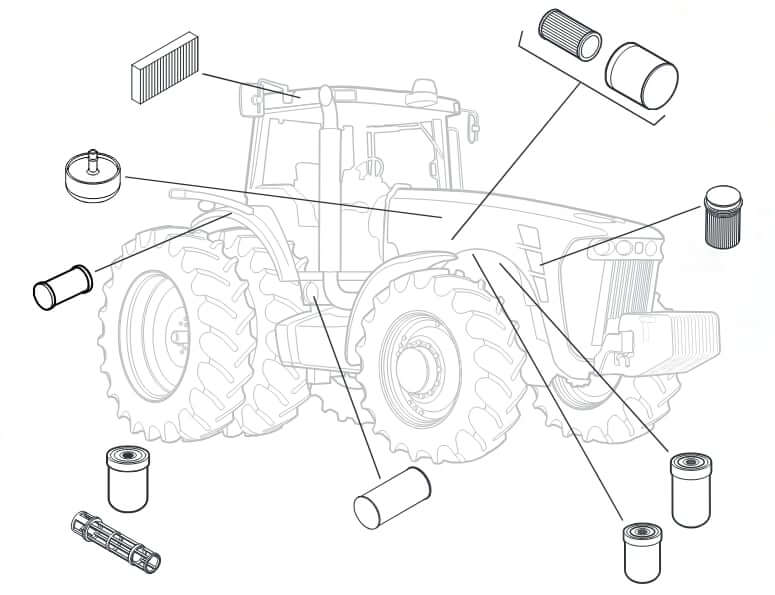

John Deere 8430 Filters
| Cab Fresh Air Filter | RE24619 |
| Cab Fresh Air Filter (Carbon) | RE237396 |
| Cab Recirculation Air Filter | RE187966 |
| Engine Fuel Filter Kit | RE525523 |
| Engine Fuel Tank Vent Filter | RE52504 |
| Engine Oil Filter | RE509672 |
| Engine Air Filter (Primary) | RE587793 |
| Engine Air Filter (Secondary) | RE587794 |
| Hydraulics / Transmission Oil Filter | 2x RE210857 |
| Hydraulics / Transmission Oil Screen | RE45369 |
| SCV Oil Filter | RE269061 |
