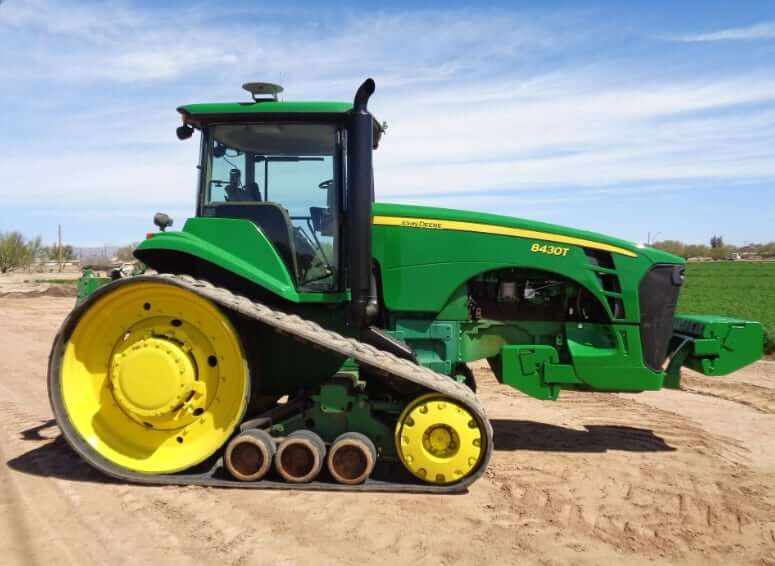

Dimensions
| Overall Length | 207 in (5250 mm) |
| Height To Top Of Cab | 122.9 in (3120 mm) |
| Wheelbase | 89 in (2261 mm) |
| Ground Clearance (rear axle) | 21.7 in (550 mm) |
| Ground Clearance (drawbar) | 17.7 in (440 mm) |
| Tread Spacing (Standart) | 60 to 88 in (1524 to 2235 mm) |
| Tread Spacing (Optional) | 92 to 120 in (2337 to 3048 mm) |
| Track Width (Standart) | 25 in (635 mm) |
| Track Width (Optional) | 16 in (406 mm), 18 in (457 mm), 30 in (762 mm) |
Weight
| Operating Weight | 28790 lb (13059 kg) |
| Shipping Weight | 27060 lb (12274 kg) |
Static Ground Pressure
| Track Width | Ground Contact Area | Ground Pressure |
|---|---|---|
| 16 in (406 mm) | 2849 in2 (1.84 m2) | 9.5 psi (65.50 kPa) |
| 18 in (457 mm) | 3204 in2 (2.07 m2) | 8.4 psi (57.92 kPa) |
| 25 in (635 mm) | 4450 in2 (2.87 m2) | 6.1 psi (42.06 kPa) |
| 30 in (762 mm) | 5340 in2 (3.45 m2) | 5.1 psi (35.16 kPa) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | John Deere PowerTech Plus 9.0 L |
| Displacement | 548 cu in (9.0 L) |
| Bore | 4.66 in (118 mm) |
| Stroke | 5.35 in (136 mm) |
| Max Horsepower | 335 hp (247 kw) |
| Rated Horsepower | 305 hp (225 kw) |
| PTO Horsepower | 255 hp (190 kw) |
| Power Measured @ | 2100 rpm |
| Torque Rise | 43% |
| Compression Ratio | 16.3:1 |
| Air Cleaner | Dual stage with engine cooling fan aspiration |
| Aspiration | Variable geometry turbocharger with air-to-air aftercooling and exhaust gas recirculation |
| Emission Standards | US EPA Tier 3 |
PTO (Power Take-Off)
| Rear PTO Type | independent |
| Rear PTO Speed | 1000 rpm |
| PTO / Engine RPM | 1000@2000 |
Operational Specs
| Operating Voltage | 12 V |
| Alternator | 200 amps |
| Battery | 12 V, CCA 1850 |
| Track Shoe Size | 16 in (406 mm) / 18 in (457 mm) / 25 in (635 mm) / 30 in (762 mm) |
| Steering | Speed-sensitive, electrohydrostatic, planetary differential |
| Final Drives | Outboard planetary |
| Service Brakes | Wet disc brakes |
| Cab | John Deere CommandView cab |
Transmission
| Transmission Type | 16-speed John Deere Automatic PowerShift |
| Number Of Gears | 16F / 4R |
| Clutch | Hydraulic wet disc |
| Max Travel Speed, Forward | 18.9 mph (30.4 km/h) |
| Max Travel Speed, Reverse | 7.4 mph (11.9 km/h) |
Hydraulic System
| Type | Closed-center, pressure/flow compensated |
| Rated Flow (45 cc pump) | 33.5 gal/min (126 L/min) |
| Rated Flow (57 cc pump) | 42.5 gal/min (160 L/min) |
| Available Flow at a Single SCV | 30 gal/min (113.5 L/min) |
| Maximum Pressure | 2900 psi (20000 kPa) |
| Number of Remote Control Valves | 4 standard, 3rd deduct, 5th optional |
| 3 Point Hitch Type | Cat 3N/3 |
| 3 Point Hitch Lift Capacity @ 24″ | 15200 lb (6895 kg) |

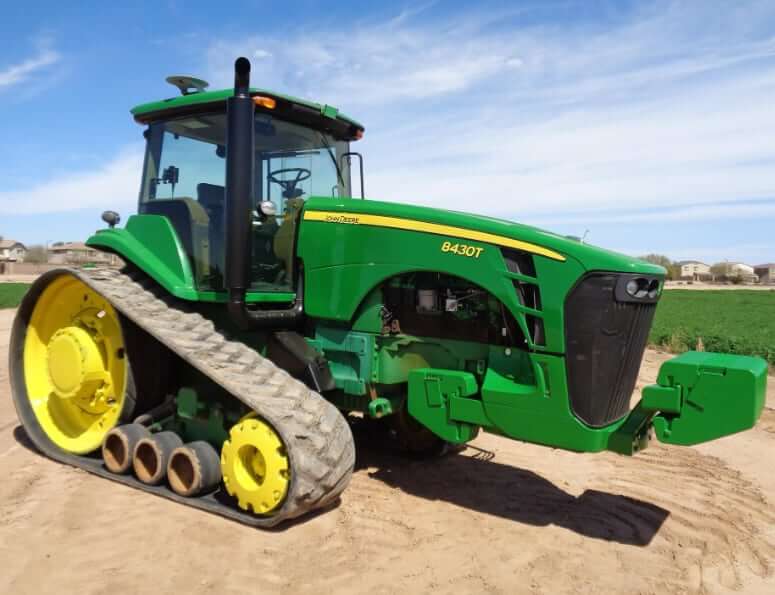

Service Refill Capacities
| Fuel Tank Capacity | 130 gal (492 L) |
| Engine Oil Capacity | 6.7 gal (25.5 L) |
| Cooling System Capacity | 10.6 gal (40 L) |
| Transmission / Hydraulic Oil Capacity | 65 gal (246 L) |

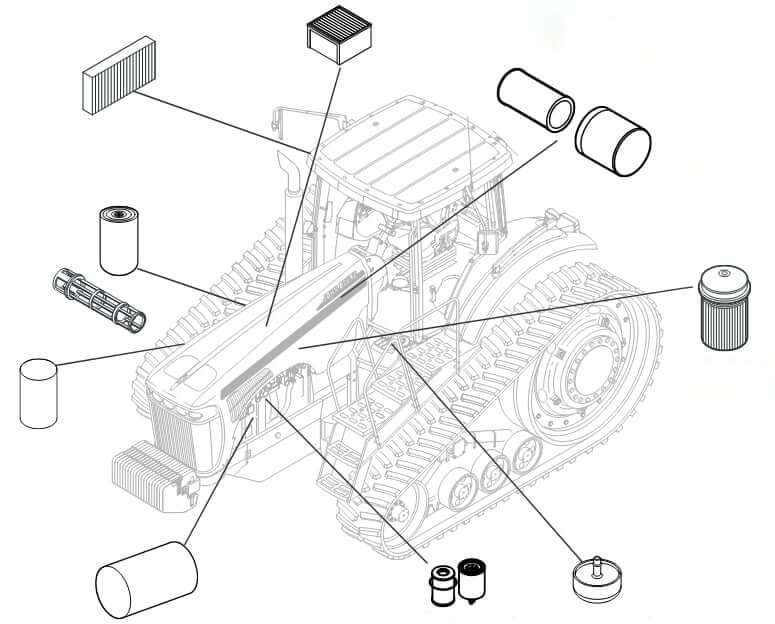

John Deere 8430T Filters
| Cab Fresh Air Filter (Standart) | R119168 |
| Cab Fresh Air Filter (High Efficeicy) | RE67828 |
| Cab Fresh Air Filter (Carbon) | RE219782 |
| Cab Recirculation Air Filter | RE187966 |
| Primary and Final Fuel Filter Kit | RE525523 |
| Engine Fuel Filter Element | N378886 |
| Engine Fuel Tank Vent Filter | RE52504 |
| Engine Oil Filter | RE509672 |
| Engine Air Filter (Primary) | RE587793 |
| Engine Air Filter (Secondary) | RE587794 |
| Hydraulics / Transmission Oil Filter | RE174130 |
| Hydraulics / Transmission Oil Screen | RE45369 |
| Steering Filter | RE69054 |
