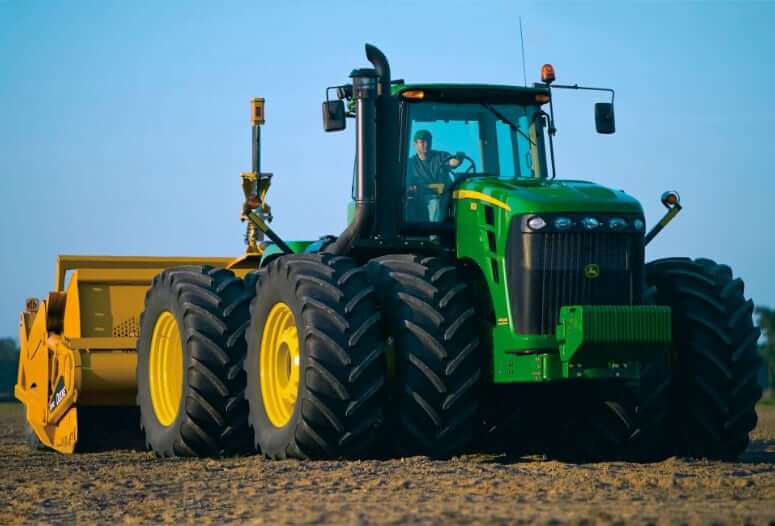

Dimensions
| Overall Length | 270 in (6860 mm) |
| Wheelbase | 137.8 in (3500 mm) |
| Overall Width | 118.6 in (3012 mm) |
| Height to Top of Cab | 142 in (3593 mm) |
| Height to Top of Exhaust | 156 in (3960 mm) |
| Height to Top of Air Stack | 144 in (3668 mm) |
| Height to Top of Hood | 107 in (2724 mm) |
| Ground Clearance (Axle Housing) | 30.8 in (782 mm) |
| Standard Tire Size | 800/70R38 |
Steering System
| Steering Type | Articulated Hydrostatic with Two Double Action Rams |
| Turns (Lock to Lock) | 4.3 |
| Articulation Steering Angle | 42° |
| Turning Radius (No Steering Stops) | 14.6 ft (4.45 m) |
| Turning Radius (With 3° Stops) | 15.6 ft (4.72 m) |
| Turning Radius (With 5° Stops) | 17.0 ft (5.18 m) |
| Turning Radius (With 10° Stops) | 19.5 ft (5.92 m) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | John Deere PowerTech Plus |
| Engine Model | John Deere 6135H |
| Displacement | 824 cu in (13.5 L) |
| Bore | 5.2 in (132 mm) |
| Stroke | 6.5 in (165 mm) |
| Compression Ratio | 16:1 |
| Gross Power | 530 hp (395.3 kw) |
| Power Measured @ | 2100 rpm |
| Power Rise | 10 % |
| Torque Rise | 38 % |
| Fuel System | Unit Electronic, Electronic Governor |
| Air Cleaner | DryType with Secondary Element |
| Aspiration | Turbocharged Variable Geometry and Air-to-Air Aftercooled |
| Emission Standards | US EPA Tier 3 + EU Stage IIIA |
Operational Specs
| Shipping Weight | 37290 lb (16914 kg) |
| Operating Voltage | 12 V |
| Alternator | 200 amps |
| Battery | 3x 12 V, CCA 925 |
| Cab | Standard cab with air conditioning or ClimaTrak |
| Scraper Control | TouchSet Scraper Control for Scrapers Equipped with Scraper Control Unit |
| Hydraulic Differential Lock | Standard |
| Drive | 4WD |
Transmission
| Transmission Type | Automatic John Deere PowerShift |
| Number of Gears | 18F / 6R |
| Max Travel Speed | 24 mph (40 km/h) |
| Final Drives | Inboard planetary with double-reduction axle |
| Service Brakes | Hydraulic power, wet disk, self adjusting on front and rear axle, plus secondary brake |
| Hydraulic Trailer Brakes | Optional |
Hydraulic System
| Type | Closed Center Pressure / Flow Compensated |
| Pump Type | Axial Piston |
| Pump Flow Capacity | 48 gal/min (182 L/min) |
| Relief Valve Pressure | 2900 psi (20000 kPa) |
| Number of Remote Control Valves | 4 standard with 48 gpm (182 L/min) flow, or 4 optional with Scraper High Flow 75 gpm (283.9 L/min) |
Service Refill Capacities
| Fuel Tank Capacity | 350 gal (1325 L) |
| Engine Oil Capacity (w/ filter) | 15.8 gal (60 L) |
| Cooling System Capacity | 14 gal (53 L) |
| Transmission Oil Capacity | 45 gal (170.8 L) |
| Hydraulic System Capacity (standard flow) | 27 gal (103 L) |
| Hydraulic System Capacity (high flow) | 30 gal (113.5 L) |
