Dimensions
| Overall Length | 2770 mm |
| Overall Width | 1250 mm |
| Overall Height with ROPS | 2000 mm |

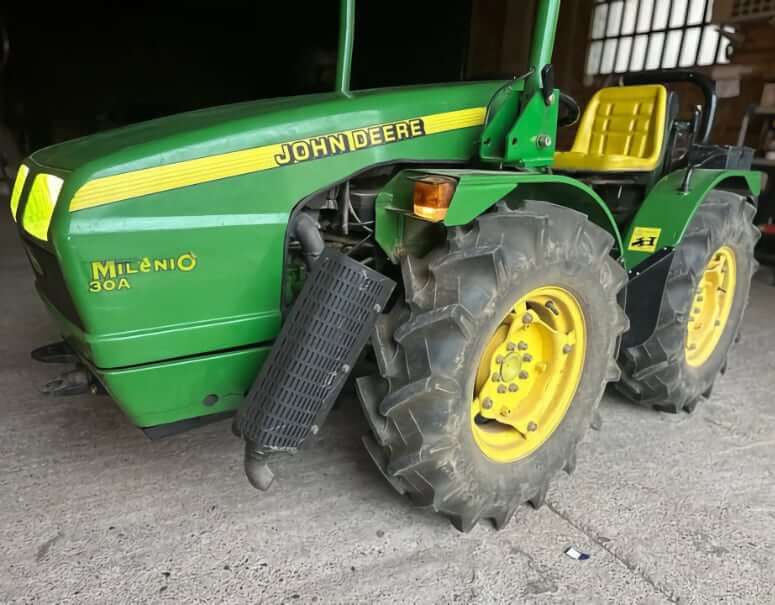

| Front Tire Size | 11,00/65-12 |
| Rear Tire Size | 360/70R20 |
Operating Specs
| Tractor Type | Compact Utility Tractor |
| Operating Weight | 2425 lb (1100 kg) |
| Cab | Two-post mid-mount folding ROPS |
| Alternator (internal) | 12 amps (24 amps optional) |
| Operating Voltage | 12 V |
| Battery | 12 V, 70 Ah |
Engine Details
| Number of Cylinders | 2 |
| Engine Make | Lombardini |
| Engine Model | Lombardini 9 LD 625-2 |
| Displacement | 76.2 cu in (1.248 L) |
| Bore | 3.74 in (95 mm) |
| Stroke | 3.46 in (88 mm) |
| Engine Power | 25 hp (18.6 kW) |
| Power Measured @ | 3000 rpm |
| Max Torque | 53.8 lb ft (73 Nm) |
| Torque Measured @ | 2000 rpm |
| Cooling | Air-cooled (fan integral to the flywheel) |
| Intake | Dry air cleaner |
| Shaft | Side camshaft in the crankcase |
| Starter | Electric, 12 V, 2.3 hp (1.7 kw) |

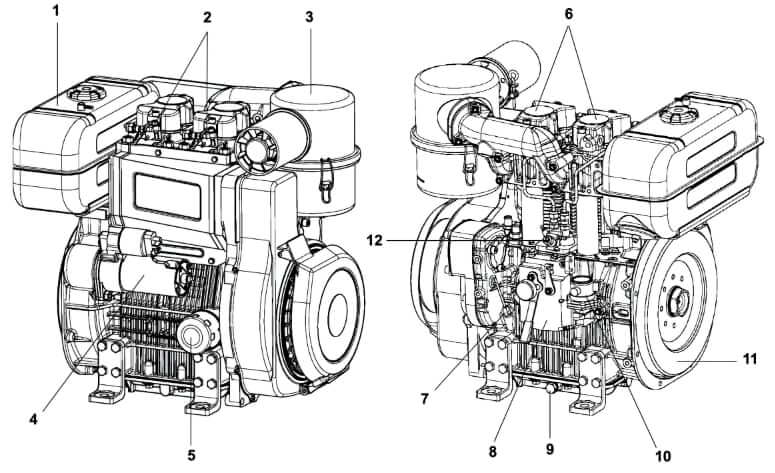

1. Fuel tank; 2. Injectors; 3. Air cleaner; 4. Starting motor; 5. Oil filter; 6. Rocker arm cover; 7. Oil dipstick; 8. Throttle and stop controls; 9. Oil drain plug; 10. Fuel feeding pump; 11. Flywheel; 12. Injection pump.
Transmission
| Number of Gears | 6 forward and 3 reverse |
| Transmission Clutch | Mechanical dry disc |
| Chassis | 4×4 articulated 4WD |
Service Refill Capacities
| Fuel Tank Capacity | 2.64 gal (10 L) |
| Engine Oil Capacity (w/ Filter) | 0.95 gal (3.6 L) |

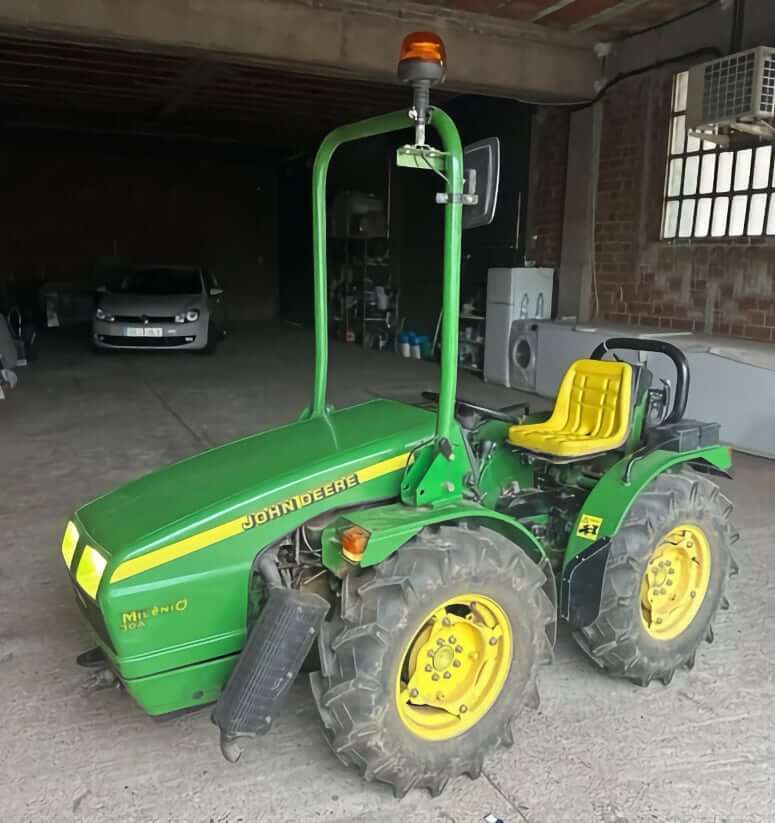

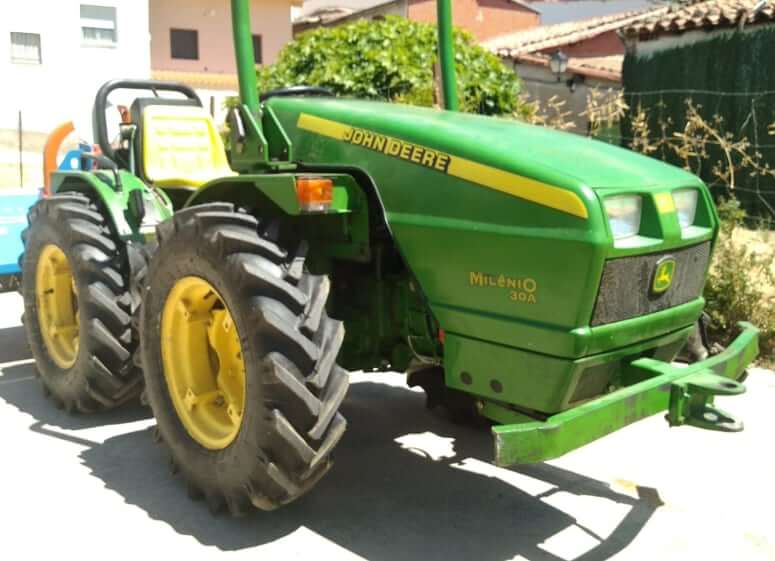

The John Deere Milenio 30A orchard/vineyard tractor, built by Goldoni in Italy from 2005 to 2010, is designed specifically for the unique challenges of orchard and vineyard operations.
This tractor combines compact size with powerful performance, allowing it to navigate narrow rows and tight spaces with ease. Engineered with the needs of specialized agriculture in mind, the Milenio 30A offers the perfect balance of maneuverability and strength.
The Milenio 30A is renowned for its reliability and durability, ensuring consistent performance in various conditions. Its ergonomic design provides comfort and ease of use for operators, making long hours in the field more manageable. The tractor’s advanced features and robust construction make it a valuable asset for farmers focused on maximizing productivity and efficiency in their orchard and vineyard tasks.
With the John Deere Milenio 30A, operators can expect superior handling and versatility, essential for maintaining and enhancing the health and productivity of their crops.
