Dimensions
| Length | 134 in (3404 mm) |
| Width | 59 in (1499 mm) |
| Height | 86 in (2184 mm) |
| Wheelbase | 71 in (1803 mm) |
| Ground Clearance | 14 in (356 mm) |
| Turning Radius | 10.2 ft (3.1 m) |
Operating Specs
| Operating Weight | 3800 lb (1724 kg) |
| Tractor Type | 4WD Orchard/Vineyard tractor |
| Operating Voltage | 12 V |
| Battery | 12 V |
| Cab | Two-post mid-mount folding ROPS |
Engine Details
| Number of Cylinders | 3 |
| Engine Model | VM Motori |
| Engine Model | VM Motori D703T Diesel |
| Displacement | 127.1 ci (2.1 L) |
| Bore/Stroke | 3.70 in (94 mm) |
| Bore/Stroke | 3.94 in (100 mm) |
| Engine Power | 68 hp (51 kw) |
| Power Measured @ | 2600 rpm |
| Peak Torque | 162 lb ft (219.7 Nm) |
| Torque Measured @ | 1400 rpm |
| Rear PTO | 540 / 540E rpm |
| Air cleaner | Dry |
| Aspiration | Turbocharged |
Transmission
| Transmission Type | Hydraulic dry disc |
| Chassis | 4×4 articulated |
| Gears | 12 forward + 4 reverse |
Hydraulic System
| Pressure | 2611 psi (18000 kPa) |
| Pump flow | 13.1 gpm (49.6 L/min) |

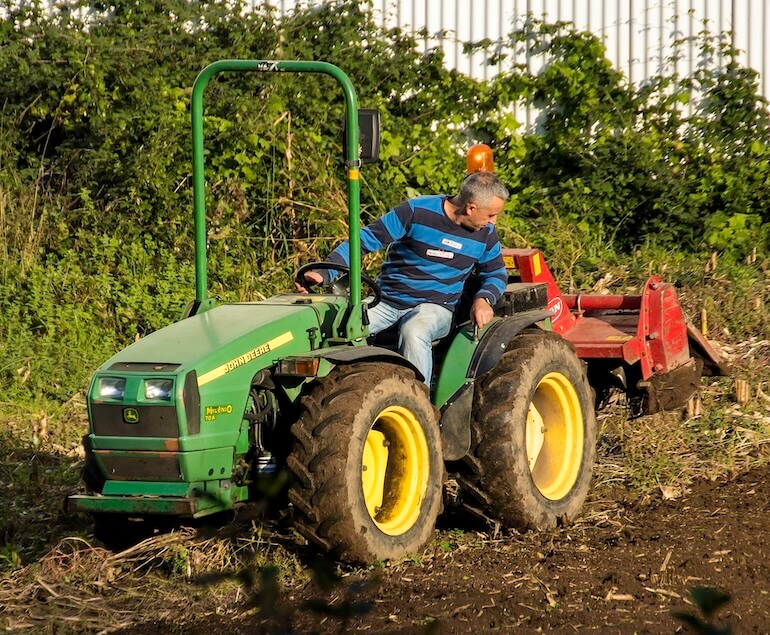

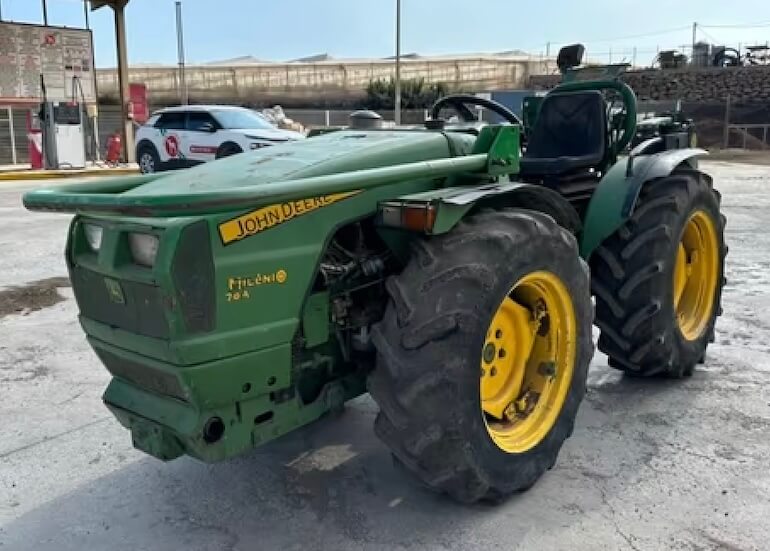

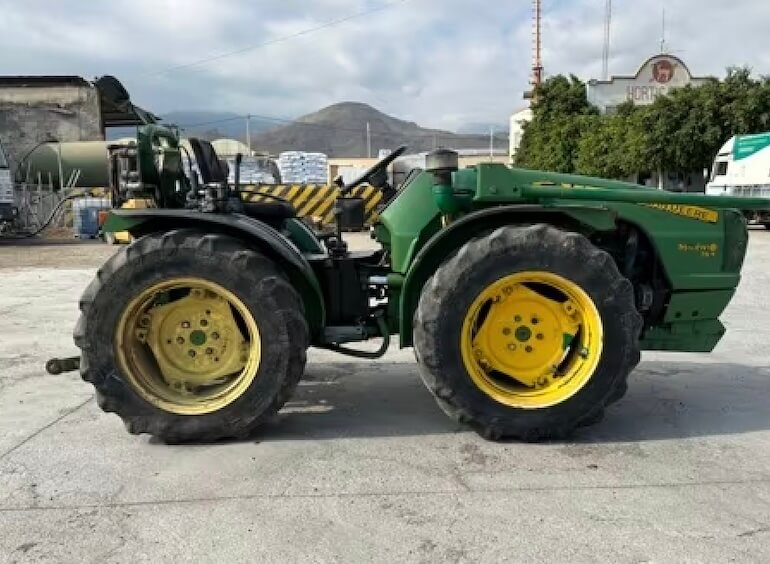

The John Deere Milénio 70A, produced between 2005 and 2015, represents a collaboration between John Deere and Goldoni (Italy), bringing together the best of both brands to create a versatile and reliable tractor. Designed for a variety of agricultural tasks, this tractor combines John Deere’s renowned engineering with Goldoni’s expertise in compact and specialty tractors, offering farmers a powerful yet nimble solution for their farming needs.
The Milénio 70A is equipped with a robust engine that delivers ample horsepower for a wide range of applications, from plowing and tilling to mowing and hauling. Its compact size and excellent maneuverability make it ideal for use in vineyards, orchards, and small farms where space is at a premium. The tractor’s durable construction ensures it can handle tough agricultural environments, providing years of dependable service.
One of the standout features of the John Deere Milénio 70A is its user-friendly design. The operator station is designed for comfort and efficiency, featuring ergonomic controls, a comfortable seat, and excellent visibility. This focus on operator comfort helps reduce fatigue during long hours of operation, improving overall productivity.
The Milénio 70A also boasts a versatile three-point hitch and a capable hydraulic system, allowing it to work seamlessly with a variety of attachments and implements. This versatility makes it a valuable asset for farmers who need a multi-functional tractor that can adapt to different tasks throughout the farming season.
In summary, the John Deere Milénio 70 A (Goldoni) Tractor from 2005 to 2015 is a well-rounded, reliable machine that combines power, durability, and versatility. It is an excellent choice for farmers looking for a tractor that can handle a wide range of agricultural tasks with ease. The following sections provide detailed specifications, weight, and dimensions of the Milénio 70A, offering a comprehensive overview of its capabilities and features.
