Dimensions
| Length | 142.3 in (3610 mm) |
| Wheelbase | 77.2 in (1840 mm) |
| Overall Width | 59.0 in (1500 mm) |
| Overall Height | 86.6 in (2190 mm) |
| Ground Clearance | 13.8 in (350 mm) |
| Turning Radius | 137.8 in (3.5 m) |
Operating Specs
| Operating Weight | 4520 lb (2050 kg) |
| Cab | Two-post mid-mount folding ROPS |
| Rear PTO | 540/540E rpm |
| Operating Voltage | 12 V |
| Front Tire Size | 250/80-18 |
| Rear Tire Size | 380/85-24 |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | VM Motori |
| Engine Model | VM Motori D754 3L |
| Displacement | 181.2 ci (3.0 L) |
| Bore | 3.70 in (94 mm) |
| Stroke | 4.21 in (107 mm) |
| Gross Power | 70 hp (52.2 kW) |
| Power Measured @ | 2600 rpm |
| Peak Torque | 154.9 lb ft (210 Nm) |
| Torque Measured @ | 1400 rpm |
Hydraulic System
| Type | Open center |
| Pump Flow Capacity | 10.3 gpm (39 L/min) |
| Tractor Rear Hitch Type | II/I |
| 3 Point Hitch Lift Capacity (at ends) | 5071 lb (2300 kg) |
Transmission
| Number of Gears | 16 forward and 8 reverse |
| Chassis | 4×4 MFWD 4WD |
| Clutch | 254 mm mechanical dry disc |

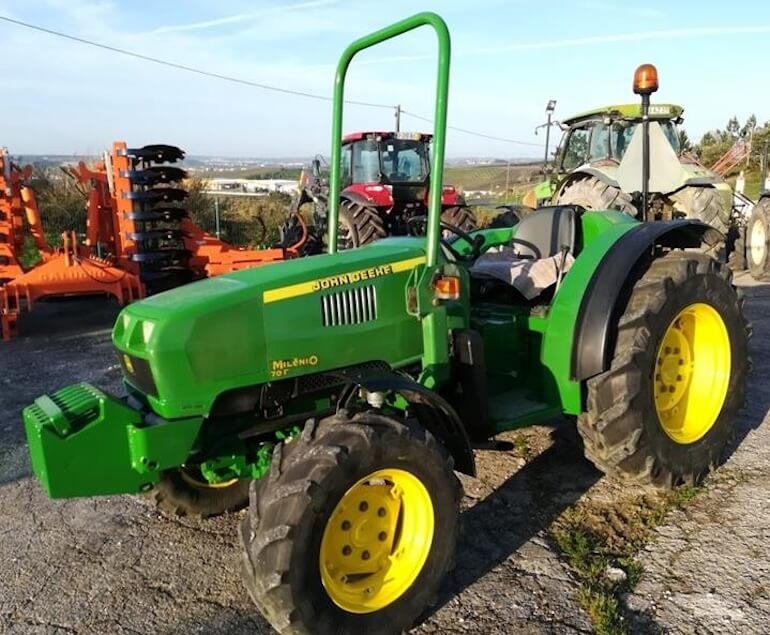

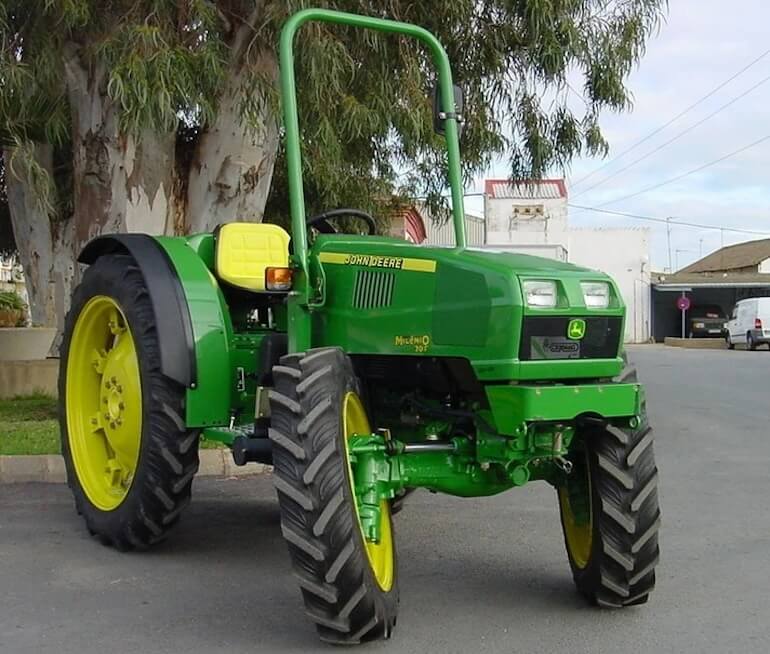

The John Deere Milenio 70F orchard tractor, produced by Goldoni in Italy from 2002 to 2010, represents a blend of advanced engineering and specialized design tailored for orchard management. This collaboration between John Deere and Goldoni brings together renowned agricultural innovation and Italian precision manufacturing to meet the unique demands of orchard operations.
The JD Milenio 70F is purpose-built to navigate the narrow rows and confined spaces of orchards, offering unparalleled maneuverability and ease of operation. Its compact design, combined with a narrow profile and tight turning radius, ensures that operators can work efficiently without damaging trees or crops.
Powered by a reliable and efficient engine, the Milenio 70F delivers the necessary horsepower to tackle a wide range of tasks, from tilling and mowing to spraying and hauling. The advanced hydraulic systems enhance the tractor’s versatility, allowing it to support a variety of attachments and implements, making it an indispensable tool for orchard management.
The John Deere Milenio 70 F prioritizes operator comfort with its ergonomic design and intuitive controls. The spacious operator station is designed to reduce fatigue, enabling operators to maintain productivity during long working hours. The tractor’s smooth transmission system ensures consistent power delivery, essential for maintaining efficiency in challenging conditions.
Built to withstand the demands of intensive agricultural use, the Milenio 70F combines rugged durability with sophisticated technology. Its robust construction minimizes downtime and maintenance costs, ensuring long-term reliability and maximizing productivity and profitability for orchard operations.
