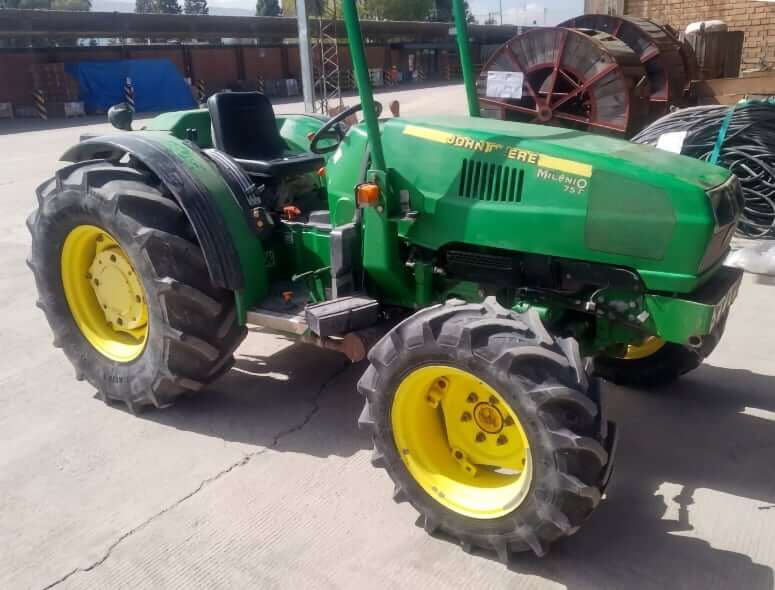

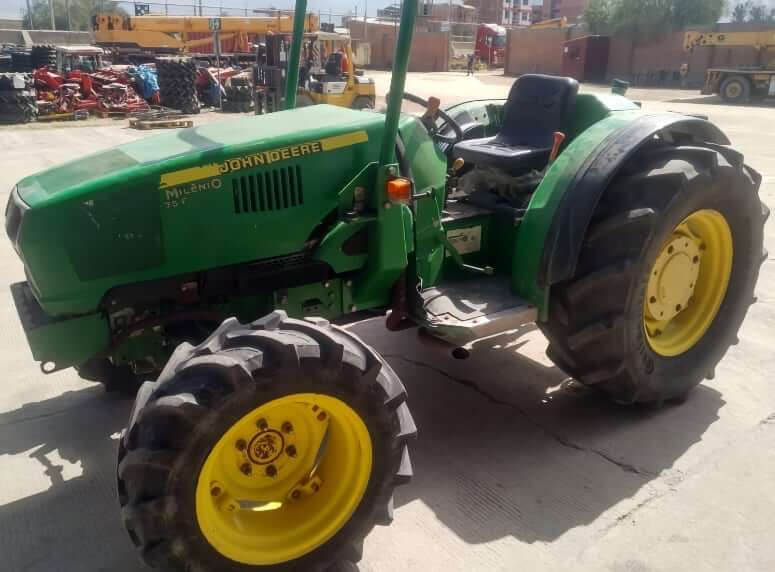

John Deere Milenio 75F Tractor

Contents

Dimensions
Operating Specs
Engine Details
Hydraulic System
Transmission

Dimensions

Length	145.5 in (3690 mm)
Wheelbase	76 in (1930 mm)
Height	85 in (2150 mm)

Operating Specs

Operating Weight	5512 lb (2600 kg)
Front Tire Size	250/80-18
Rear Tire Size	380/85-24
Rear PTO	540/540E rpm
Cab	Two-post mid-mount folding ROPS
Battery	12 V

Engine Details

Number of Cylinders	3
Engine Model	John Deere
Engine Model	John Deere 2.9L Diesel
Displacement	179 ci (2.9 L)
Gross Power	74 hp (55.2 kW)
Power Measured @	2500 rpm
Max Torque	183 lb ft (248 Nm)
Aspiration	Turbocharged

Hydraulic System

Type	Open center hydraulics
Pump Flow Capacity	9.3 gpm (35.2 L/min)
Tractor Rear Hitch Type	II/I
3 Point Hitch Lift Capacity @ 24 inches	5512 lb (2500 kg)

Transmission

Transmission Type	16 forward and 8 reverse / 8 forward and reverse
Chassis	4×4 MFWD 4WD
Steering	Power
Brakes	Disc
