Dimensions
| Overall Length | 126.54 in (3210 mm) |
| Overall Length (w/o 3P) | 118.1 in (3000 mm) |
| Wheelbase | 71.1 in (1805 mm) |
| Overall Width (Min. Tread) | 56.1 in (1425 mm) |
| Height to Top of ROPS | 81.5 in (2120 mm) |
| Height to Top of Cab | 85.6 in (2175 mm) |
| Ground Clearance | 15 in (380 mm) |
| Ground Clearance (HST) | 13.8 in (350 mm) |
| Front Tread | 45.5 in (1155 mm) |
| Rear Tread | 46.5 in (1180 mm) 47.2 in (1200 mm) 51.2 in (1300 mm) 57.1 in (1450 mm) 60.8 in (1545 mm) |
Weight
| Operating Weight (Gear, ROPS) | 2955 lb (1340 kg) |
| Operating Weight (HST, ROPS) | 2990 lb (1356 kg) |

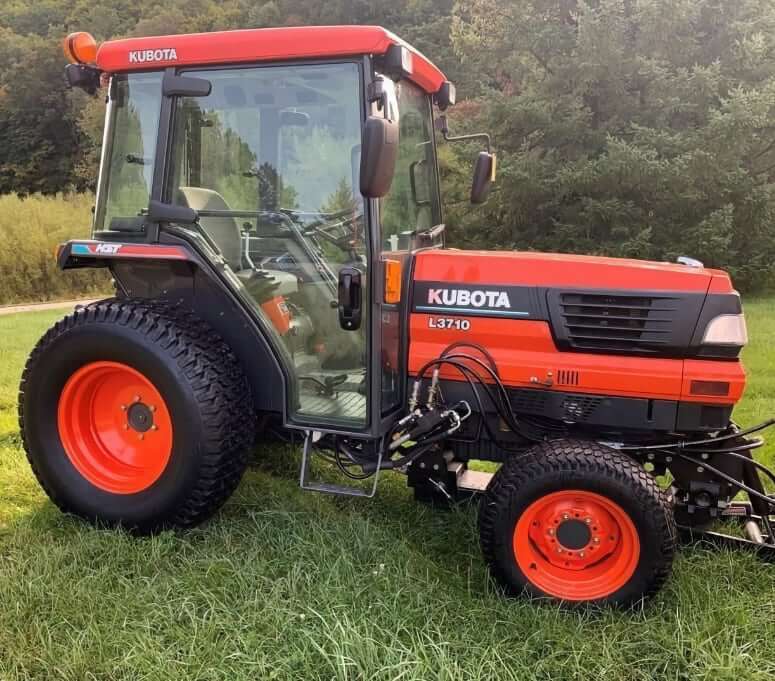

| Operating Weight (HST, Cab) | 3490 lb (1583 kg) |

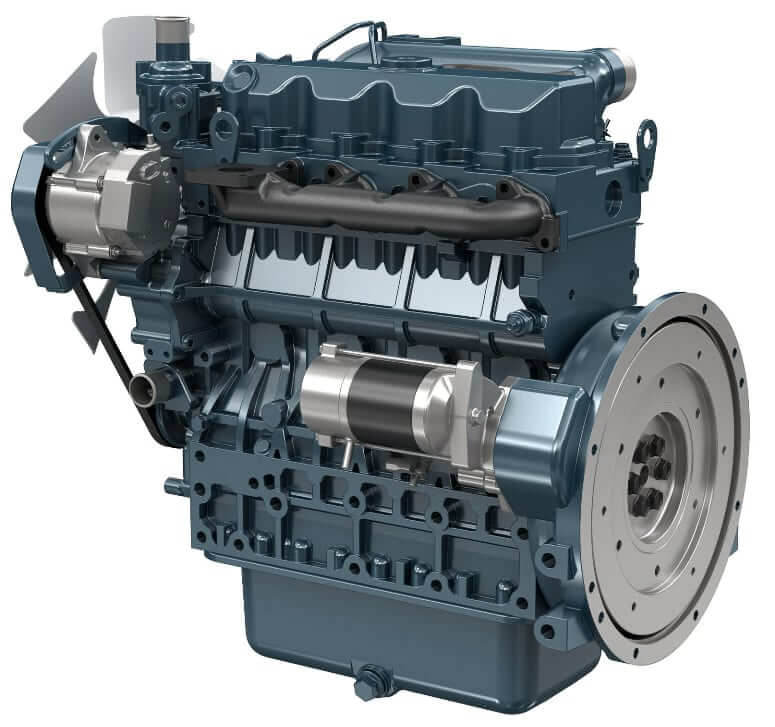

Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Kubota |
| Engine Model | Kubota V1903-EA |
| Displacement | 113.3 cu in (1.85 L) |
| Bore | 3.1 in (80 mm) |
| Stroke | 3.6 in (92.4 mm) |
| Net Power | 36.6 hp (27.3 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 88.7 lb ft (120.3 Nm) |
| Combustion System | E-TVCS Indirect Injection |
| Aspiration | Naturally Aspirated |
| Emission Standards | US EPA Tier 1 |
Transmission
| Kubota L3710 | FST | GST | HST |
|---|---|---|---|
| Type | Four sync gears in 2 ranges. Sync shuttle shifting. Dry disc clutch | Glide shift with 8F / 8R speeds. Dry disc clutch | Hydrostatic with infinite forward and reverse (3-range) |
| Number Of Forward Gears | 8 | 8 | Infinite |
| Number Of Reverse Gears | 8 | 8 | Infinite |
| Max Forward Speed | 14.7 mph (23.7 km/h) | 14.7 mph (23.7 km/h) | 14.9 mph (24.0 km/h) |
| Max Reverse Speed | 13.5 mph (21.7 km/h) | 13.5 mph (21.7 km/h) | 11.9 mph (19.1 km/h) |
Operational Specs
| Max Operating Weight | 3490 lb (1583 kg) |
| Operating Voltage | 12 V |
| Alternator (ROPS / Cab) | 40 amps / 55 amps |
| Battery | 12 V, 55 Ah, CCA 582 |
| Front Tire Size | 8.3-16 |
| Rear Tire Size | 14.9-24 |
| Turning Radius | 98.4 in (2500 mm) |
| Turning Radius (HST) | 102.4 in (2600 mm) |
| Steering | Hydrostatic power steering |
| Service Brakes | Wet disc type |
PTO (Power Take-Off)
| PTO Power (Gear) | 31.5 hp (23.5 kw) |
| PTO Power (HST) | 30.0 hp (22.4 kw) |
| Rear PTO Shaft | 6-spliners (with overrunning clutch) |
| Rear PTO Type | Independent / Transmission |
| Rear PTO Speed | 540 @ 2475 rpm / 540 @ 2447 rpm |
| Mid PTO Shaft | Involute spline |
| Mid PTO Type | Semi-independent (Kubota L3710HST) / Transmission |
| Mid PTO Speed | 2000 @ 2432 rpm / 2000 @ 2404 rpm |
Hydraulic System
| Type | Open center hydraulics |
| Main Pump Flow | 7.8 gal/min (29.5 L/min) |
| System Pressure | 2480 psi (17100 kPa) |
| Steering Pump Flow | 4.1 gal/min (15.5 L/min) |

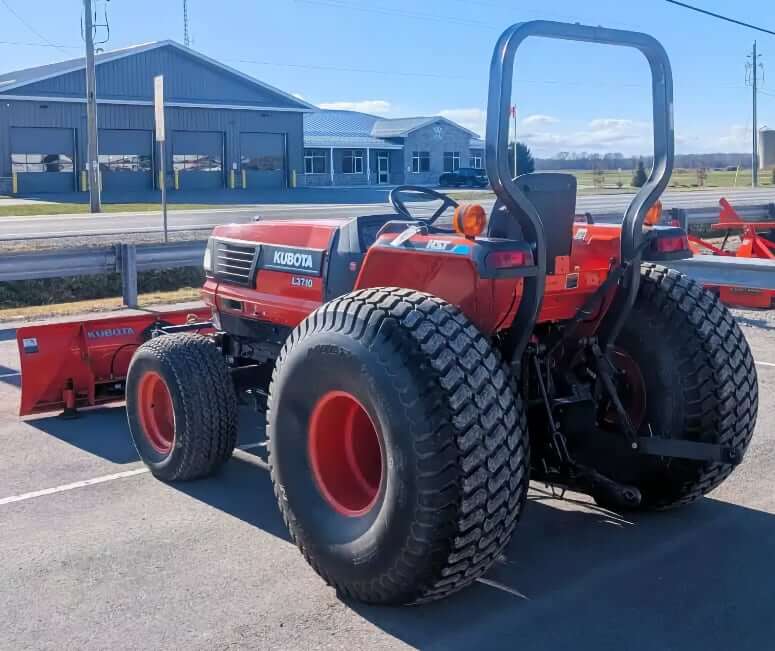

3-Point Hitch
| Category | SAE Category I |
| Control | Position control and optional draft control |
| 3-Point Hitch Lift Capacity at Lift Points | 2870 lb (1300 kg) |
| Lift Capacity at 24″ behind Lift Points @ 24″ | 2310 lb (1050 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 9.25 gal (35 L) |
| Cooling System Capacity | 1.98 gal (7.5 L) |
| Engine Oil Capacity (w/ Filter) | 2.01 gal (7.6 L) |
| Hydraulic / Transmission Oil Capacity | 10.3 gal (39 L) |
| Front Axle Oil Capacity | 1.45 gal (5.5 L) |
Kubota L3710 Attachments
| 72″ Mower Deck (Kubota RC72-36A) | Mid-mount 3-blade mower deck with hydraulic lift. Cutting width 72 in (1820 mm). Weight 476 lb (215 kg). Width 88.6 in (2250 mm). Cut height 1.5 to 3.5 in (30 to 80 mm) |
| Front Loader (Kubota LA681) | Lift capacity (full at pin) 1499 lb (679 kg), height (at pin) 102.4 in (2600 mm), dumped clearance 80.3 in (2030 mm), breakout force 2557 lb (1159 kg), dump angle 40°, dumped reach 23.4 in (590 mm), ground reach 66.5 in (1680 mm). Bucket width: 60 in (1520 mm) / 66 in (1670 mm) / 70.3 in (1780 mm) |
| Backhoe (Kubota BL4690) | Digging depth 90.2 in (2290 mm), reach from pivot 116.5 in (2950 mm), loading height 75.5 in (1910 mm), bucket force 2950 lb (1338 kg), dipperstick force 1740 lb (789 kg). Bucket width: 10 in (250 mm) / 12 in (300 mm) / 16 in (400 mm) / 24 in (600 mm) |
| Snow Blowers (Kubota L52HD / L62HD) | Front-mount hydraulic-lift snow blowers (Working width: 52″ / 62″) |
| Blades (Kubota L2061A / L2072) | Front-mount hydraulic-lift / hydraulic-angle blades (Working width: 60″ / 72″) |
