Dimensions
| Overall Height |
102,1 in (2594 mm) |
| Overall Length |
179,6 in (4562 mm) |
| Wheelbase |
88.5 in (2250 mm) |
| Minimum Width |
60.3 in (1533 mm) |
| Front Tire Size |
9.5L-15 |
| Rear Tire Size |
420/85R30 |
Weight
| MF4707 |
2WD |
4WD |
| Base Weight w/o Ballast (ROPS) |
7478 lb (3392 kg) |
7734 lb (3508 kg) |
| Base Weight w/o Ballast (Cab) |
8294 lb (3762 kg) |
8644 lb (3921 kg) |
Engine Details
| Number Of Cylinders |
3 |
| Engine Make |
AGCO Power |
| Engine Model |
AGCO 33AWIC |
| Displacement |
201.4 cu in (3.3 L) |
| Max Engine Power |
75 hp (55.9 kw) |
| Rated Engine Power |
70 hp (52.2 kw) |
| Power Measured @ |
2200 rpm |
| Aspiration |
Turbocharged and Intercooled |
| Emissions Control |
Diesel Oxidation Catalyst (DOC), Exhaust Gas Recirculation (EGR) |
| Emission Standards |
EPA Tier 4 |
Operational Specs
| Voltage |
12 V |
| Alternator |
80 amps |
| Battery |
12 V |
| Trailer Power Socket |
7-pin trailer socket, 30-amp auxiliary power socket |
| Lighting (ROPS) |
4 headlights, 2 rear signal/hazard lights, 1 rear ROPS work light; 2 mid-mount adjustable work lights |
| Rear Axle |
Flange-type with internal planetary final drives |
| Front Axle |
Heavy-duty 2WD or 4WD front axle |
| Differential Lock |
Hydraulic with electronic control, rear axle engaged via electrohydraulic rocker switch |
| Service Brakes |
Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals |
PTO (Power Take-Off)
| Type |
Independent |
| PTO Power |
57 hp (42.5 kw) @ 2,200 rpm / 63 hp (46.9 kw) @ 2,000 rpm |
| PTO Speed (Standart) |
540/540E |
| PTO Speed (Optional) |
540/1000 |
| Power Take-Off (PTO) Type |
Electro-hydraulic shuttle lever |
| PTO Speeds @ Engine Rpm |
1000 |
Transmission
| Transmission Model |
12Fx12R Powershuttle |
24Fx24R Dyna-2 Powershift |
| Number Of Forward Gears |
12 |
24 |
| Number Of Reverse Gears |
12 |
24 |
| Max Travel Speed |
25 mph (40 km/h) |
25 mph (40 km/h) |
Hydraulic System
| Hydraulic System Type |
Open Center system with single hydraulic pump |
| Pump Type |
Gear type |
| Pump Flow Capacity |
17.7 gal/min (67 L/min) |
| Loader Joystick |
Optional integrated factory installed joystick |
| Number Of Remote Control Valves |
2 valves standard with (DA, KO, FL), 3rd valve optional with (DA, KO, FL, FD) |
3-Point Hitch
| Category |
Category II |
| Asae Lift Capacity @ 24” |
4850 lb (2200 kg) |
Service Refill Capacities
| Fuel Tank Capacity |
27.7 gal (105 L) |
| DEF Tank Capacity |
2.6 gal (9.9 L) |

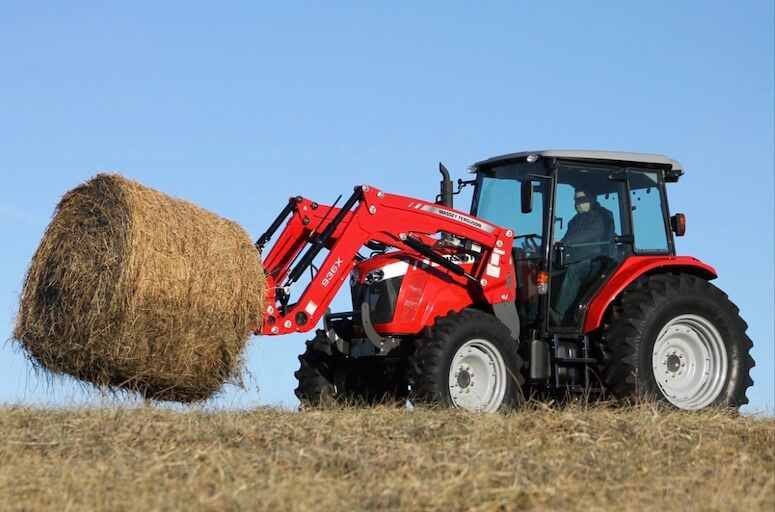

Attachments: 931X / 936X Loader
| Model |
AGCO 931X |
AGCO 936X |
| Loader Type |
NSL |
MSL |
| Lift Capacity to Maximum Height |
3020 lb (1370 kg) |
3430 lb (1556 kg) |
| Breakout Force |
3540 lb (1606 kg) |
3660 lb (1660 kg) |
| Max. Lift Height |
136 in (3454 mm) |
136 in (3454 mm) |
| Max. Dump Angle |
50 degrees |
50 degrees |
| Max. Rollback Angle |
44 degrees |
44 degrees |
| Max. Rollback Force |
4220 lb (1914 kg) |
4180 lb (1896 kg) |
| Digging Depth |
5.9 in (150 mm) |
5.9 in (150 mm) |
| Tool Attachment Type |
Skid Steer or Euro Hook |
Skid Steer or Euro Hook |
| Rated Pressure |
2828 PSI (195 bar) |
2828 PSI (195 bar) |
| Loader Weight |
739 lb (335 kg) |
860 lb (390 kg) |
| Arm Width |
40.9 in (1040 mm) |
40.9 in (1040 mm) |
| Lift Cylinders |
2.8 in (70 mm) |
2.6 in (65 mm) |
| Bucket Cylinders |
2.8/1.6 in (70/40 mm) |
2.8/1.6 in (70/40 mm) |

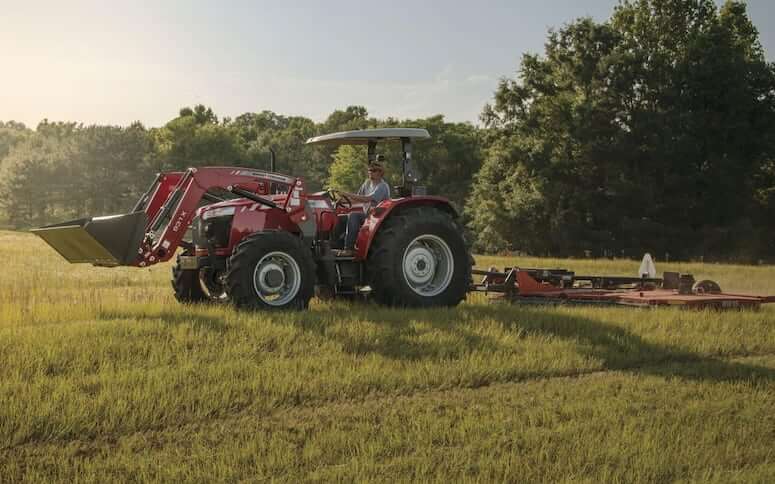

Attachments that can be used with the MF 4707:
- Front-end Loader: Attach a loader to the front of the tractor for tasks such as lifting, carrying, and moving materials like soil, gravel, or hay bales.
- Backhoe: Add a backhoe attachment to the rear of the tractor for digging trenches, holes, and other excavation tasks.
- Mower Deck: Attach a mower deck to the tractor for cutting grass and maintaining lawns, fields, and pastures.
- Rotary Tiller: Use a rotary tiller attachment for preparing seedbeds, breaking up soil, and incorporating amendments.
- Bale Spear: Attach a bale spear to the loader for lifting and transporting hay bales, straw bales, and other large cylindrical objects.
- Box Blade: Add a box blade attachment for leveling, grading, and shaping surfaces such as driveways, roads, and fields.
- Pallet Forks: Install pallet forks on the loader for lifting and carrying palletized materials such as feed sacks, fertilizer bags, and pallets of produce.
- Grapple Bucket: Use a grapple bucket attachment for handling brush, logs, and other debris, as well as loading and unloading materials.
MF 4707 Pros & Cons
The MF 4707 is also equipped with advanced technology features to enhance performance and efficiency.
From precision farming capabilities to integrated connectivity options, this tractor is designed to help farmers maximize productivity and reduce downtime.
MF 4707 Utility Tractor Pros
- Powerful Engine: The MF 4707 boasts a robust engine delivering impressive power, ensuring efficient performance across various agricultural tasks.
- Versatile Transmission: With its fully synchronized transmission options, including an optional 24 x 24 powershift, the tractor offers versatility to match different operating requirements.
- Ergonomic Design: The tractor features a comfortable operator environment with intuitive controls, making long hours of operation less fatiguing for the user.
- Hydraulic System: Equipped with an open-center, two-stage hydraulic pump, the MF 4707 provides sufficient hydraulic flow for operating implements, enhancing productivity.
- Compact Design: Despite its power, the tractor maintains a relatively compact design, allowing for easy maneuverability in tight spaces, making it suitable for diverse farming operations.
MF 4707 Utility Tractor Cons
- Limited PTO Power: While the tractor’s power output is substantial, the PTO power might be comparatively lower than some competing models, potentially affecting performance with certain implements.
- Basic Lighting Package: The standard lighting configuration may not be adequate for operations in low-light conditions or during night work, requiring additional investment in aftermarket lighting solutions.
- Narrow Wheelbase: The narrow wheelbase of the tractor could affect stability, especially when handling heavy loads or operating on uneven terrain, necessitating cautious maneuvering.
- Limited Rear Remote Valves: The standard provision of only two rear remote valves may restrict the simultaneous use of multiple hydraulic implements, potentially reducing operational efficiency in certain scenarios.
- Optional Features: Some desirable features, such as an integrated loader joystick or additional rear remote valves, may only be available as optional upgrades, adding to the overall cost of ownership.
Overall, the Massey Ferguson MF 4707 Utility tractor offers a winning combination of power, versatility, and comfort, making it a valuable asset for any farming operation. Whether used for field work, livestock management, or other tasks, this tractor delivers reliable performance and exceptional value.
