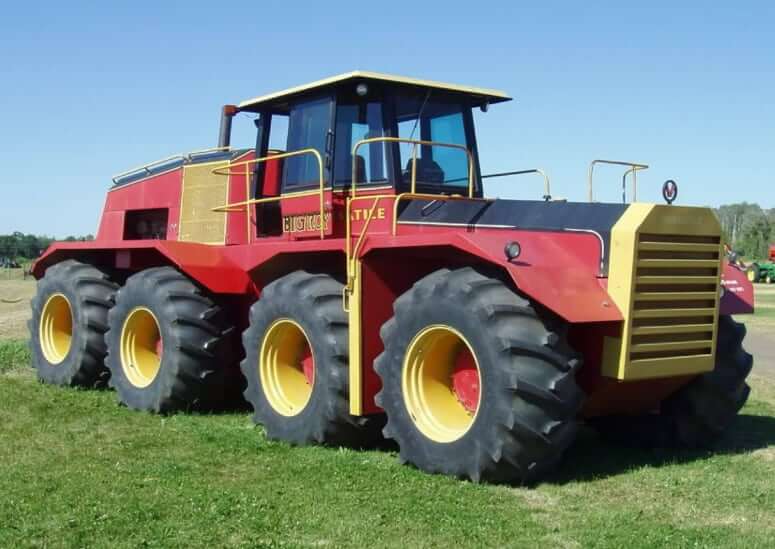

Versatile 1080 Big Roy 8WD Tractor


Contents
  1. Dimensions
  2. Engine Details
  3. Operational Specs
  4. Transmission
  5. Service Refill Capacities

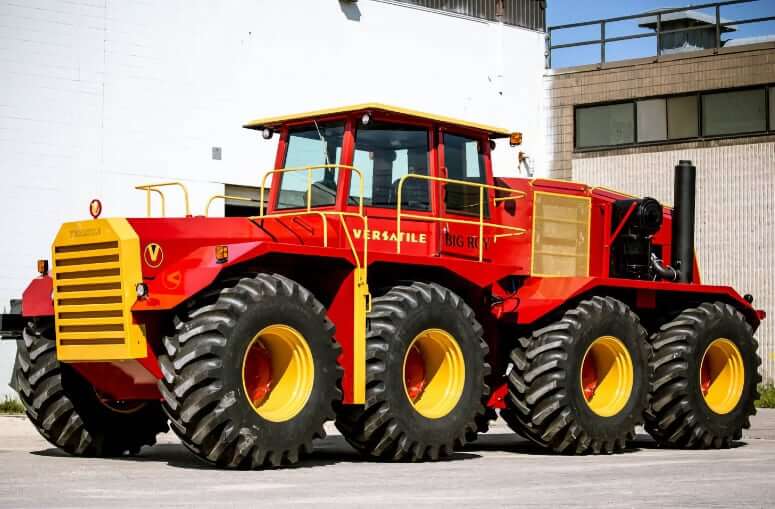

Versatile 1080 Big Roy Dimensions

Dimensions

Overall Length 366 in (9296 mm)
Overall Height To Top Of Cab 132 in (3353 mm)
Wheelbase 266 in (6767 mm)
Tire Size 30.5×32
Turning Radius 319.2 in (8108 mm)

Engine Details

Number Of Cylinders 6
Engine Make Cummins
Engine Model Cummins KTA 1150-600
Gross Power 600 hp (448 kw)
Power Measured @ 2100 rpm
Peak Torque 1650 lb ft (2237 Nm)
Torque Measured @ 1600 rpm
Aspiration Turbocharged and Aftercooled
Displacement 1150 cu in (18.9 L)
Emission Standards EPA Tier 2 or Tier 3

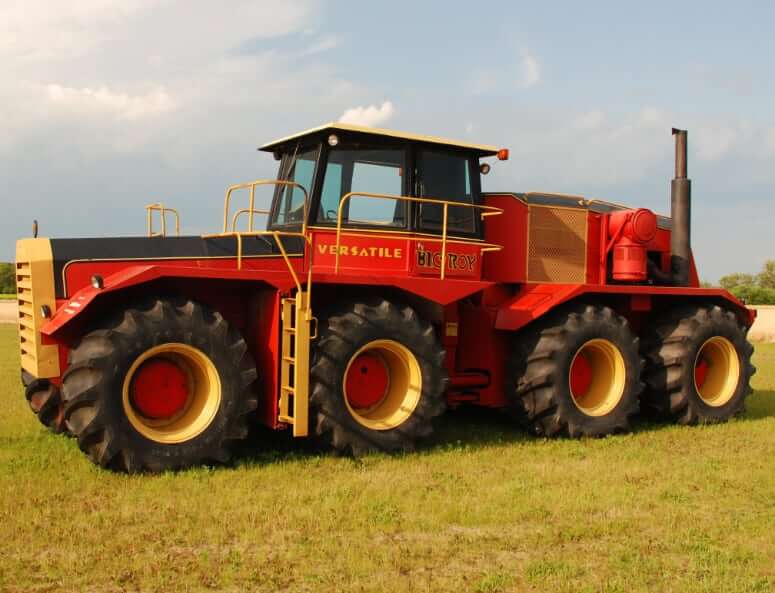

Versatile 1080 Big Roy 8WD Tractor Specs

Operational Specs

Operating Weight 57580 lb (26118 kg)
Shipping Weight 54450 lb (24700 kg)
Operating Voltage 12 V
Battery 2x 12 V, CCA 900
Working Lights 8x 60W working lights (exceeds ASAE 279.6)

Versatile 1080 Big Roy 8WD Tractor

Transmission

Drive 8×8 8WD
Transmission Type 6-speed mechanical transmission
Clutch Multi-plate dry 15.5 in clutch
Number Of Gears 6 / 6
Max Speed 13.2 mph (21.3 km/h)

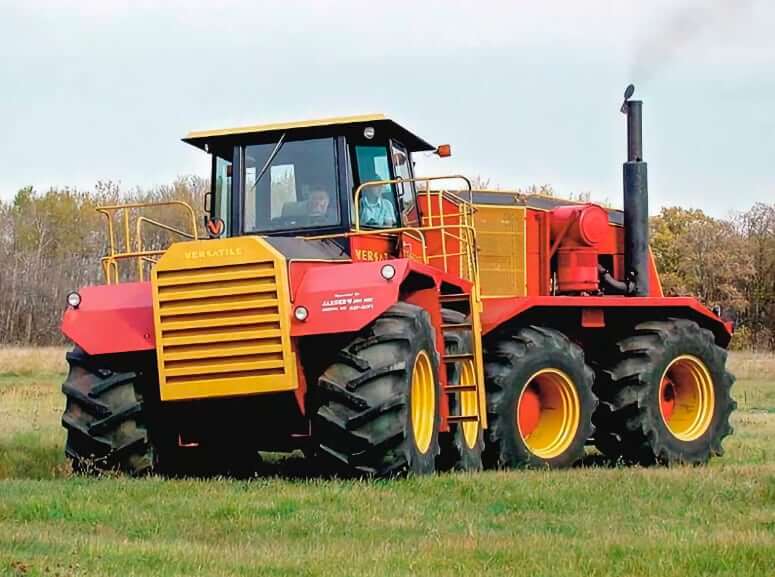

Versatile 1080 Big Roy Specifications

Service Refill Capacities

Fuel Tank Capacity 550 gal (2082 L)
Cooling System Capacity 21.3 gal (80 L)
Engine Oil Capacity 12.4 gal (47 L)
