Ford F-750 SD Straight Frame Medium Duty Truck

The 2025 Ford F-750 SD Straight Frame Medium Duty Truck stands out as a reliable, powerful, and versatile option for businesses requiring heavy-duty performance. Its advanced features and engineering make it a top choice for a variety of vocational applications.

Designed to handle heavier loads than its F-650 counterpart, the F-750 SD offers competitive gross vehicle weight ratings (GVWR) and outstanding towing capacity. It is ideal for industries that require the transport of oversized or heavy materials.

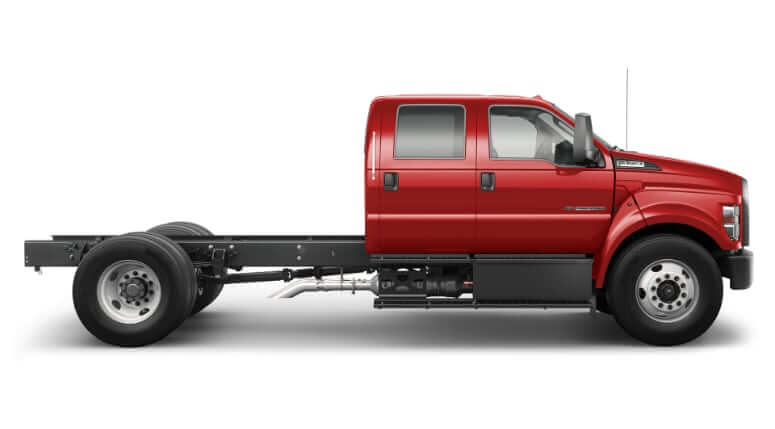

Ford F-750 Truck Dimensions

The straight frame design provides flexibility for various upfit options, including applications such as dump trucks, refrigerated vehicles, tankers, and utility trucks. This adaptability makes it a practical solution for construction, delivery, and other specialized industries.

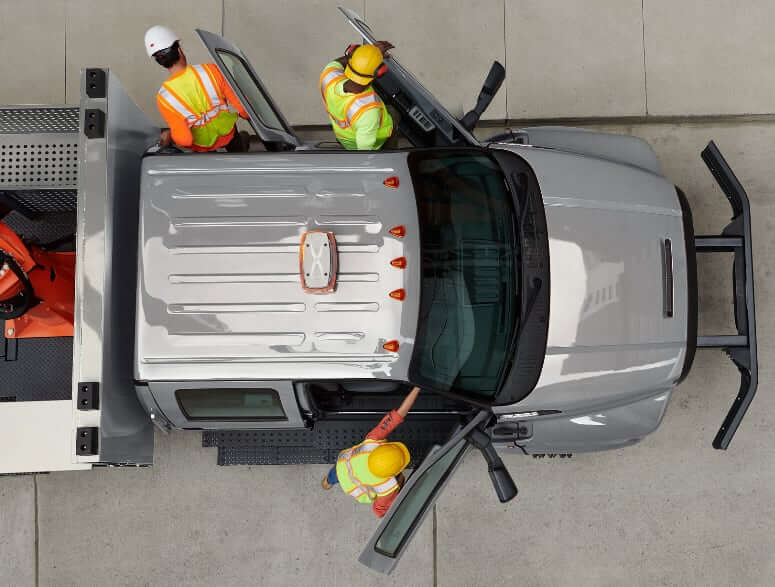

Ford F-750 Truck Crew Cab

Cab Configuration

The cab of the F-750 SD prioritizes driver comfort and usability with ergonomic seats, a spacious design, and user-friendly controls. Options for the SYNC® infotainment system and advanced connectivity features enhance convenience during long workdays.

Cab (Standard) Regular Cab – 114.4″ BBC
Cab (Optional) SuperCab – 135.4″ BBC / Crew Cab – 149.9″ BBC
Standard Interior Features Steering Wheel-Mounted Controls. Gauge Cluster Gas with Electric Speedometer. Wi-Fi 4G LTE Hotspot. Radio AM/FM Stereo with 2 speakers, Includes USB Input, Clock Display and Bluetooth®
Optional Interior Features 110V AC Outlet. Driver Assist Technology Package. Hydraulic Brake. Includes Automatic Emergency Braking, Forward Collision Warning, Lane Departure Warning, Auto High Beam Control. Vehicle Integration System 1.0. Interior Appearance Group. CNG/LNG Gauge Cluster. Rear View Camera With Mirror Display
Seating (Optional) 40/20/40 Fixed Driver and Two Passenger Seats with Fold Down Console (Vinyl or Cloth)
Climate Control Air Conditioning and Defroster

Engine Details

The F-750 SD offers robust engine options, including the 7.3L V8 gas engine and the 6.7L Power Stroke® V8 turbo diesel engine, which deliver excellent horsepower and torque. The diesel engine, known for its durability and efficiency, is well-suited for demanding jobs, such as hauling and long-distance transport. The truck meets the latest EPA emissions standards, offering reduced environmental impact. Its engines are designed for fuel efficiency, which helps lower operating costs over time.

Truck Model F-750 SD Gas F-750 SD Diesel
Engine Model Ford 7.3L 2V DEVCT NA FPI V8 GAS Ford 6.7L PowerStroke® V8 Turbo Diesel
Fuel Type Gas (Option: CNG/Propane) Diesel
Displacement 445.5 cu in (7.3 L) 408.9 cu in (6.7 L)
Power 335 hp (250 kW) @ 5500 rpm 270 hp (199 kW) / 300 hp (221 kW) @ 5500 rpm
Peak Torque 468 lb ft (635 Nm) @ 3900 rpm 700 lb ft (949 Nm) / 725 lb ft (983 Nm) @ 3900 rpm

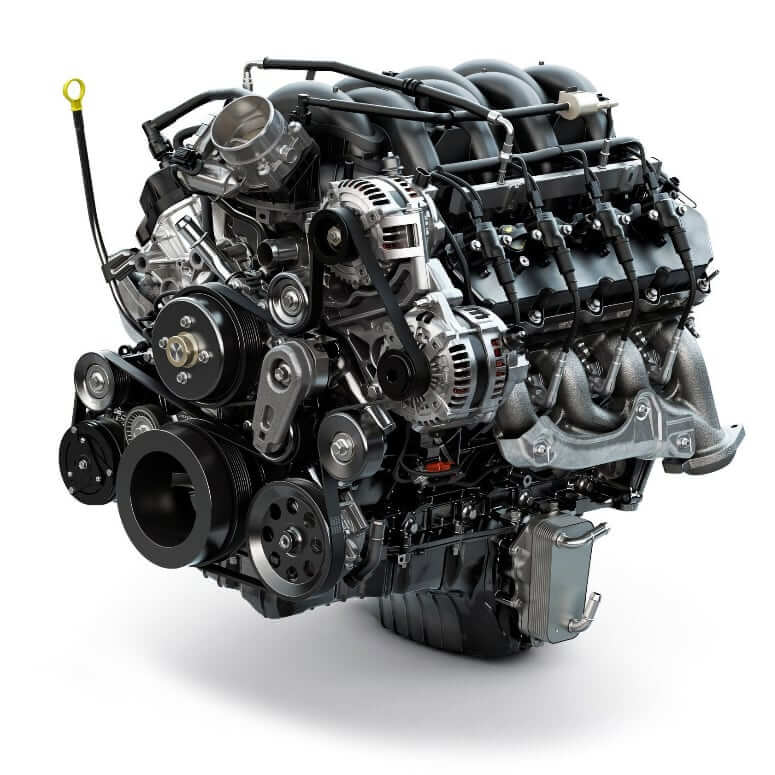

Ford 7.3L 2V DEVCT NA FPI V8 GAS Engine

Electric System

Truck Model F-750 SD Gas F-750 SD Diesel
Voltage 12 V 12 V
Alternator (Standart) 210 amps, 12 V, Mitsubishi Extra Heavy Duty Alternator 200 amps, 12 V, Mitsubishi Extra Heavy Duty Alternator
Alternator (Optional) 240 amps Extra Heavy Duty / Dual Heavy Duty Alternators 397 Amps (240 + 157) 240 amps Extra Heavy Duty / Dual Heavy Duty Alternators 357 Amps (200 + 157)
Battery (Standart) (1) 12 V Battery, 900 CCA (2) 12 V Battery, 750 CCA
Battery (Optional) (2) 12 V Battery 900 CCA (2) 12 V Battery 900 CCA; (3) 12 V Battery 900 CCA

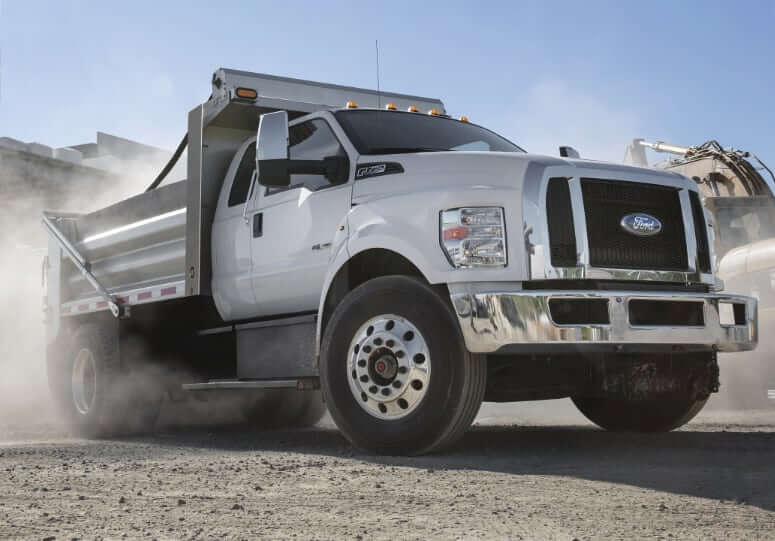

Ford F-750 SD Straight Frame Medium Duty Truck Specs

Transmission

Truck Model F-750 SD Gas F-750 SD Diesel
Transmission Type TorqShift® HD 6-Speed Automatic Double Overdrive Less PTO Provision and Tow/Haul TorqShift® HD 10-Speed Automatic Double Overdrive with PTO Provision and Tow/Haul
Number Of Gears 6 10
Max Speed 120 mph (180 km/h) 120 mph (180 km/h)
Drivetrain 4×2 4×2
Front Tire Size 11R22.5G 11R22.5G
Rear Tire Size 11R22.5G 11R22.5G
Wheel Size 22.5″ x 8.25″ 22.5″ x 8.25″
Brakes (Standard) Hydraulic Brake System – Bosch HydroMax® with Traction Control Hydraulic Brake System – Bosch HydroMax® with Traction Control
Brakes (Optional) Air Brakes w/Traction Control w/ Meritor Q-Plus w/ ABS (Bendix Anti-Lock Brake System) Air Brakes w/Traction Control w/ Meritor Q-Plus w/ ABS (Bendix Anti-Lock Brake System)
Live-Drive Power Take-Off (PTO) Optional Standart (Provision with Mobile Mode)

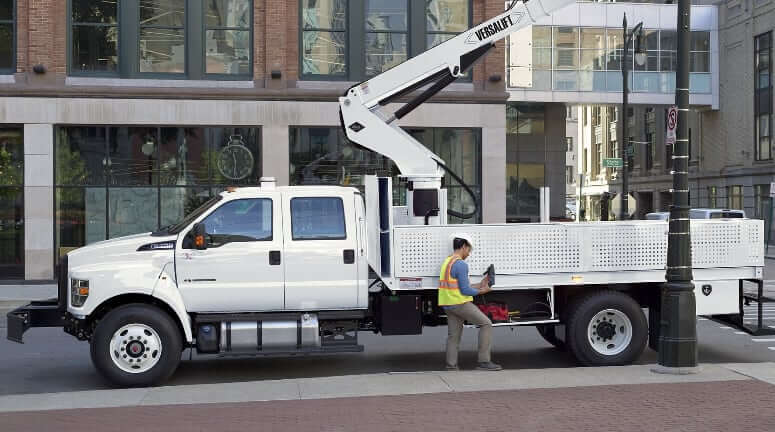

Ford F-750 Boom Bucket Truck

Frame & Axles

Truck Model F-750 SD Gas F-750 SD Diesel
GVWR 26,000 – 29,000 lb (11,791 – 13,152 kg) 31,000 – 37,000 lb (14,059 – 16,780 kg)
Max GVWR 37,000 lb (16,780 kg) 50,000 lb (22,675 kg)
Front Axles (Standard) 8,500 – 10,000 lb 8,500 – 10,000 lb
Front Axles (Optional) 10,000 – 12,000 lb 10,000 – 14,000 lb
Rear Axles (Standard) 17,500 – 21,000 lb 17,500 – 21,000 lb
Rear Axles (Optional) 19,000 lb 19,000 – 26,000 lb
Frame (Standard) 12.64 SM / 50,000 PSI – 15.14 SM / 80,000 PSI Straight Frame 12.64 SM / 50,000 PSI – 15.14 SM / 80,000 PSI Straight Frame
Frame (Optional) 10.75 SM / 80,000 PSI – 20.11 SM / 120,000 PSI 10.75 SM / 80,000 PSI – 29.84 SM / 120,000 PSI
Front Suspension (Standard) 8,500 – 10,000 lb. Parabolic Taper-leaf Springs (Includes Shock Absorbers) 8,500 – 10,000 lb. Parabolic Taper-leaf Springs (Includes Shock Absorbers)
Front Suspension (Optional) 10,500 – 13,200 lb. Parabolic Taper-leaf Springs 10,000 – 14,000 lb. Parabolic Taper-leaf Springs
Rear Suspension (Standard) 19,000 – 21,000 lb. Multi-leaf Springs – Variable Rate 19,000 – 21,000 lb. Multi-leaf Springs – Variable Rate
Rear Suspension (Optional) 21,000 – 23,000 lb 21,000 – 31,000 lb / Air Suspension 19,000 – 23,000 lb

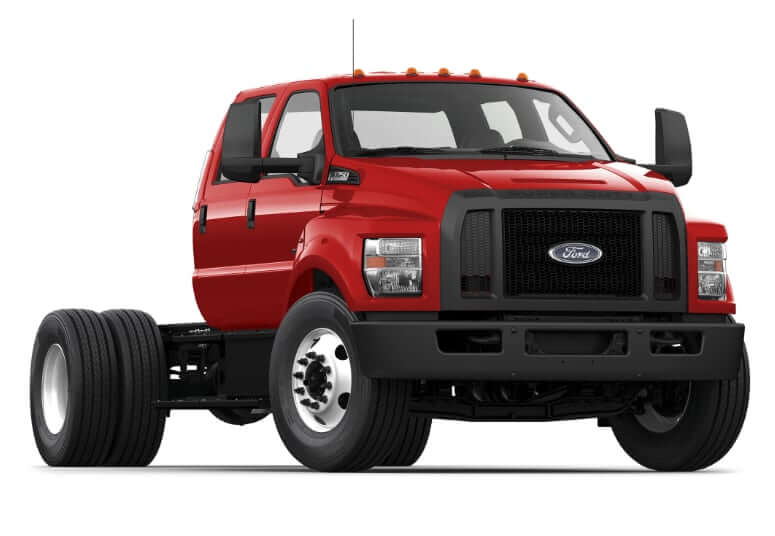

Ford F-750 Truck Specifications

The 2025 F-750 SD comes equipped with cutting-edge safety technologies, including Pre-Collision Assist, Automatic Emergency Braking, and optional Lane Departure Warning. These systems enhance driver safety and reduce the risk of accidents, particularly in urban or high-traffic settings.

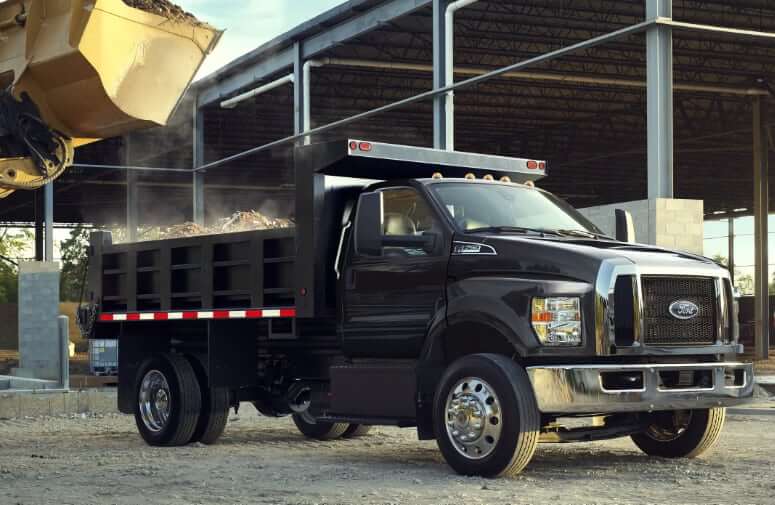

Ford F-750 Dump Truck Specs

Built with a high-strength steel frame and heavy-duty components, the F-750 SD is engineered for durability and longevity, ensuring reliable performance in the toughest conditions.

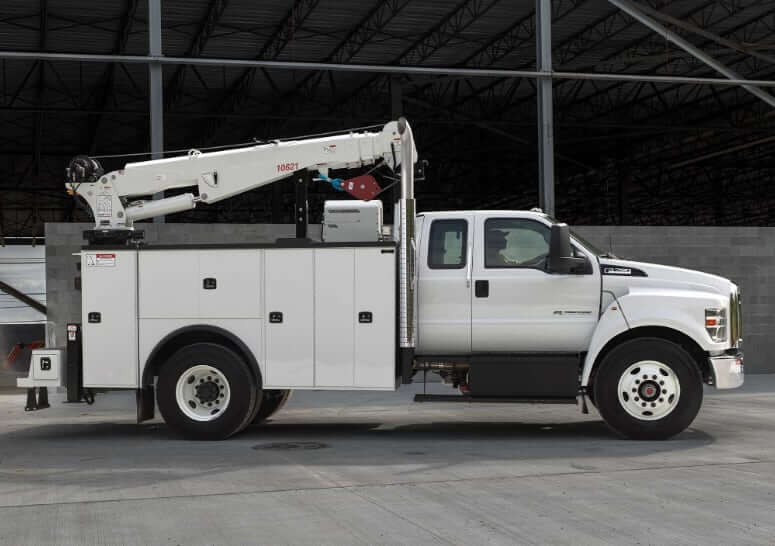

Ford F-750 Crane Truck

Ford’s extensive service network and straightforward maintenance requirements ensure minimal downtime. The F-750 SD is designed for quick and efficient servicing, keeping it on the road longer. With its blend of durability, fuel efficiency, and low maintenance costs, the F-750 SD offers a favorable total cost of ownership, making it a cost-effective choice for fleet managers and business owners.

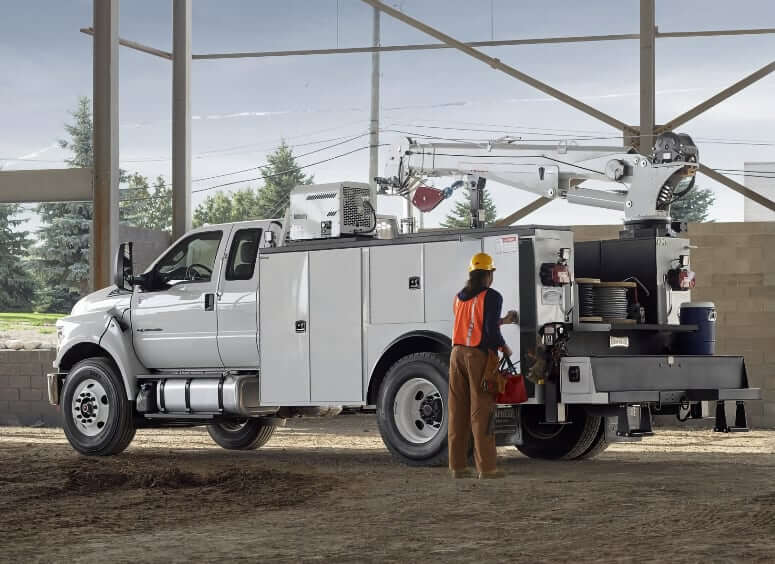

Ford F-750 Medium Duty Crane Truck

The 2025 Ford F-750 SD Straight Frame Medium Duty Truck combines power, versatility, and reliability, making it an excellent choice for businesses that require a robust vehicle capable of handling heavy-duty tasks with ease.
