The Freightliner Cascadia Truck is a flagship model renowned for its innovation, efficiency, and driver-centric design, offering several key advantages that make it a standout choice in the trucking industry.
The Cascadia is engineered for superior fuel efficiency, featuring an aerodynamic design that reduces drag and optimizes performance. Coupled with advanced Detroit™ engines and powertrain options, the truck delivers excellent mileage, reducing operational costs over long hauls. Smart technologies such as predictive cruise control and variable-speed fan systems further enhance fuel economy by optimizing power delivery and energy use.
Operational Specs
| BBC | 116″ / 126″ |
| Total GVW | 60600 lb (27488 kg) |
| Front Suspensions | Freightliner Taperleaf 12.5K, 13.3K and 14.6K / Hendrickson AIRTEK 12.5K and 13.3K |
| Rear Suspensions | Single Feightliner Airliner 21K and 23K / Tandem Freightliner Airliner 40K and 46K |
| Brakes | Active Brake Assist 6 (ABA6) – Full automatic emergency braking on moving and stationary vehicles, offset vehicles and vehicles at an angle, in curves or in multiple-lanes, and moving and stationary pedestrians and bicyclists. Intelligent Braking Control System with ePark Brake |
| Cruise Control | Adaptive Cruise Control (ACC) to 0 mph. |

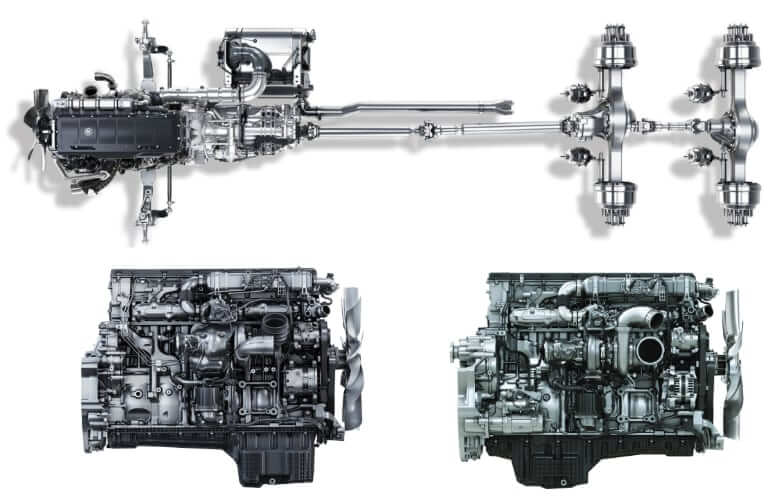

Engine Details
Freightliner provides a wide range of new diesel engines compliant with EPA, CARB emissions, GHG, and OBD requirements.
| Model | Detroit DD13 | DD15 | Cummins X15 |
|---|---|---|---|
| Displ. | 781 cu. in. (12.8 L) | 906 cu. in. (14.8 L) | 909 cu. in. (14.9 L) |
| Power | 350 – 505 hp (257 – 371 kW) | 400 – 505 hp (294 – 371 kW) | 430 – 605 hp (321 – 451 kW) |
| Power Measured @ | 1625 rpm | 1625 rpm | 1900 rpm |
| Torque | 1750 lb-ft (2373 Nm) | 1750 lb-ft (2373 Nm) | 2050 lb-ft (2779 Nm) |
| Torque Measured @ | 1075 rpm | 1075 rpm | 950 rpm |
| Engine Oil Capacity | 10.0 gal (38.0 L) | 11.4 gal (43.0 L) | 11.6 gal (43.8 L) |
| Cooling System Fluid Capacity | 14 gal (53.0 L) | 14 gal (53.0 L) | 7 gal (26.5 L) |
Transmission
| Type | Manual | Automated Manual | Automatic |
|---|---|---|---|
| Model | Eaton Fuller Advantage Manual / Eaton RT Manuals | Detroit / Eaton Advantage Automated Manuals | Allison 3000, 4000, 4500 |
| Gears | 10, 13 and 18 speeds / 9, 13 and 18 speeds | DT12-DB/OB & DT12-DA/OA / 10 and 13 speeds |
Axles
| Front Axle | Detroit – 12000 lb, 12500 lb, 13300 lb and 14700 lb Detroit LWA – 12000 lb and 12500 lb Meritor MFS – 12000 lb, 12500 lb, 13300 lb and 14700 lb Hendrickson STEERTEK NXT – 12500 lb and 13300 lb |
| Rear Axle | Single Detroit – 20000 lb / 23000 lb Single Meritor – 20000 lb / 23000 lb Tandem Detroit – 40000 lb, 44000 lb, 46000 lb Tandem Meritor – 40000 lb, 44000 lb, 46000 lb Tandem Dana – 40000 lb, 44000 lb, 46000 lb |
| Configuration | 6×4 / 6×2 / 4×2 |

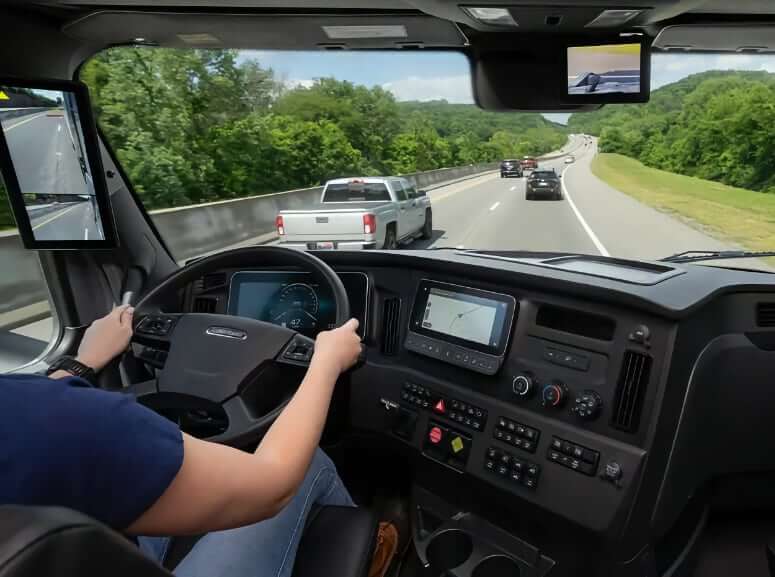

Freightliner Cascadia Cab
Driver comfort is a priority in the Cascadia, with a spacious and ergonomic cab that includes premium seating, intuitive controls, and optional sleeper configurations with amenities like climate control and entertainment systems. This focus on comfort reduces fatigue and promotes productivity, making the Cascadia an excellent choice for long-distance operations.

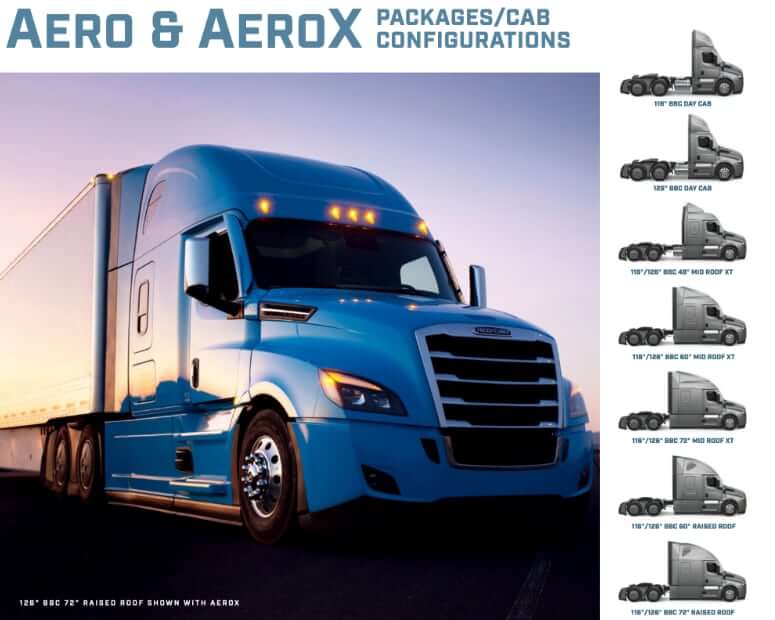

Cab Configurations:
- 116” BBC DAY CAB
- 126” BBC DAY CAB
- 116”/126” BBC 48” MID ROOF XT
- 116”/126” BBC 60” MID ROOF XT
- 116”/126” BBC 72” MID ROOF XT
- 116”/126” BBC 60” RAISED ROOF
- 116”/126” BBC 72” RAISED ROOF
Safety is a cornerstone of the Cascadia’s design. It comes equipped with advanced safety features, including Adaptive Cruise Control, Lane Departure Warning, Active Brake Assist, and optional Side Guard Assist. These technologies help mitigate risks and enhance driver confidence, particularly in challenging driving conditions.
The Cascadia’s connectivity features, such as the Detroit Connect platform, provide real-time data on vehicle performance, maintenance needs, and fleet management. This data-driven approach allows fleet operators to optimize operations, reduce downtime, and ensure timely servicing.
Durability and reliability are hallmarks of the Freightliner Cascadia, with robust construction and high-quality materials ensuring long service life and reduced maintenance intervals. Its versatility supports a wide range of applications, from regional distribution to long-haul freight, making it a trusted choice for various trucking needs.
Overall, the Freightliner Cascadia combines efficiency, safety, and driver-focused design, setting a high standard in the trucking industry for operational excellence and profitability.
