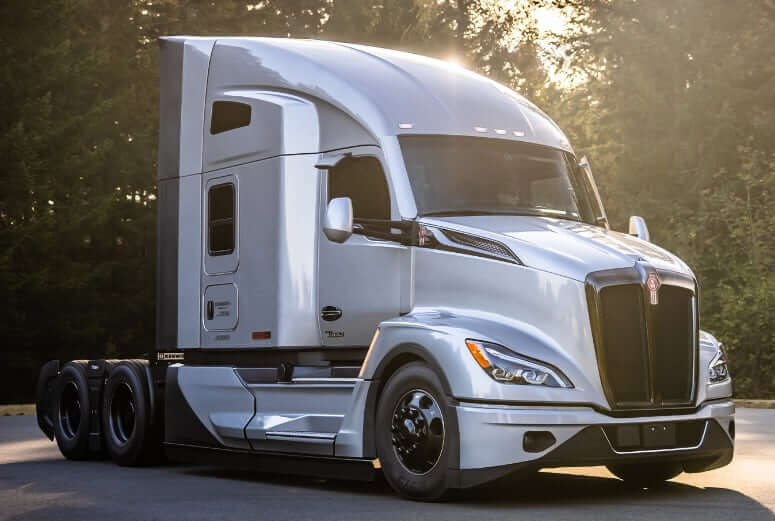

Kenworth T680 Truck Tractor

Contents

Wheelbase Option (Cab-to-Chassis Truck) 1
Engine Details
Transmission
Service Refill Capacities

Wheelbase Option (Cab-to-Chassis Truck) 1

Wheelbase	235 in (5969 mm)
Total GVW	52350 lb (23746 kg)

Engine Details

Number Of Cylinders	6
Engine Make	DAF / Paccar
Engine Model	Paccar MX13
Displacement	787 cu in (12.9 L)
Bore	5.1 in (130 mm)
Stroke	6.4 in (162 mm)
Gross Power	455 hp (340 kw)
Power Measured @	1600 rpm
Peak Torque	1844 lb ft (2500 Nm)
Torque Measured @	1100 rpm
Firing order	1-5-3-6-2-4
Aspiration	Turbocharged with charge cooling
Emission Standards	Euro 5 (Euro 6)

Transmission

Type	10-Speed High Torque Manual Transmissions
Transmission Model	Eaton Fuller FRO-16210C
Number of Gears	10 forward, 2 reverse
Torque Capacity	1650 lb ft (2237 Nm)

Service Refill Capacities

Fuel Tank Capacity	100-270 gal (378 – 1022 L)
Engine Oil Capacity	10.5 gal (40 L)
Cooling System Capacity	14.5 gal (55 L)
Transmission Oil Capacity	2.93 gal (11.1 L)
