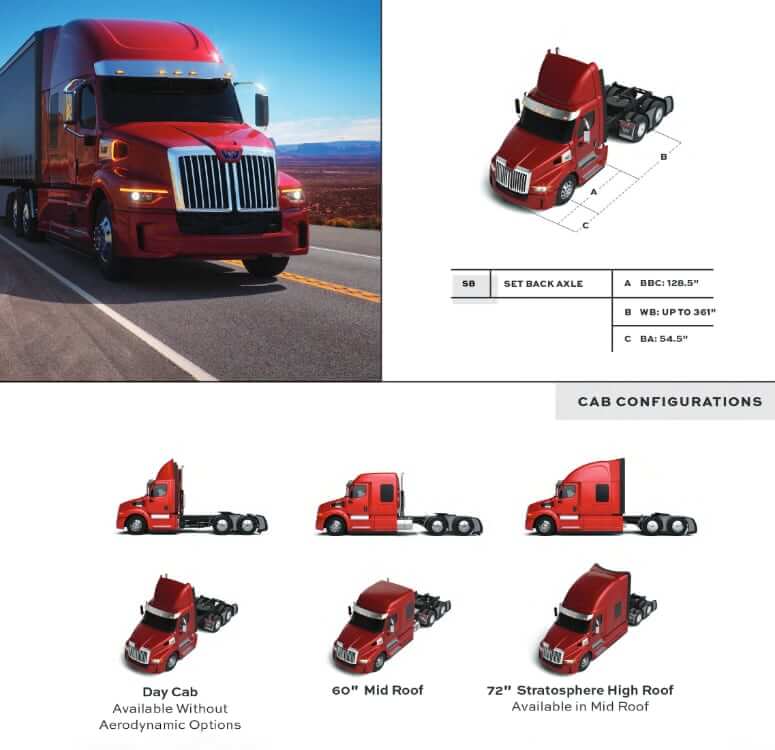

Dimensions
| BBC | 128.5″ |
| BA | 54.5″ |
| Wheelbase | Up to 361″ |
| Axle Configuration | 6×4, 8×4 (Set Back Axle) |
| Tire Size | 295/75R22.5 |
Western Star 57X Cab
| Cab Type | Daycab / Sleeper |
| Interior Colors | Quarry Grey / Charcoal Black / Timber Brown (available on Premium Package only) |
| Base Interior Trim Levels | Mordura cloth seat. Vinyl sleeper upholstery. Standard insulation. Standard LED cab lighting. Black finish steering wheel switches. Black finish dash gauge bezels. Carbon with black trim accents |
| Premium Interior Trim Levels | Laredo leather seats. Upgraded sleeper upholstery. Premium insulation. Premium LED cab lighting. Bright finish steering wheel switches. Bright finish dash gauge bezels. Premium teak trim |
| Roof | 60-inch Mid Roof, 72-inch Mid Roof or 72-inch Stratosphere High Roof |
| Hood | Impact-resistant, lightweight molded resin hood with aerodynamics design for greater visibility and weight savings, with locking hood strut for safety. |
| Rear Windows Options | Both the Western Star 57X daycab and sleeper give you standard singe rear-window and optional three-piece window or solid wall choices |
| HVAC | 5 face/dash outlets, 4 floor outlets, 2 side window defrost outlets and 10 blower speeds to create the ideal environment |
| Sleeper Standart Features | A traditional double-bunk option with an easily released telescoping ladder rated at 400 lbs. Standard LED ambient lighting and dimmer switch on 72” raised roof models. Ample insulation, sound-deadening materials and new designs make it our quietest cab ever. Flat-panel TV bracket that swivels and can support up to a 26” screen. Larger microwave cabinet to accommodate standard appliances. Larger refrigerator with matching cabinetry or a customer-supplied refrigerator option. Wardrobe cabinet with four inches of additional hanging length. Multiple DC power outlets. A variety of powerful inverter and inverter pre-wire options for AC-powered products. Optional driver’s loft features a two-seat dinette/ worktable that can be folded flat to allow a full-sized, Murphy-style bed. |

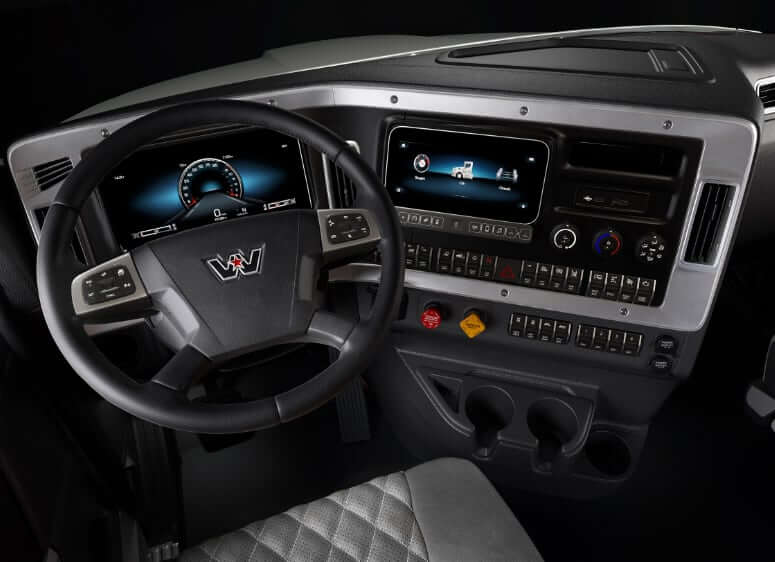

| Digital Dash | The ergonomic dash with digital interface features an easy-to-read and customizable layout that gives you the data you need at a glance, with integrated steering wheel controls that let you change vehicle information and entertainment settings without your hands ever leaving the wheel. Features up to six customizable gauges that provides important engine information and alerts from Detroit Assurance and Detroit Connect Virtual Technician®. |
57X Aerodynamics
| Cab Aerodynamics | 12″ daycab and 24″ sleeper side extenders with black flexible ends |
| Roof | 72″ and 60″ mid-roof aero roof fairing. Daycab aero roof fairing or adjustable aerodynamic deflector |
| Fairings | Chassis side fairings with black flexible skirts + Optimized drive wheel fairings + Flow below mold-in color wheel covers |
Engine Details
Western Star provides a wide range of new vehicle engines compliant with EPA, CARB emissions, GHG, and OBD requirements. Consult your local dealer.
| Engine | Power | Torque |
|---|---|---|
| Detroit DD13, 12.8L | 370-525 hp | 1250-1850 lb-ft |
| Detroit DD15, 14.8L | 425-505 hp | 1550-1850 lb-ft |
| Detroit DD16, 15.6L | 500-600 hp | 1850-2050 lb-ft |
Transmission
Factory installed transmission PTO (Power Take-Off). Intuitive and simple to use PTO control system that makes programming easy.
| Model | Torque | GCW |
|---|---|---|
| Detroit DT12-HE Automated Manual | up to 2250 lb-ft | 160.000 lb |
| Detroit DT12-HL Automated Manual | up to 1650 lb-ft | 80.000 lb |
| Eaton Fuller Manual | up to 2250 lb-ft | – |
Frame, Axles & Suspension
| Frame | Steel Frame, 7 mm x 88 mm x 279 mm (0.28″ x 3.46″ x 10.98″) 120 KSI Steel Frame, 8 mm x 88 mm x 281 mm (0.31″ x 3.46″ x 11.06″) 120 KSI Steel Frame, 11 mm x 8 mm x 287 mm (0.43″ x 3.35″ x 11.30″) 120 KSI |
| Front Axle | Detroit® 12,000-14,700 lb Meritor 12,000-13,300 lb Hendrickson STEERTEK NXT 12,000-13,300 lb |
| Rear Axle | Detroit® single 21,000-23,000 lb Detroit® tandem 40,000-46,000 lb Meritor single 21,000-23,000 lb Meritor tandem 40,000-46,000 lb Dana tandem 46,000 lb |
| Front Suspension | Taperleaf 12,500-14,600 lb AirLiner® 12,500-13,300 lb Hendrickson AIRTEK 12,500-13,300 lb |
| Rear Suspension | AirLiner® single 21,000-23,000 lb AirLiner® tandem 40,000- 46,000 lb |
Brakes & Safety
The Western Star 57X offers the entire Detroit Assurance® Suite of Safety Systems, the most advanced safety technology in the industry
| Service Brakes | Drum Brakes. Air Disc Brakes. WABCO® ABS and optional Hill Start Aid and Traction Control |
| Active Brake Assist 5 | Active Brake Assist 5 (ABA 5) detects distance and speed to moving and stationary objects in its path and determines if braking is necessary. It’s the only system on the market that works down to 5 mph (with Detroit DT12 transmission), making it ideal for travel in congested urban areas. It also recognizes pedestrians who are about to cross in the truck’s path, alerting the operator while partially braking, followed by full braking if the operator does not react. |
| Adaptive Cruise Control | Detroit Assurance technology enables state-of-the-art features such as Adaptive Cruise Control (ACC) to 0 mph to ease driving in stop-and-go traffic, as well as help mitigate front and rear collisions. |
| Brake Hold Mode | Whether stopped in heavy traffic or for any other reason, this state-of-the-art feature can keep a truck (with DT12 Transmission) stopped when the driver removes their foot from the brake. Brake Hold Mode can be engaged by pressing the brake pedal all the way down. It automatically disengages when the driver accelerates. |
| Lane Keep Assist | Lane Keep Assist (LKA) reads and tracks lane markers to help drivers keep their trucks centered in their lane. |
| Lane Departure Protection | This safety feature (LDP) detects when a truck drifts out of its lane and then actively steers it back on course. |
| Side Guard Assist | A game changer for safety, Side Guard Assist (SGA) detects objects on the passenger side of the truck and alerts the operator. |
| Active Side Guard Assist | This industry leading technology detects and actively prevents the truck from making a right turn into moving cyclists and pedestrians in urban situations |
Service Refill Capacities
| Fuel Tank Capacity | LH / RH 60-150 gal (227-568 L) cylindrical tanks |
| Fuel Tank Type | Aluminum 25″ cylindrical, plain or polished LH and RH split fuel/hydraulic tank options available |
| DEF Tank Capacity | 13 and 23 gal (49 and 87 L) |
