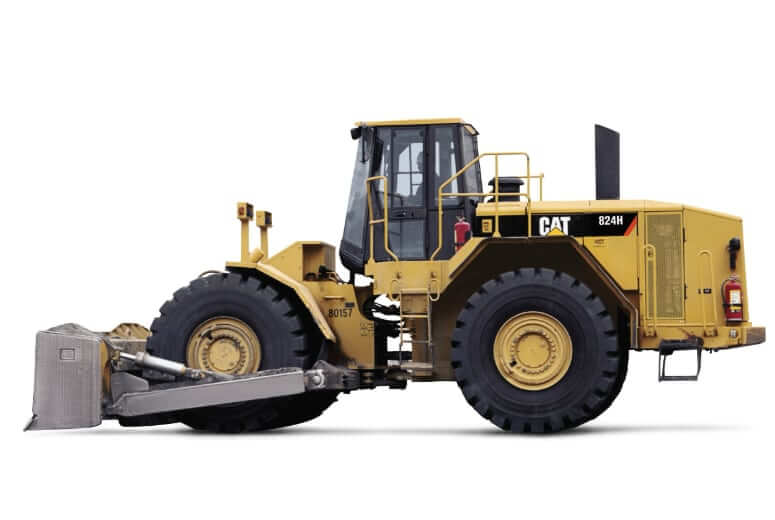

Dimensions
| Length With Scoop On Ground | 411.5 in (10453 mm) |
| Wheelbase | 145.7 in (3700 mm) |
| Height to top of cab | 145.7 in (3700 mm) |
| Height to top of exhaust pipe | 141.3 in (3590 mm) |
| Height to top of hood | 103.7 in (2635 mm) |
| Center line of rear axle to edge of bumper | 109.7 in (2787 mm) |
| Center line of rear axle to hitch | 72.8 in (1850 mm) |
| Center line of front axle to hitch | 72.8 in (1850 mm) |
| Ground clearance to bumper | 34.8 in (885 mm) |
| Ground Clearance | 14.1 in (358 mm) |

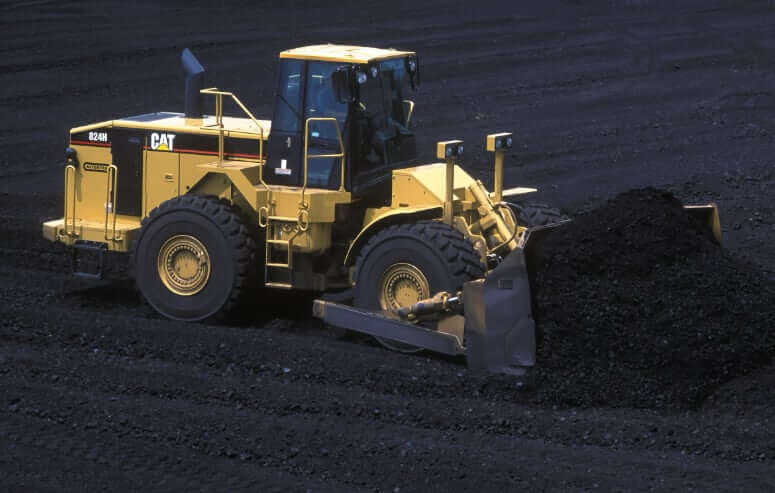

Scoop Capacities
| Carry | 17.5 yd3 (13.4 m3) |
| Doze | 35 yd3 (26.8 m3) |
Operational Specs
| Operating Weight | 68064 lb (30873 kg) |
| Front Axle | Fixed, Planetary |
| Fixed Rear | Oscillating 13 degrees |
| Brakes | Meet SAE/ISO 3450 1996 |

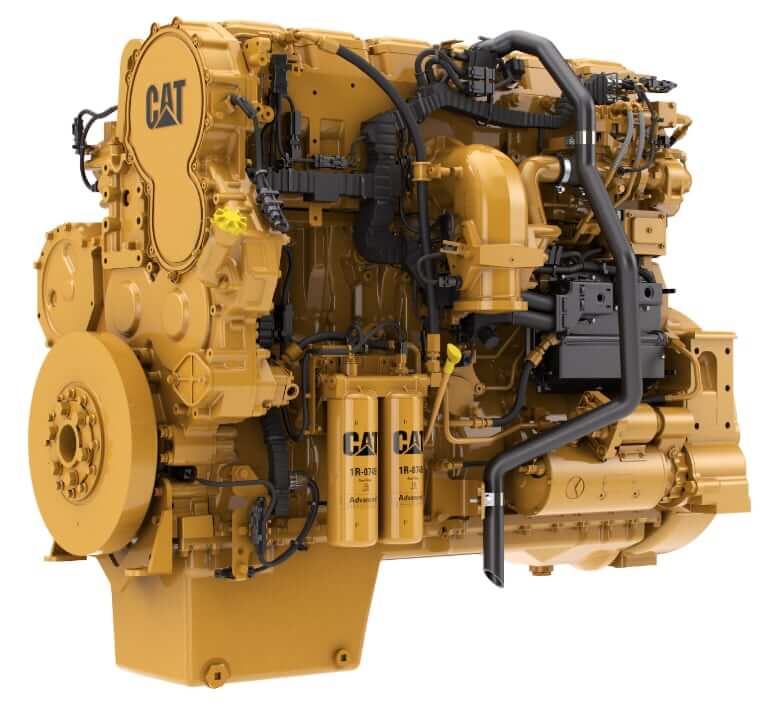

Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Cat |
| Engine Model | Cat C15 ACERT |
| Displacement | 928 cu in (15.3 L) |
| Bore | 5.4 in (137.2 mm) |
| Stroke | 6.7 in (170.2 mm) |
| Direct Drive – Gross Power | 401 hp (299.1 kw) |
| Direct Drive – Flywheel Power | 354 hp (264 kw) |
| Converter Drive – Gross Power | 401 hp (299.1 kw) |
| Converter Drive – Flywheel Power | 354 hp (264 kw) |
| Aspiration | Turbocharged-Aftercooled (TA) |
| Emission Standards | U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, Korea Tier 4 Final Nonroad |
Transmission
| Transmission Type | Power Shift |
| Converter Drive – Forward 3 | 11.5 mph (18.6 km/h) |
| Converter Drive – Reverse 3 | 13 mph (21 km/h) |
| Converter Drive – Forward 4 | 20 mph (32.2 km/h) |
| Converter Drive – Forward 1 | 3.8 mph (6.2 km/h) |
| Converter Drive – Forward 2 | 6.5 mph (10.5 km/h) |
| Converter Drive – Reverse 1 | 4.3 mph (7 km/h) |
| Converter Drive – Reverse 2 | 7.5 mph (12.1 km/h) |
| Converter Drive – Reverse 4 | 22.7 mph (36.6 km/h) |
Service Refill Capacities
| Fuel Tank Capacity | 185 gal (700 L) |
| Engine Oil Capacity | 9 gal (34 L) |
| Cooling System Capacity | 21.9 gal (83 L) |
| Hydraulic Tank Capacity | 23.2 gal (88 L) |
| Transmission Oil Capacity | 16.4 gal (62 L) |
| Differential – Final Drives – Front | 23.8 gal (90 L) |
| Differential – Final Drives – Rear | 23.8 gal (90 L) |
Operator Environment
| ROPS/FOPS | Meets SAE and ISO standards |
| Interior Noise Level | 78 dB(A) / ANSI/SAE J1166 OCT98 |
| Cab | Radio ready (entertainment) includes antenna, speakers and converter (12 V, 15 amp), 12 V power port, tinted glass |
