Dimensions
| Length – With Coal Scoop On Ground | 39.3 ft in (11.98 m) |
| Length – Front Of Tire | 28.4 ft in (8.66 m) |
| Wheel Base | 14.9 ft in (4.55 m) |
| Centerline Of Rear Axle To Edge Of Bumper | 10.5 ft in (3.21 m) |
| Centerline Of Front Axle To Hitch | 7.5 ft in (2.29 m) |
| Ground To Center Of Front Axle | 3.2 ft in (0.98 m) |
| Height – Edge Of Dumped Scoop | 5 ft in (1.53 m) |
| Height – Edge Of Retracted Scoop | 7.4 ft in (2.26 m) |
| Height – Top Of Air Cleaner | 12.8 ft in (3.91 m) |
| Height – Top Of Cab | 13.7 ft in (4.18 m) |
| Height – Top Of Exhaust Stack | 14.8 ft in (4.52 m) |
| Height – Top Of Hood | 10.9 ft in (3.33 m) |
| Ground Clearance | 1.7 ft in (0.52 m) |
| Dump Angle At Full Lift Height | 64 degrees |

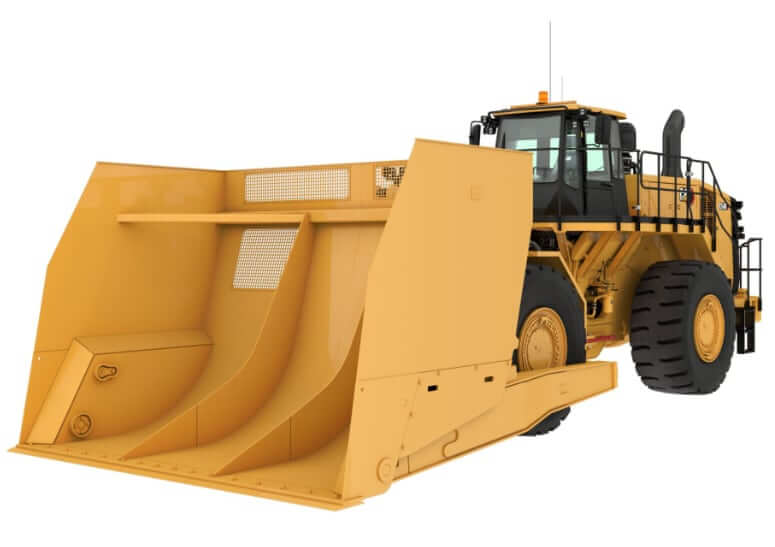

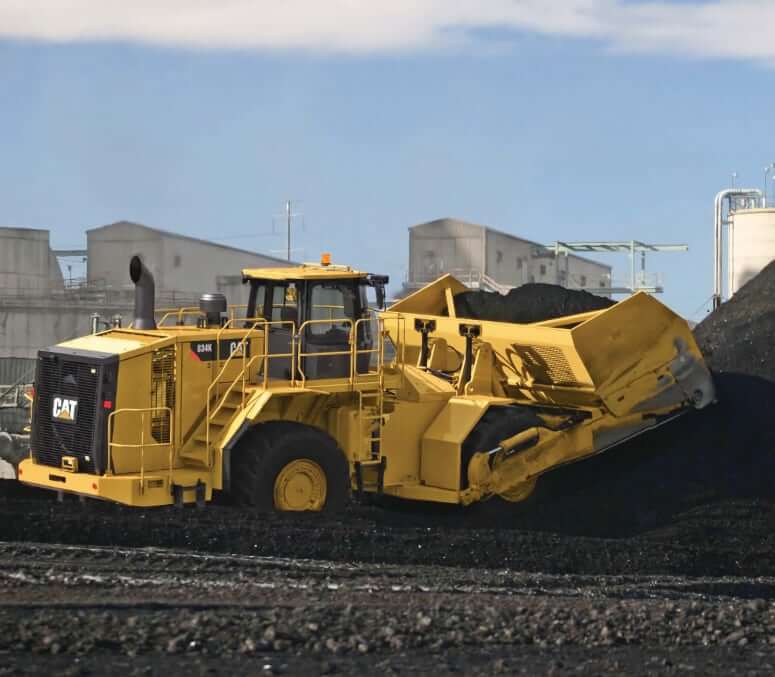

Scoops

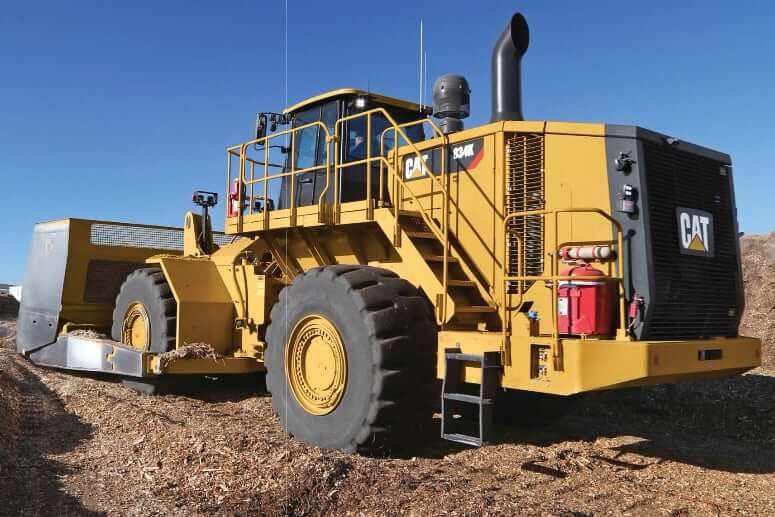

| Coal Scoop Carry Capacity | 30 yd3 (23 m3) |
| Coal Scoop Doze Capacity | 60 yd3 (45.9 m3) |
| Chip Scoop Carry Capacity | 35 yd3 (26.8 m3) |
| Chip Scoop Doze Capacity | 70 yd3 (53.6 m3) |
| Scoops Type | Large capacity scoops for both wood chip and coal applications. A mesh screen integrated into the back of the scoop maintains visibility to the cutting edge. The chip scoop version has extra screens at the top due to higher capacity. |
| Components | Both scoops come with dual lift cylinders for increased lift capacity. Integrated stabilizer system makes sure that the scoop stays stable and centralized on the machine. Scoop tilt function is standard and provides 15 degrees of tilt to maintain grade conditions and keep your operation safe. |
Engine Details
| Engine Make | Cat |
| Engine Model | Cat C18 ACERT |
| Gross – Sae J1349 | 562 hp (419.1 kw) |
| Net – Sae J1349 | 496 hp (369.9 kw) |
| Power Measured @ | 1900 rpm |
| Peak Torque | 2092 lb ft (2836.4 Nm) |
| Torque Measured @ | 1300 rpm |
| Torque Rise | 52 % |
| Displacement | 1105 cu in (18.2 L) |
| Bore | 5.7 in (144.8 mm) |
| Stroke | 7.2 in (182.9 mm) |
| Emissions | U.S. EPA Tier 4 Final + EU Stage IV / Tier 3 / Tier 2 |
Transmission
| Transmission Type | Cat planetary power shift |
| Forward – 1 | 4.2 mph (6.8 km/h) |
| Forward – 2 | 7.2 mph (11.6 km/h) |
| Forward – 3 | 12.6 mph (20.3 km/h) |
| Forward – 4 | 22 mph (35.5 km/h) |
| Reverse – 1 | 4.2 mph (6.8 km/h) |
| Reverse – 2 | 7.6 mph (12.3 km/h) |
| Reverse – 3 | 13.3 mph (21.5 km/h) |
| Note | Travel speeds based on 35/65-R33 tire |
| Direct Drive – Forward 1 | Lock-up disabled |
| Direct Drive – Forward 2 | 7.7 mph (12.4 km/h) |
| Direct Drive – Forward 3 | 13.7 mph (22.1 km/h) |
| Direct Drive – Forward 4 | 23.9 mph (38.5 km/h) |
| Direct Drive – Reverse 1 | 4.5 mph (7.3 km/h) |
| Direct Drive – Reverse 2 | 8.1 mph (13.1 km/h) |
| Direct Drive – Reverse 3 | 14.3 mph (23.1 km/h) |
Axles
| Front Axle | Fixed |
| Rear Axle | Trunnion |
| Axle Oscillation Angle | 13 degrees |
| Service Brakes | ISO 3450:2011 |
Weight
| Operating Weight | 112838 lb (51182 kg) |
| Coal Scoop Operating Weight | 112428 lb (50996 kg) |
| Chip Scoop Operating Weight | 112838 lb (51182 kg) |
Hydraulic System – Steering
| Steering System – Circuit | Pilot, load sensing |
| Steering System – Pump | Piston, variable displacement |
| Relief Valve Setting – Steering | 3495 psi |
| Steering Cycle Times – Low Idle | 5.7 s |
| Steering Cycle Times – High Idle | 3.1 s |
| Steering System Maximum Flow | 65.8 gal/min |
Hydraulic System – Lift/Dump/Tilt
| Lift/Tilt System – Circuit | Pilot operated LS valve with EH |
| Lift/Tilt System | Variable displacement piston |
| Maximum Flow At 1,900 Rpm | 153 gal/min |
| Relief Valve Setting – Lift/Tilt | 4206 psi |
| Cylinders, Double Acting – Lift, Bore And Stroke | 6.7 in / 43.6 in (170.0 mm / 1107 mm) |
| Cylinders, Double Acting – Left And Right Dump, Bore And Stroke | 5.0 in / 33.0 in (127 mm / 838 mm) |
| Pilot System | Variable displacement piston |
| Pilot Maximum Flow | 13.7 gal/min |
| Pilot Relief Valve Setting | 580 psi |
| Cylinders, Double Acting – Tilt, Bore And Stroke | 6.0 in / 37.5 in (152.4 mm / 953 mm) |
Cab
| Air Conditioning | The air conditioning system Global Warming Potential = 1430 |
| Refrigerant R134a | The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes. |
| Tier 2 / Stage II Standard – Machine Sound Level (Iso 6395) | 112 dB(A) |
| Tier 2 / Stage II Standard – Operator Sound Level ( Iso 6396) | 81 dB(A) |
| Tier 2 / Stage II Suppression – Operator Sound Level (Iso 6396) | 81 dB(A) |
| Tier 2 / Stage II Suppression – Machine Sound Level (Iso 6395) | 109 dB(A) |
| Tier 4 / Stage IV Standard – Operator Sound Level (Iso 6396) | 73 dB(A) |
| Tier 4 / Stage IV Standard – Machine Sound Level (Iso 6395) | 111 dB(A) |
| Tier 4 / Stage IV Suppression – Operator Sound Level (Iso 6396) | 72 dB(A) |
| Tier 4 / Stage IV Suppression – Machine Sound Level (Iso 6395) | 109 dB(A) |
| Note | The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed. |

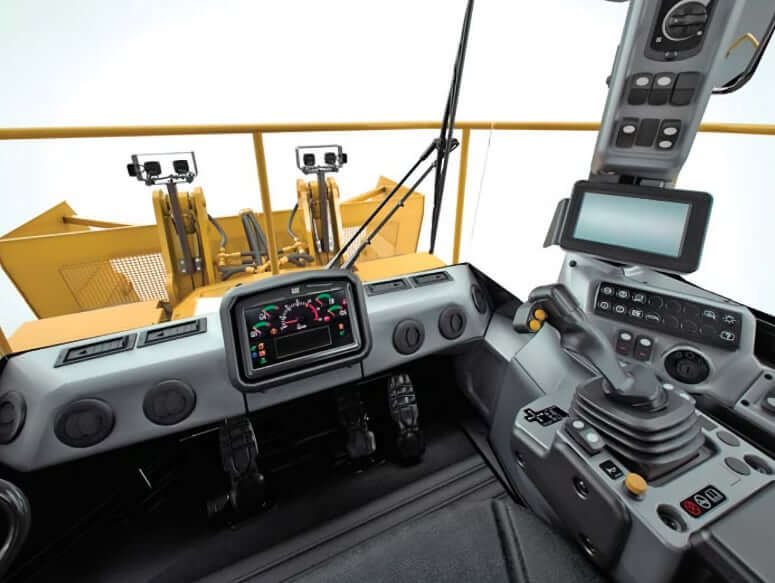

| Seat | Cat Comfort Series III Seat. Mid back design and extra thick, contoured cushions. Air suspension system. Easy-to-reach seat levers and controls for six way adjustments. Seat-mounted implement pod and STIC steer that moves with the seat. 3 in (76 mm) wide retractable seat belt |
| Control Panel | Ergonomic placement of switches and Information display keep your operators comfortable all day every day: large backlit membrane switches feature LED activation indicators; switches feature ISO symbols for quick function identification; 2 position rocker switch activates the electro hydraulic park brake |
Service Refill Capacities
| Fuel Tank Capacity | 209.5 gal (793 L) |
| Engine Oil Capacity | 15.9 gal (60.2 L) |
| Cooling System Capacity | 31.7 gal (120 L) |
| Transmission Oil Capacity | 31.7 gal (120 L) |
| Differential – Final Drives – Front | 49.1 gal (185.9 L) |
| Differential – Final Drives – Rear | 49.1 gal (185.9 L) |
| Hydraulic System Factory Fill | 63.4 gal (240 L) |
| Hydraulic System – Tank Only | 37 gal (140.1 L) |
| DEF Tank Capacity | 8.7 gal (33 L) |
