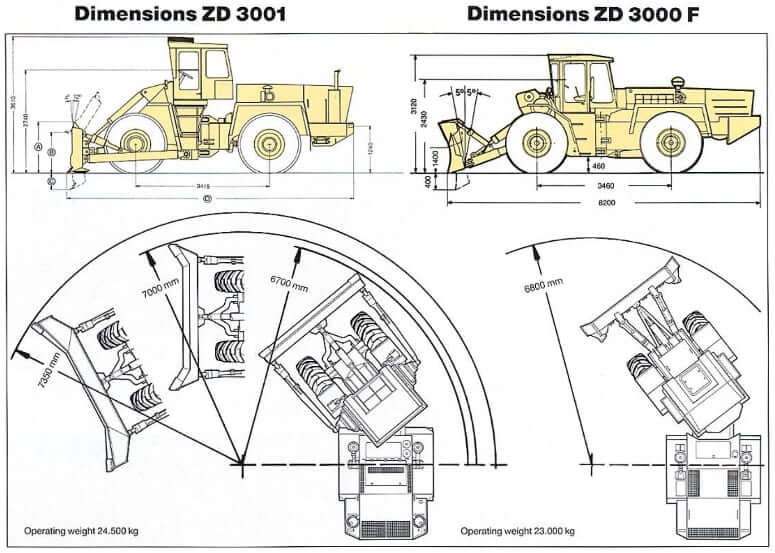

Dimensions
| Model | ZD3001 | ZD3000 F |
|---|---|---|
| Overall Length (GP Blade) | 285.4 in (7250 mm) | 322.8 in (8200 mm) |
| Overall Length (Universal Blade) | 299.2 in (7600 mm) | – |
| Overall Length (Coal Blade) | 309.1 in (7850 mm) | – |
| Overall Width (GP Blade) | 139.8 in (3550 mm) | 137.8 in (3500 mm) |
| Overall Width (Universal Blade) | 157.5 in (4000 mm) | – |
| Overall Width (Coal Blade) | 181.1 in (4600 mm) | – |
| Overall Height | 142.1 in (3610 mm) | 122.8 in (3120 mm) |
| Wheelbase | 134.4 in (3415 mm) | 136.2 in (3460 mm) |
| Ground Clearance | 18.1 in (460 mm) | 18.1 in (460 mm) |
GP Blade for ZD3001 / ZD3000 F
| Type | ZD3001 | ZD3000 F |
|---|---|---|
| Blade Width | 139.8 in (3550 mm) | 137.8 in (3500 mm) |
| Blade Height | 52.4 in (1330 mm) | 53.1 in (1350 mm) |
| Max Digging Depth | 16.5 in (420 mm) | 17.7 in (450 mm) |
| Blade Capacity | – | 33 yd3 (30 m3) |
| Performance | – | 353 yd3 (270 m3/h) |
Universal / Coal Blades for ZD3001
| Type | Universal Blade | Coal Blade |
|---|---|---|
| Blade Width | 157.5 in (4000 mm) | 181.1 in (4600 mm) |
| Blade Height | 63.0 in (1600 mm) | 60.2 in (1530 mm) |
| Max Digging Depth | 14.9 in (380 mm) | 17.7 in (450 mm) |
Engine Details
| Number Of Cylinders | 10 |
| Engine Make | Deutz |
| Engine Model | Deutz F 10 L 413 F |
| Displacement | 970 cu in (15.9 L) |
| Net Power | 302 hp (222 kw) |
| Gross Power | 269 hp (198 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 748 lb ft (1015 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Natural |
| Emission Standards | US Tier 2 + EU Stage II |
Operational Specs
| Model | ZD3001 | ZD3000 F |
|---|---|---|
| Operating Weight | 54013 lb (24500 kg) | 51704 lb (23000 kg) |
| Front Axle Load | 25353 lb (11500 kg) | 26976 lb (12000 kg) |
| Rear Axle Load | 28660 lb (13000 kg) | 24728 lb (11000 kg) |
| Rear Axle Oscillation | 7.5 degrees | 6 degrees |
| Steering Angle | 40 degrees | 40 degrees |
| Operating Voltage | 24 V | 24 V |
| Alternator | 55 amps | 55 amps |
| Battery | 2x 12 V, 143 Ah | 2x 12 V, 143 Ah |
| Tire Size | 30/65-25EM 20PR; 30/65-25 16 PR; 26.5 R25 | 30/65-25EM 20PR; 30/65-25 16 PR; 26.5 R25 |
Transmission
| Model | ZD3001 | ZD3000 F |
|---|---|---|
| Transmission Type | Full powershift planetary-type transmission with integral torque converter | Full powershift planetary gear with torque converter |
| Number Of Forward Gears | 4 | 4 |
| Number Of Reverse Gears | 4 | 4 |
| Max Forward Speed | 27.3 mph (44 km/h) | 39 mph (62 km/h) |
| Max Reverse Speed | 27.3 mph (44 km/h) | 39 mph (62 km/h) |
Service Refill Capacities
| Model | ZD3001 | ZD3000 F |
|---|---|---|
| Fuel Tank Capacity | 111 gal (420 L) | 111 gal (420 L) |
| Engine Oil Capacity | 7.4 gal (28 L) | 7.4 gal (28 L) |
| Hydraulic System Capacity w/ Tank | 114.9 gal (435 L) | 79.3 gal (300 L) |
| Hydraulic Tank Capacity | 105.7 gal (400 L) | 70.0 gal (265 L) |
| Axles (both) | 11.5 gal (43.6 L) | 11.5 gal (43.6 L) |
