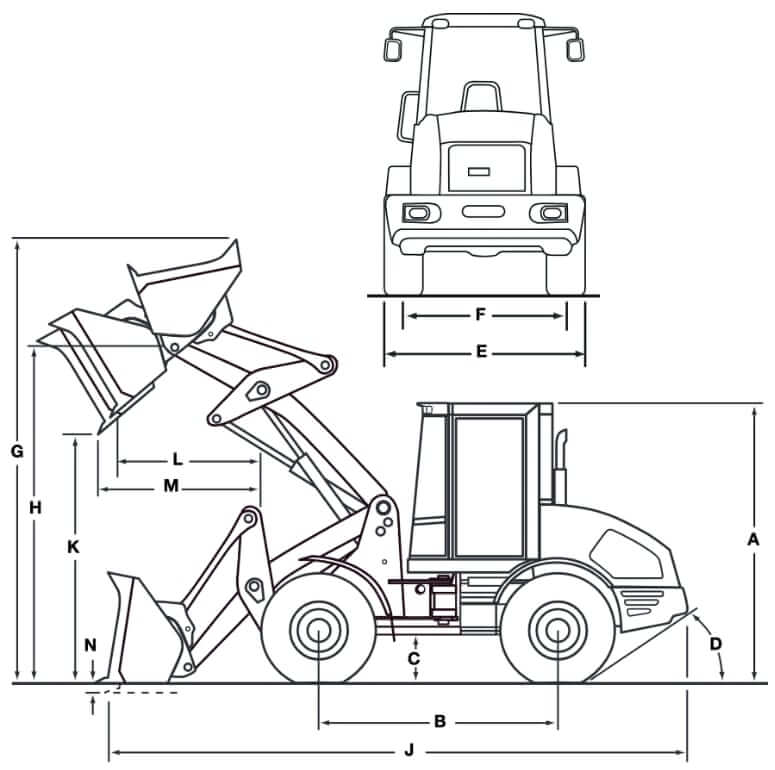

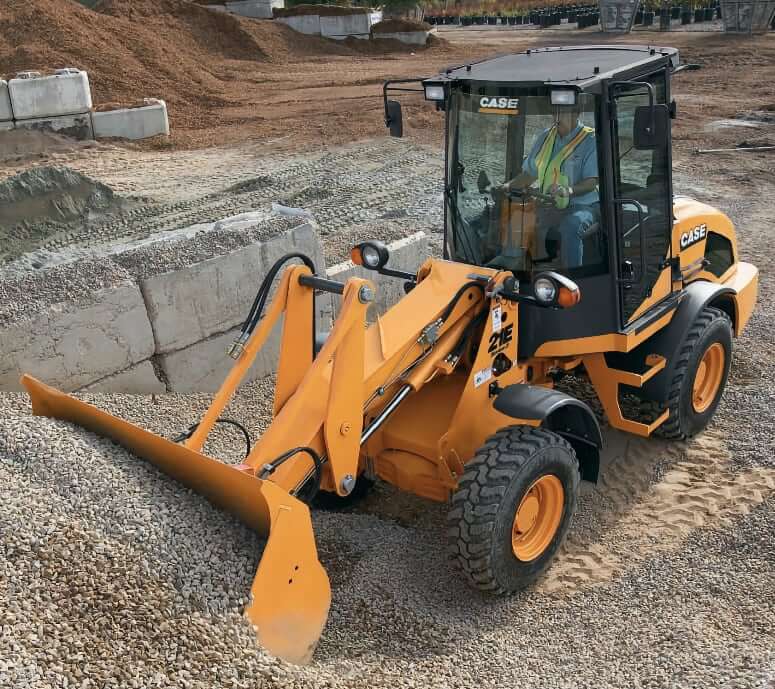

Dimensions
| J. Overall Length With Bucket On Ground | 211.8 in (5380 mm) |
| B. Wheelbase | 85.9 in (2182 mm) |
| E. Overall Width w/o Bucket | 73.1 in (1857 mm) |
| F. Centerline Tread | 58.3 in (1480 mm) |
| Width Over Bucket | 74.8 in (1900 mm) |
| A. Height to Top of Cab | 106.7 in (2711 mm) |
| C. Ground Clearance under Shaft | 16.0 in (415 mm) |
| Ground Clearance under Axles | 13.0 in (330 mm) |
| Turning Radius (outside) | 151.4 in (3847 mm) |
| D. Angle of Departure | 35° |
| Turning Angle (from center) | 41° |
| Turning Angle (total) | 82° |
Bucket
| Type | GP Bucket |
| Bucket Capacity – Heaped | 1.05 yd3 (0.81 m3) |
| Bucket Capacity – Struck | 0.92 yd3 (0.71 m3) |
| Bucket Width | 74.8 in (1900 mm) |
| H. Hinge Pin – Max Height | 127.7 in (3243 mm) |
| G. Operating Height (fully raised w/ spillguard) | 165.6 in (4207 mm) |
| K. Dump Height (fully raised, 45° dump) | 98.2 in (2494 mm) |
| L. Bucket Reach (fully raised, 45° dump) | 33.9 in (860 mm) |
| M. Bucket Reach (7 ft height, 45° dump) | 46.5 in (1182 mm) |
| N. Digging Depth | 3.6 in (92 mm) |
| Operating Load (ISO) | 3228 lb (1464 kg) |
| Tipping Load, Straight (ISO) | 7344 lb (3331 kg) |
| Tipping Load, Straight w/ Counterweight | 7831 lb (3552 kg) |
| Tipping Load, 40° Turn | 6457 lb (2929 kg) |
| Tipping Load, 40° Turn w/ Counterweight | 6944 lb (3116 kg) |
| Breakout Force | 7801 lb (34.7 kN) |
| Loader Clearance Circle | 341.3 in (8669 mm) |
Forks
| Width | 47.2 in (1200 mm) |
| Fork Weight | 816 lb (370 kg) |
| Operating Load – Level Ground | 3619 lb (1642 kg) |
| Tipping load – Straight | 5176 lb (2348 kg) |
| Tipping load – 40° turn | 4524 lb (2052 kg) |
| Fork Load Center | 19.7 in (500 mm) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Case |
| Engine Model | Case 432T/M3 |
| Displacement | 195 cu in (3.2 L) |
| Gross Power | 54 hp (41 kw) |
| Net Power | 50 hp (38 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 163 lb ft (221 Nm) |
| Torque Measured @ | 1400 rpm |
| Air Filter | Dry type element w/warning restriction indicator |
| Fuel Filter | Replaceable, full flow spin-on cartridge |
| Oil Filter | Replaceable, full flow spin-on cartridge |
| Emission Standards | U.S. EPA Tier 3 |
Operational Specs
| Operating Weight | 10173 lb (4615 kg) |
| Operating Weight w/ Counterweight | 10459 lb (4745 kg) |
| Operating Voltage | 12 V |
| Alternator | 55 amps |
| Battery | 12 V, 95 Ah, CCA 900 |
| Loader Attachments | General Purpose Bucket, 4-IN-1 Bucket, Forks |
Transmission
| Transmission Type | Hydrostatic transmission |
| Number Of Gears | 2F x 2R |
| Max Forward Speed (Low/High) | 3.1 mph (5 km/h) / 12.4 mph (20 km/h) |
| Max Reverse Speed (Low/High) | 3.1 mph (5 km/h) / 12.4 mph (20 km/h) |
| Differential | Front limited slip w/45% transfer on front axles |
| Service Brakes | Hydraulically actuated, dry disc w/accumulator to front axle & joint shaft |
| Parking Brake | Mechanical |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 335/80 R18 SPT9; 335/80 R20 VUT |
Hydraulic System
| Pump (Steering / Implement) | Open center pressure/flow compensated |
| Pump Flow Capacity | 13.7 gal/min (52 L/min) @ 2300 rpm |
| Relief Valve Setting | 3625 psi (25000 kPa) |
| Loader Control Valve | Open center, 1 lever loader control w/ forward/neutral/reverse switch, float detent |
| Loader Auxiliary Steering | Hydraulic orbital center-pivot articulating w/ on-demand oil flow |
| Hydraulic Oil Filtration | 15-micron, full flow replaceable cartridges on return line |
| Raise Time | 6 sec |
| Dump Time | 1 sec |
| Lower Time | 3 sec |
Service Refill Capacities
| Fuel Tank Capacity | 26.4 gal (100 L) |
| Engine Oil Fluid Capacity | 2.6 gal (10 L) |
| Hydraulic System Capacity | 14.8 gal (56 L) |
| Front Axle/Diff Fluid Capacity | 2 gal (7.5 L) |
| Rear Axle/Diff Fluid Capacity | 2 gal (7.5 L) |
