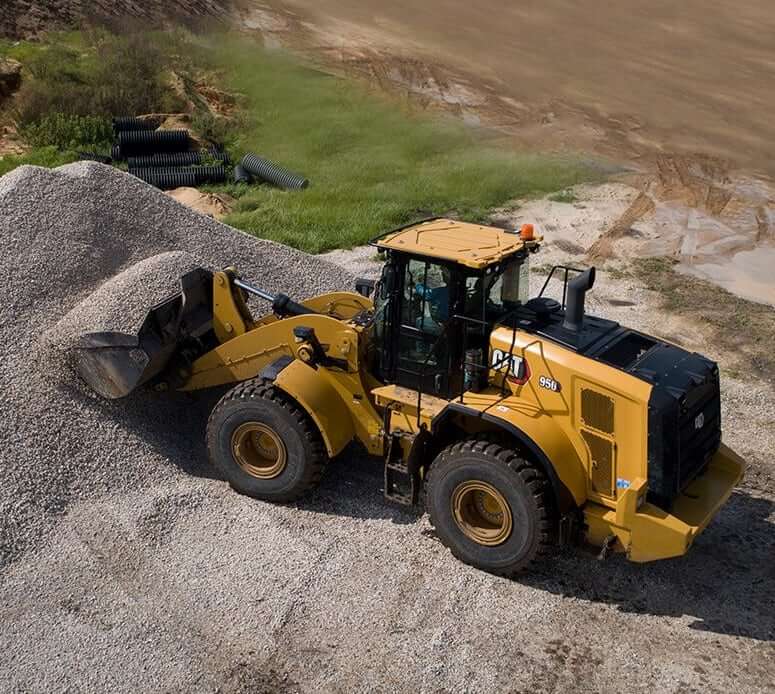

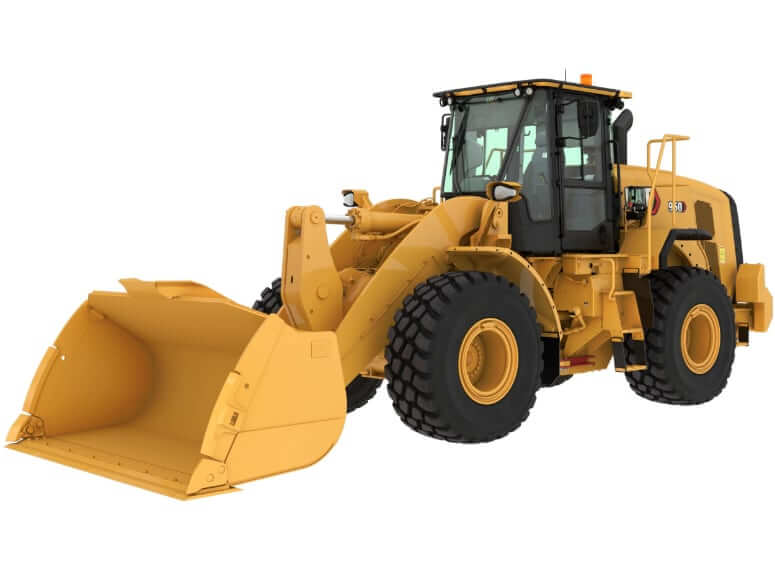

Bucket
| GP Bucket Capacity, Struck | 4.5 yd3 (3.4 m3) |
| GP Bucket Capacity, Heaped | 4.0 yd3 (3.1 m3) |
| Breakout Force | 40690 lbf (181 kN) |
| Bucket Width | 115.2 in (2927 mm) |
| Static Tipping Load, Straight (With tire deflection) | 28640 lb (12991 kg) |
| Static Tipping Load, Straight (No tire deflection) | 30300 lb (13743 kg) |
| Static Tipping Load, Articulated (With tire deflection) | 24693 lb (11200 kg) |
| Static Tipping Load, Articulated (No tire deflection) | 26368 lb (11960 kg) |

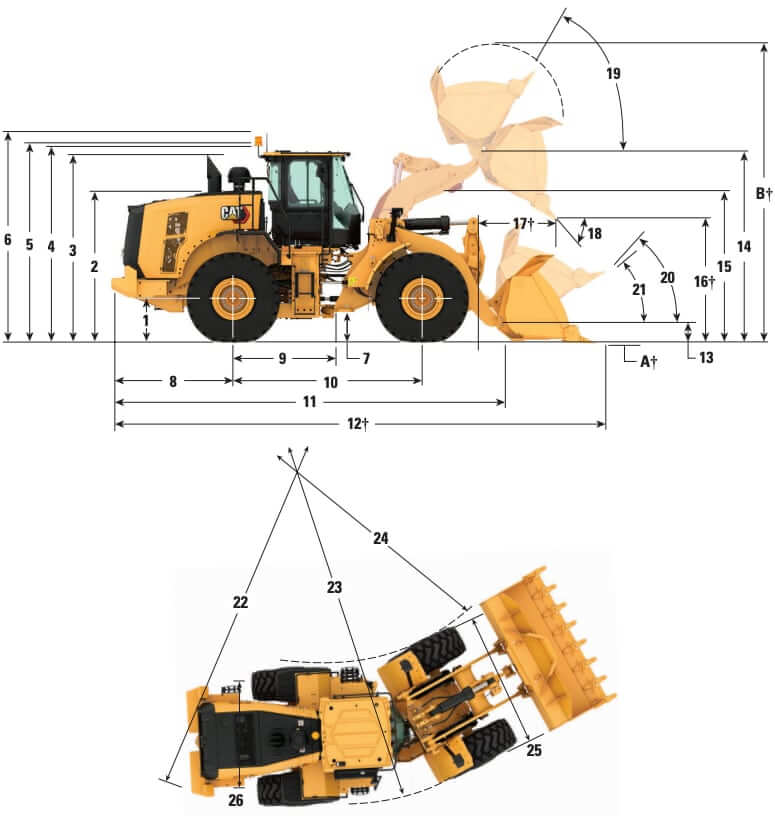

Dimensions
| CAT 950 Linkage | Standard Lift | High Lift |
|---|---|---|
| 1. Height to Axle Centerline | 28.9 in (734 mm) | 28.9 in (734 mm) |
| 2. Height to Top of Hood | 106.1 in (2695 mm) | 106.1 in (2695 mm) |
| 3. Height to Top of Exhaust Pipe | 134.2 in (3408 mm) | 134.2 in (3408 mm) |
| 4. Height to Top of ROPS | 136.1 in (3456 mm) | 136.1 in (3456 mm) |
| 5. Height to Top of Product Link Antenna | 136.3 in (3463 mm) | 136.3 in (3463 mm) |
| 6. Height to Top of Warning Beacon | 147.1 in (3736 mm) | 147 in (3735 mm) |
| 7. Ground Clearance | 14 in (354 mm) | 14 in (354 mm) |
| 8. Centerline of Rear Axle to Edge of Counterweight | 81.2 in (2063 mm) | 81.8 in (2077 mm) |
| 9. Centerline of Rear Axle to Hitch | 66 in (1675 mm) | 66 in (1675 mm) |
| 10. Wheelbase | 132 in (3350 mm) | 132 in (3350 mm) |
| 11. Overall Length (w/o bucket) | 276.5 in (7024 mm) | 294.9 in (7490 mm) |
| 12. Shipping Length (with bucket level on ground) | 327.3 in (8314 mm) | 346.3 in (8795 mm) |
| 13. Hinge Pin Height at Carry Height | 24.5 in (623 mm) | 30.5 in (775 mm) |
| 14. Hinge Pin Height at Maximum Lift | 157.8 in (4009 mm) | 177.7 in (4514 mm) |
| 15. Lift Arm Clearance at Maximum Lift | 128.1 in (3255 mm) | 142.3 in (3615 mm) |
| 16. Dump Clearance at Maximum Lift and 45º Discharge | 112.8 in (2864 mm) | 132.7 in (3370 mm) |
| 17. Reach at Maximum Lift and 45º Discharge | 56.5 in (1436 mm) | 57.9 in (1471 mm) |
| 18. Dump Angle at Maximum Lift and Dump (on stops) | 51° | 48° |
| 19. Rack Back at Maximum Lift | 59° | 56° |
| 20. Rack Back at Carry Height | 49° | 49° |
| 21. Rack Back at Ground | 39° | 43° |
| 22. Clearance Circle (dia) to Counterweight | 474.4 in (12050 mm) | 474.2 in (12044 mm) |
| 23. Clearance Circle (dia) to Outside of Tires | 473.5 in (12028 mm) | 473.5 in (12028 mm) |
| 24. Clearance Circle (dia) to Inside of Tires | 251.2 in (6380 mm) | 251.2 in (6380 mm) |
| 25. Width over Tires (unloaded) | 110.2 in (2800 mm) | 110.2 in (2800 mm) |
| 25. Width over Tires (loaded) | 111.2 in (2824 mm) | 111.2 in (2824 mm) |
| 26 Tread Width | 84.3 in (2140 mm) | 84.3 in (2140 mm) |
| A. Digging Depth | 4 in (102 mm) | 4.1 in (106 mm) |
| B. Overall Height with Bucket at Maximum Lift | 217 in (5513 mm) | 237 in (6018 mm) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Caterpillar |
| Engine Model | Cat 7.1 |
| Displacement | 427.7 cu in (7 L) |
| Bore | 4.1 in (105 mm) |
| Stroke | 5.3 in (135 mm) |
| Gross Power | 257 hp (189.0 kw) |
| Net Power | 235 hp (172.8 kw) |
| Power Measured @ | 2100 rpm |
| Peak Torque | 916 lb ft (1242 Nm) |
| Torque Measured @ | 1300 rpm |
| Aftertreatment | DOC+DPF+SCR |
| Aspiration | Turbocharged and aftercooled |
| Emission Standards | US EPA Tier 4 Final, EU Stage V, Japan 2014, Brazil MAR-1 |
Operational Specs
| Operating Weight | 42461 lb (19260 kg) |
| Operating Voltage | 24 V |
| CAT 950 Working Lights | Halogen, 4 work lights, 2 front roading lights with turn signals, 2 rearview lights |
| Operator Sound Pressure Level | 70 dB(A), ISO 6396:2008 |
| Exterior Sound Power Level | 107 dB(A), ISO 6395:2008 |
| Standard Tire Size | 23.5R25 VJT L3 radial; 23.5X25; 750/65R25 |

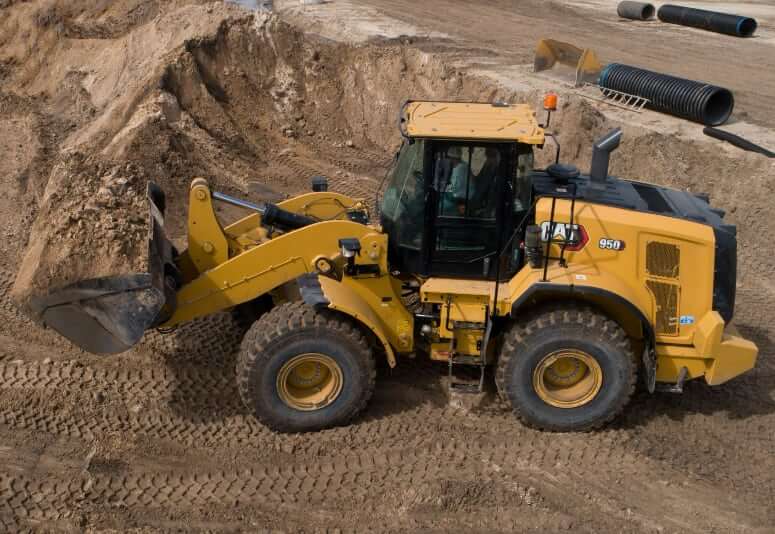

Transmission
| Type | Automatic countershaft powershift transmission with lock-up clutch torque converter |
| Number Of Gears | 5F/3R |
| Max Forward Speed | 24.5 mph (39.5 km/h) |
| Max Reverse Speed | 16.0 mph (25.7 km/h) |
| Service brakes | Hydraulic, fully enclosed wet disc, wear indicators |
| Parking Brake | Caliper on front axles, spring applied–pressure released |
| Differential Lock | Front axle / Front and rear axles auto differential locks (optional) |

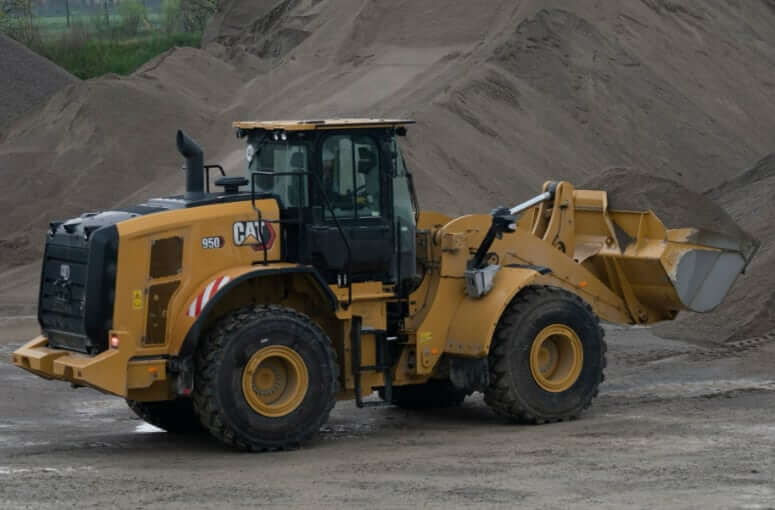

Hydraulic System
| Steering Pump Type | Load sensing with dedicated variable displacement piston pump |
| Implement Pump Type | Load sensing with variable displacement piston pump |
| Max Pump Flow | 85 gal/min (322 L/min) |
| Max Operating Pressure | 4250 psi (29300 kPa) |
| Max 3rd Function Pump Flow at Work Tool | 63 gal/min (240 L/min) |
| Max 3rd Function Operating Pressure at Work Tool | 3000 psi (20684 kPa) |
| Max 4th Function Pump Flow at Work Tool | 63 gal/min (240 L/min) |
| Max 4th Function Operating Pressure at Work Tool | 3000 psi (20684 kPa) |
| Total Hydraulic Cycle Time with Rated Payload | 9.1 sec |
| Raise from Carry Position | 5.1 sec |
| Dump at Maximum Raise | 1.5 sec |
| Lower, Empty, Float Down | 2.5 sec |

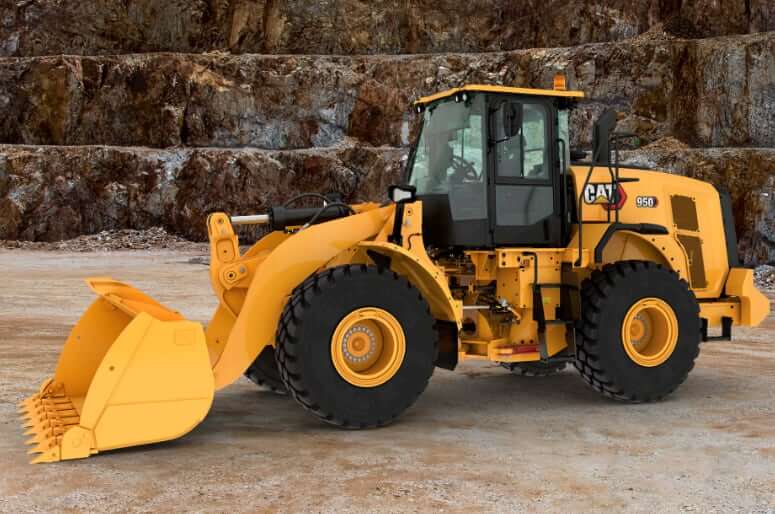

Service Refill Capacities
| Fuel Tank Capacity | 68.6 gal (259.5 L) |
| DEF Tank Capacity | 4.0 gal (15 L) |
| Engine Oil Capacity | 5.5 gal (21 L) |
| Cooling System Capacity | 14.3 gal (54 L) |
| Hydraulic Tank Capacity | 25.6 gal (97 L) |
| Transmission Oil Capacity | 11.4 gal (43 L) |
| Front Differential + Final Drives | 11.4 gal (43 L) |
| Rear Differential + Final Drives | 11.4 gal (43 L) |
CAT 950 Filters
| Engine Air Filter (Primary) | CAT 577-1433 / 577-1438 / 518-1709 / 457-2836 |
| Engine Air Filter (Secondary) | CAT 337-0790 |
| Air Filter Cartridge | CAT 593-1532 / 593-1534 / 472-7939 |
| Air Screen Assembly (Suction) | CAT 4S-8598 |
| DEF Filter | CAT 378-3187 |
| Fuel Filter (Primary) | CAT 523-4987 / 1N-3583 |
| Fuel Filter (Secondary) | CAT 509-5694 |
| Engine Oil Filter | CAT 462-1171 |
| Transmission Oil Filter | CAT 436-3443 |
| Hydraulic Oil Filter | CAT 389-1079 / 436-3443 / 540-7400 |
| Hydraulic Tank Breather Element | CAT 346-8340 |
| Hydraulic Tank Cap Breather | CAT 312-2684 |
| Cab Air Precleaner | CAT 488-3907 |
