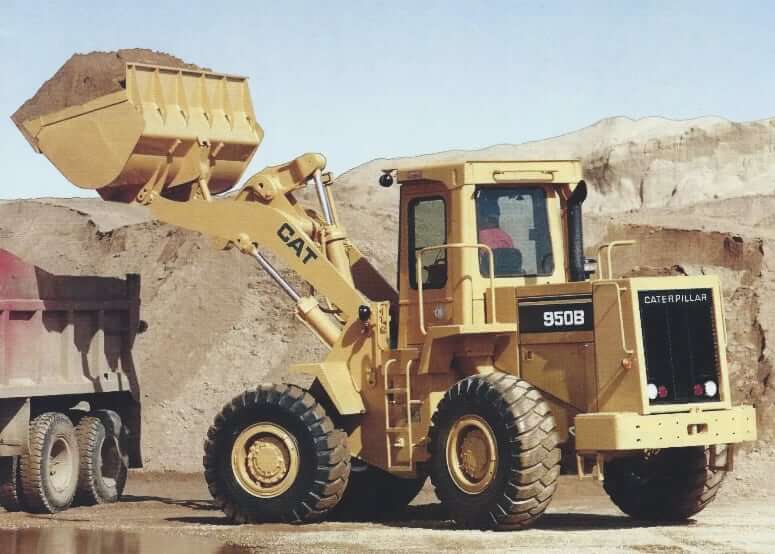

Bucket
| Rated Load | 9300 lb (4200 kg) |
| Bucket Width | 108 in (2744 mm) |
| Bucket Capacity – Heaped | 3.80 yd3 (2.90 m3) |
| Bucket Capacity – Struck | 2.66 yd3 (2.03 m3) |
| Breakout Force | 36194 lbf (164 kN) |
| Dump Clearance At Max Raise | 116.1 in (2950 mm) |
| Hinge Pin – Max Height | 153.5 in (3900 mm) |
| Reach At Max Lift And Dump | 40.9 in (1040 mm) |

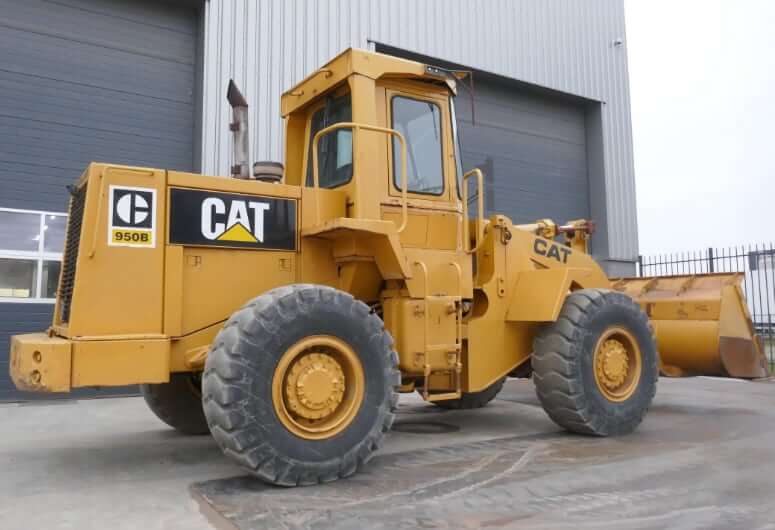

Dimensions
| Length With Bucket On Ground | 285.2 in (7244 mm) |
| Wheelbase | 125.2 in (3180 mm) |
| Width Over Tires | 105.1 in (2670 mm) |
| Height To Top Of Cab | 136.6 in (3470 mm) |
| Ground Clearance | 16.8 in (427 mm) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Caterpillar |
| Engine Model | Cat 3304 T |
| Displacement | 425 cu in (7 L) |
| Bore | 4.75 in (120 mm) |
| Stroke | 6.00 (152 mm) |
| Net Power | 155 hp (117 kw) |
| Power Measured @ | 2200 rpm |
| Torque Rise | 24% |
| Lubrication | Pressure lubrication with full-flow filtered oil and heat exchanger oil cooler |
| Air Cleaner | Dry-type air cleaner with primary and safety elements, and service indicator |
| Aspiration | Turbocharged |
Transmission
| Type | Full powershift transmission provides on the-go shifting |
| Torque Converter | Single-stage, single-phase torque converter |
| Neutral | Separate lever locks the transmission control in neutral |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed – Forward | 22.2 mph (36.4 km/h) |
| Max Speed – Reverse | 24.6 mph (39.7 km/h) |
Operational Specs
| Operating Weight | 32408 lb (14700 kg) |
| Static Tipping Weight | 22840 lb (10360 kg) |
| Operating Voltage | 24 V |
| Rear Axle Oscillation | ±15° |
| Standard Tire Size | 20.5-25. 12PR |
| Turning Radius | 270.5 in (6870 mm) |
| Service Brakes | Caliper discs on all four wheels, airhydraulic actuated Fade-resistant, less affected by weather than drum and shoe brakes. Separate brake circuits for front and rear axles. Two brake pedels: right pedal brakes only; left pedel brakes while neutralizing transmission |
| Parking Brake | Driveline brake, mechanical shoe-type, mounted on the transmission output shaft. Operator apples manually. |
| Secondary Braking System | Uses parking brake. When air pressure drops, an audible warning sounds. Drive line brake then automatically applies to bring machine to a controlled stop: Operatar can also apply manually |
Hydraulic System
| Pump Flow | 64 gal/min (212 L/min) |
| Relief Valve Setting | 2750 psi (19000 kPa) |
| Pilot System | Vane-type pump |
| Pilot System Pump Flow | 5 gal/min (19 L/min) |
| Pilot System Relief Valve Setting | 350 psi (2412 kPa) |
| Cylinders (double acting), Lilt – Bore and Stroke | 6.0 x 29.7 in (152.4 x 751 mm) |
| Cylinders (double acting), Tilt – Bore and Stroke | 7.0 x 21.1 in (177.8 x 536 mm) |
| Total Hydraulic Cycle Time | 11.8 sec |
| Raise Time | 6.6 sec |
| Dump Time | 2.2 sec |
| Lower Time | 3.0 sec |
Service Refill Capacities
| Fuel Tank Capacity | 57.7 gal (222 L) |
| Engine Oil Capacity | 5.7 gal (22 L) |
| Cooling System Capacity | 8.8 gal (34 L) |
| Transmission Oil Capacity (w/ Torque Converter) | 8.4 gal (32 L) |
| Front Differential & Final Drives | 8.6 gal (33 L) |
| Rear Differential & Final Drives | 9.9 gal (38 L) |
| Hydraulic System Capacity | 40.5 gal (153 L) |
| Hydraulic Tank Capacity | 21.6 gal (83 L) |
