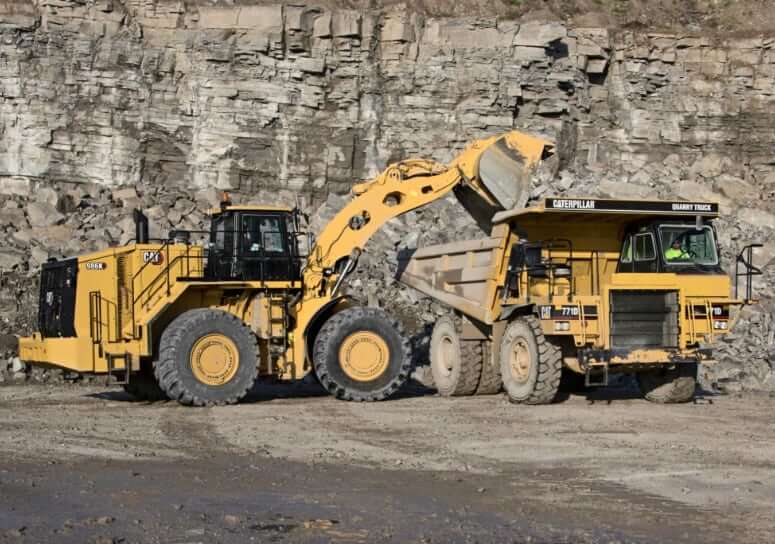

Engine Details
| Net Power | 373 hp (278.2 kw) |
| Displacement | 927 cu in (15.2 L) |
| Torque Rise | 16 % |
| Bore | 5.4 in (137.2 mm) |
| Stroke | 6.8 in (171.5 mm) |
| Emissions | Tier 4 Final/Stage IV, or China Nonroad StageIII and Brazil MAR-1 equivalent to Tier 3 andStage IIIA |
| Engine Model | Cat C15 ACERT |
| Gross Power – Iso 14396 | 449 hp (334.9 kw) |
| Peak Torque – 1,200 Rpm – Sae J1995 | 1778 lb ft (2410.7 Nm) |
| Peak Power Speed – 1,600 Rpm – Sae J1995 (Din) | 462 hp (344.6 kw) |
| Peak Power Speed – 1,600 Rpm – Iso 14396 | 449 hp (334.9 kw) |
| Peak Power Speed – 1,600 Rpm – Iso 14396 (Din) | 455 hp (339.3 kw) |
| Rated Speed – 2,000 Rpm – Eec 80/1269 | 373 hp (278.2 kw) |
| Rated Speed – 2,000 Rpm – Eec 80/1269 (Din) | 378 hp (281.9 kw) |
| Rated Speed – 2,000 Rpm – Iso 9249 | 373 hp (278.2 kw) |
| Rated Speed – 2,000 Rpm – Iso 9249 (Din) | 378 hp (281.9 kw) |
| Rated Speed – 2,000 Rpm – Sae J1349 | 373 hp (278.2 kw) |
| Rated Speed – 2,000 Rpm – Sae J1349 (Din) | 378 hp (281.9 kw) |
| Peak Power Speed – 1,600 Rpm – Sae J1995 | 456 hp (340.1 kw) |
Operational Specs
| Operating Weight | 98806 lb (44817.7 kg) |
Transmission
| Transmission Type | Cat Planetary Power Shift |
| Forward – 1 | 5 mph (8.1 km/h) |
| Forward – 2 | 8 mph (12.9 km/h) |
| Reverse – 1 | 5 mph (8.1 km/h) |
| Reverse – 2 | 8 mph (12.9 km/h) |
| Direct Drive – Forward 3 | 14 mph (22.6 km/h) |
| Direct Drive – Reverse 3 | 16 mph (25.8 km/h) |
| Direct Drive – Forward 4 | 24 mph (38.7 km/h) |
| Direct Drive – Forward 2 | 8 mph (12.9 km/h) |
| Direct Drive – Reverse 2 | 9 mph (14.5 km/h) |
| Direct Drive – Reverse 4 | 25.4 mph (40.9 km/h) |
Buckets
| Bucket Capacities | 5-10.3 m (6.5-13.5 yd) |
Axles
| Front | Fixed |
| Rear | Trunnion |
| Oscillation Angle | 12.5 degrees |
| Oscillation Angle – Chain Arrangement | 8.5 degrees |
Brakes
| Brakes | ISO 3450:2011 |
Operating Specifications
| Bucket Capacity Range | 5-10.3 m (6.5-13.5 yd) |
| Cat Truck Match – Standard | 770/735/740/745 |
| Cat Truck Match – High Lift | 772/773 |
| Rated Payload – Quarry Face | 22000 lb (9979.1 kg) |
| Rated Payload – Loose Material (Standard) | 28000 lb (12700.6 kg) |
| Rated Payload – Loose Material (High Lift) | 24200 lb (10977 kg) |
| Rated Payload – Standard (Quarry Face) | 22000 lb (9979.1 kg) |
| Rated Payload – Standard (Loose Material) | 28000 lb (12700.6 kg) |
| Rated Payload – High Lift (Quarry Face) | 22000 lb (9979.1 kg) |
| Rated Payload – High Lift (Loose Material) | 24200 lb (10977 kg) |
| Operating Weight – Standard | 97785 lb (44354.6 kg) |
| Operating Weight – High Lift | 104005 lb (47175.9 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 141 gal (533.8 L) |
| Crankcase | 9 gal (34.1 L) |
| Transmission | 20 gal (75.8 L) |
| Hydraulic System Factory Fill | 87 gal (329.4 L) |
| Hydraulic System – Tank Only | 34 gal (128.8 L) |
| Cooling Systems | 26 gal (98.5 L) |
| Diesel Exhaust Fluid Tank (For Tier 4 Final/Stage Iv Only) | 6 gal (22.8 L) |
| Axle Oil – Differentials And Final Drives – Front | 49 gal (185.5 L) |
| Axle Oil – Differentials And Final Drives – Rear | 45 gal (170.4 L) |
| Fuel Tank – Short Lift | 127 gal (480.8 L) |
Hydraulic Cycle Times
| Raise | 9 s |
| Dump | 3.5 s |
| Lower Float Down | 4.3 s |
| Rack Back | 4.5 s |
| Lower | 5.2 s |
| Total Hydraulic Cycle Time | 21.3 s |
Hydraulic System – Lift/Tilt
| Lift/Tilt System – Circuit | Load Sense |
| Lift/Tilt System – Pump | 2 110 cc variable displacement |
| Relief Valve Setting – Lift/Tilt | 4050 psi |
| Maximum Flow At 2,165 Rpm | 123 gal/min |
| Tilt Cylinder – Stroke | 28.4 in (721.4 mm) |
| Lift Cylinder – Bore | 7.5 in (190.5 mm) |
| Lift Cylinder – Stroke | 45 in (1143 mm) |
| Tilt Cylinder – Bore | 6.7 in (170.2 mm) |
Hydraulic System – Steering
| Iso 5010:2007 – Steering System – Circuit | Load Sense |
| Iso 5010:2007 – Steering System – Pump | Piston, variable displacement |
| Iso 5010:2007 – Total Steering Angle | 70 degrees |
| Iso 5010:2007 – Maximum Flow At 1,400 Rpm | 52 gal/min |
| Iso 5010:2007 – Steering Cutoff Pressure | 4000 psi |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes. |
Operator’S Cab
| ROPS/FOPS | ROPS/FOPS meet ISO 3471:2008 (ROPS) and ISO 3449:2005 Level II (FOPS) |
Sound Performance – Standard
| Note |
|
| Operator Sound Level (Iso 6396) | 72 dB(A) |
| Machine Sound Level (Iso 6395) | 112 dB(A) |
Sound Performance – Suppression
| Note |
|
| Operator Sound Level (Iso 6396) | 72 dB(A) |
| Machine Sound Level (Iso 6395) | 110 dB(A) |
Dimensions (Approximate) – High Lift Linkage
| Ground To Top Of ROPS | 13.5 ft in (4.2 m) |
| Ground To Top Of Exhaust Stacks | 13.3 ft in (4.1 m) |
| Ground To Top Of Hood | 10.7 ft in (3.3 m) |
| Ground To Center Of Front Axle | 3.2 ft in (1 m) |
| Ground To Fuel Tank Clearance | 2.3 ft in (0.8 m) |
| Ground To Lower Hitch Clearance | 1.5 ft in (0.5 m) |
| Reach – Maximum Lift | 7.4 ft in (2.3 m) |
| Clearance At Maximum Lift | 11.6 ft in (3.6 m) |
| B-Pin Height – Maximum Lift | 17.6 ft in (5.4 m) |
| Maximum Overall Height – Bucket Raised | 23.9 ft in (7.3 m) |
| Rear Axle – Centerline To Bumper | 10.3 ft in (3.2 m) |
| Wheel Base | 12.5 ft in (3.9 m) |
| Maximum Overall Length | 38 ft in (11.6 m) |
| Front Axle Centerline To Bucket Tip | 15.3 ft in (4.7 m) |
| Note |
|
Dimensions (Approximate) – Standard Lift Linkage
| Ground To Top Of ROPS | 13.5 ft in (4.2 m) |
| Ground To Top Of Exhaust Stacks | 13.3 ft in (4.1 m) |
| Ground To Top Of Hood | 10.7 ft in (3.3 m) |
| Ground To Center Of Front Axle | 3.2 ft in (1 m) |
| Ground To Fuel Tank Clearance | 2.3 ft in (0.8 m) |
| Ground To Lower Hitch Clearance | 1.5 ft in (0.5 m) |
| Reach – Maximum Lift | 7.1 ft in (2.2 m) |
| Clearance At Maximum Lift | 10.1 ft in (3.1 m) |
| B-Pin Height – Maximum Lift | 16.1 ft in (5 m) |
| Maximum Overall Height – Bucket Raised | 22.4 ft in (6.9 m) |
| Rear Axle – Centerline To Bumper | 10.3 ft in (3.2 m) |
| Wheel Base | 12.5 ft in (3.9 m) |
| Maximum Overall Length | 36.6 ft in (11.2 m) |
| Front Axle Centerline To Bucket Tip | 13.8 ft in (4.3 m) |
| Note |
|
