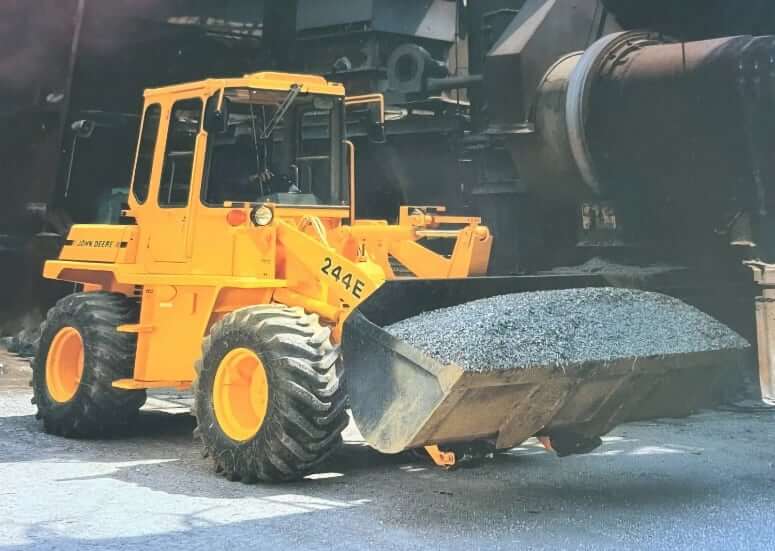

Buckets
| Type | GP Bucket | Light Material | Multipurpose |
|---|---|---|---|
| Bucket Capacity, Heaped | 1.0 yd3 (0.77 m3) | 1.3 yd3 (1.00 m3) | 0.78 yd3 (0.6 m3) |
| Bucket Capacity, Struck | 0.9 yd3 (0.7 m3) | 1.17 yd3 (0.9 m3) | 0.67 yd3 (0.51 m3) |
| Bucket Width | 78.4 in (1999 mm) | 78.4 in (1999 mm) | 78.4 in (1999 mm) |
| Breakout Force | 10141 lb (45.1 kN) | 8666 lb (38.5 kN) | 10141 lb (45.1 kN) |
| Tipping Load, Straight | 8930 lb (4050 kg) | 8864 lb (4020 kg) | 8192 lb (3715 kg) |
| G. Dump Clearance, 45°, Dump, Full Height | 100.6 in (2555 mm) | 97.2 in (2470 mm) | 100.8 in (2560 mm) |
| H. Reach Bucket, 45°, Dump, Full Height | 33.3 in (845 mm) | 36.6 in (930 mm) | 33.3 in (845 mm) |

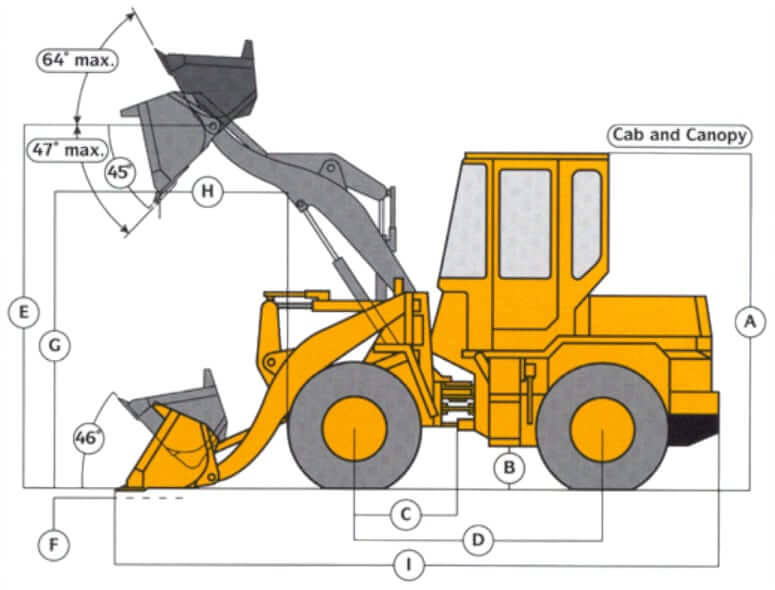

Dimensions
| A. Height to Top of Cab and Canopy | 115.6 in (2935 mm) |
| B. Ground Clearance | 13 in (330 mm) |
| C. Length from Centerline to Front Axle | 43.3 in (1100 mm) |
| D. Wheelbase | 86.6 in (2200 mm) |
| E. Height to Hinge Pin (Fully Raised) | 124.4 in (3160 mm) |
| F. Digging Depth | 1 in (27 mm) |
| G. Dump Clearance, 45°, Dump, Full Height | 100.6 in (2555 mm) |
| H. Reach Bucket, 45°, Dump, Full Height | 33.3 in (845 mm) |
| I. Overall Length | 195 in (4950 mm) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 4TN100 |
| Displacement | 211 cu in (3.5 L) |
| Gross Power | 59 hp (44 kw) |
| Net Power | 55 hp (41 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 182 lb ft (247 Nm) |
| Torque Measured @ | 1300 rpm |
| Torque Rise | 39% |
| Aspiration | Natural |
Operational Specs
| Operating Weight | 11746 lb (5328 kg) |
| Max Operating Weight (w/ Multipurpose Bucket) | 12205 lb (5535 kg) |
| Max Lift Capacity at Max Height | 7130 lg (3255 kg) |
| Max Lift Capacity at Groung Level | 9560 lb (4336 kg) |
| Operating Voltage | 24 V |
| Alternator | 25 amps |
| Battery | 2x 12 V |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 17.5/65-20 |
Transmission
| Type | A two-speed (Hi-Lo) power shift transmission with HST (variable speed drive) |
| Max Travel Speed (Low) | 6.2 mph (10 km/h) |
| Max Travel Speed (High) | 20 mph (32.2 km/h) |
| Service Brakes | Hydraulic wet disk brakes (self-adjusting, self-equalizing) |
| Parking Brake | Mounted on the transmission output shaft is hand-operated and has a warning light. |
| Rear Axle Oscillation | 11 degrees |
| Turning Radius | 12.5 ft in (3786 mm) |
Hydraulic System
| Pump Type | Gear |
| Pump Flow Capacity | 20.6 gal/min (78 L/min) |
| Loader Relief Valve Setting | 2990 psi (20784 kPa) |
| Steering Relief Valve Setting | 1990 psi (13832 kPa) |
| Raise Time | 4.7 sec |
| Dump Time | 0.9 sec |
| Lower Time | 3.8 sec |
Service Refill Capacities
| Fuel Tank Capacity | 18.5 gal (70.1 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60.2 L) |
| Engine Oil Fluid Capacity | 3.4 gal (12.7 L) |
| Cooling System Fluid Capacity | 3.5 gal (13.2 L) |
| Transmission Fluid Capacity | 2.7 gal (10 L) |
| Front Axle/Diff Fluid Capacity | 2.6 gal (9.5 L) |
| Rear Axle/Diff Fluid Capacity | 2.6 gal (9.5 L) |
