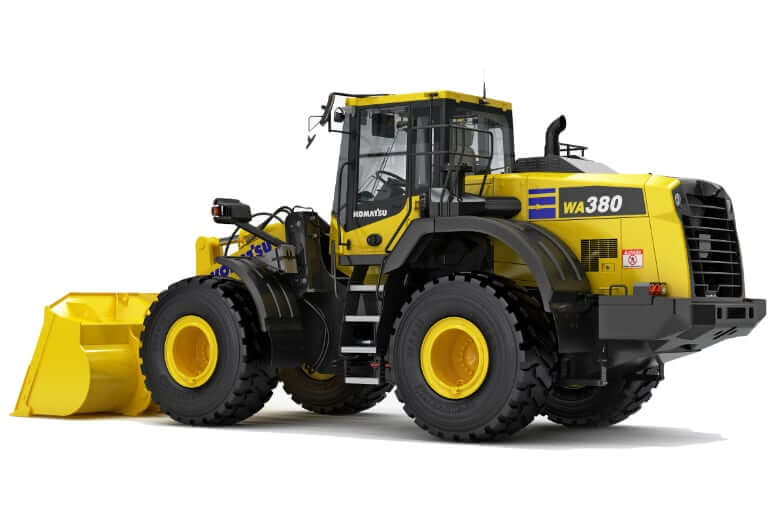

Bucket
| Bucket Capacity, Heaped |
4.32 yd3 (3.3 m3) |
| Bucket Capacity, Struck |
3.8 yd3 (2.9 m3) |
| Bucket Width (B.O.C.E.) |
114.4 in (2905 mm) |
| Bucket Weight (B.O.C.E.) |
3549 lb (1610 kg) |
| Static Tipping Load: straight |
34039 lb (15440 kg) |
| Static Tipping Load: 40° full turn |
29630 lb (13440 kg) |
| Breakout Force |
35494 lbf (158 kN) |
| Digging Depth: 0° |
2.36 in (60 mm) |
| Digging Depth: 10° |
11.4 in (290 mm) |
*Loader Clearance Circle (bucket at carry outside corner of bucket) – 568.5 in (14440 mm)

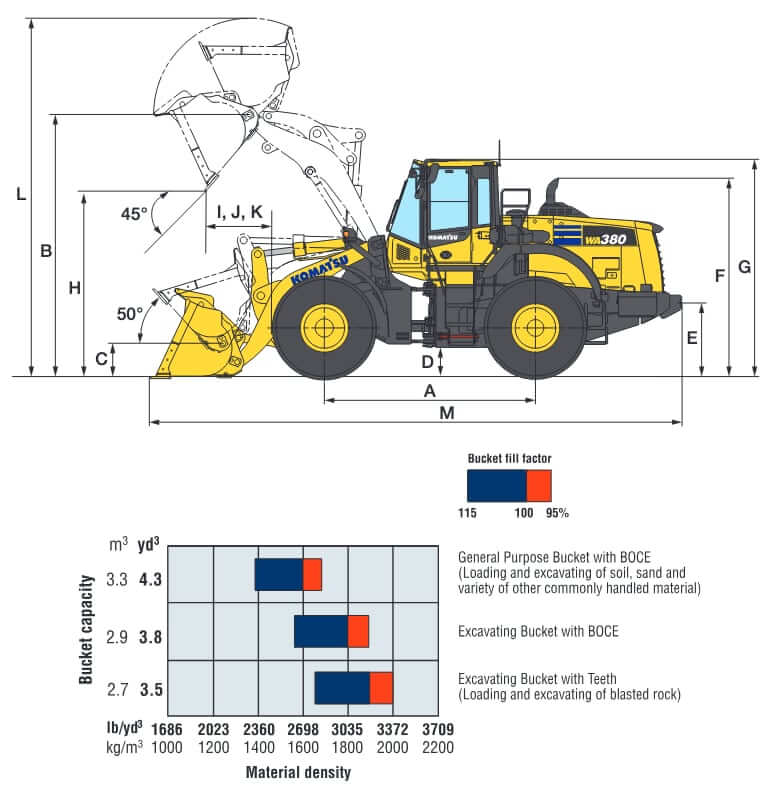

Dimensions
| A. Wheelbase |
130 in (3300 mm) |
| B. Hinge Pin, Max Height, Standard Boom |
161.2 in (4095 mm) |
| B. Hinge Pin, Max Height, High Lift Boom |
182.1 in (4625 mm) |
| C. Hinge Pin, Carry Position, Standard Boom |
20.5 in (520 mm) |
| C. Hinge Pin, Carry Position, High Lift Boom |
26.8 in (680 mm) |
| D. Ground Clearance |
17.9 in (455 mm) |
| E. Hitch Height |
45.3 in (1150 mm) |
| F. Overall Height, Top of the Stack |
122 in (3100 mm) |
| G. Height To Top Of Cab |
133.5 in (3390 mm) |
| H. Dump Clearance at Max Raise and 45° Dump Angle |
116.1 in (2950 mm) |
| I. Reach at Max Height and 45° Dump Angle |
45.3 in (1150 mm) |
| J. Reach at 7 ft (2130 mm) Clearance |
68.3 in (1735 mm) |
| K. Reach with Arm Horizontal and Bucket Level |
102 in (2590 mm) |
| L. Operating height (fully raised) |
220.5 in (5600 mm) |
| M. Overall length (bucket on ground) |
327.2 in (8310 mm) |
| Tread |
85 in (2160 mm) |
| Width Over Tires |
109.4 in (2780 mm) |
Engine Details
| Number Of Cylinders |
6 |
| Engine Make |
Komatsu |
| Engine Model |
Komatsu SAA6D107E-3 |
| Displacement |
408.3 cu in (6.7 L) |
| Bore |
4.3 in (107 mm) |
| Stroke |
4.9 in (124 mm) |
| Net Power |
191 hp (142.5 kw) |
| Gross Power |
192 hp (143.2 kw) |
| Power Measured @ |
2100 rpm |
| Governor |
All-speed, electronic |
| Fan Drive |
Hydraulic fan drive for radiator cooling |
| Fuel System |
Direct injection |
| Lubrication System |
Gear pump, force-lubrication |
| Engine Oil Filter |
Full-flow type filter |
| Air Cleaner |
Dry type with double elements and dust evacuator, plus dust indicator |
| Aspiration |
Turbocharged and aftercooled |
| Emission Standards |
US EPA Tier 4F, EU Stage V |
Operational Specs
| Operating Weight (Standard Boom, GP Bucket Pin On) |
40686 lb (18455 kg) |
| Max Operating Weight (High Lift Boom, GP Bucket Pin On) |
41932 lb (19020 kg) |
| Counterweight (Additional) |
716 lb (325 kg) |
| Bucket Positioner |
In-cab adjustable, 3 positions |
| Operating Voltage |
24 V |
| Alternator |
90 amps |
| Battery |
2x 12 V, 140 Ah, CCA 1050 |
| Cab |
ROPS/FOPS Cab Level 2 |
| EMMS |
Equipment Management Monitoring System Lights (central warning, brake oil pressure, engine oil pressure, parking brake, cooling fan reverse, KDPF restriction, seat belt caution, Komtrax message) |
| Working Lights |
2 halogen, front cab mount; 2 halogen, front fender mount; 2 halogen, rear grill mount |
| Tire Size |
23.5-25 |
Transmission
| Type |
Automatic, full-powershift, counter-shaft type transmission |
| Torque Converter |
3-elements, 1-stage, 2-phase |
| Number Of Forward Gears |
4 |
| Number Of Reverse Gears |
4 |
| Max Travel Speed (P-mode), Forward / Reverse |
22.4 mph (36.1 km/h) / 24.0 mph (38.6 km/h) |
| Max Travel Speed (Lock-up clutch ON), Forward / Reverse |
23.3 mph (37.5 km/h) / 23.3 mph (37.5 km/h) |
Axles, Final Drives & Brakes
| Drive |
Four-wheel drive |
| Front Axle |
Fixed, semi-floating |
| Rear Axle |
Center-pin support, semi-floating |
| Rear Axle Oscillation |
±13° |
| Reduction Gear |
Spiral bevel gear |
| Differential Gear |
Conventional type |
| Final Reduction Gear |
Planetary gear, single reduction |
| Service Brakes |
Hydraulically actuated, wet disc brakes actuate on four wheels |
| Parking Brake |
Wet disc brake |
| Emergency Brake |
Parking brake is commonly used |
Steering System
| Type |
Articulated type, fully-hydraulic power steering |
| Steering Angle |
35° (40° to max end stop) |
| Steering Pump Type |
Piston pump |
| Steering Relief Valve Pressure |
3555 psi (24500 kPa) |
| Steering Pump Flow Capacity |
36.2 gal/min (137 L/min) |
| Turning Radius at the Center of Outside Tire |
248.8 in (6320 mm) |
Hydraulic System
| Pump Type |
Piston pump |
| Relief Valve Pressure |
4550 psi (31400 kPa) |
| Pump Flow Capacity |
54.15 gal/min (205 L/min) |
| Boom Control Positions |
Raise, hold, lower, and float |
| Bucket Control positions |
Tilt-back, hold, and dump |
| Raise Time |
5.9 sec |
| Dump Time |
1.8 sec |
| Lower Time |
3.3 sec |
Service Refill Capacities
| Fuel Tank Capacity |
79.3 gal (300 L) |
| DEF Tank Capacity |
9.5 gal (36 L) |
| Engine Oil Capacity |
6.1 gal (23 L) |
| Cooling System Capacity |
16 gal (60.6 L) |
| Hydraulic System Capacity |
37.5 gal (142 L) |
| Transmission + Torque Converter |
14.3 gal (54 L) |
| Front Axle / Diff Fluid Capacity |
10.6 gal (40 L) |
| Rear Axle / Diff Fluid Capacity |
10.6 gal (40 L) |
