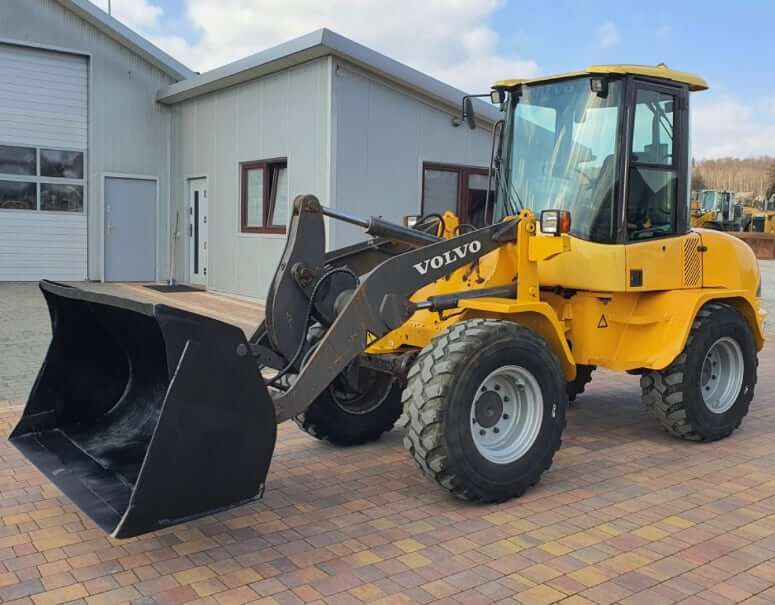

Bucket
| GP Bucket Capacity, Heaped | 1.37 yd3 (1.05 m3) |
| GP Bucket Width | 78.7 in (2000 mm) |
| Breakout Force | 12634 lbf (55 kN) |
| Dump Clearance At Max Raise | 104 in (2640 mm) |
| Reach At Max Lift And Dump | 29.5 in (750 mm) |
| Max Reach | 61.8 in (1570 mm) |
| Hinge Pin – Max Height | 130.5 in (3315 mm) |
| Max Overall Height | 168.1 in (4270 mm) |

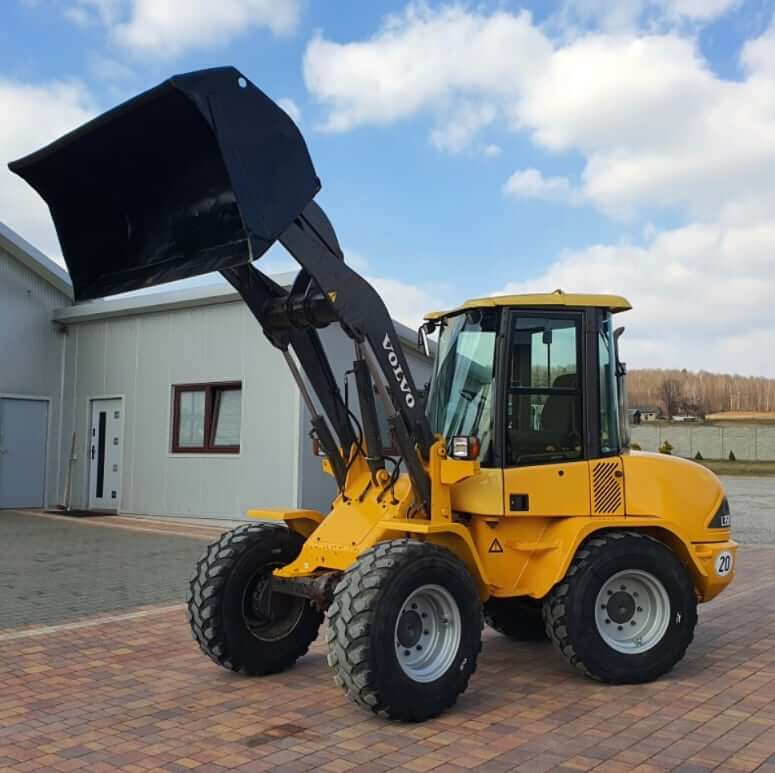

Dimensions
| Length With Bucket On Ground | 208.7 in (5300 mm) |
| Width Over Tires | 76 in (1932 mm) |
| Height To Top Of Cab | 106.9 in (2715 mm) |
| Ground Clearance | 17.5 in (445 mm) |
| Wheelbase | 84.6 in (2150 mm) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Volvo |
| Engine Model | Volvo D3D CEE2 |
| Displacement | 189.8 cu in (3.11 L) |
| Bore | 3.7 in (94 mm) |
| Stroke | 4.4 in (112 mm) |
| Net Power | 75 hp (56 kw) |
| Gross Power | 77 hp (57.5 kw) |
| Power Measured @ | 2600 rpm |
| Max Torque | 177.8 lb ft (241 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbocharged |

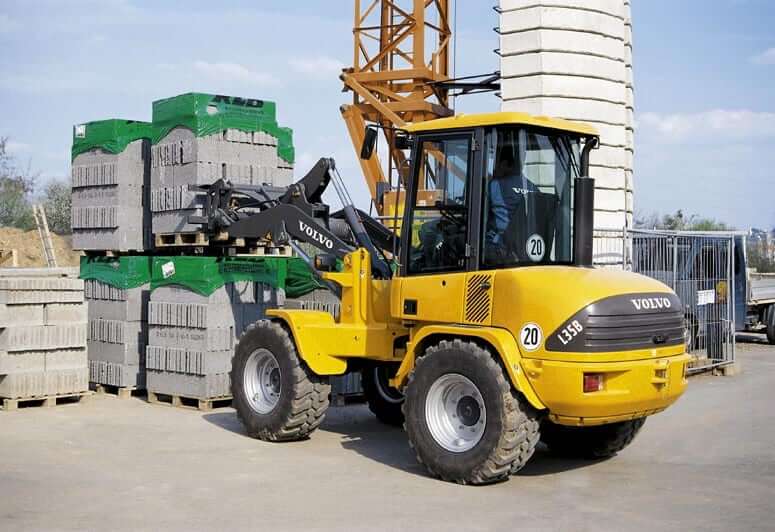

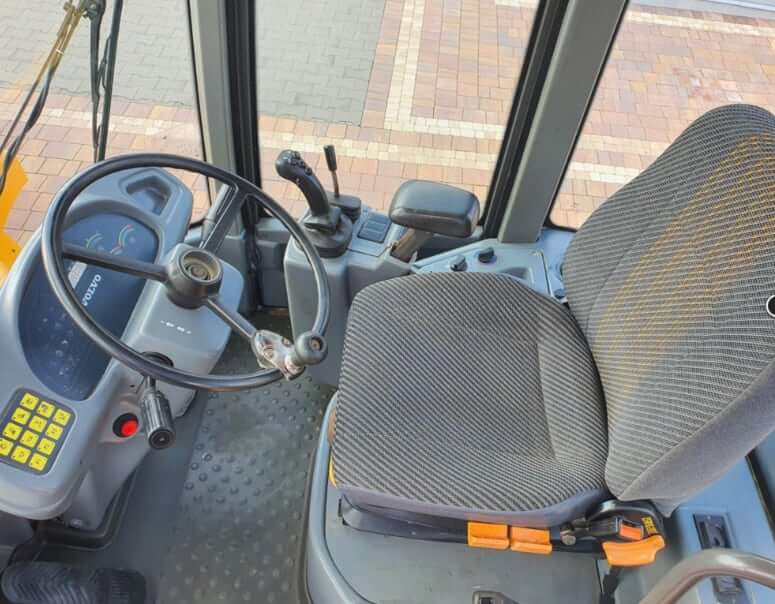

Operational Specs
| Operating Weight (Z-bar linkage) | 13007 lb (5900 kg) |
| Operating Weight (TPZ-bar linkage) | 13448 lb (6100 kg) |
| Operating Weight (TPV-bar linkage) | 13669 lb (6200 kg) |
| Static Tipping Load (Z-bar linkage) | 9810 lb (4450 kg) |
| Static Tipping Load (TPZ-bar linkage) | 9259 lb (4200 kg) |
| Static Tipping Load (TPV-bar linkage) | 8929 lb (4050 kg) |
| Operating Voltage | 12 V |
| Alternator | 80 amps |
| Battery | 12 V, 88 Ah |
| Starter | 2.95 hp (2.2 kw) |
| Turning Radius | 171 in (4335 mm) |
| Rear Axle Oscillation | ±10° |
| Articulation Angle | ±40° |
| Tire Size | 405/70 R20 |
Transmission
| Transmission Type | Hydrostatic transmission, full power shift under load, both when changing direction and between ranges |
| Number Of Range | 2 |
| Max Travel Speed, 1st range (Standard) | 3.7 mph (6 km/h) |
| Max Travel Speed, 2nd range (Standard) | 12.4 mph (20 km/h) |
| Max Travel Speed, 1st range (High Speed) | 4.9 mph (8 km/h) |
| Max Travel Speed, 2nd range (High Speed) | 18.67 mph (30 km/h) |
| Service Brakes | Reliable dual braking system, acting upon all four wheels |
| Parking Brake | Central drum brake, acting upon all four wheels |
Hydraulic System
| Pump Type | Gear type |
| Main Pump Flow Capacity | 19.3 gal/min (73 L/min) |
| Main Relief Valve Setting | 3336 psi (23000 kPa) |
| Filtration | Combined suction and return-filtration cartridge with a 10 μm filter |
| Steering Pump Flow Capacity | 7.7 gal/min (29 L/min) |
| Steering Relief Valve Setting | 2683 psi (18500 kPa) |
| Raise Time (loaded) | 5.5 sec |
| Lower Time (empty) | 3.5 sec |
| Dump Time | 1.2 sec |

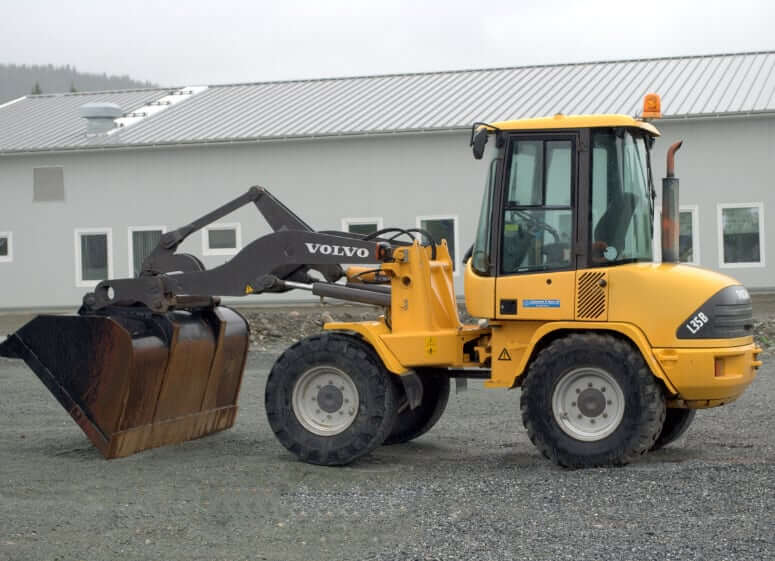

Service Refill Capacities
| Fuel Tank Capacity | 22.8 gal (86 L) |
| Engine Oil Capacity | 2.8 gal (10.5 L) |
| Cooling System Capacity | 2.8 gal (10.5 L) |
| Hydraulic System Capacity (w/ Tank) | 17.2 gal (65 L) |
| Front Axle/Diff Fluid Capacity | 3 gal (11 L) |
| Rear Axle/Diff Fluid Capacity | 3.2 gal (12 L) |
Volvo L35B Filters
| Primary Air Filter | 2903849 |
| Secondary Air Filter | 2903850 |
| Breather | 4361204 |
| Primary Fuel Cartridge | 2905298 |
| Spin-on Primary Fuel Cartridge | 2905303 |
| Hydraulic Oil | 2906601 |
| Oil Filter | 11715272 |
| Oil Filter | 2904941 |
